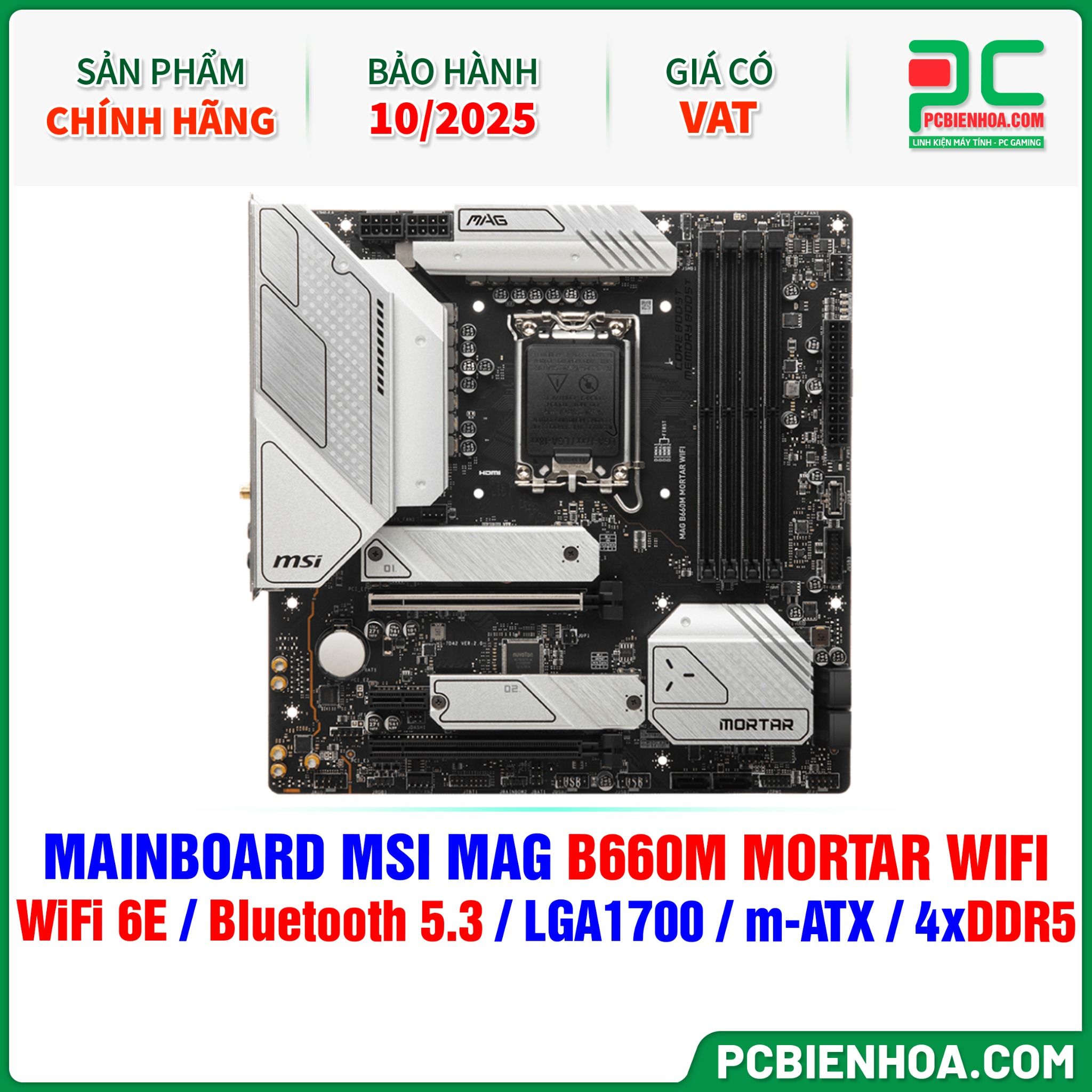

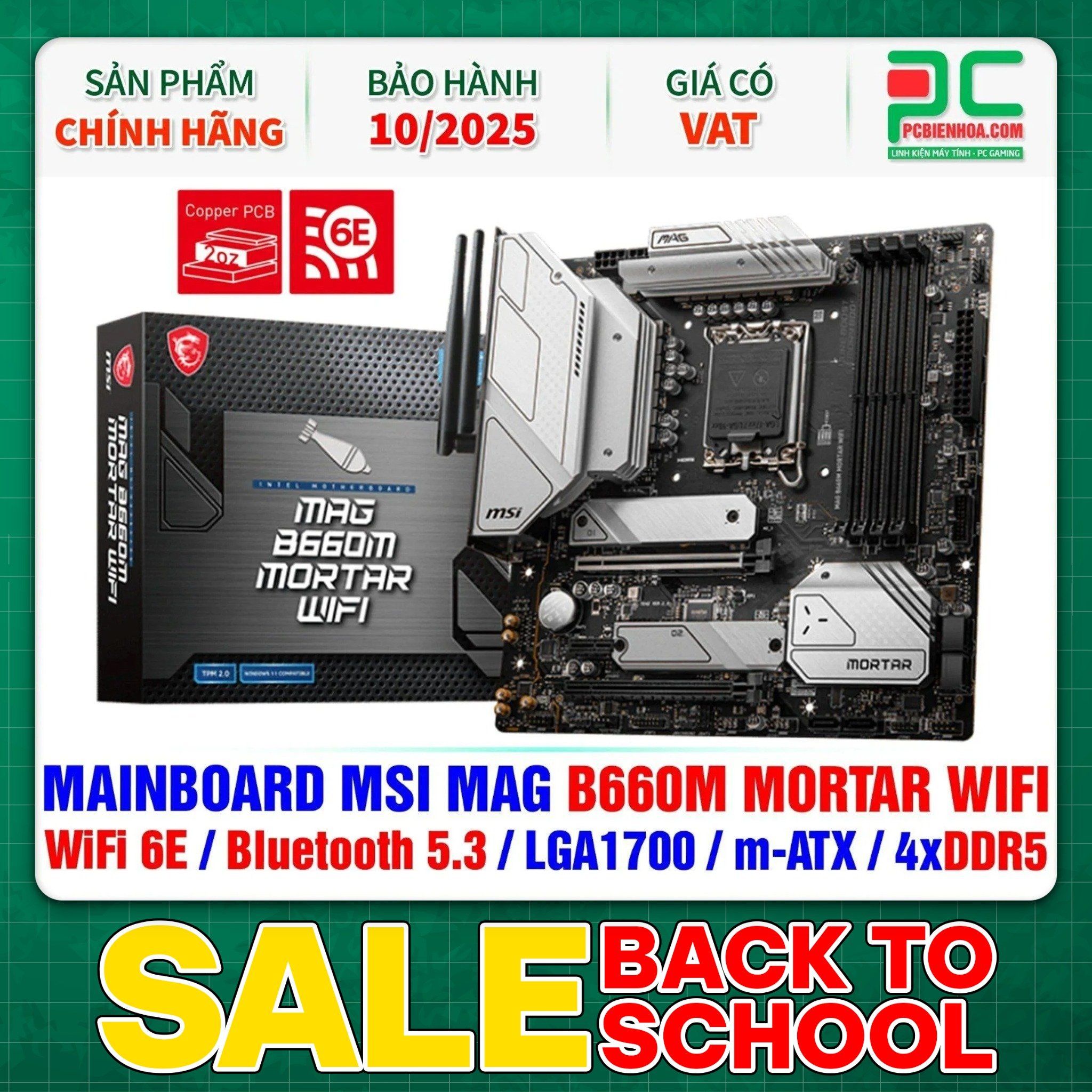

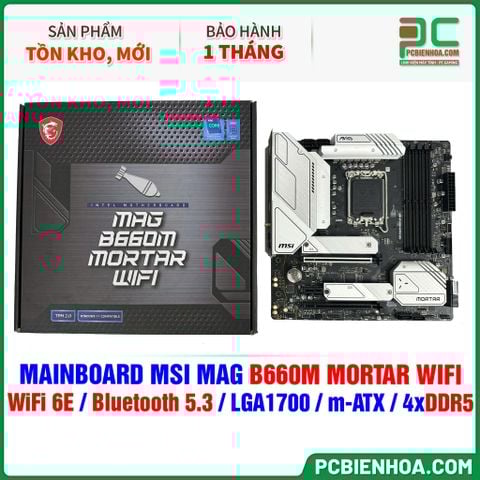

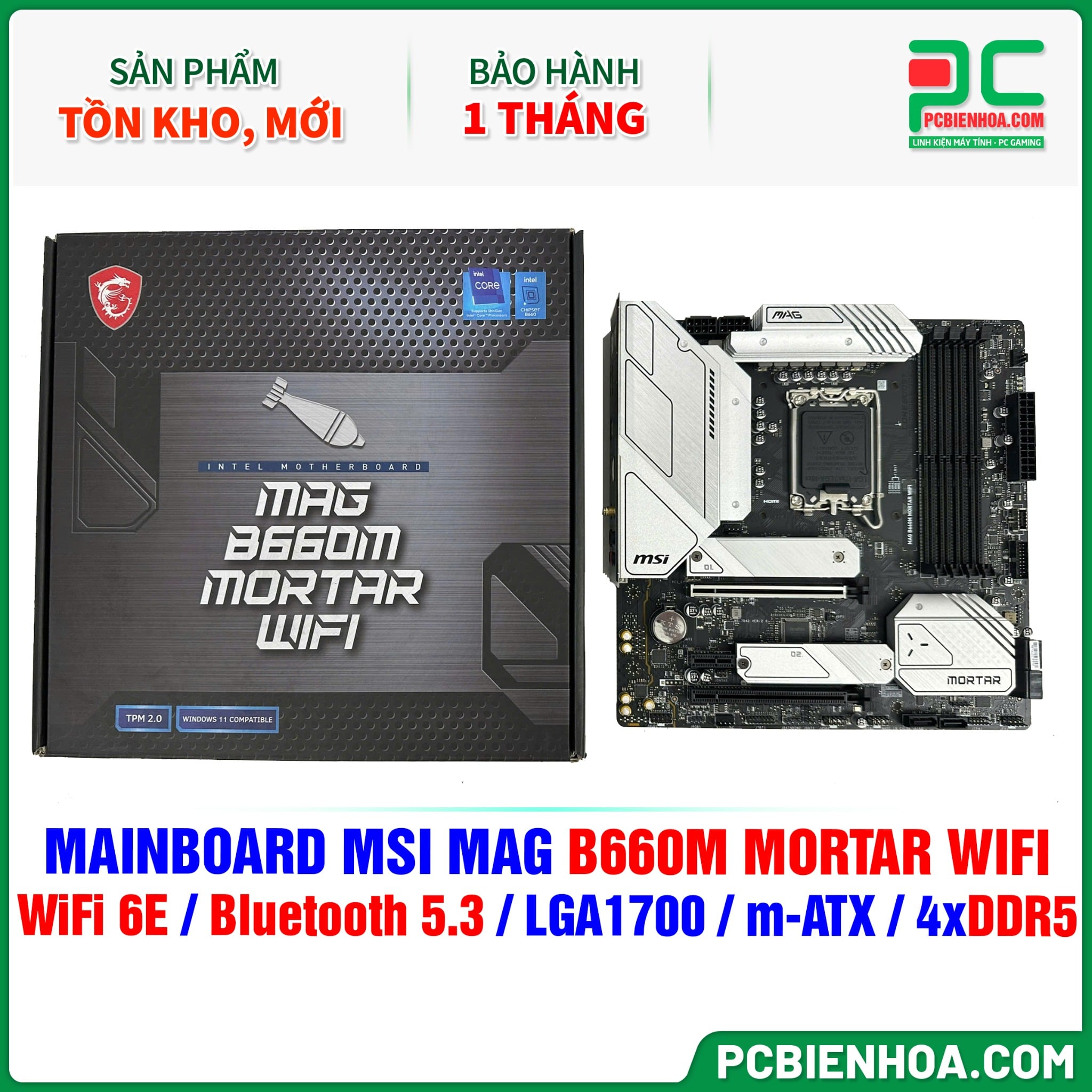

THANH LÝ - DDR5 - MAINBOARD MSI MAG B660M MORTAR WIFI ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 4xDDR5 )

-40%

THANH LÝ - DDR5 - MAINBOARD MSI MAG B660M MORTAR WIFI ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 4xDDR5 )

Thương hiệu: MSI

Loại: MAINBOARD THANH LÝ

Giá Niêm Yết: ~~5,790,000₫~~

Giá KM tại PCBIENHOA.COM: 3,490,000₫

Thông Tin

- Bảo Hành: tới 28/11/2025

- Tình trạng: Hàng thanh lý, chính hãng, mới 100%

- Kho hàng: Có sẵn tại PCBIENHOA.COM

- Hỗ trợ thế hệ Intel 12, 13 và 14 (Mới nhất)

GIAO HÀNG

Miễn phí giao máy tính toàn quốc
Sản phẩm

Cam kết hàng chính hãng
Bảo hành nhanh chóng
ĐỔI TRẢ

Hàng lỗi kỹ thuật đổi mới trong vòng 30 ngày
Trả góp

Trả góp CCCD và GPLX, Thẻ Tín Dụng
Thời gian làm việc

Sáng từ 8h - 6h Tối, CN 9h-6h Tối ( Lễ tết nghỉ )
Chấp nhận thanh toán

Bán hàng - Tư vấn - CSKH

0388954721 - Mrs. Nhàn
0366111183 - Mr. Khang
0984654348 - Mr. Dũng

Kỹ thuật - Bảo hành

0359694006 - Bảo Hành
0942499850 - Kỹ Thuật

MAINBOARD MSI MAG B660M MORTAR WIFI ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 4xDDR5 )

PROCESSOR	Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors 1 Processor socket LGA1700 Please go to msi.com to get the newest support status as new processors are released.
CHIPSET	Intel B660 Chipset^®
MEMORY	4x DDR5 memory slots, support up to 128GB1 Supports 1R 4800 MHz (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 6200+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 5600+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to www.msi.com for more information on compatible memory.
EXPANSION SLOT	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot
MULTI-GPU	Supports AMD® CrossFire™ Technology
ONBOARD GRAPHICS	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
LƯU TRỮ	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 1 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) 1 Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID	‎Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices 1 SATA_A & SATA_B do not support RAID function.
USB	Intel® B660 Chipset 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
AUDIO	Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Realtek® 8125BG 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH^®	Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11.Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11.
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector
LED FEATURE	4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors

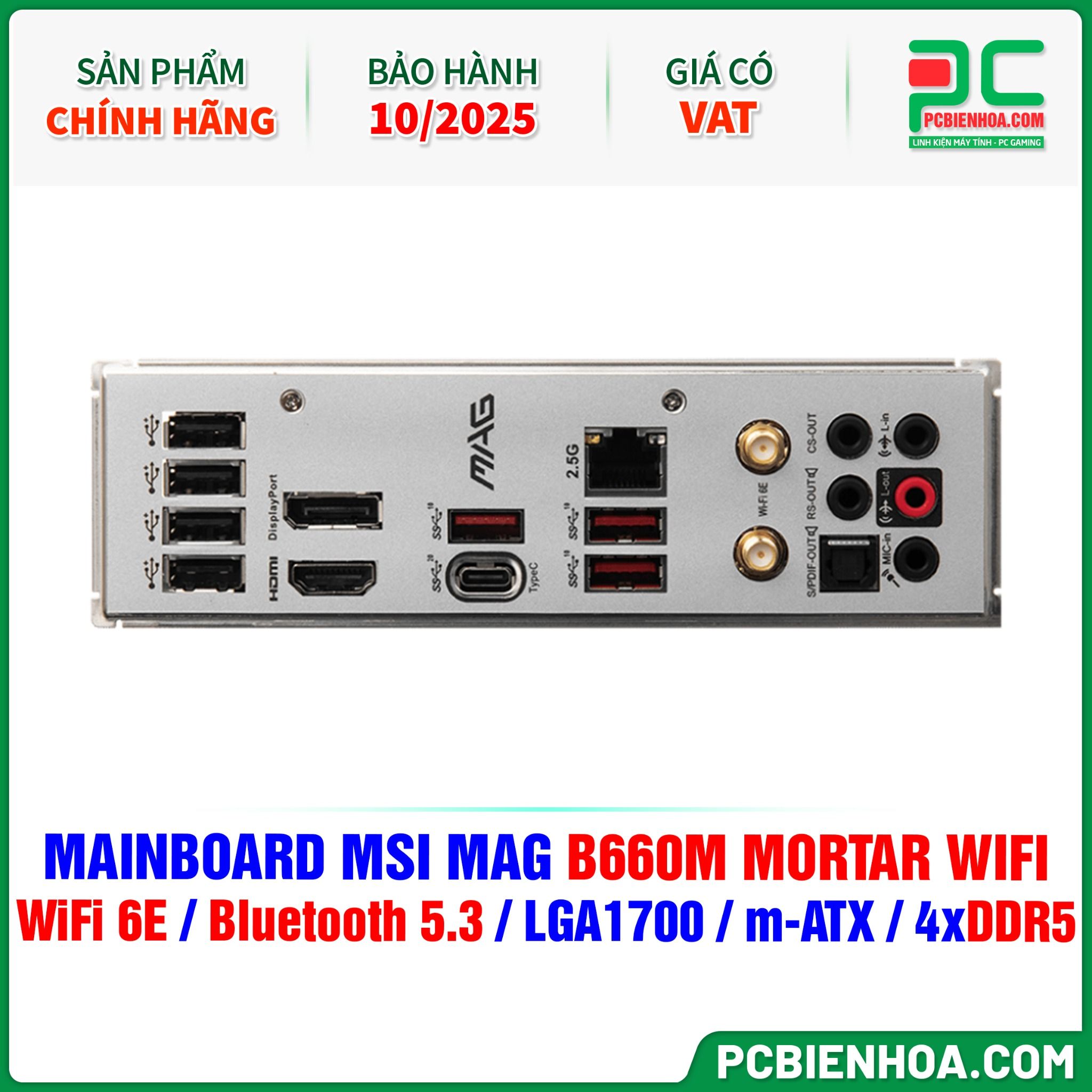

BACK PANEL PORTS	USB 2.0 Port DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
DIMENSIONS	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BOX CONTENT
