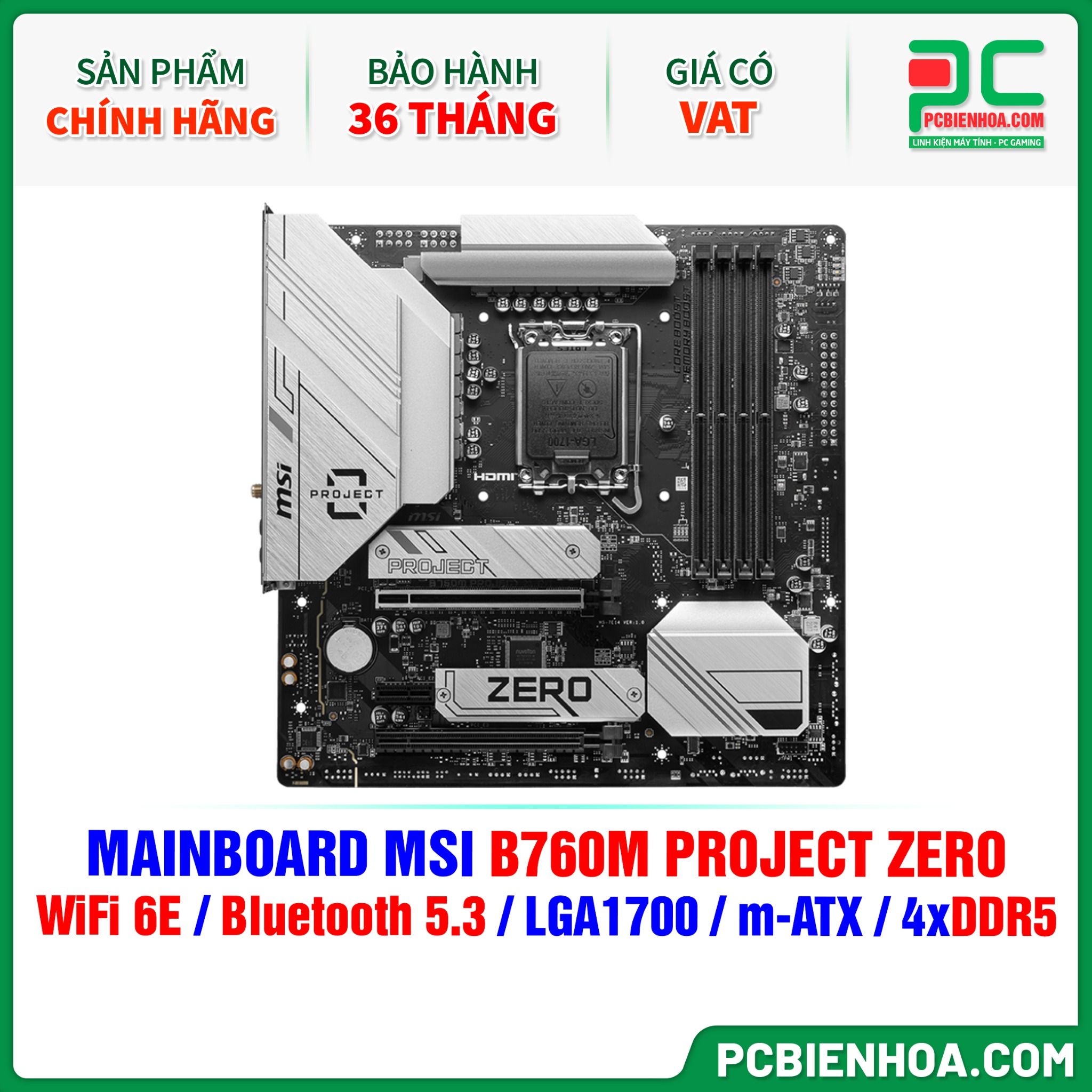

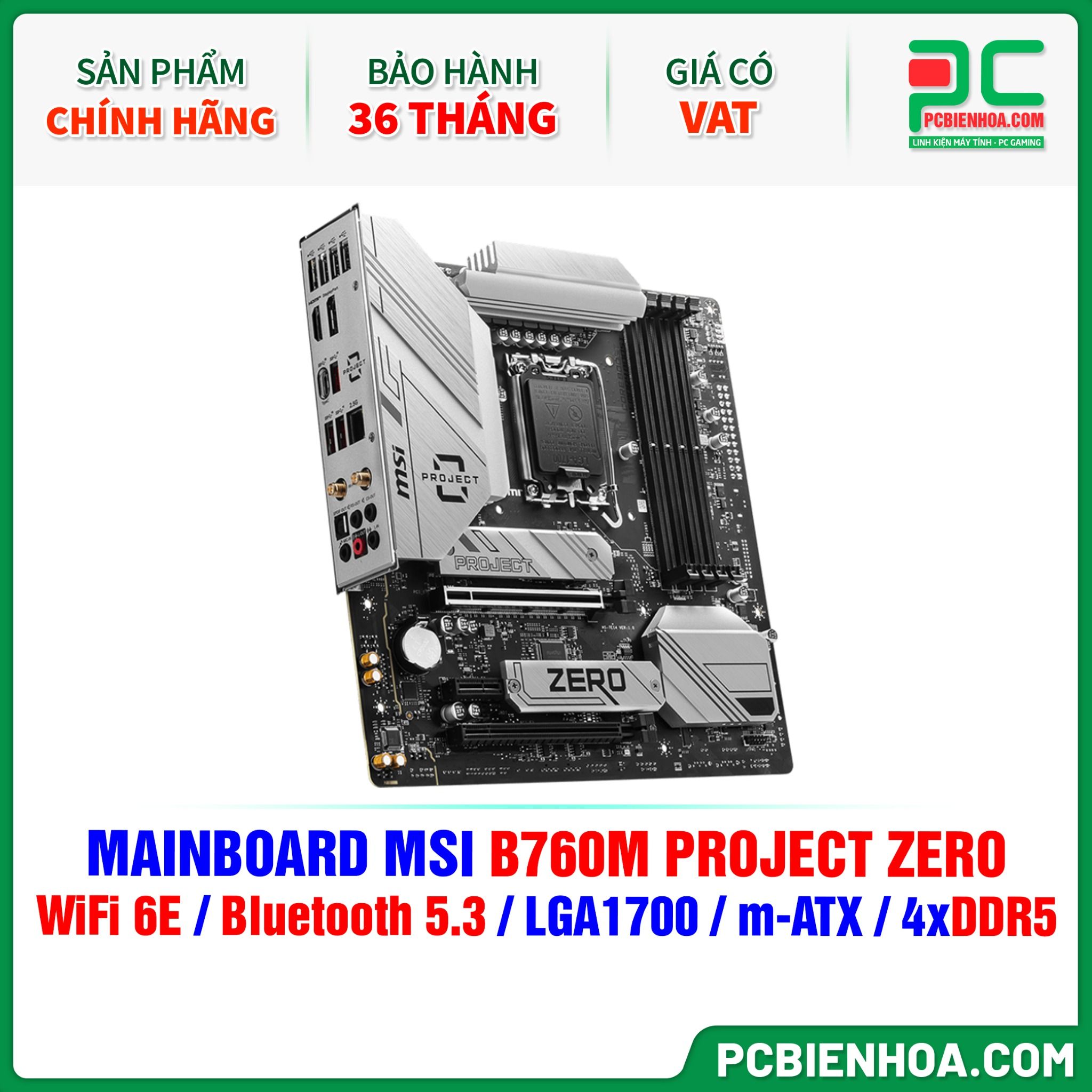

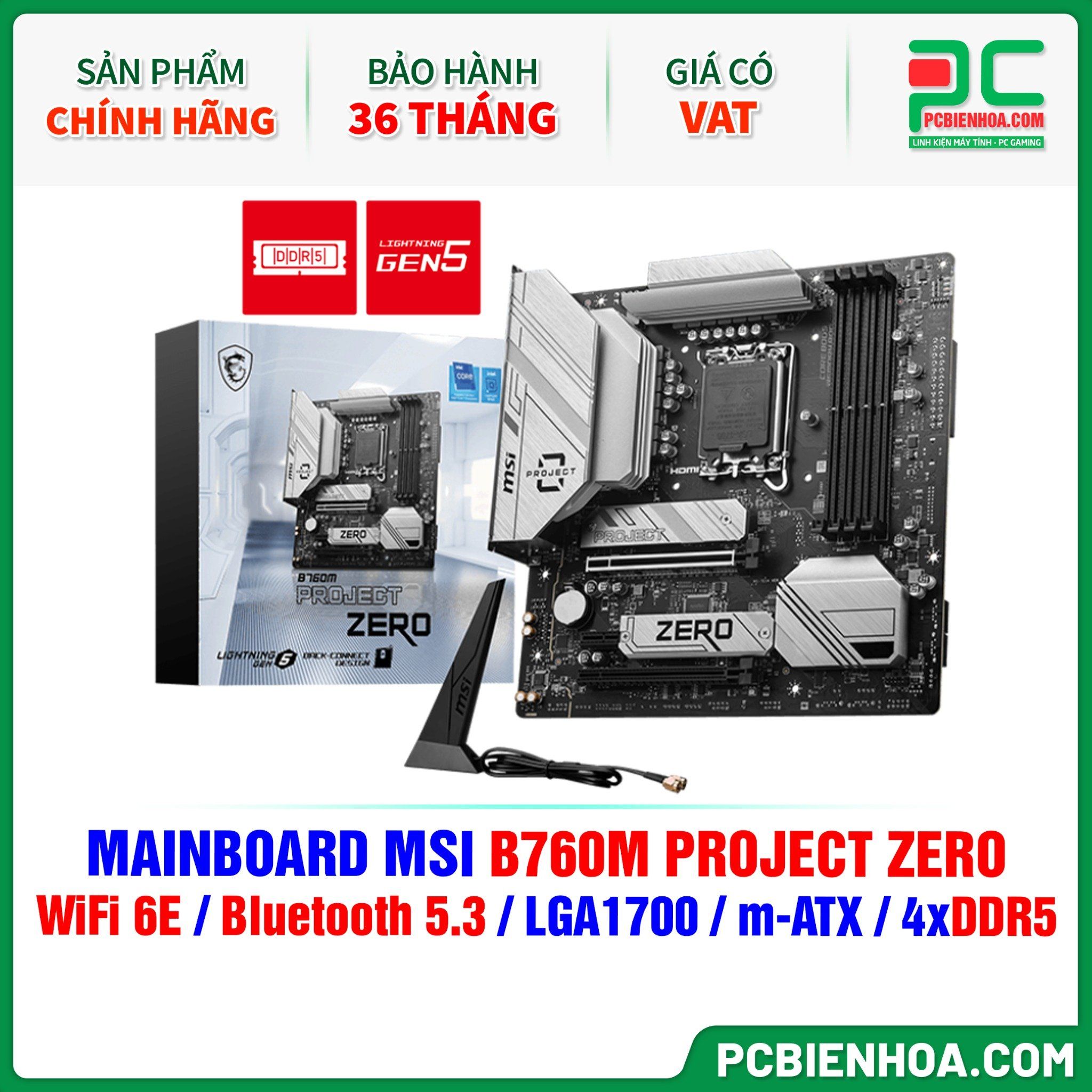

DDR5 - MAINBOARD MSI B760M PROJECT ZERO ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 4xDDR5 )

-13%

DDR5 - MAINBOARD MSI B760M PROJECT ZERO ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 4xDDR5 )

Thương hiệu: MSI

Loại: Mainboard

Giá Niêm Yết: ~~6,290,000₫~~

Giá KM tại PCBIENHOA.COM: 5,500,000₫

Thông Tin

- Bảo Hành: 36 Tháng 1 đổi 1

- Tình trạng: Hàng chính hãng mới 100%

- Kho hàng: Liên hệ đặt hàng

- Hỗ trợ thế hệ Intel 12, 13 và 14 (Mới nhất)

GIAO HÀNG

Miễn phí giao máy tính toàn quốc
Sản phẩm

Cam kết hàng chính hãng
Bảo hành nhanh chóng
ĐỔI TRẢ

Hàng lỗi kỹ thuật đổi mới trong vòng 30 ngày
Trả góp

Trả góp CCCD và GPLX, Thẻ Tín Dụng
Thời gian làm việc

Sáng từ 8h - 6h Tối, CN 9h-6h Tối ( Lễ tết nghỉ )
Chấp nhận thanh toán

Bán hàng - Tư vấn - CSKH

0388954721 - Mrs. Nhàn
0984654348 - Mr. Dũng
0366111183 - Mr. Khang

Kỹ thuật - Bảo hành

0359694006 - Bảo Hành
0942499850 - Kỹ Thuật

MAINBOARD MSI B760M PROJECT ZERO ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 4xDDR5 )

CHIPSET

INTEL B760

CPU SUPPORT

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700

MEMORY

4x DDR5, Maximum Memory Capacity 256GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel^® Extreme Memory Profile

AUDIO

Realtek^® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output

STORAGE

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

LAN

Realtek^® 2.5Gbps LAN

ONBOARD GRAPHICS

1x HDMI™
Support HDMI^TM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)

WIRELESS LAN & BLUETOOTH

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth^® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

INTERNAL IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

LED FEATURE

4x EZ Debug LED

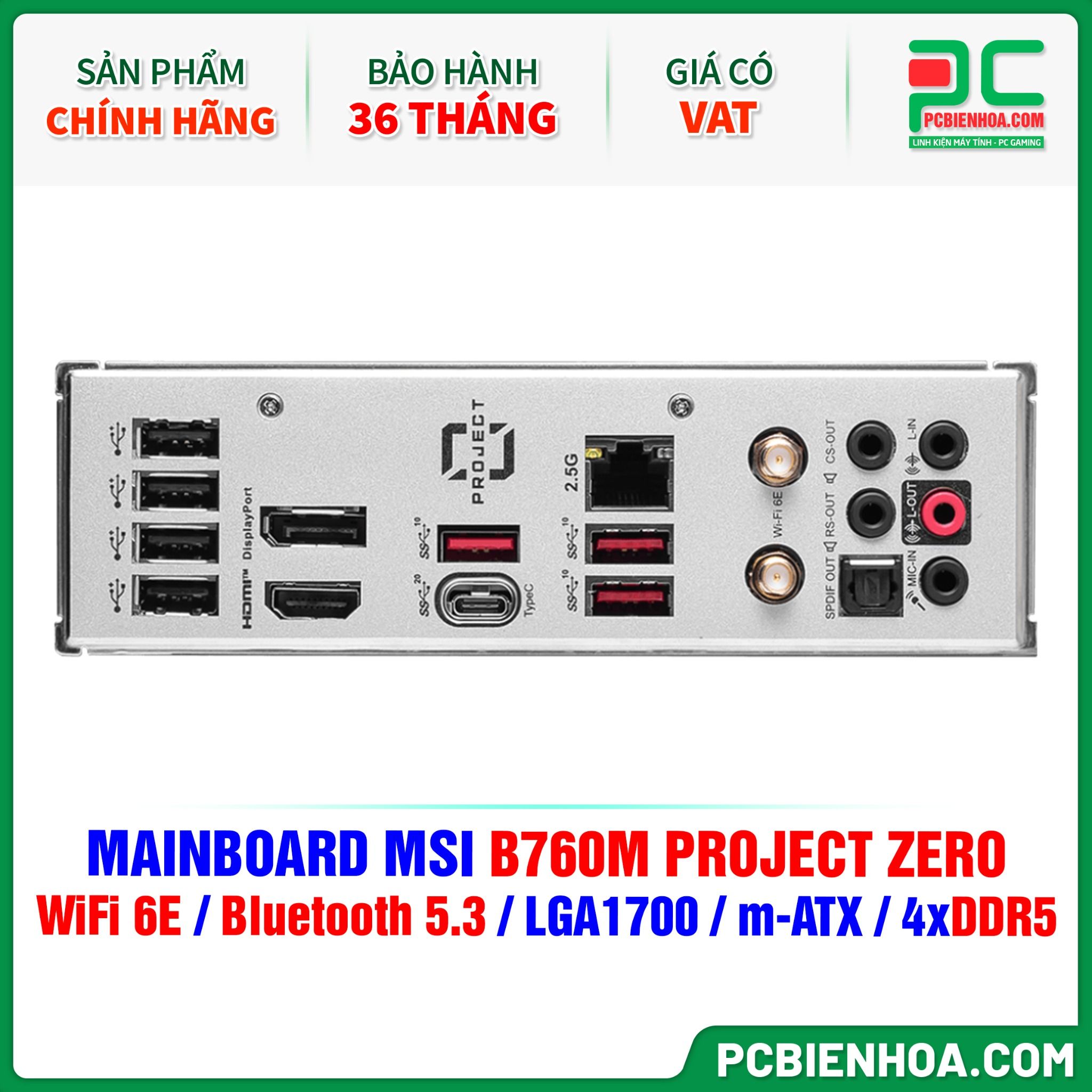

BACK PANEL PORTS

USB 2.0
DisplayPort 1.4
USB 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI™ 2.1 Port
USB 20Gbps Type-C
Optical S/PDIF OUT

OPERATING SYSTEM

Support for Windows^® 11 64-bit, Windows^® 10 64-bit

PCB INFO

mATX
243.84mmx243.84mm

BOX CONTENT
