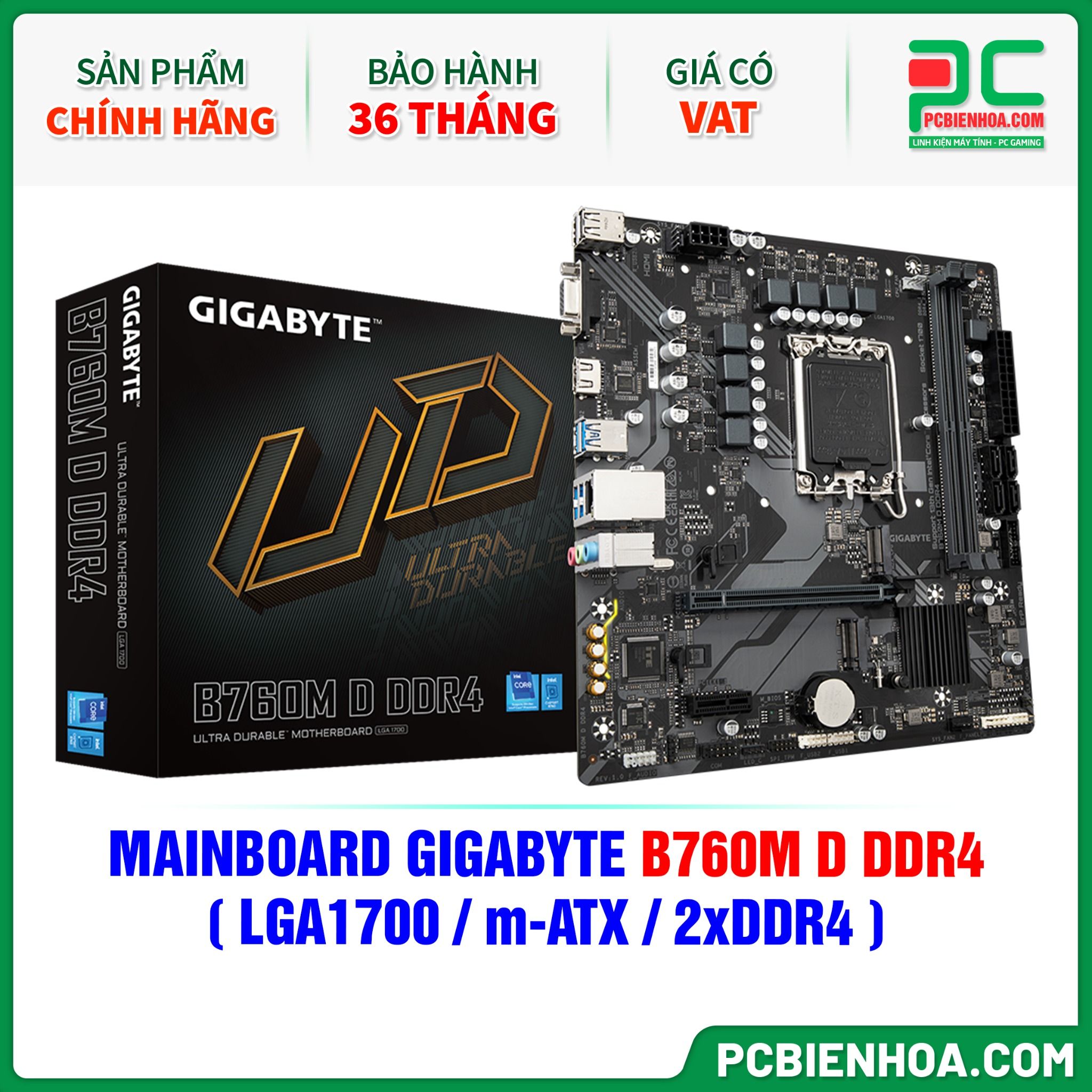

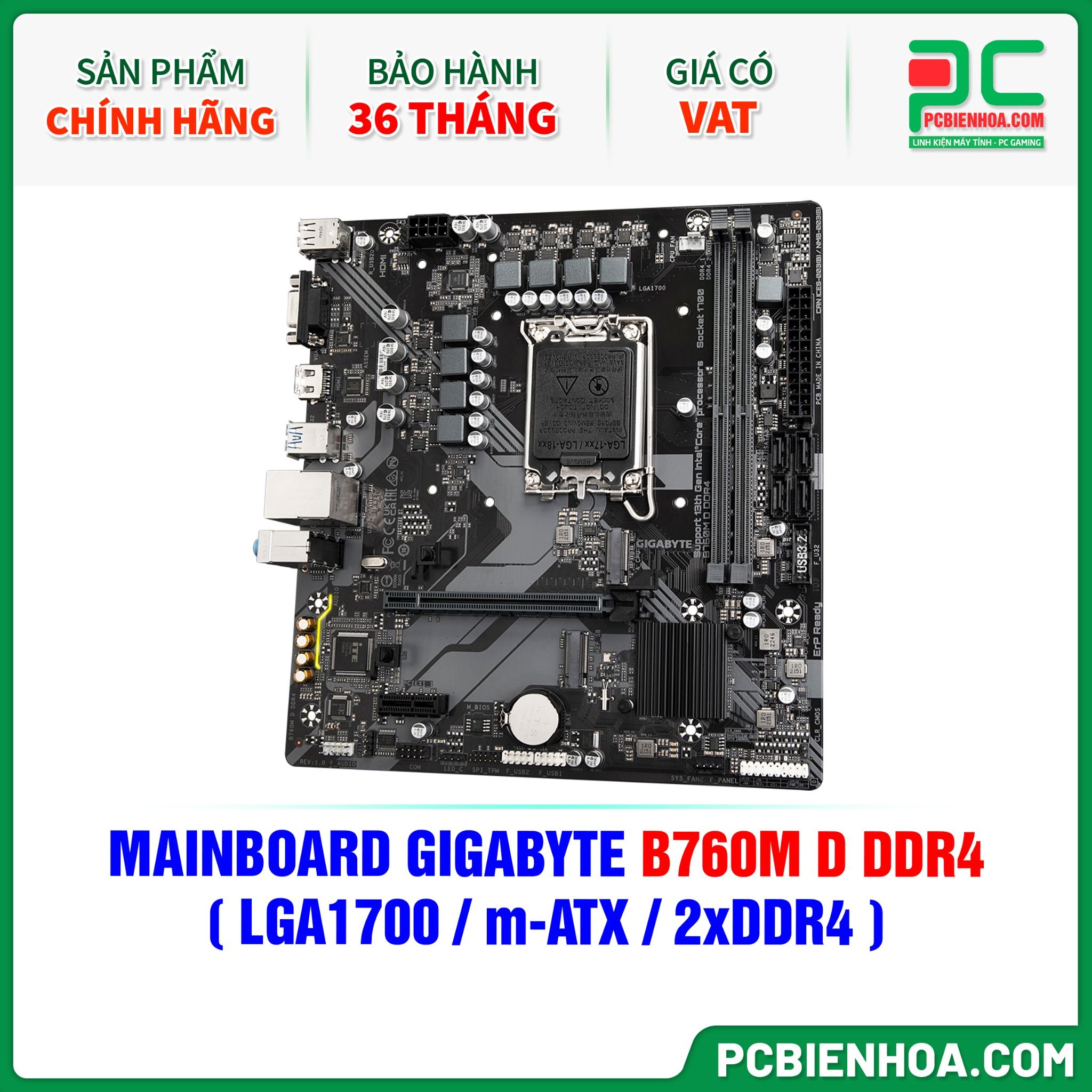

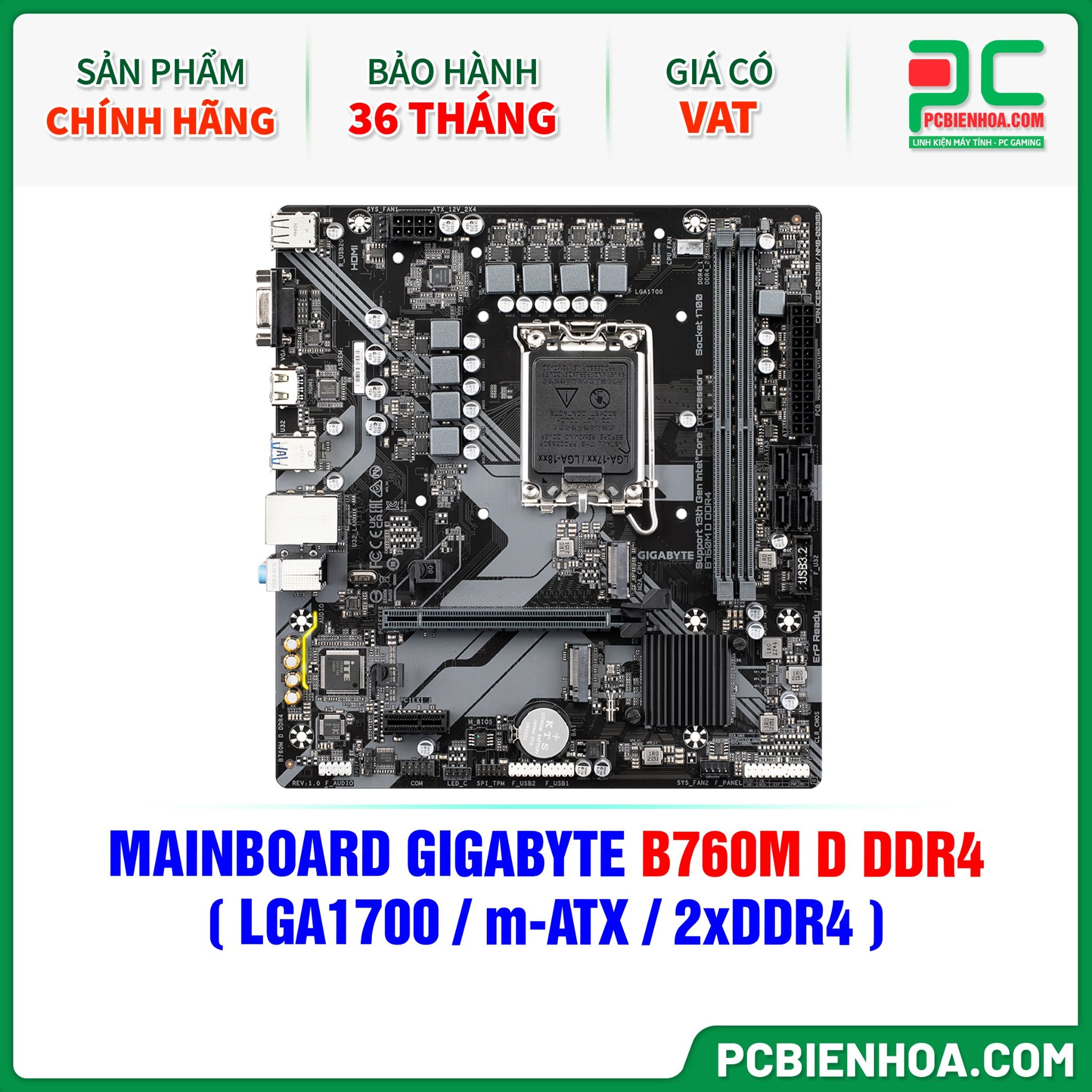

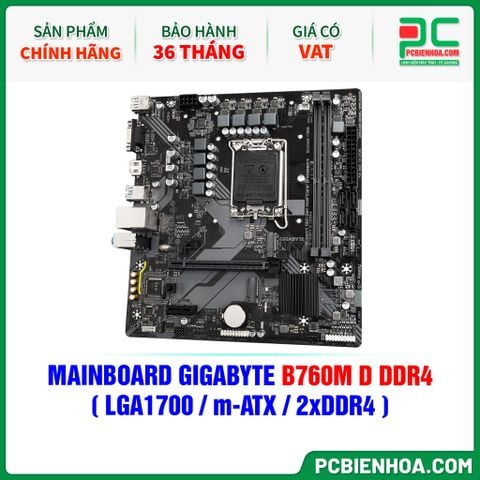

MAINBOARD GIGABYTE B760M D DDR4 ( LGA1700 / m-ATX / 2xDDR4 )

Tình trạng : Còn hàng | Thương hiệu : Gigabyte |

Giá gốc : 2,890,000₫

Giá khuyến mại : 2,290,000₫ (Tiết kiệm: 600,000₫)

Build PC với sản phẩm này

Default Title

THÔNG SỐ KỸ THUẬT

Hỗ trợ Socket: LGA1700

Số khe ram: 2x DDR4

Số khe M.2: 2

Kích thước: Micro-ATX

Bảo hành: 36 tháng

THÊM VÀO GIỎ HÀNG Giá luôn tốt nhất ĐẶT MUA NGAY Giao hàng tận nơi, nhanh chóng

Chính Sách Nổi Bật Tại PCBIENHOA.COM

GIAO HÀNG
● Ship COD toàn quốc
● Giao nhanh trong ngày, không ngại xa

SẢN PHẨM
● Cam kết hàng chính hãng mới 100%

BẢO HÀNH - ĐỔI TRẢ
   ●  Hàng lỗi kỹ thuật đổi mới trong vòng
       30 ngày
   ●  Bảo hành chính hãng

TRẢ GÓP
● Home Credit, HDSAISON và Thẻ tín dụng
● Mua ngay trả sau qua Home PayLater

BÁN HÀNG - TƯ VẤN - CSKH

Tư Vấn Cấu Hình PC Giá Tốt
- 0388.954.721 (Mrs.Nhàn)

Giao Hàng - Bán Online COD
- 0984.654.348 (Mr.Dũng)

Kỹ Thuật - Bảo Hành
- 0359.694.006 (Mr.Tuân)

Mô tả sản phẩm

MAINBOARD GIGABYTE B760M D DDR4 ( LGA1700 / m-ATX / 2xDDR4 )

CPU	LGA1700 socket: Support for the 13th and 12thGeneration Intel^® Core™, Pentium^® Gold and Celeron^® Processors L3 cache varies with CPU (Please refer to "CPU Support List" for more information.)
Chipset	Intel^® B760 Express Chipset
Memory	Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules 2 x DDR4 DIMM sockets supporting up to 64GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel^® HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
Audio	Realtek^® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek^® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x Clear CMOS jumper

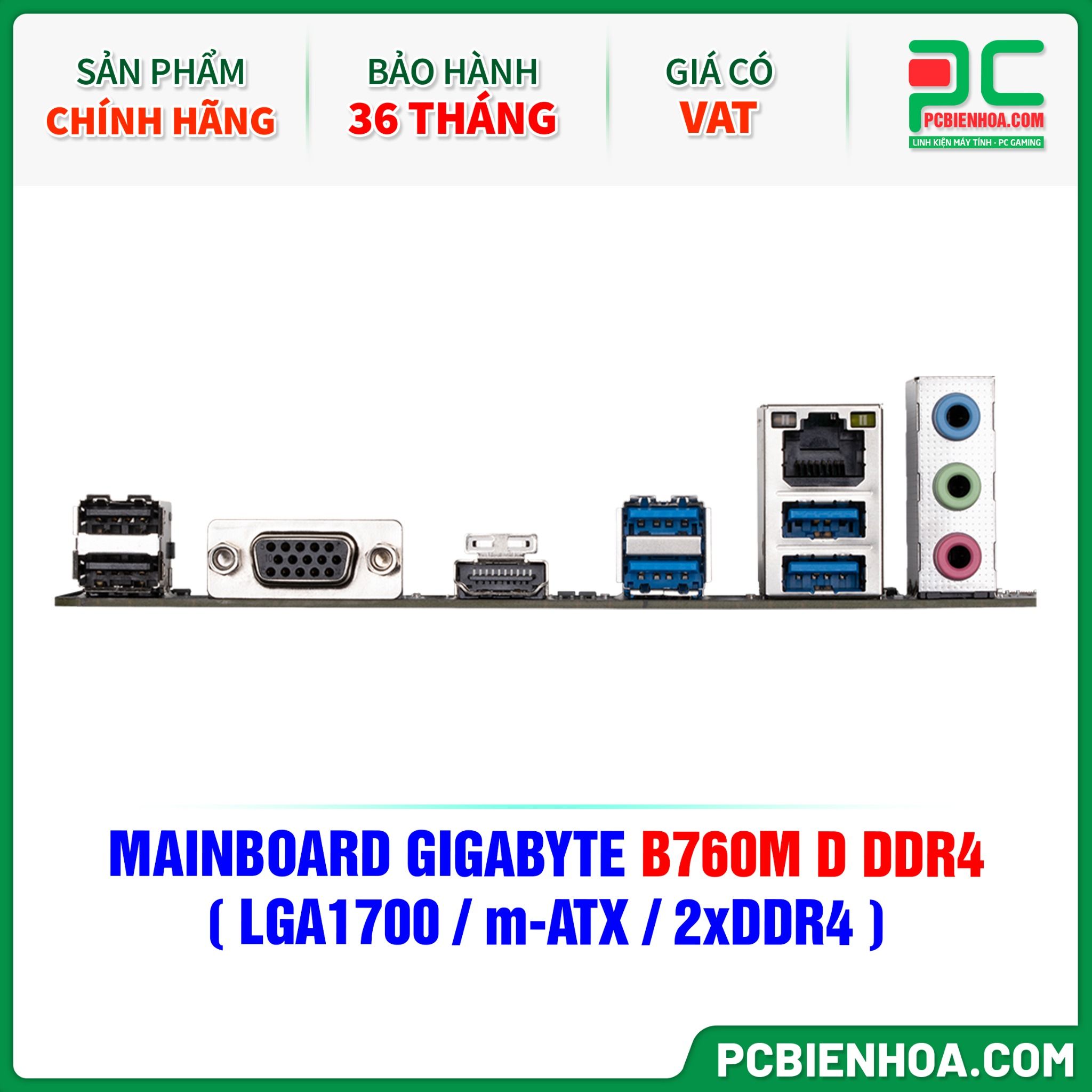

Back Panel Connectors	2 x USB 2.0/1.1 ports 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash
Bundled Software	Norton^® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 23.0cm x 21.5cm
