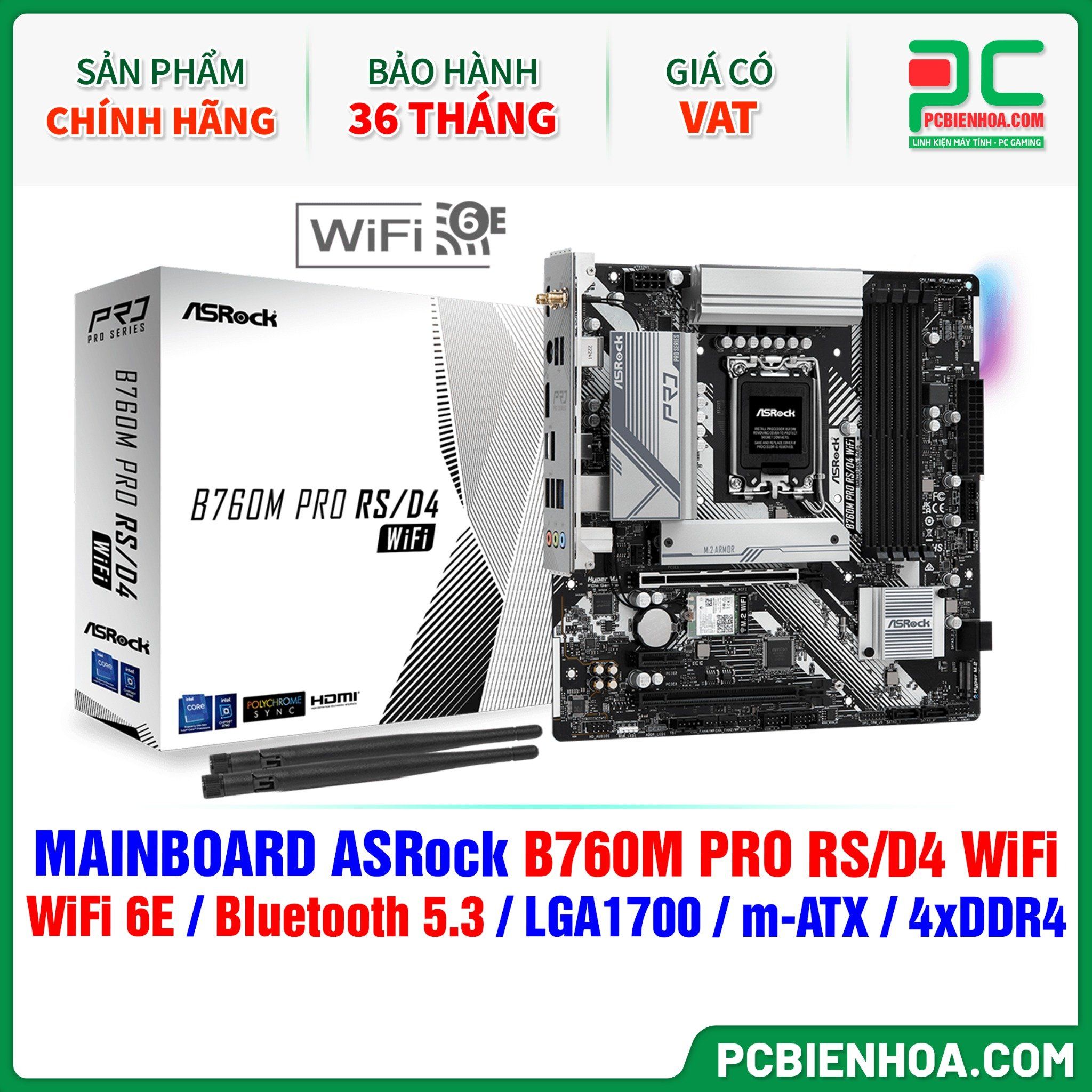

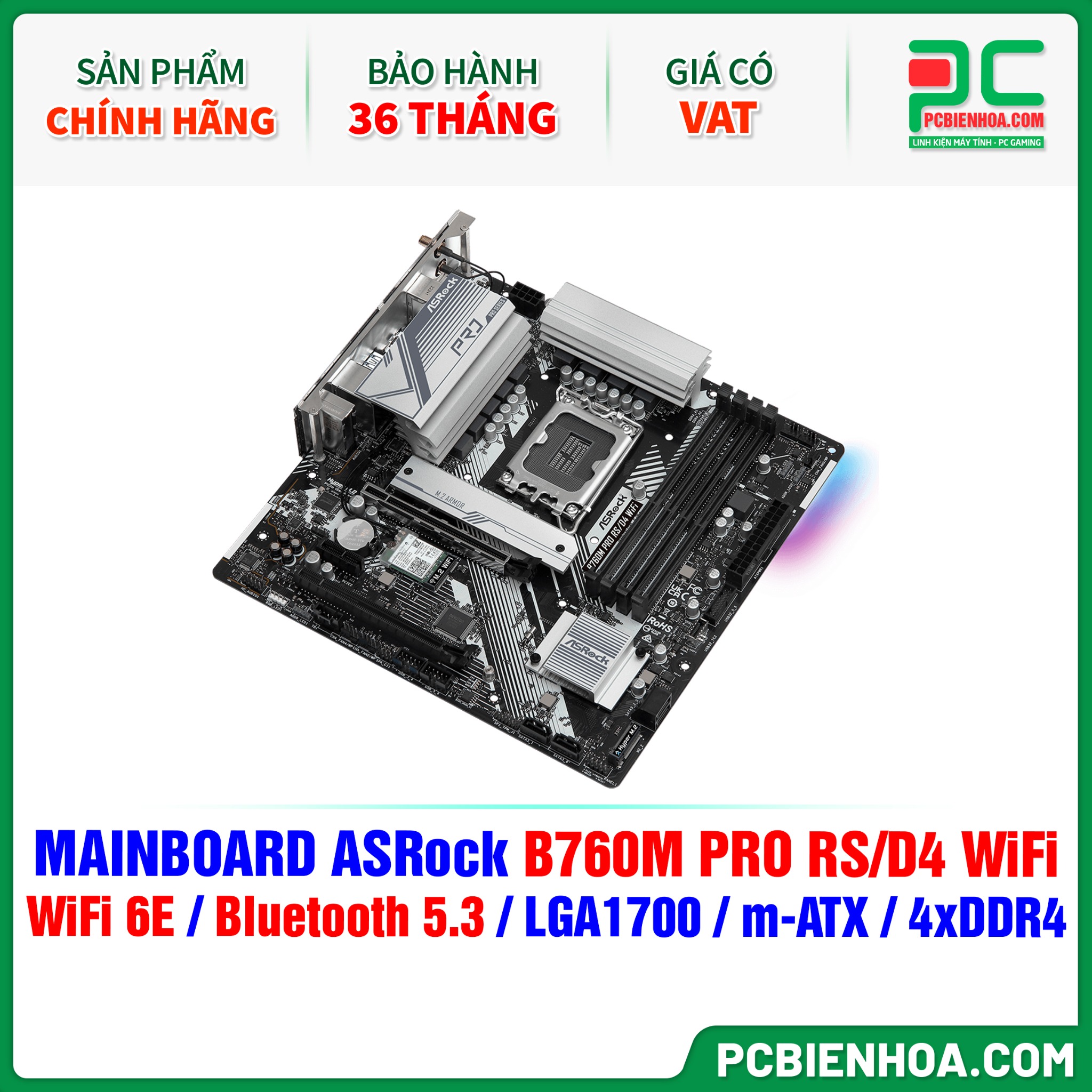

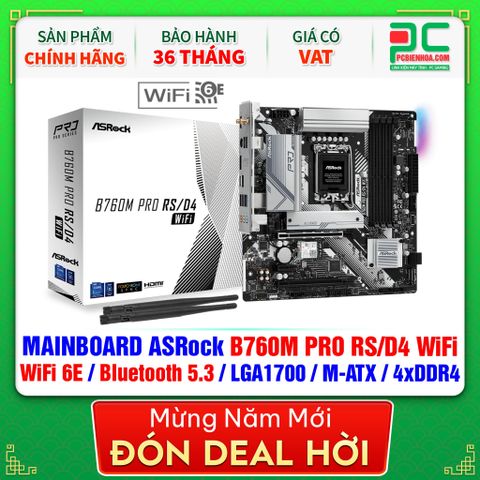

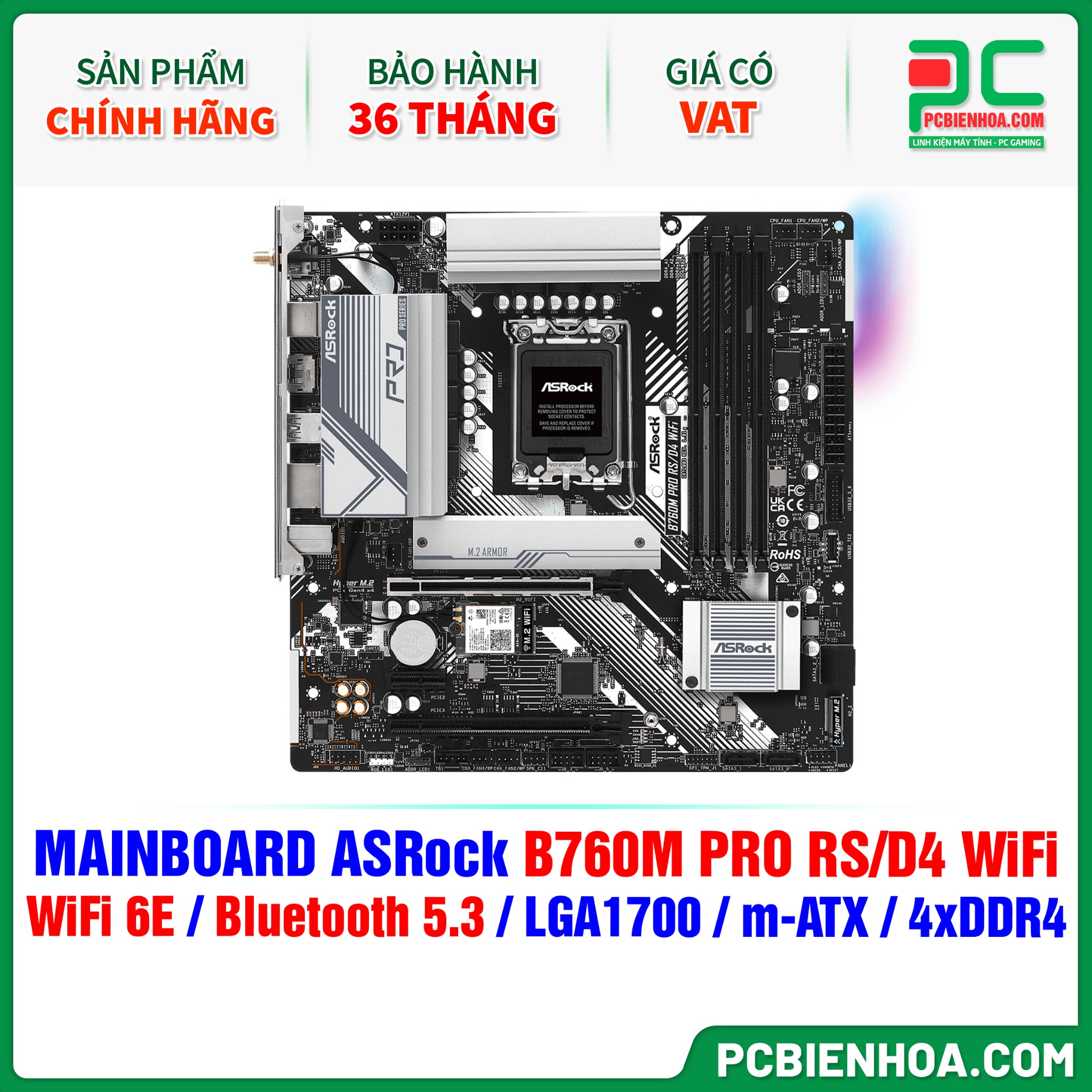

MAINBOARD ASRock B760M PRO RS/D4 WiFi ( WiFi 6E / Bluetooth 5.3 / LGA1700 / M-ATX / 4xDDR4 )

Thương hiệu: Asrock
Loại: Mainboard

Giá Niêm Yết: 4,490,000₫

Giá KM tại PCBIENHOA.COM: 3,390,000₫

- Bảo Hành: 36 Tháng 1 đổi 1

- Tình trạng: Hàng chính hãng mới 100%

- Kho hàng: Có sẵn tại PCBIENHOA.COM

- Hỗ trợ thế hệ Intel 12, 13 và 14 (Mới nhất)

  • GIAO HÀNG

    Miễn phí giao máy tính toàn quốc

  • Sản phẩm

    Cam kết hàng chính hãng
    Bảo hành nhanh chóng

  • ĐỔI TRẢ

    Hàng lỗi kỹ thuật đổi mới trong vòng 30 ngày

  • Trả góp

    Trả góp CMND và GPLX, Thẻ Tín Dụng

  • Thời gian làm việc

    Sáng từ 8h - 6h Tối, CN 9h-6h Tối ( Lễ tết nghỉ )

  • Chấp nhận thanh toán
Bán hàng - Tư vấn - CSKH
Kỹ thuật - Bảo hành
HÌNH ẢNH THỰC TẾ TẠI PCBIENHOA:

MAINBOARD ASRock B760M PRO RS/D4 WiFi ( WiFi 6E / Bluetooth 5.3 / LGA1700 / M-ATX / 4xDDR4 )

‎Tính năng độc đáo‎
Rock-Solid Durability
- 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
- Pre-Installed I/O Shield
- ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU
‎- Supports 13th Gen & 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
- Supports Intel® Thermal Velocity Boost (TVB)
- Supports Intel® Adaptive Boost Technology (ABT)
Chipset
- Intel® B760
RAM
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0
*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
Đồ hoạ
- Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Âm thanh
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN


- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Wireless LAN
 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 with extended 6GHz band support*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
- Supports MU-MIMO
*Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Khe cắm mở rộng
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
* Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT)
* Supports NVMe SSD as boot disks
- Supports AMD CrossFire™
Lưu trữ
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
‎Kết nối‎
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).


****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

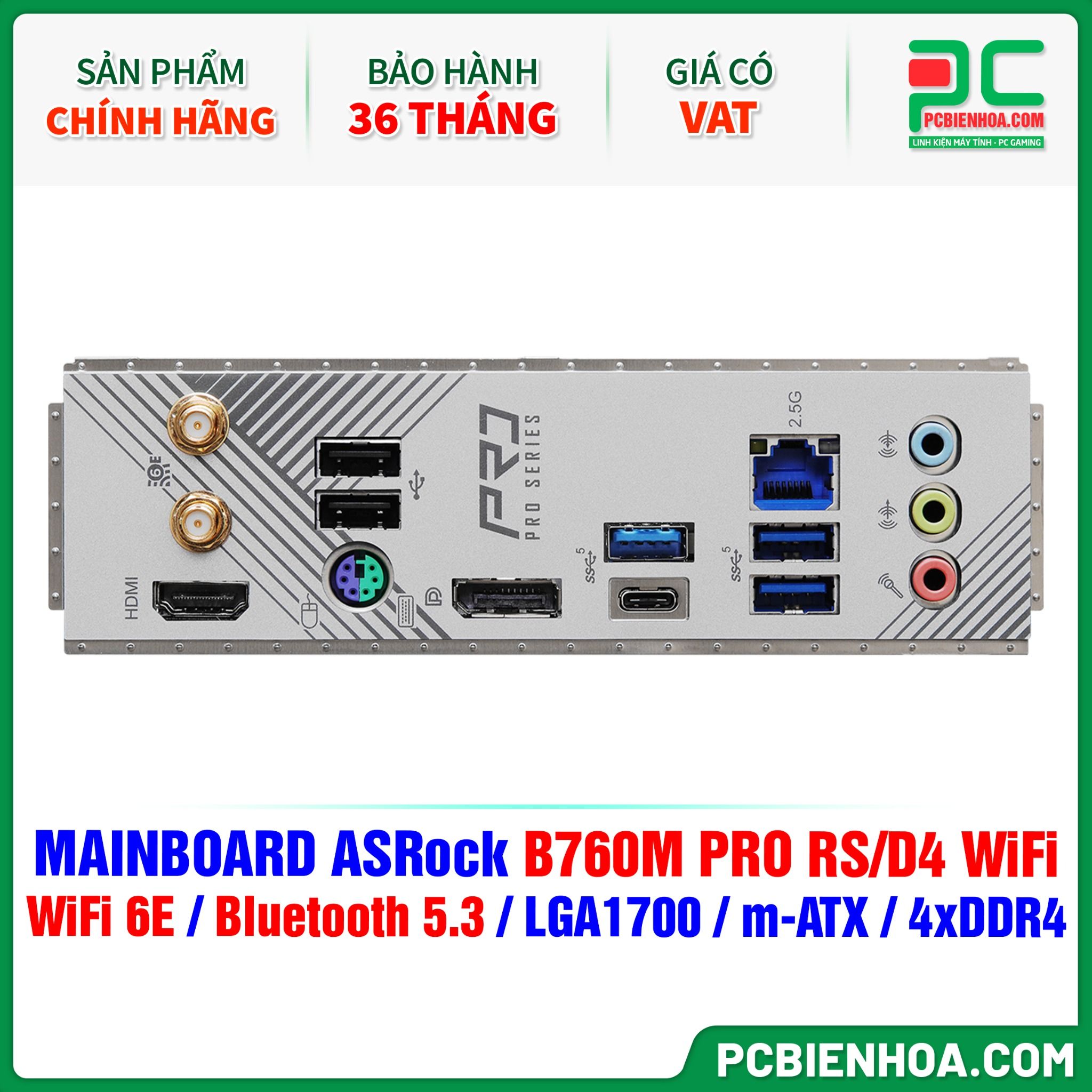

‎Bảng điều khiển phía sau I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
UEFI and Software
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer
*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories
    - 1 x User Manual
    - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
    - 2 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
    Form Factor
    - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    OS
    - Microsoft® Windows® 10 64-bit / 11 64-bit
    *Windows® 10 only supports version 21H2 or later
    Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
