GPU

NVIDIA GeForce RTX 5070 Ti GPU

CUDA cores

8960

Video Memory

16GB GDDR7

Memory Bus

256-bit

Engine Clock

2482 MHz

Memory Clock

28 Gbps

AI TOPS

1406

PCI Express

PCI Express 5.0 x16

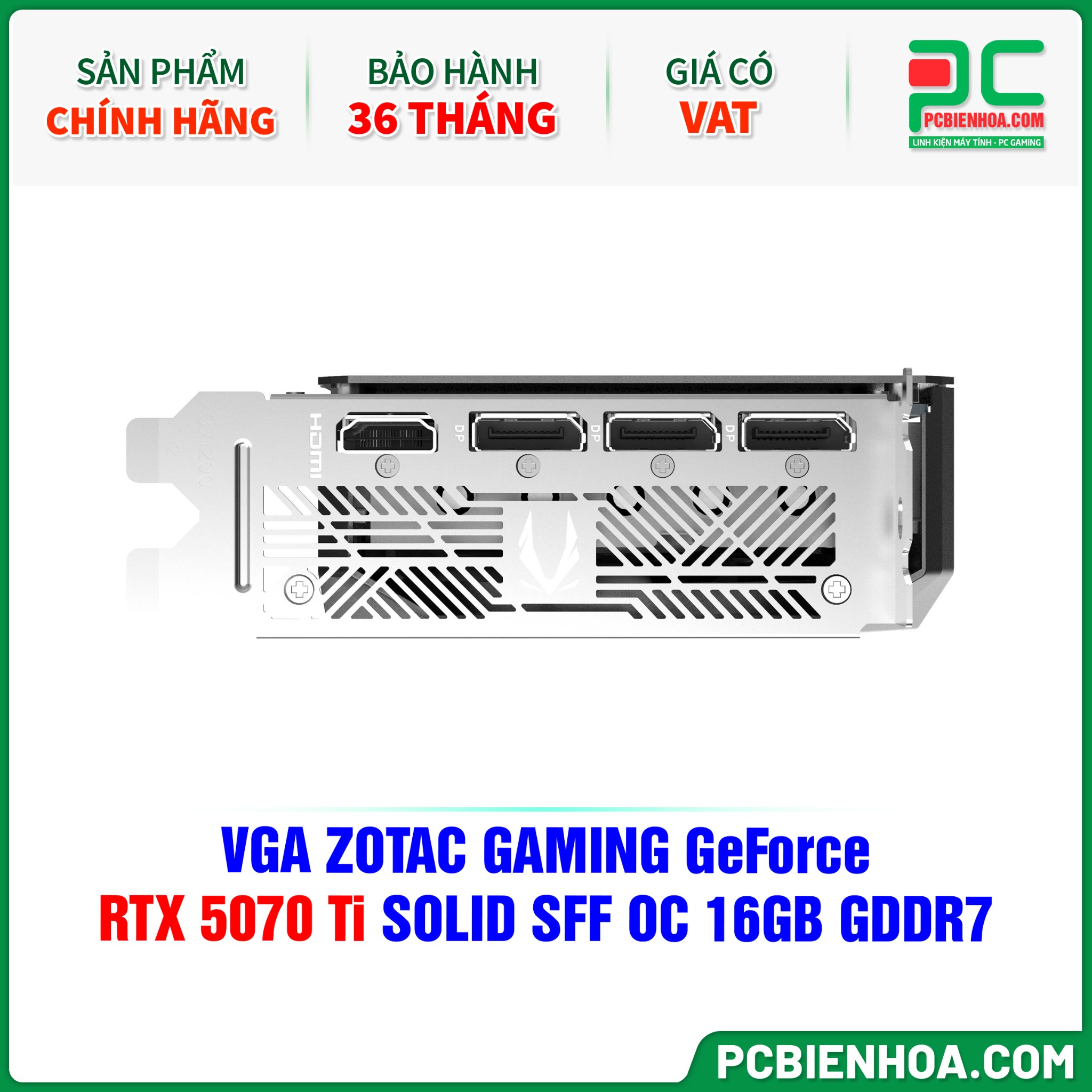

Display Outputs

3 x DisplayPort 2.1b with UHBR20 (up to 4K 480Hz or 8K 165Hz with DSC)
1 x HDMI® Connector (Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)

HDCP Support

2.3

Multi Display Capability

Quad Display

Recommended Power Supply

750W

Power Consumption

300W *High power consumption, please carefully read your PSU manual before installation.

Power Input

1 x 12v-2x6 power input

DirectX

Microsoft DirectX® 12 Ultimate

OpenGL

4.6

Cooling

IceStorm 2.0

Slot Size

2

SLI

No

Supported OS

Windows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length

304.4mm x 115.8mm x 41.6mm / 12" x 4.6" x 1.6"

Accessories

User Manual
2 x 8-pin-to-16-pin cable
GPU Support Stand
