GPU

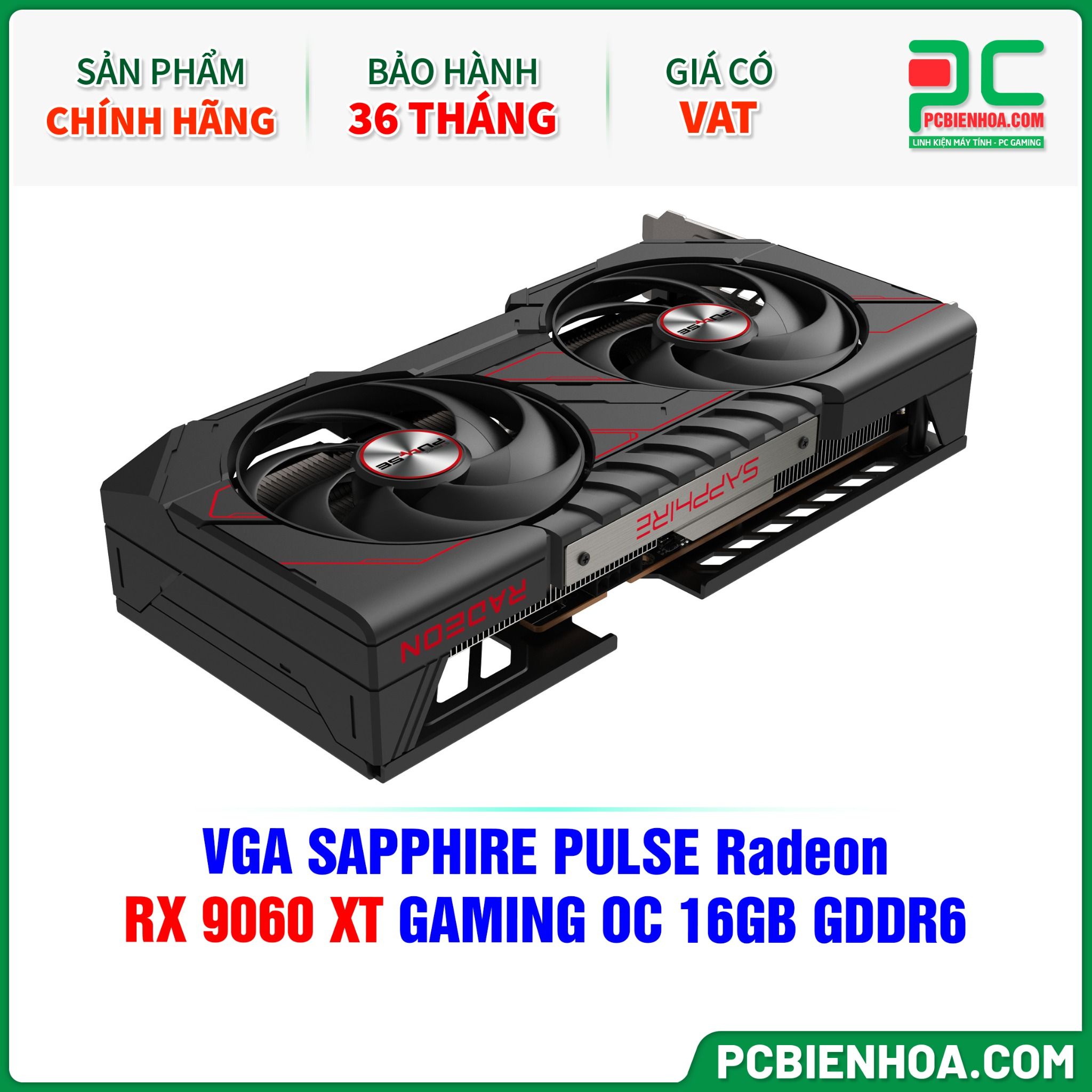

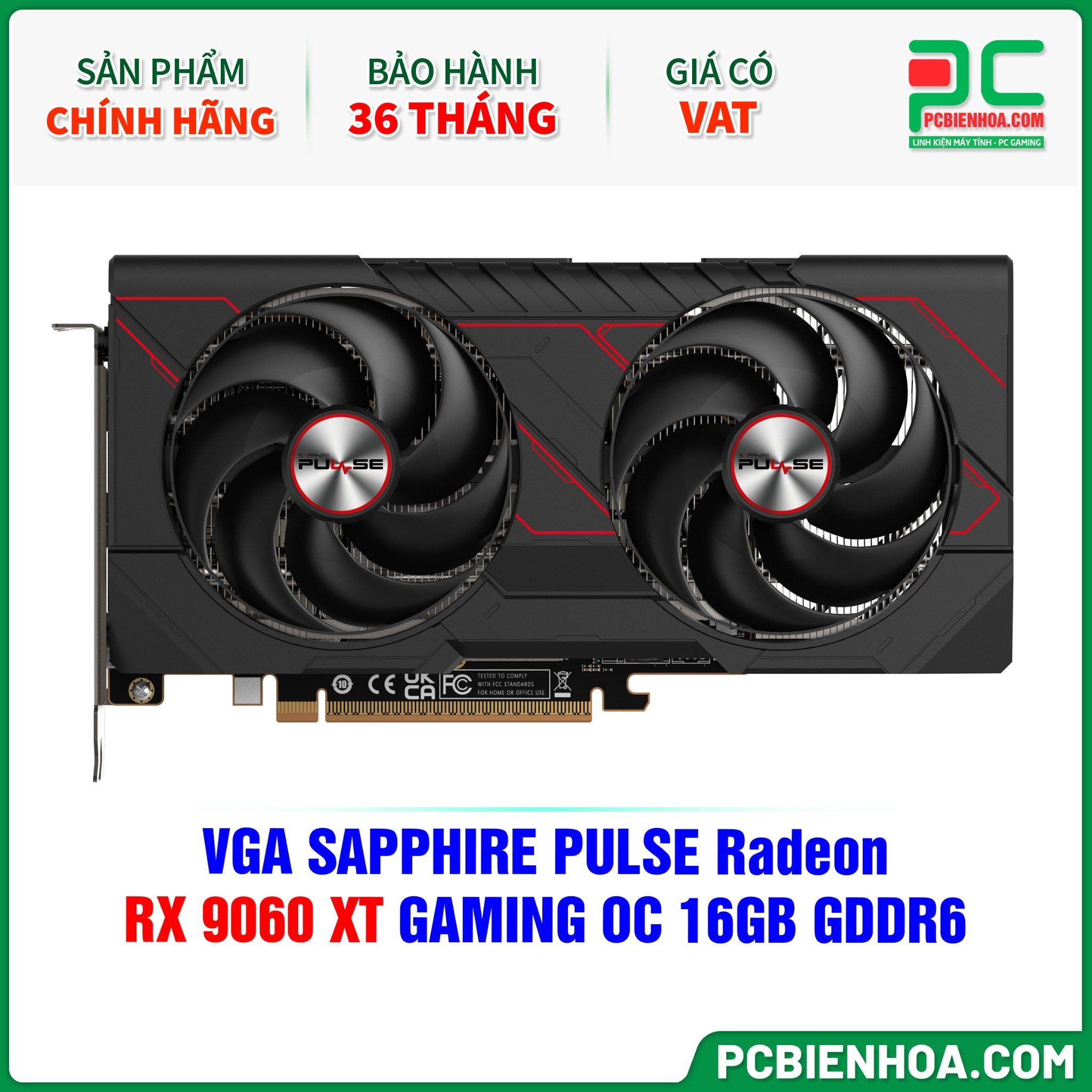

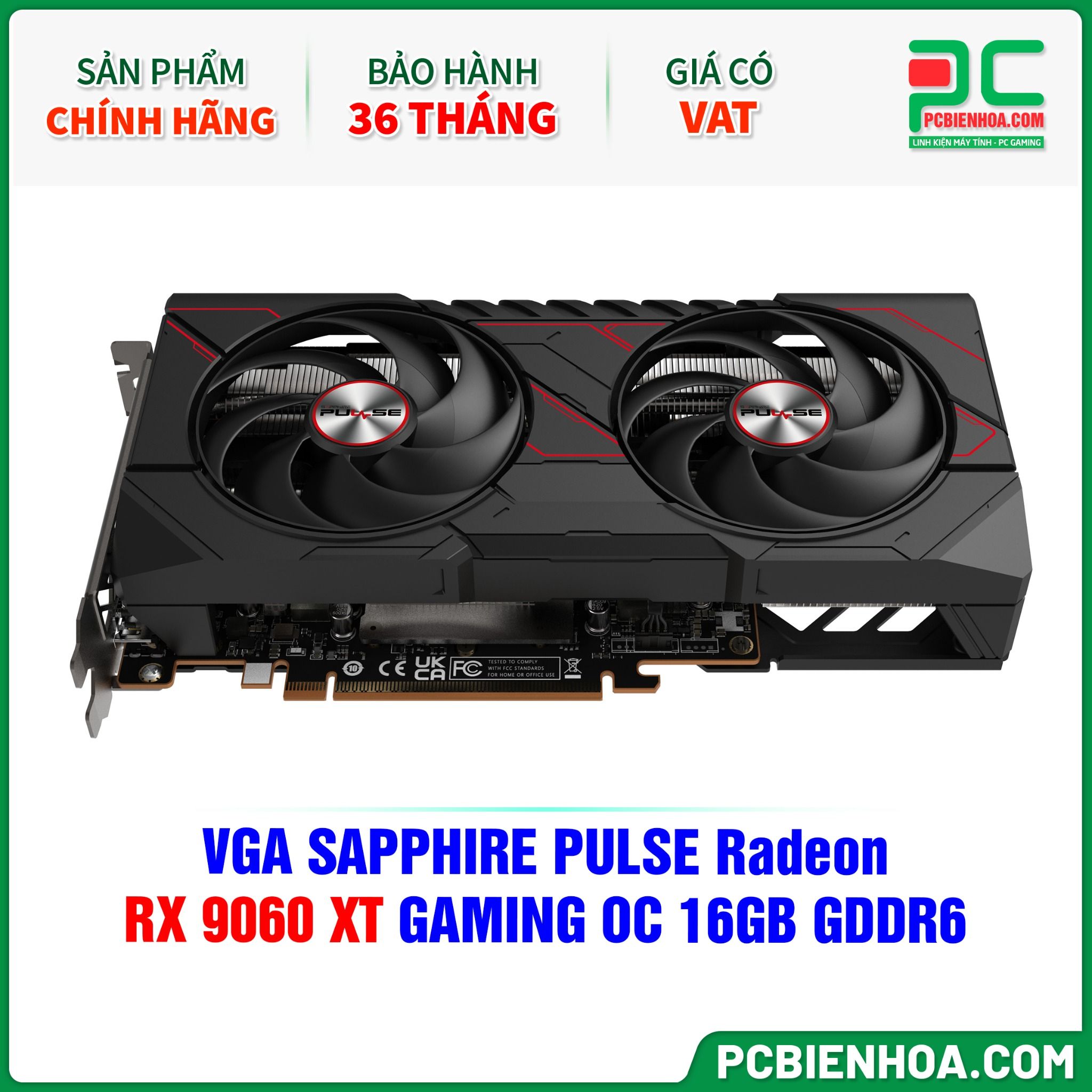

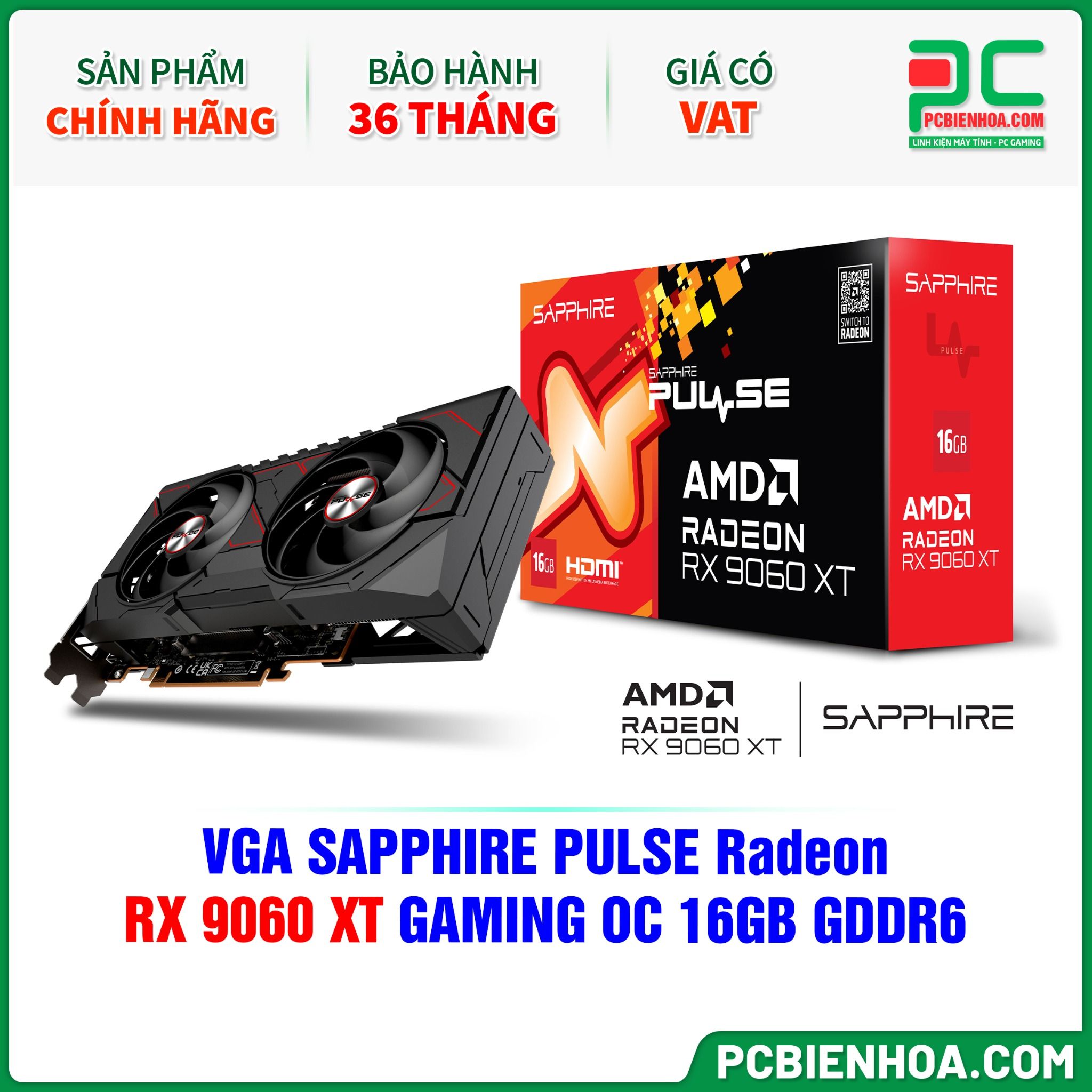

AMD Radeon™ RX 9060 XT Graphics Card

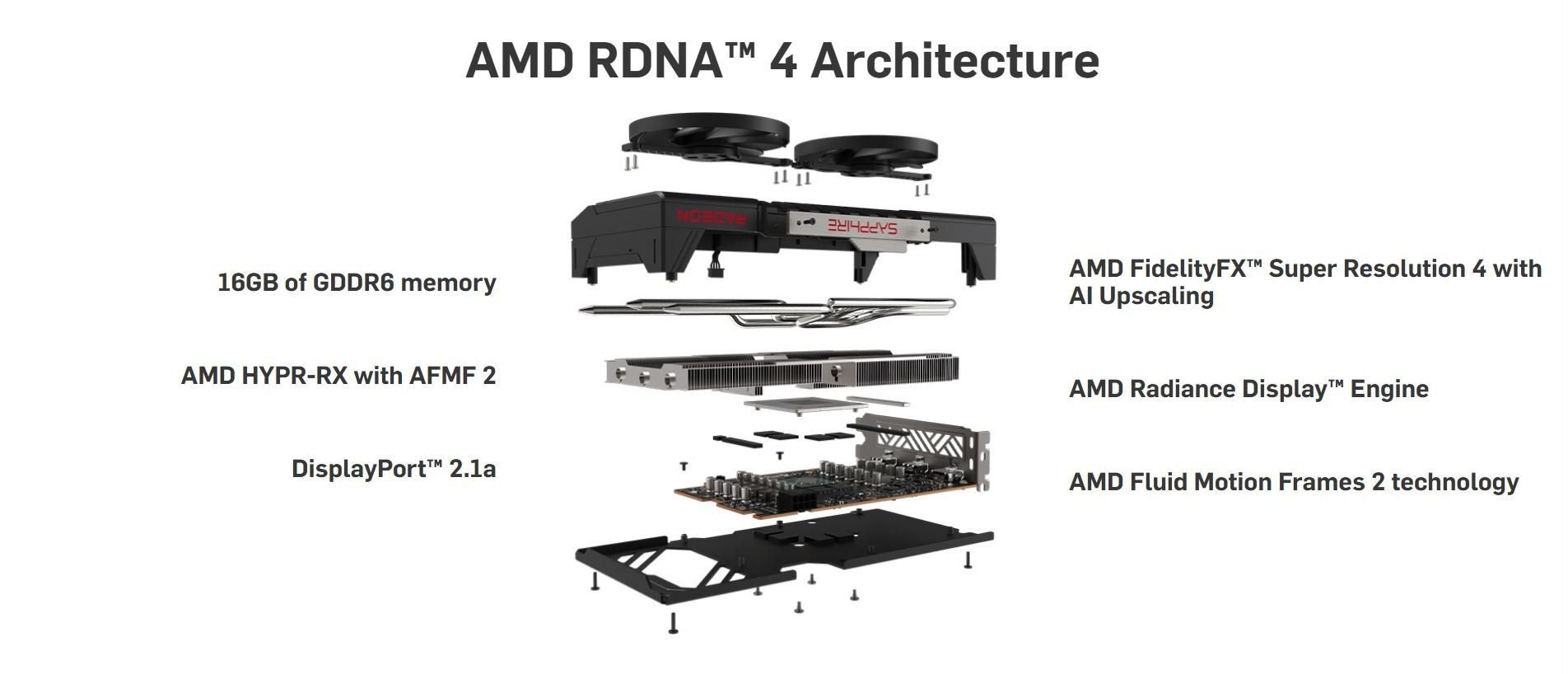

AMD RDNA™ 4 Architecture

Engine Clock

Boost Clock: Up to 3290 MHz
Game Clock: Up to 2700 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2048

Compute Units

32 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

32MB

Ray Accelerators

32

AI Accelerator

64

Memory Size/Bus

16GB/128 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 3 Displays

Resolution

HDMI®: 7680×4320
DisplayPort™ 2.1a: 7680×4320

Interface

PCI-Express 5.0 x16

Output

2x HDMI®
1x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

1440P

Sapphire Features

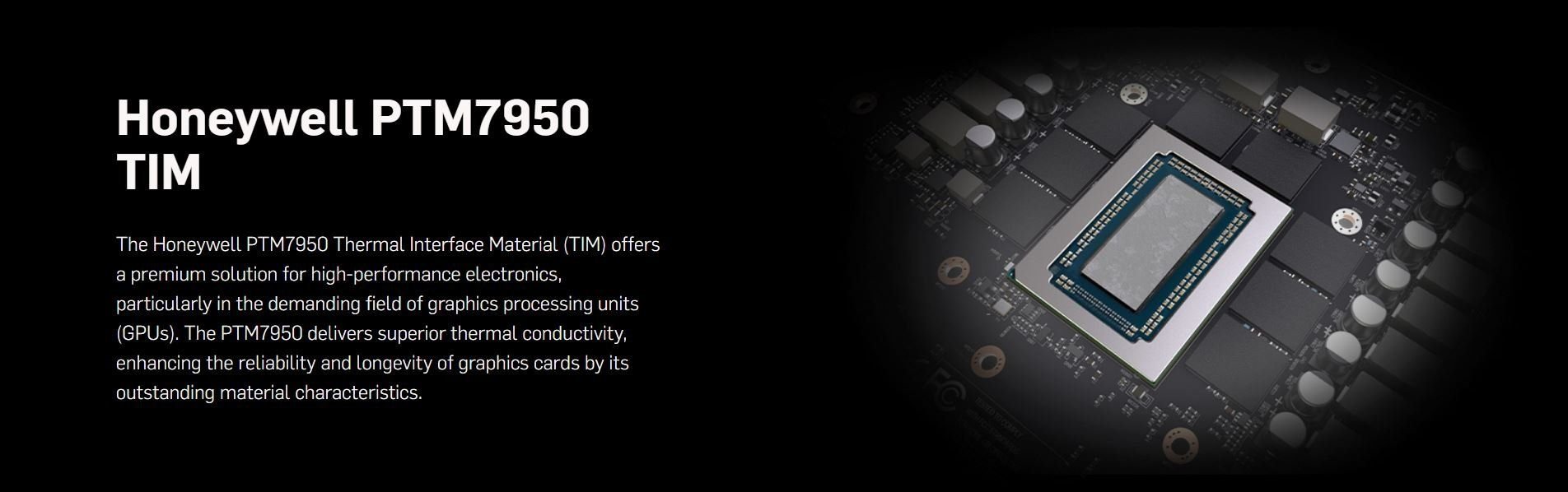

Honeywell PTM7950 Thermal Interface Material (TIM)

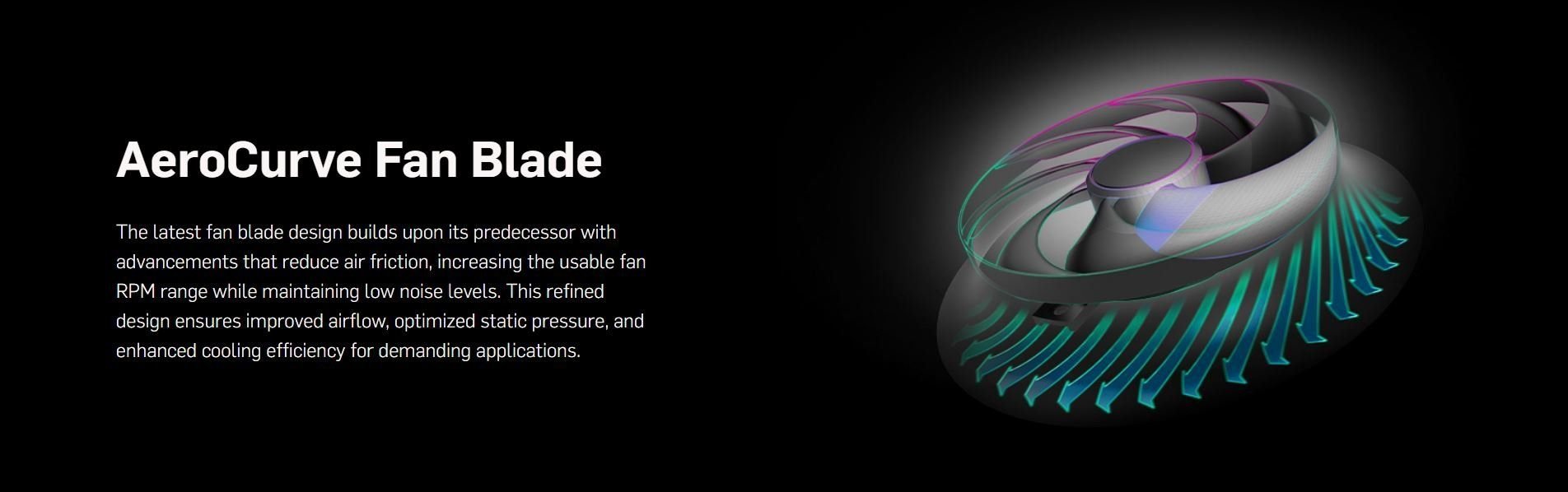

AeroCurve Fan Blade

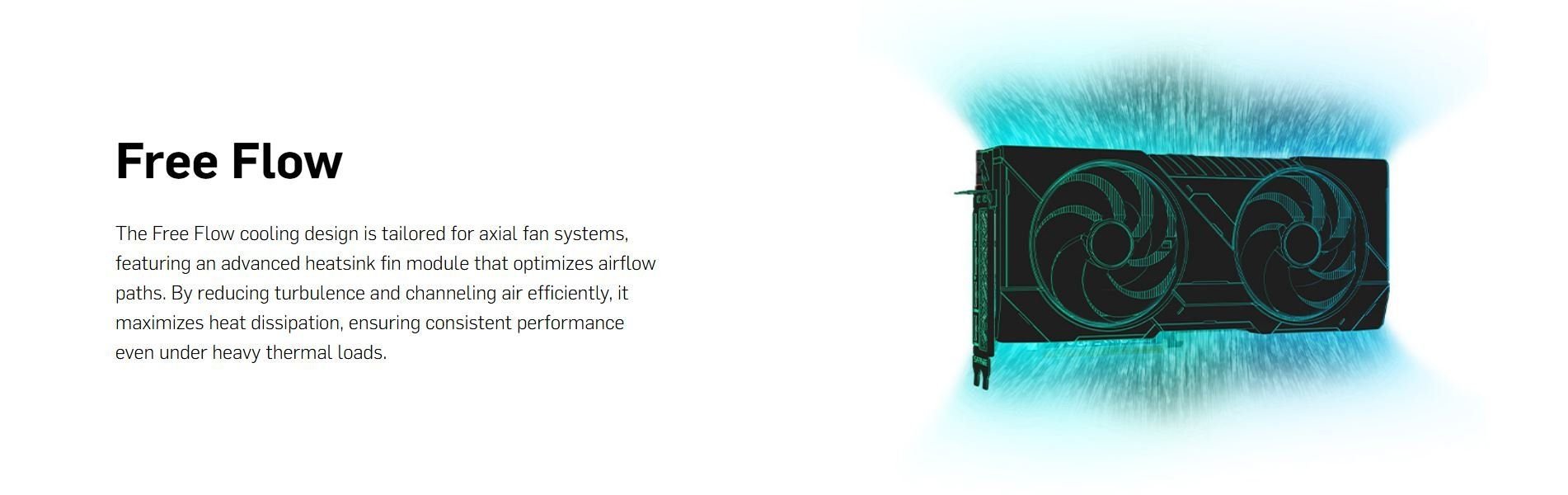

Free Flow

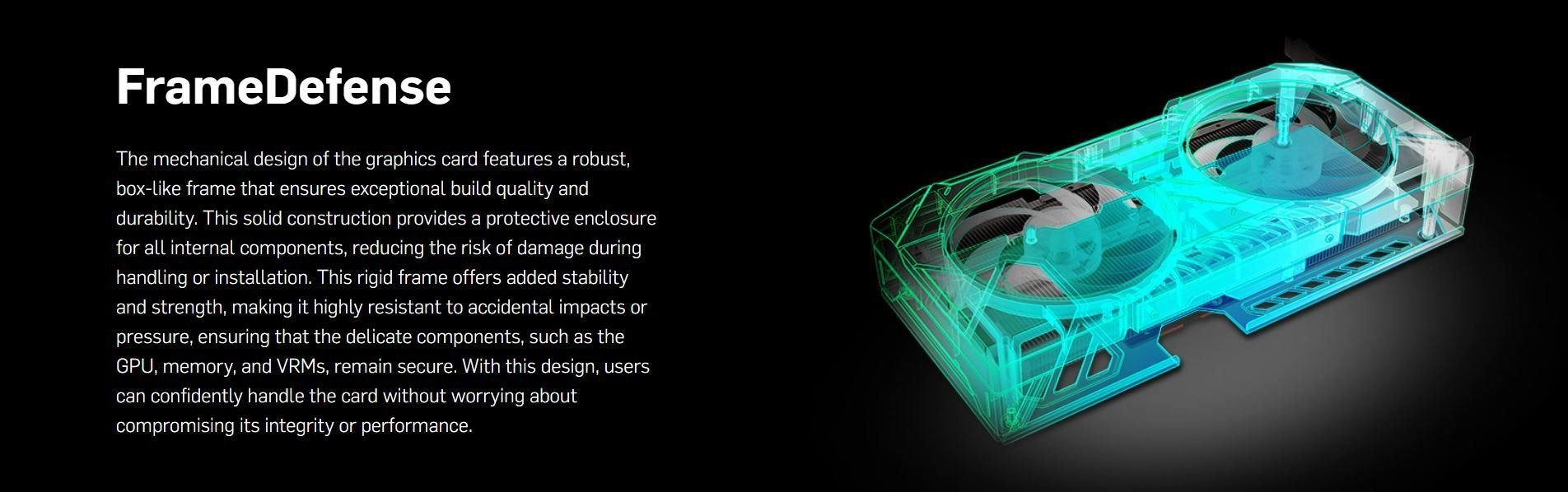

FrameDefense

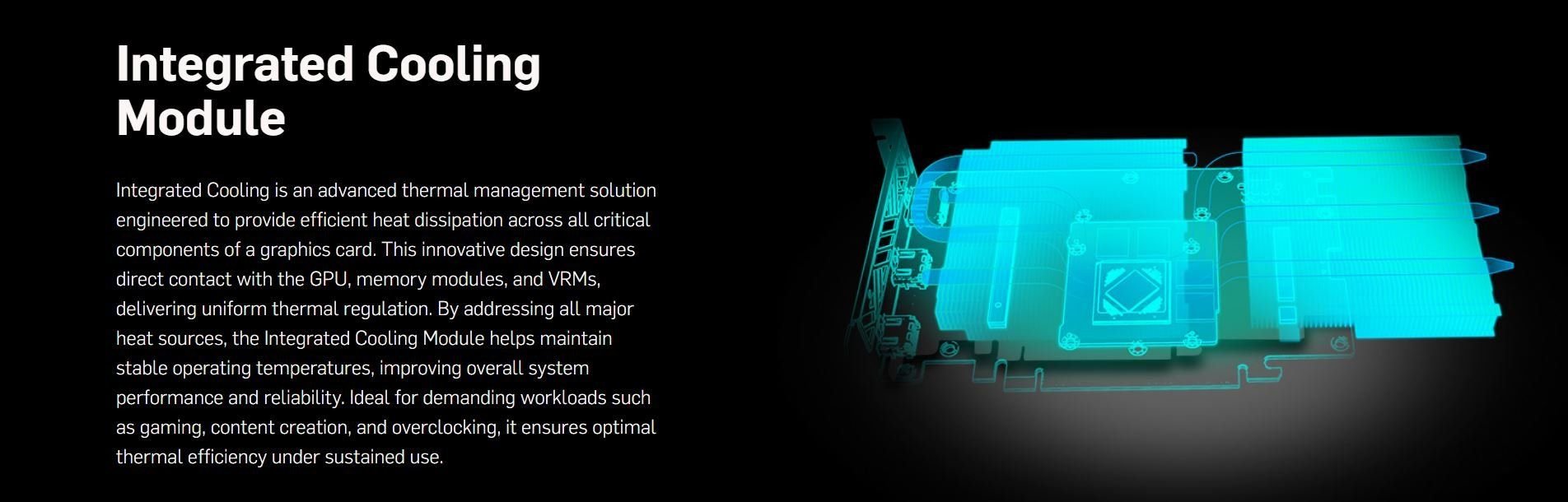

Integrated Cooling Module
Dual-X Cooling Technology

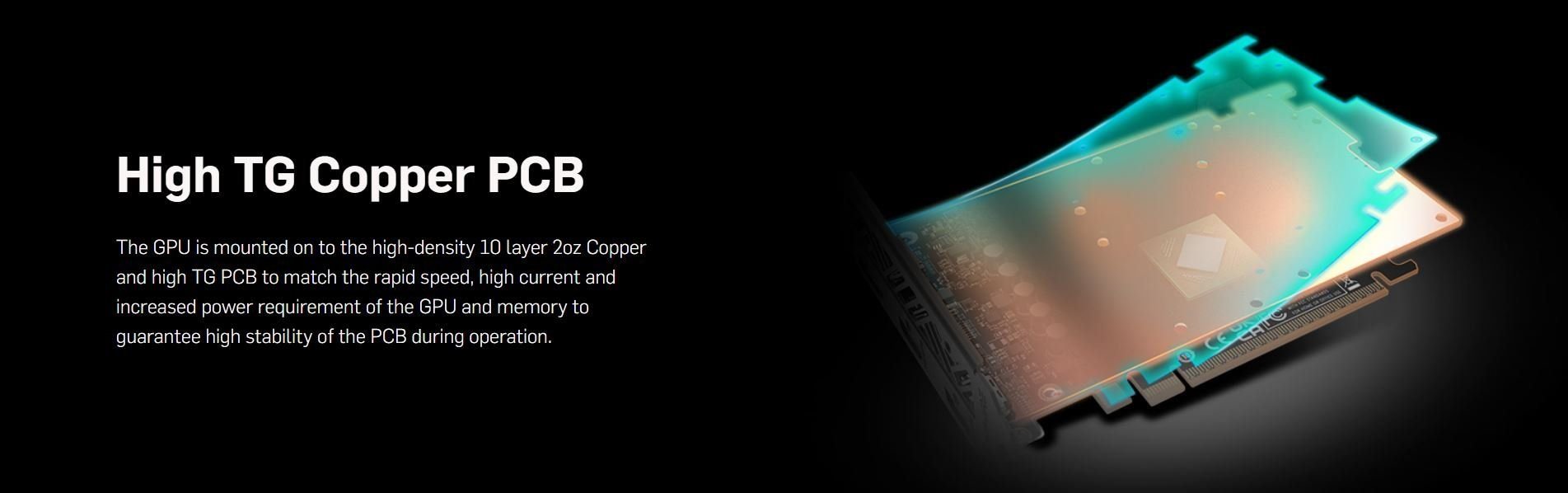

High TG Copper PCB

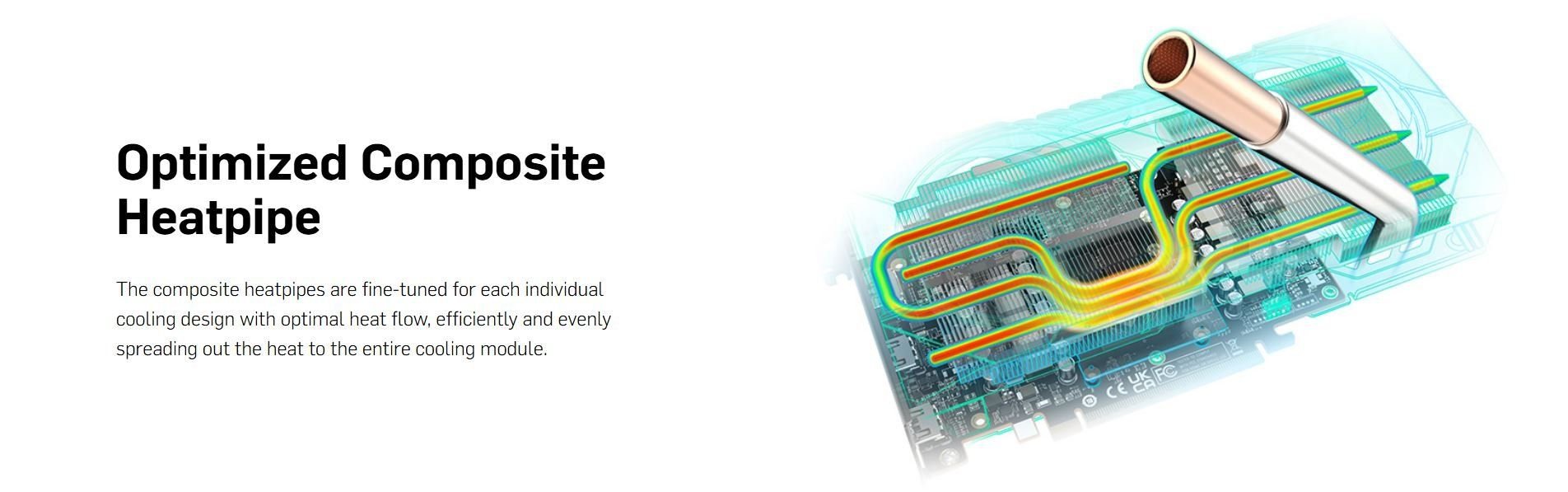

Optimized Composite Heatpipes

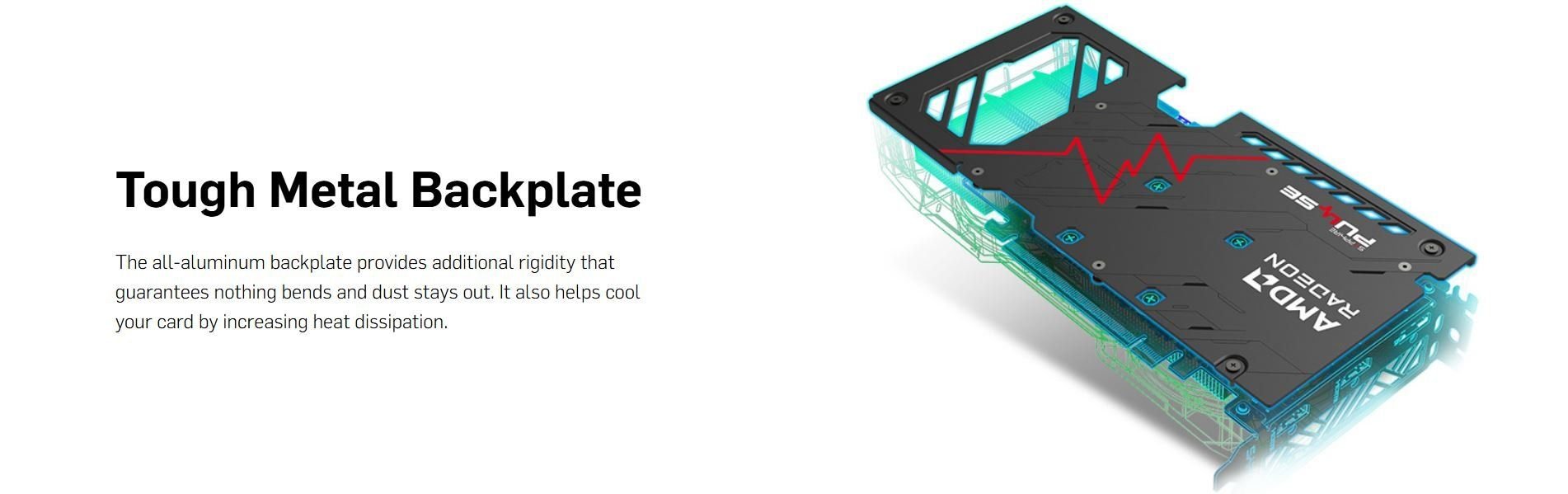

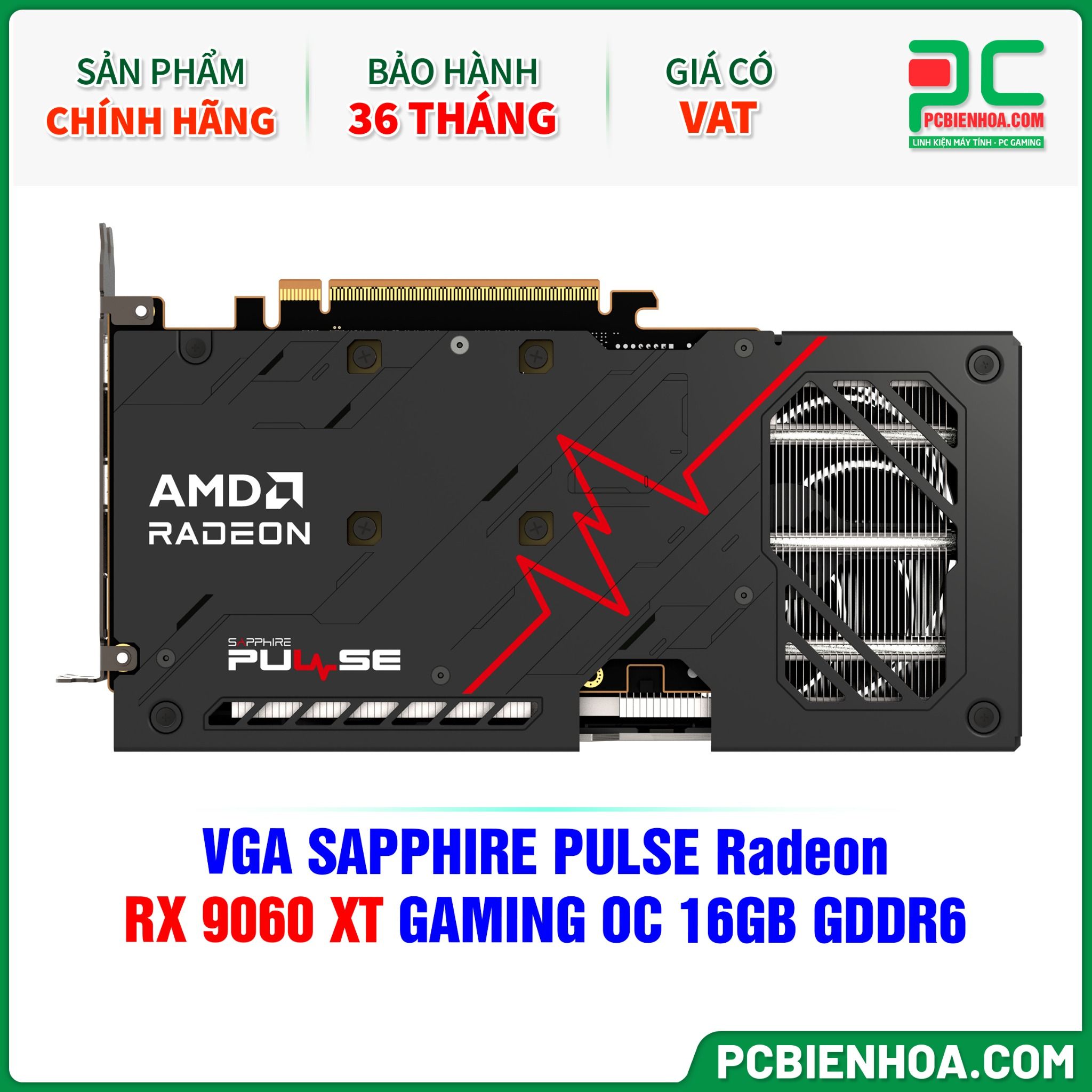

Metal Backplate
Sleeve Bearing Fans
9-Phase Digital Power Design

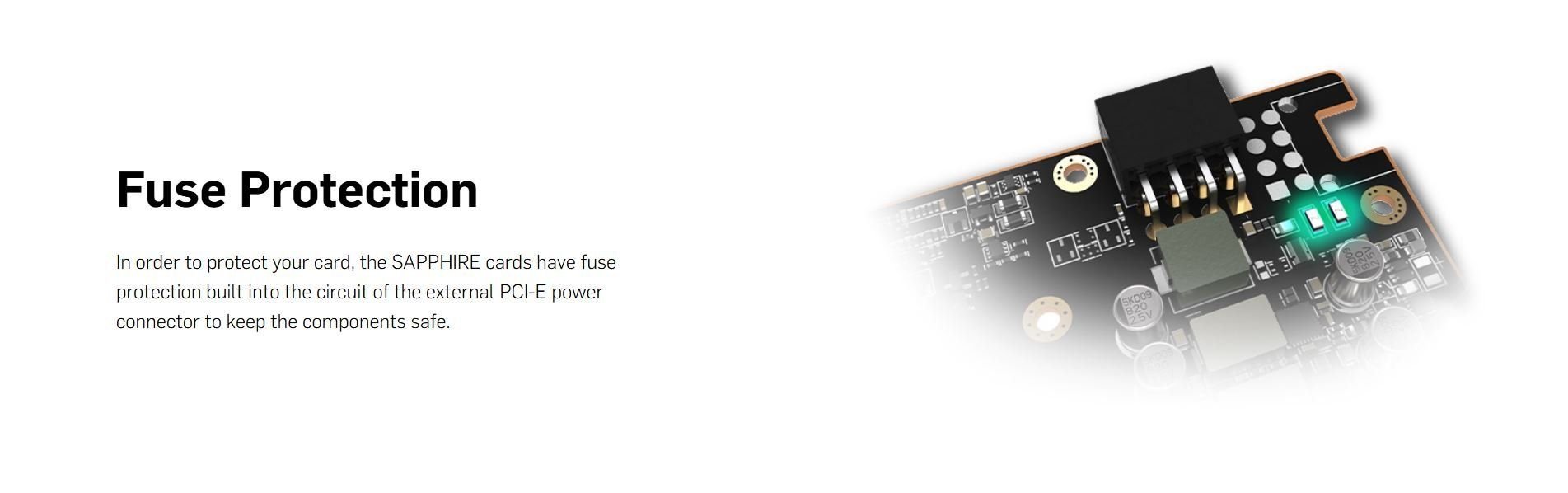

Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
TriXX Boost

AMD Features

AMD RDNA™ 4 Architecture
32 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
DisplayPort™ 2.1a
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon™ Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX™ technologies
Microsoft® DirectX® 12 Ultimate
AMD Noise Suppression
AMD Freesync™ technology
AMD Infinity Cache
16 GB of GDDR6 on 128-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition™ application

Cooler Type

Dual-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Sleeve Bearing

Form Factor

2.3 slot, ATX

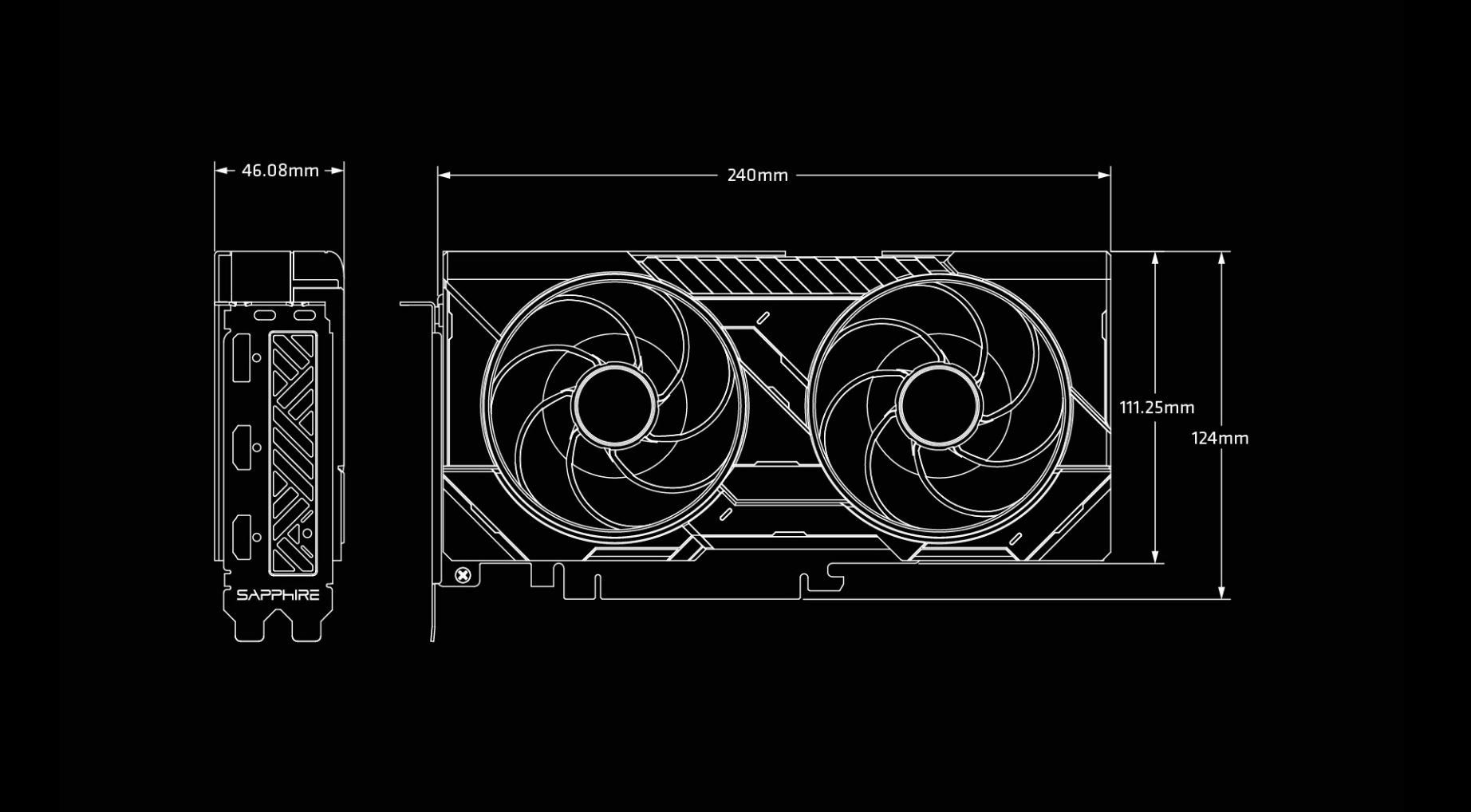

Dimension: 240(L)X 124(W)X 46.1 (H)mm

Power Consumption

170W Typical Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 450 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
