GPU

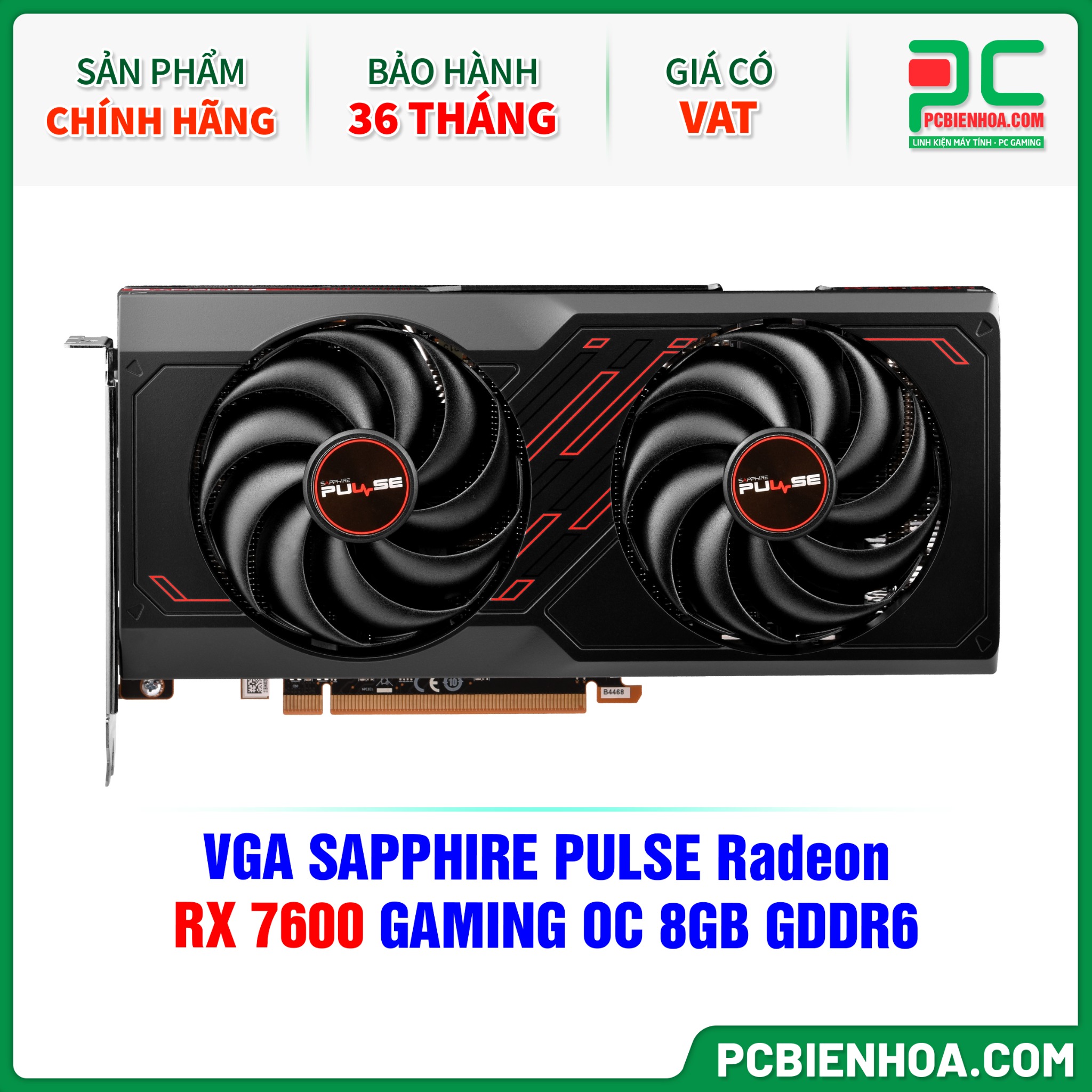

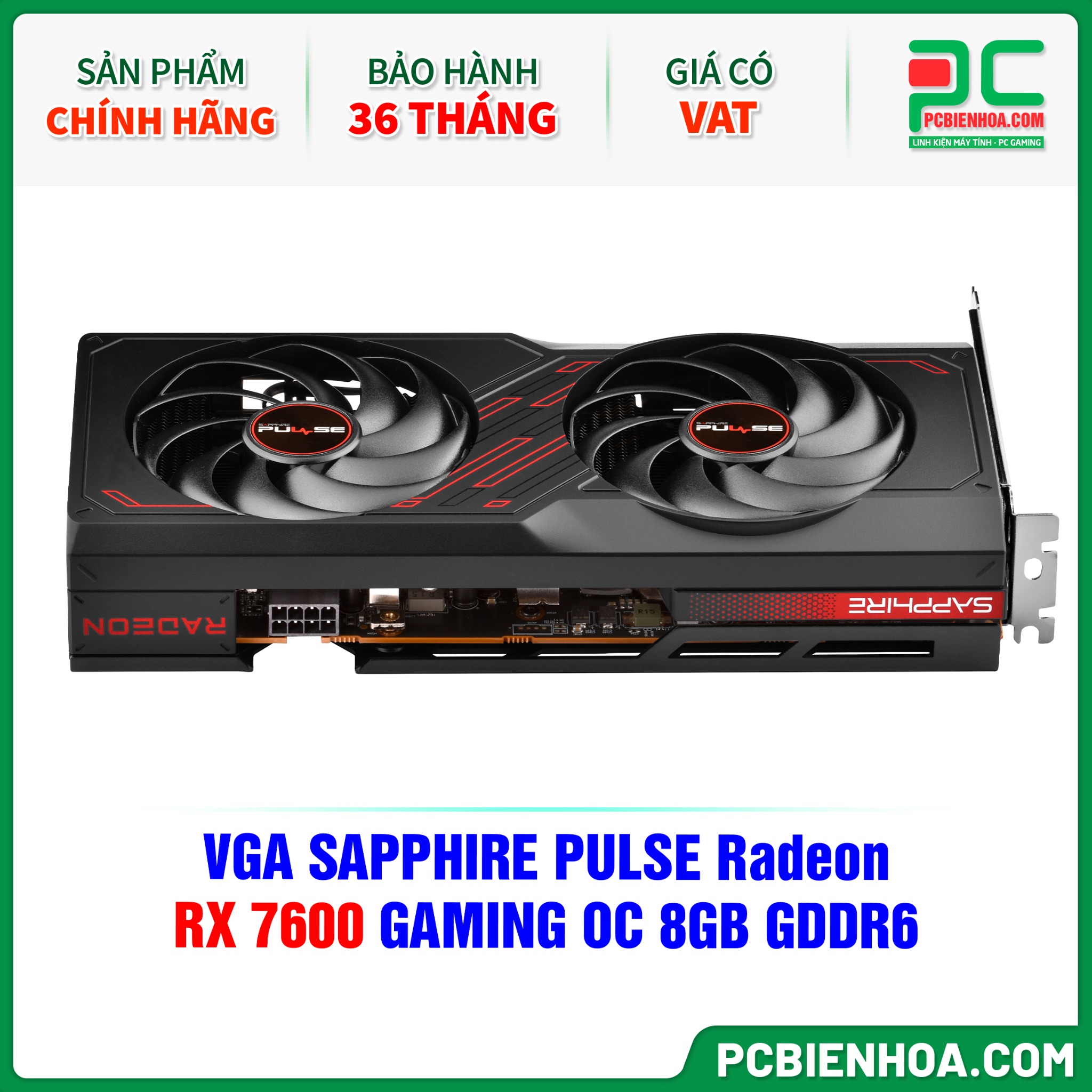

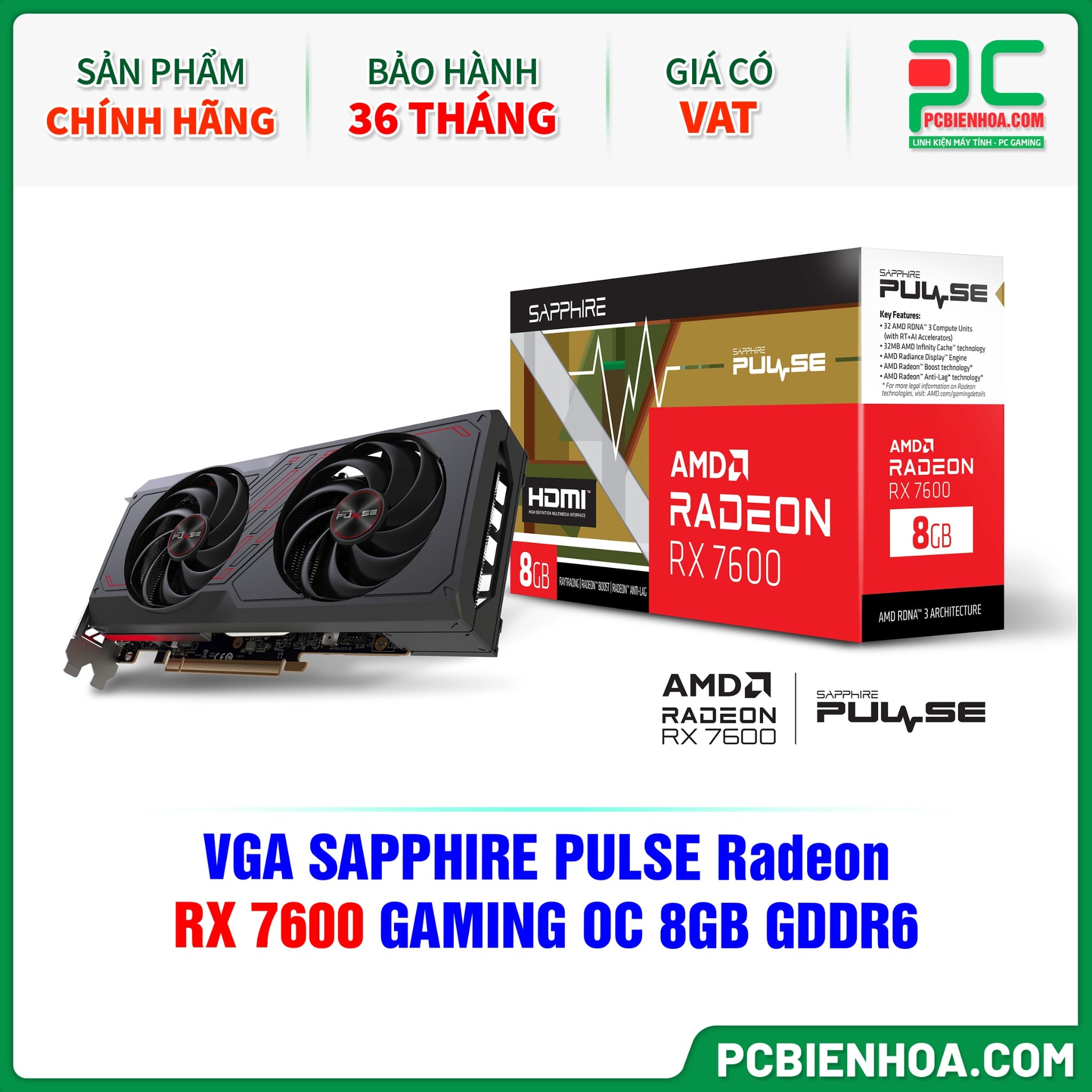

AMD Radeon™ RX 7600 Graphics Card
AMD RDNA™ 3 Architecture

Engine Clock

Boost Clock: Up to 2755 MHz

Game Clock: Up to 2355 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2048

Compute Units

32 CU

Infinity Cache

32MB

Ray Accelerators

32

Memory Size/Bus

8GB/128 bit GDDR6

Memory Clock

18 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320

DisplayPort 1.4: 7680×4320

Interface

PCI-Express 4.0 x8

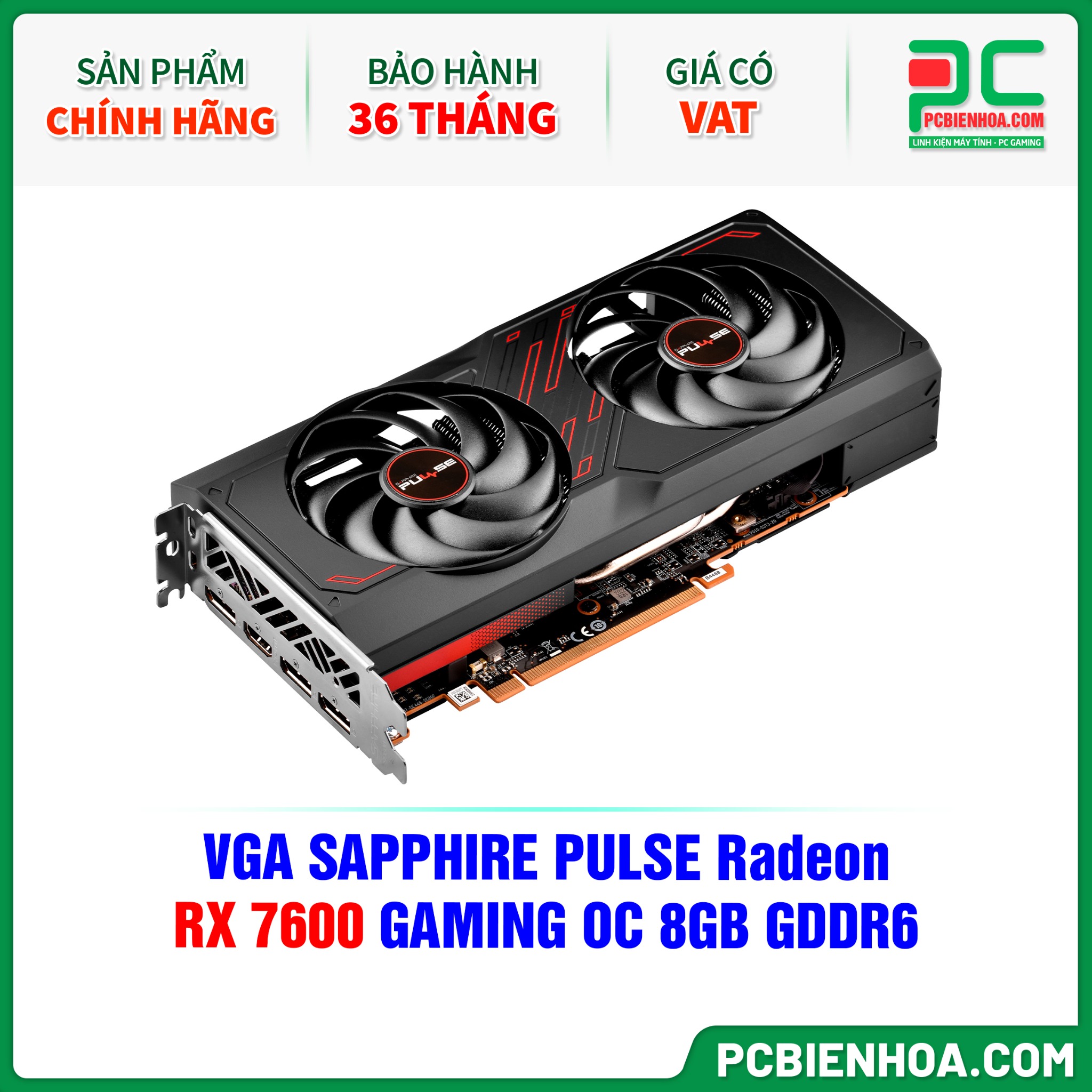

Output

1x HDMI

3x DisplayPort

BIOS Support

UEFI

Game Index

1080P Ultimate

Sapphire Features

Fuse Protection

Dual-X Cooling Technology

Intelligent Fan Control

Precision Fan Control

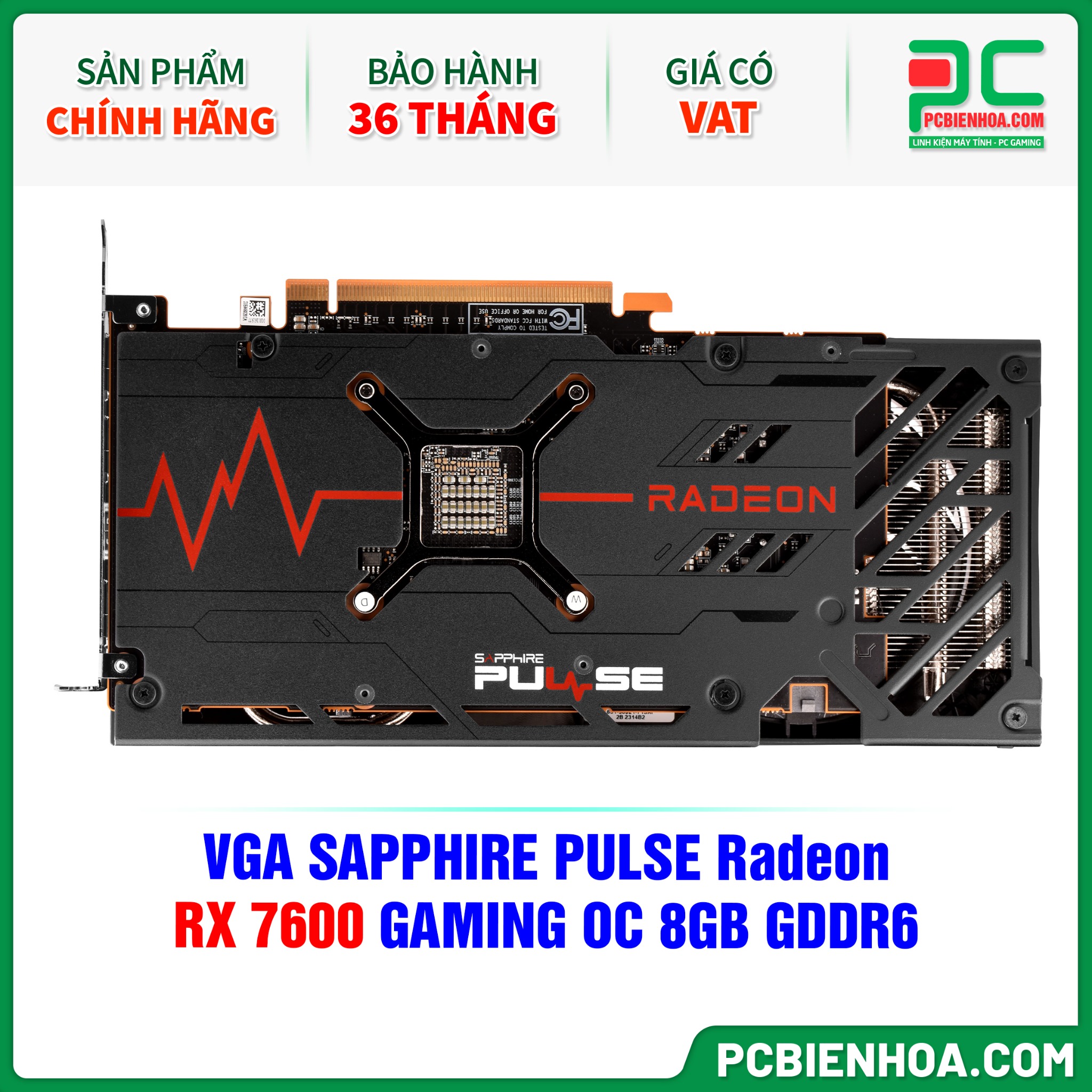

Metal Backplate

Two-Ball Bearing Fans

Optimized Composite Heatpipe

TriXX Supported

TriXX Boost

AMD Features

AMD RDNA 3 Architecture

DirectX 12 Ultimate

AMD Smart Access Memory

AMD Infinity Cache

PCI Express 4.0 Support

AMD FreeSync™ Technology

DisplayPort 1.4 with DSC

HDMI

Video Streaming up to 8K

AMD Radeon VR Ready Premium

AMD Radeon Image Sharpening

AMD Radeon Anti-Lag

AMD Software: Adrenalin Edition™ Technology

Game Driver Optimizations

Cooling

2 Fans

Form Factor

2 slot, ATX
Dimension: 240(L)X 107.1(W)X 44.07 (H)mm

Power Consumption

185W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 550 Watt Power Supply

1 x 8-pin Power Connector.

PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.

Minimum 8GB of system memory. 16GB recommended.
