GPU

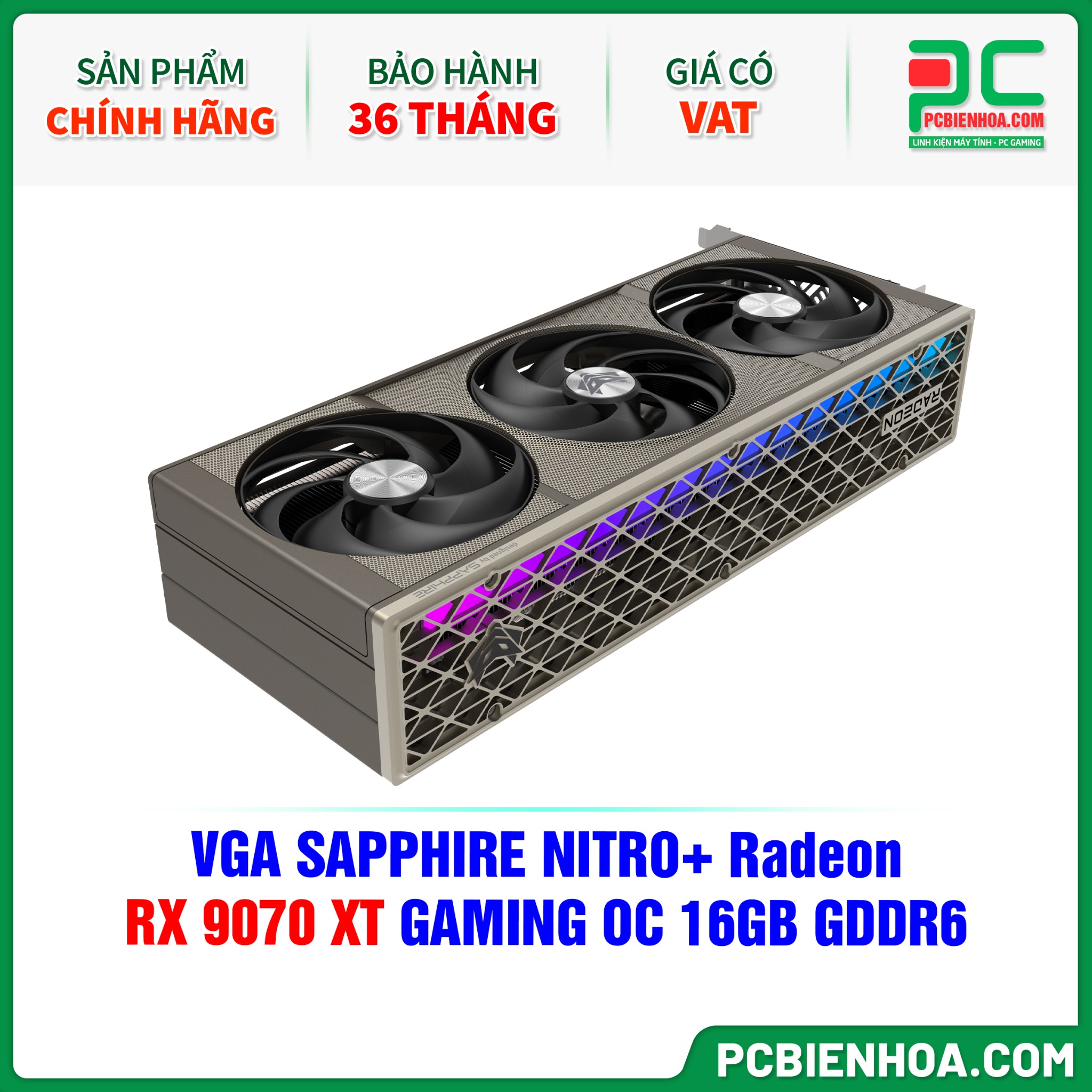

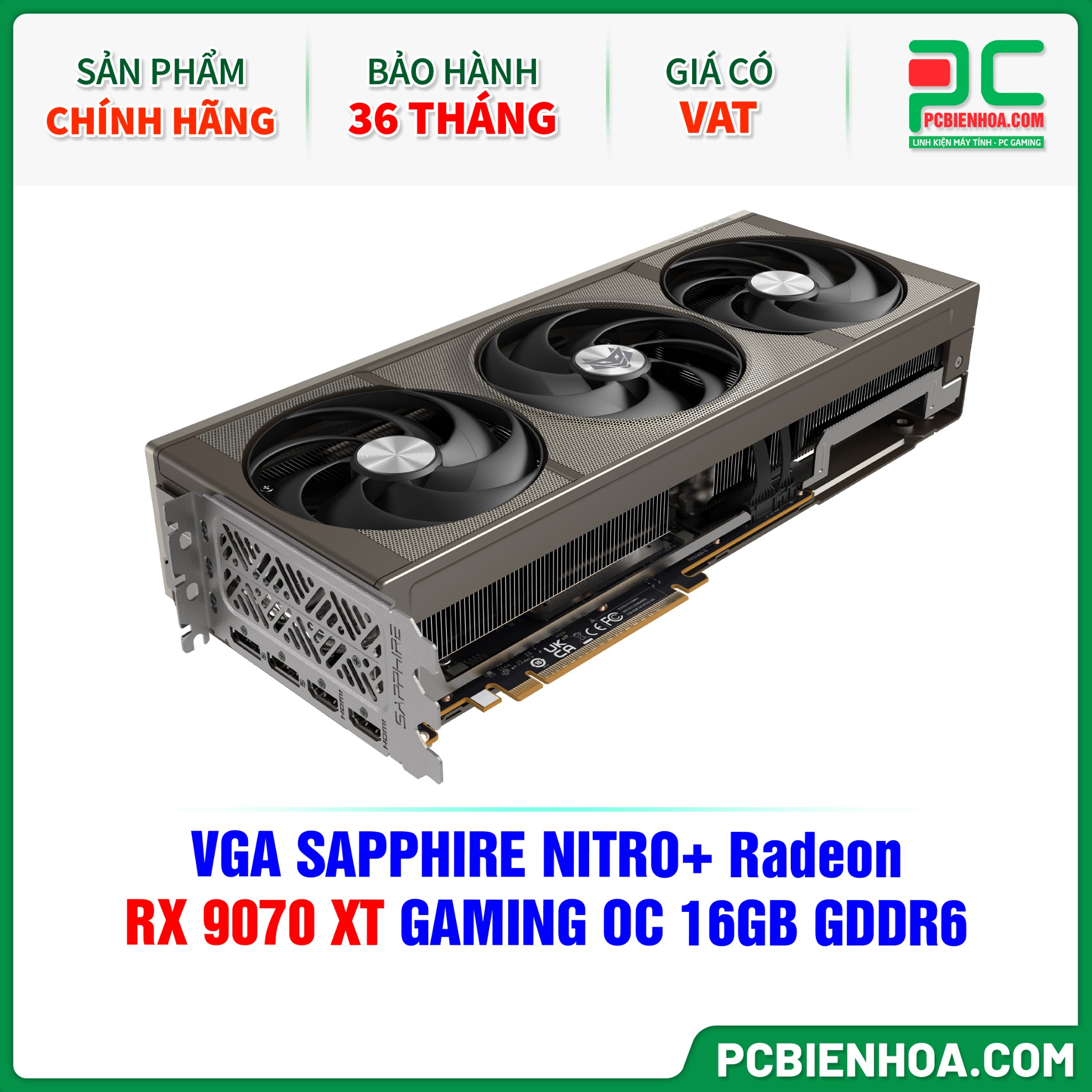

AMD Radeon™ RX 9070 XT Graphics Card
AMD RDNA™ 4 Architecture

Engine Clock

Boost Clock: Up to 3060 MHz
Game Clock: Up to 2520MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

4096

Compute Units

64 CUs (3rd Gen RT + 2nd Gen AI Accelerators)

Infinity Cache

64MB

Ray Accelerators

64

AI Accelerator

128

Memory Size/Bus

16GB/256 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320

Interface

PCI-Express 5.0 x16

Output

2x HDMI®

2x DisplayPort™ 2.1a

BIOS Support

UEFI

Game Index

4K

Sapphire Features

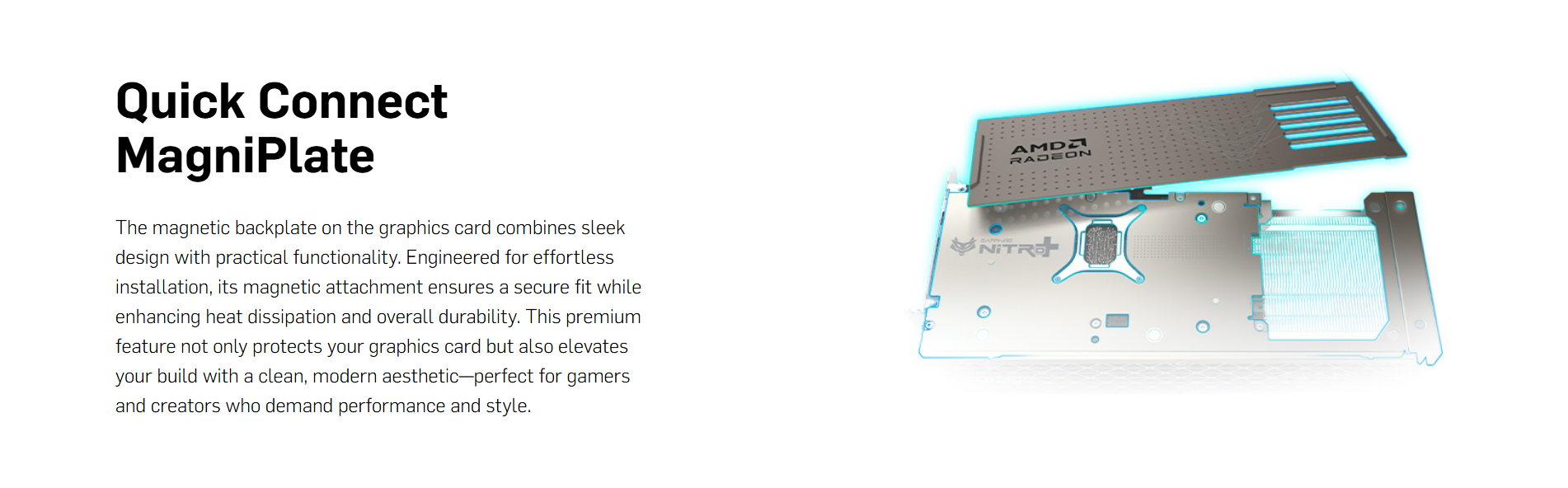

Quick Connect MagniPlate

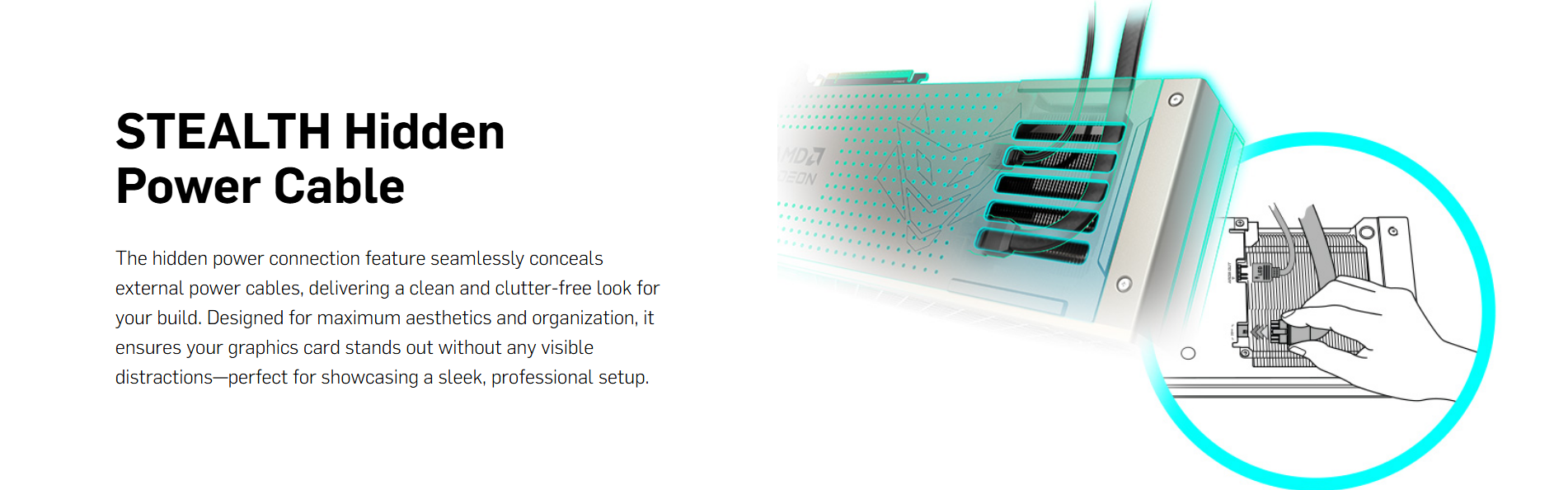

STEALTH Hidden Power Cable
12V-2x6(H++) External Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)

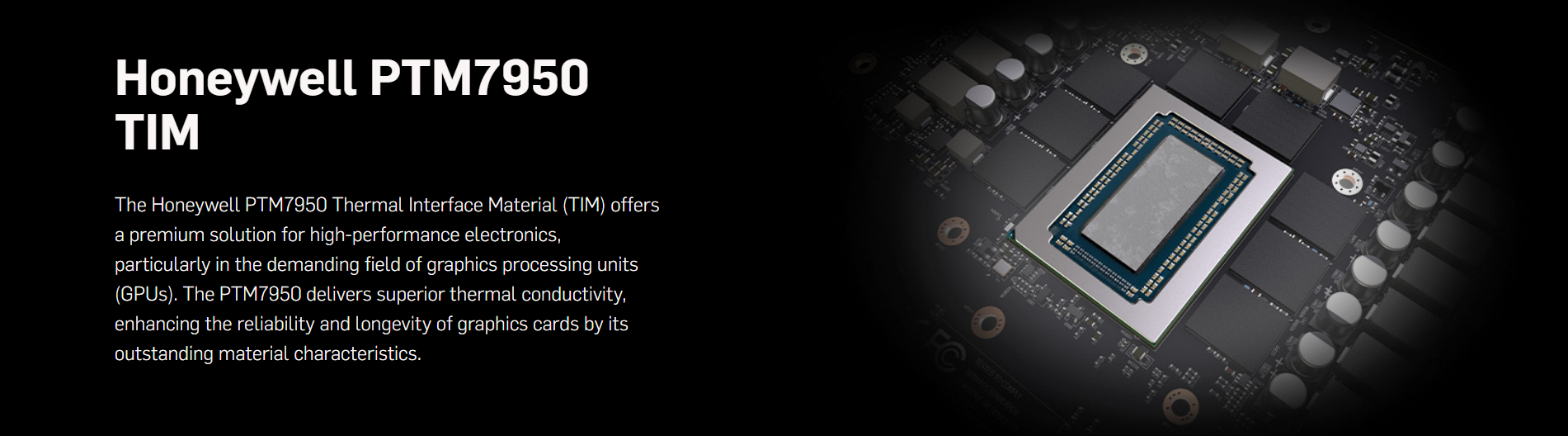

Honeywell PTM7950 Thermal Interface Material (TIM)

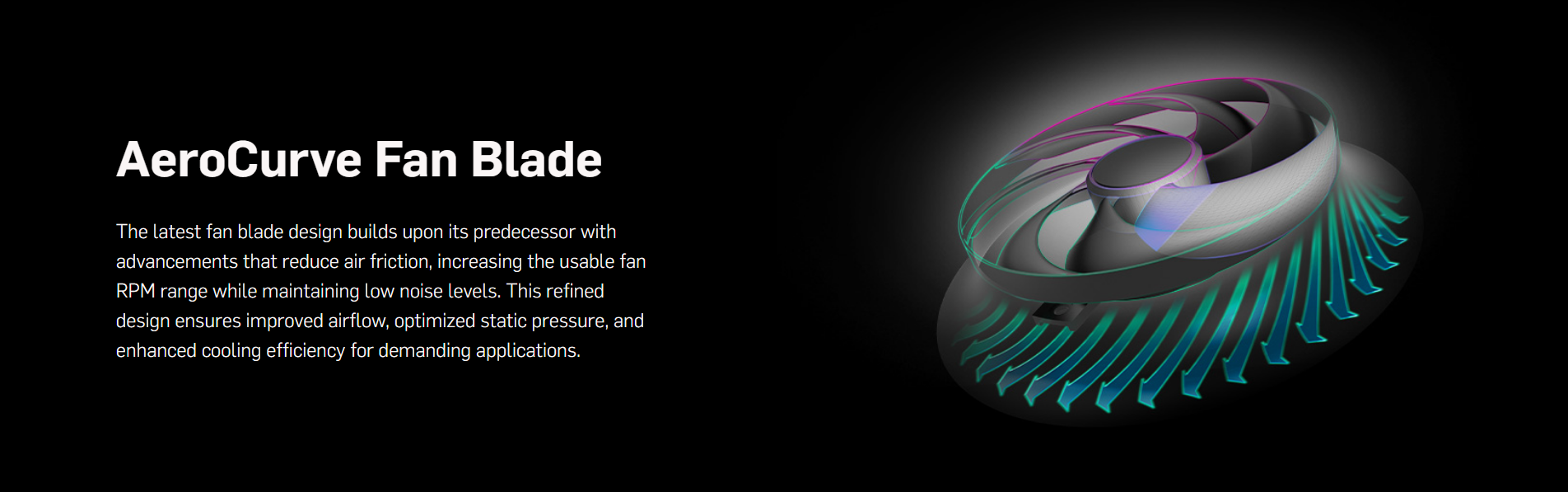

AeroCurve Fan Blade

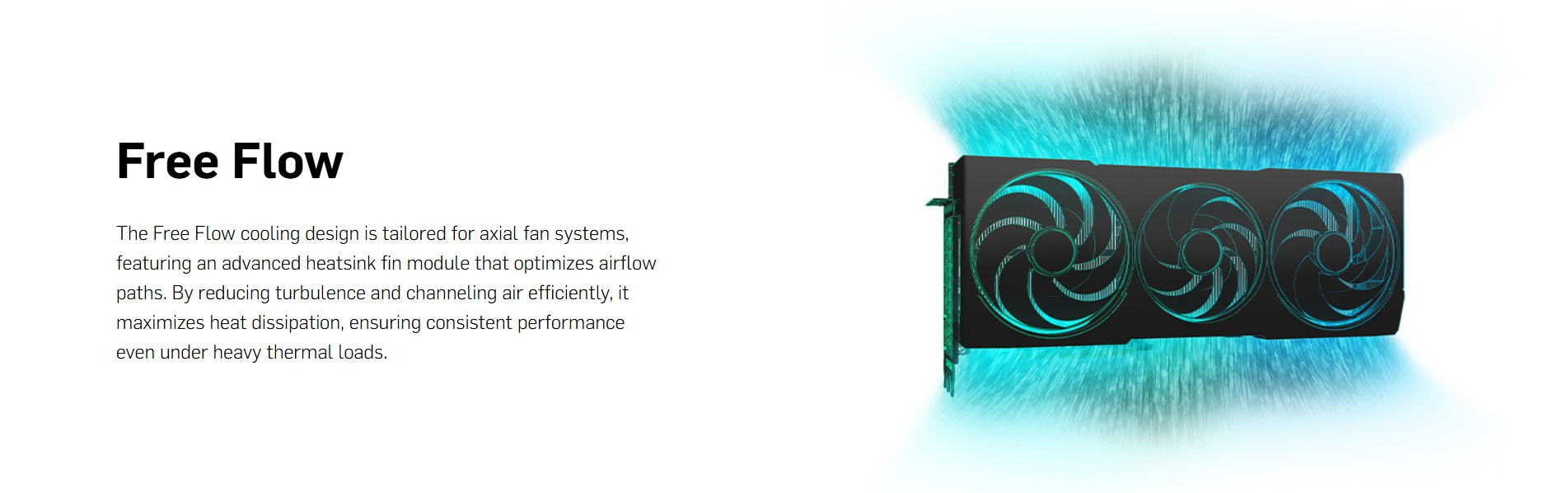

Free Flow

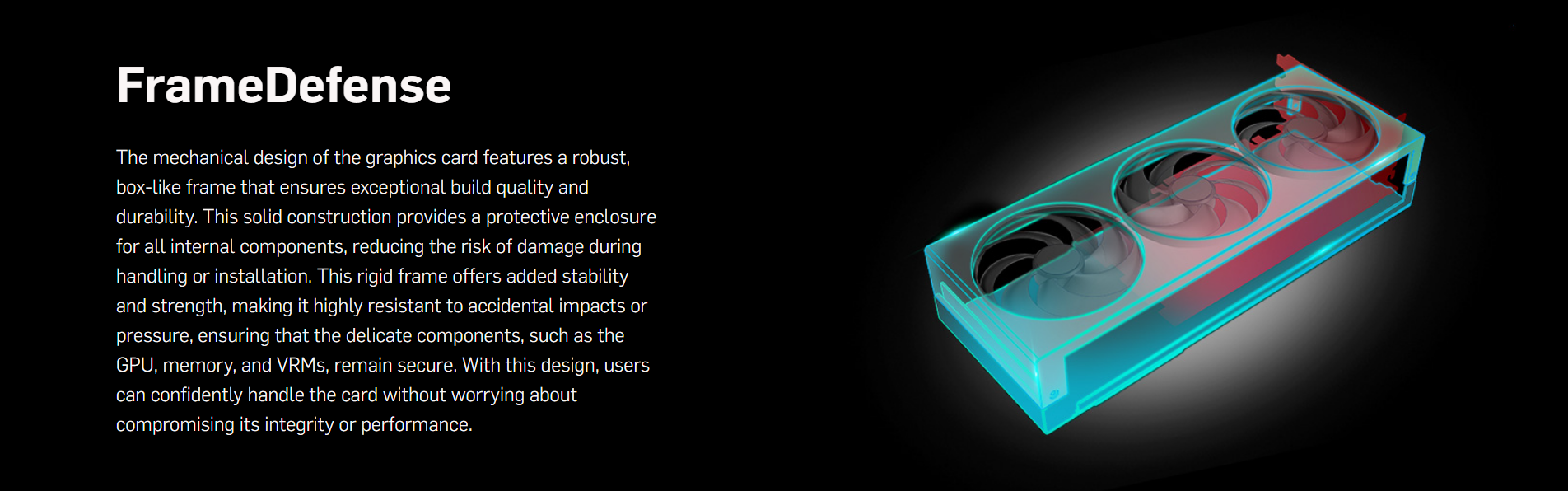

FrameDefense

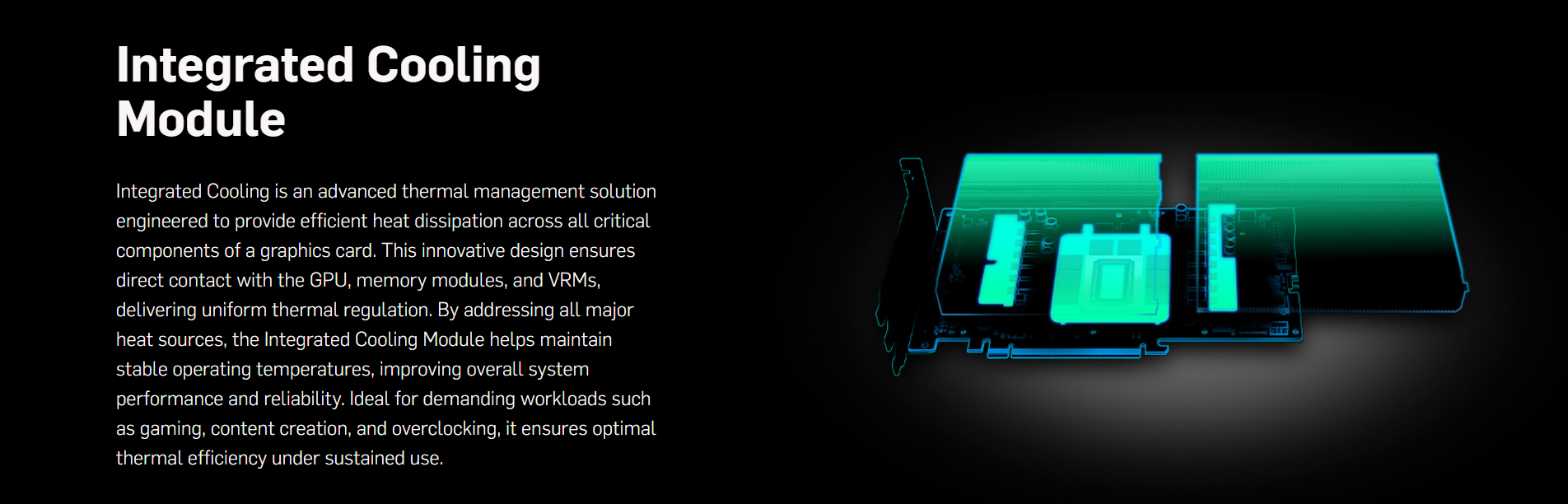

Integrated Cooling Module

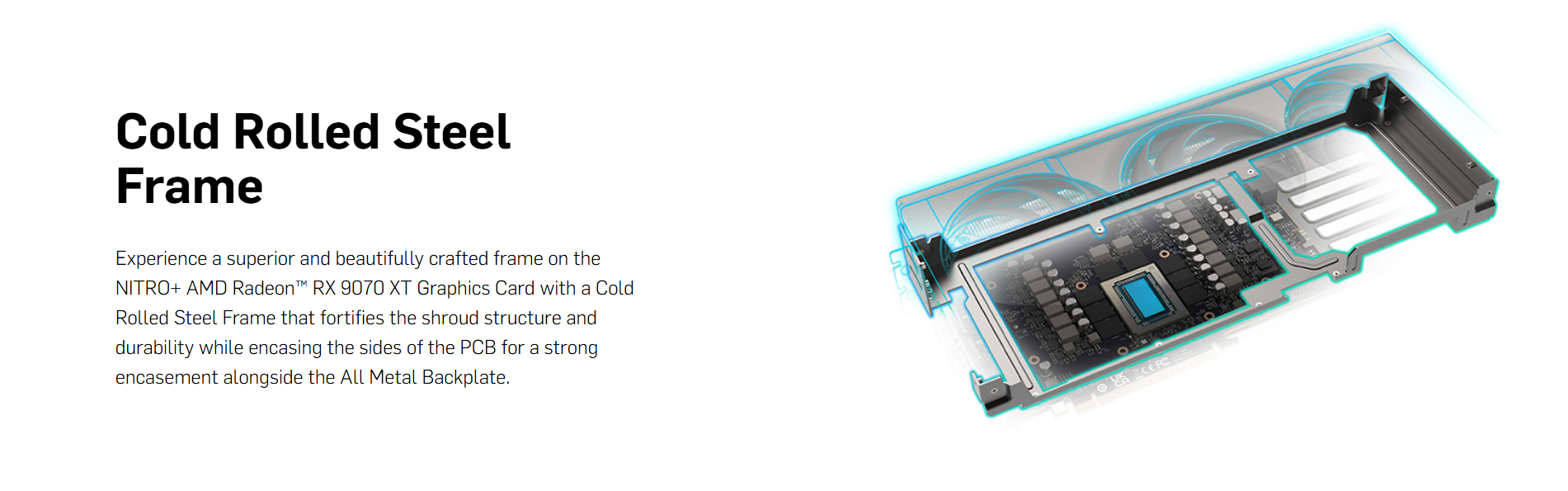

Cold Rolled Steel Frame

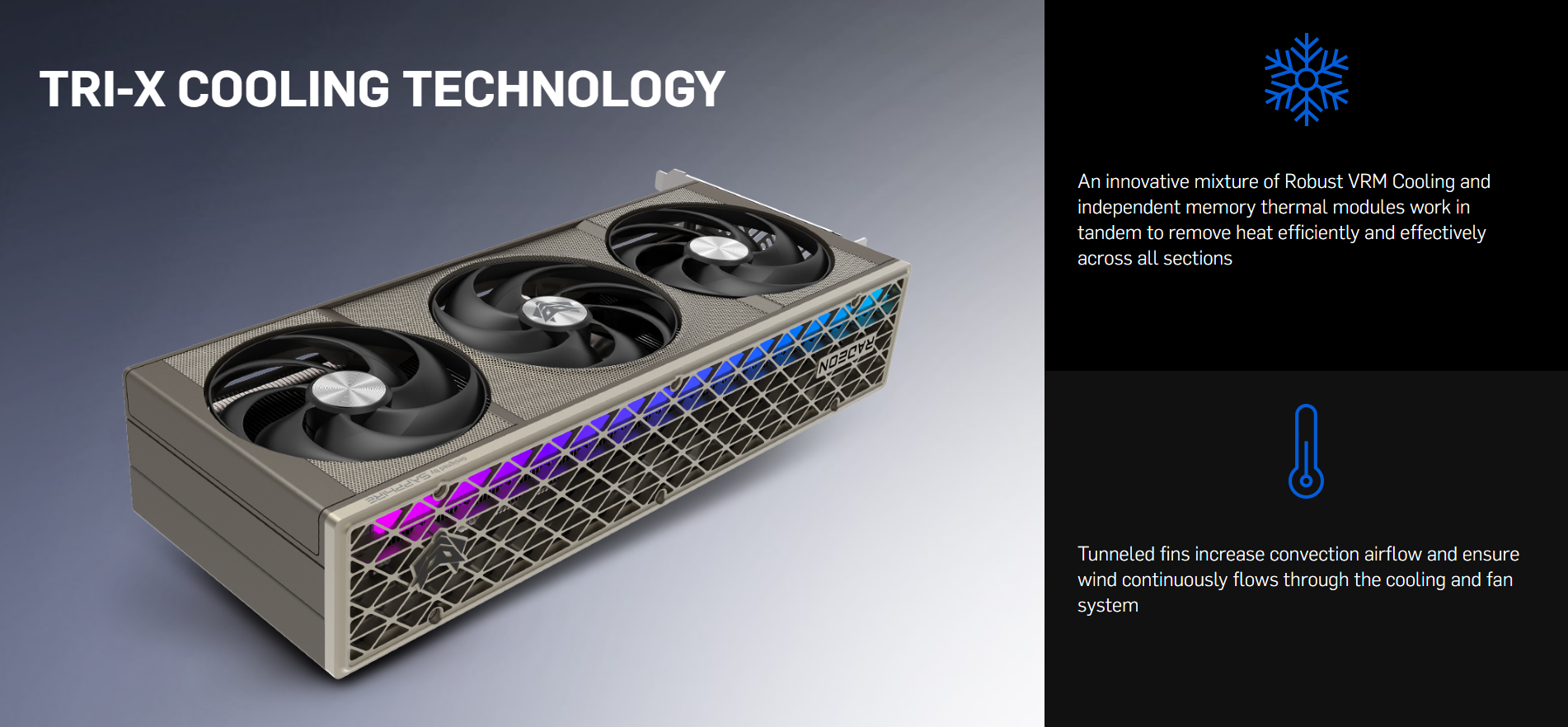

Tri-X Cooling Technology

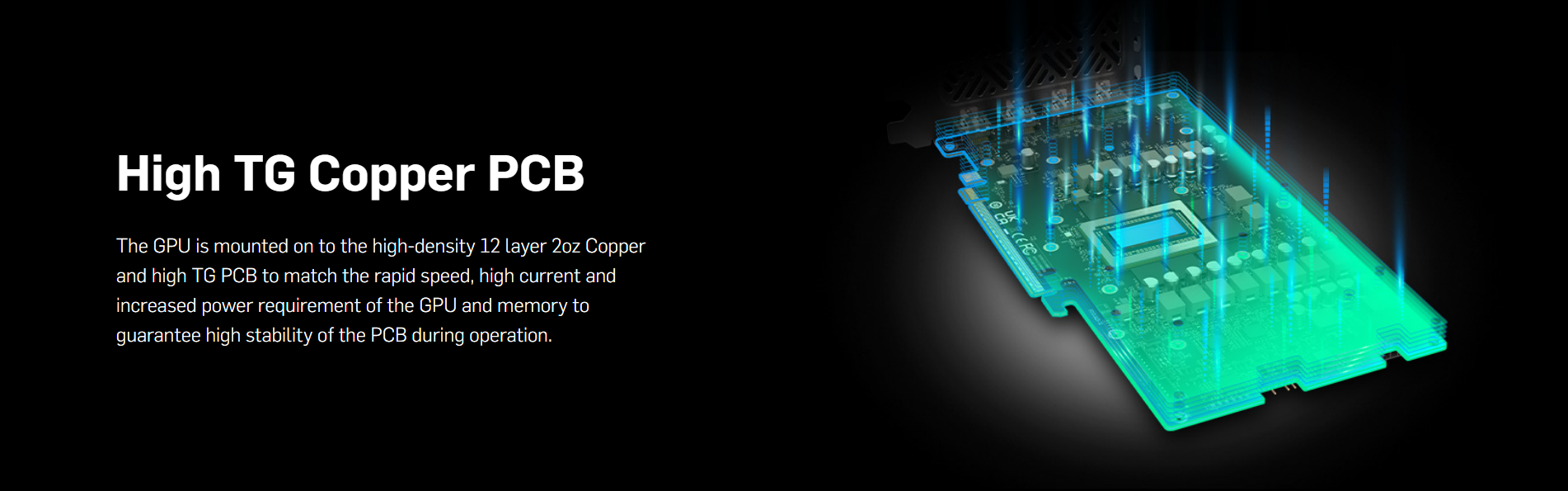

High TG Copper PCB

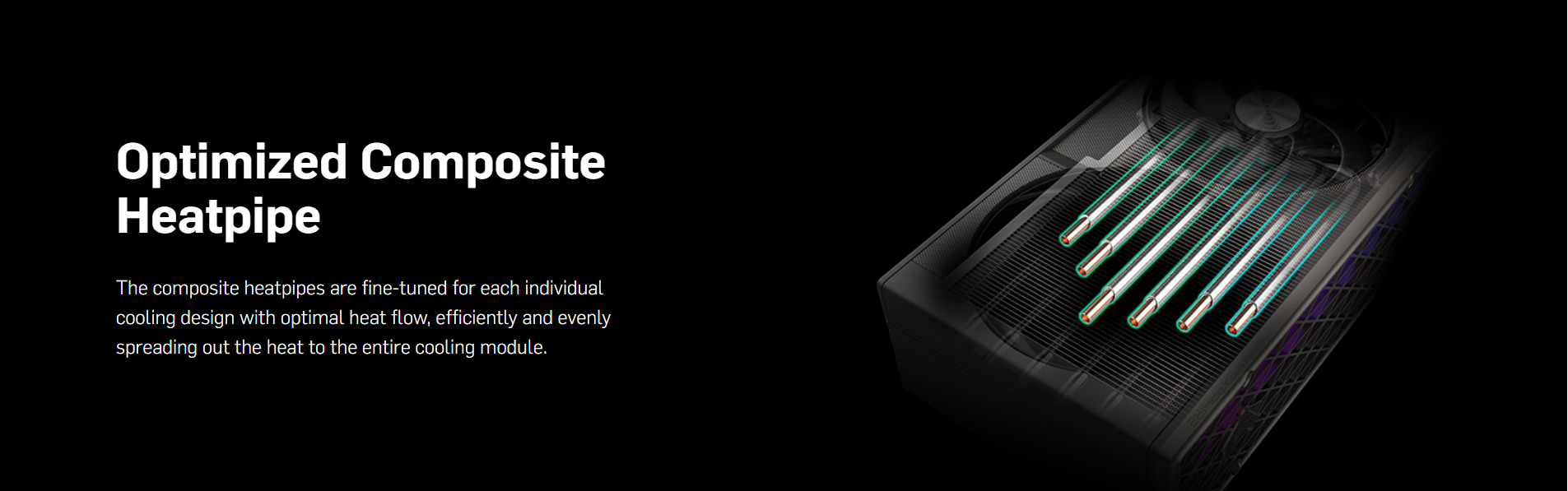

Optimized Composite Heatpipes
Metal Backplate

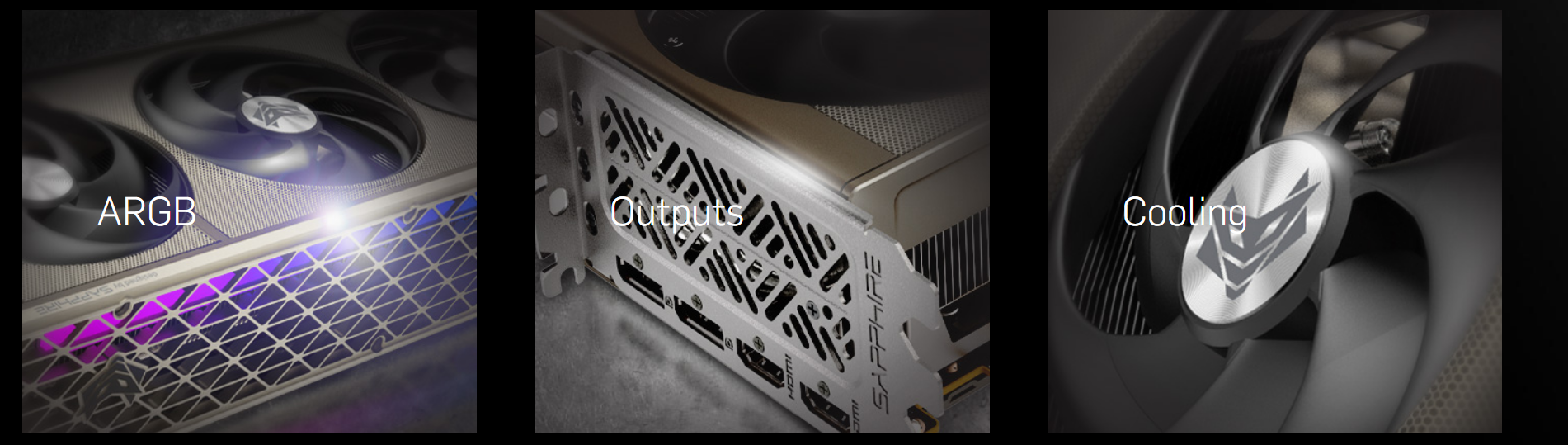

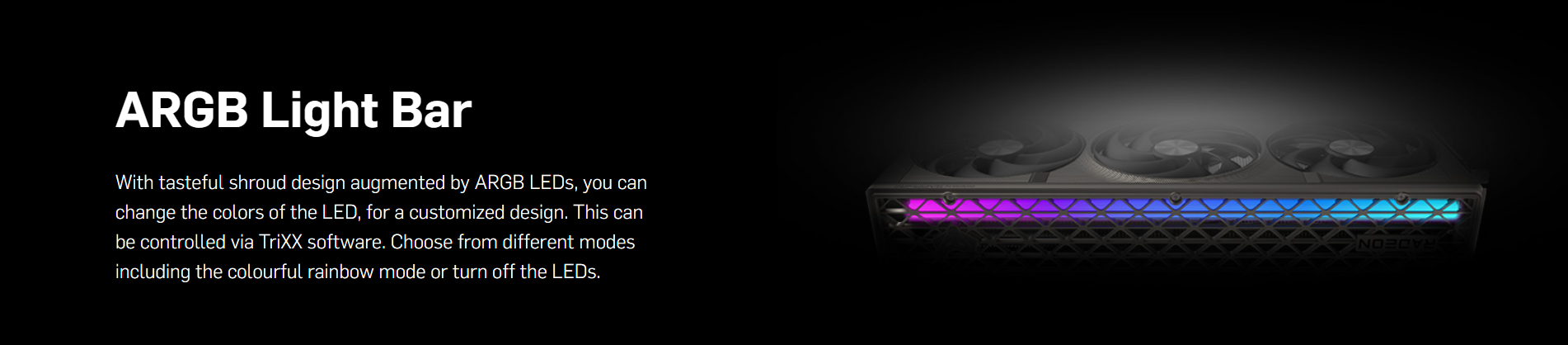

ARGB Light Bar

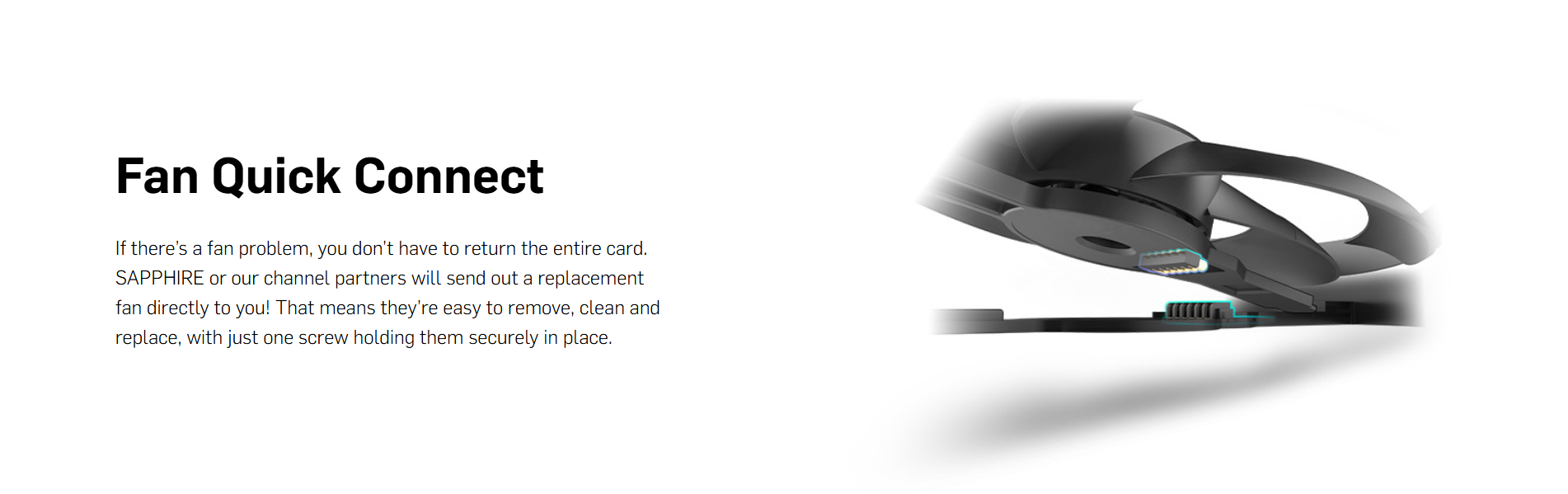

Fan Quick Connect

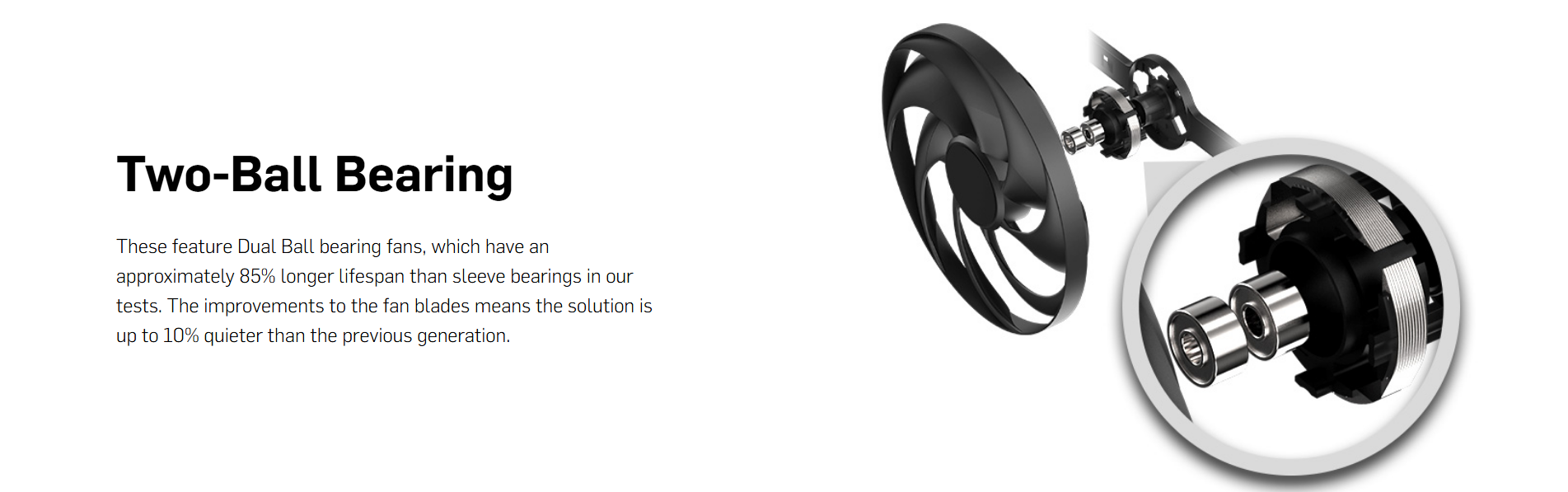

Two-Ball Bearing Fans

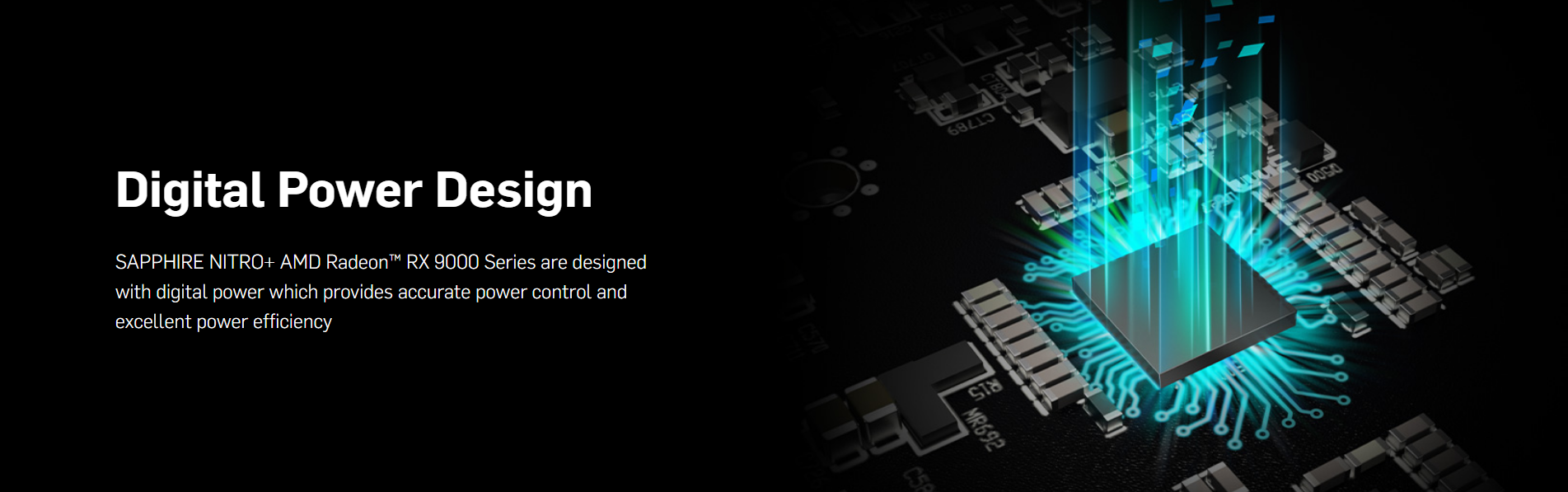

Premium 16-Phase Digital Power Design

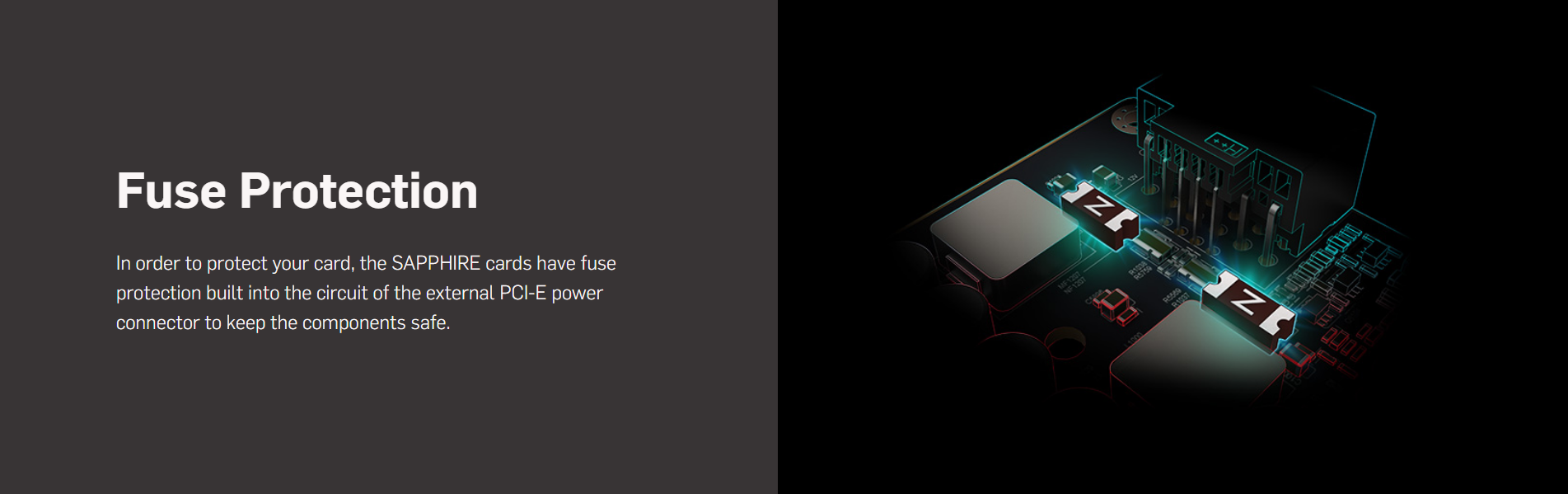

Fuse Protection
Intelligent Fan Control
Precision Fan Control
TriXX Supported
Performance vs. Efficiency Quicksets
Glow!
Fan Check
TriXX Boost

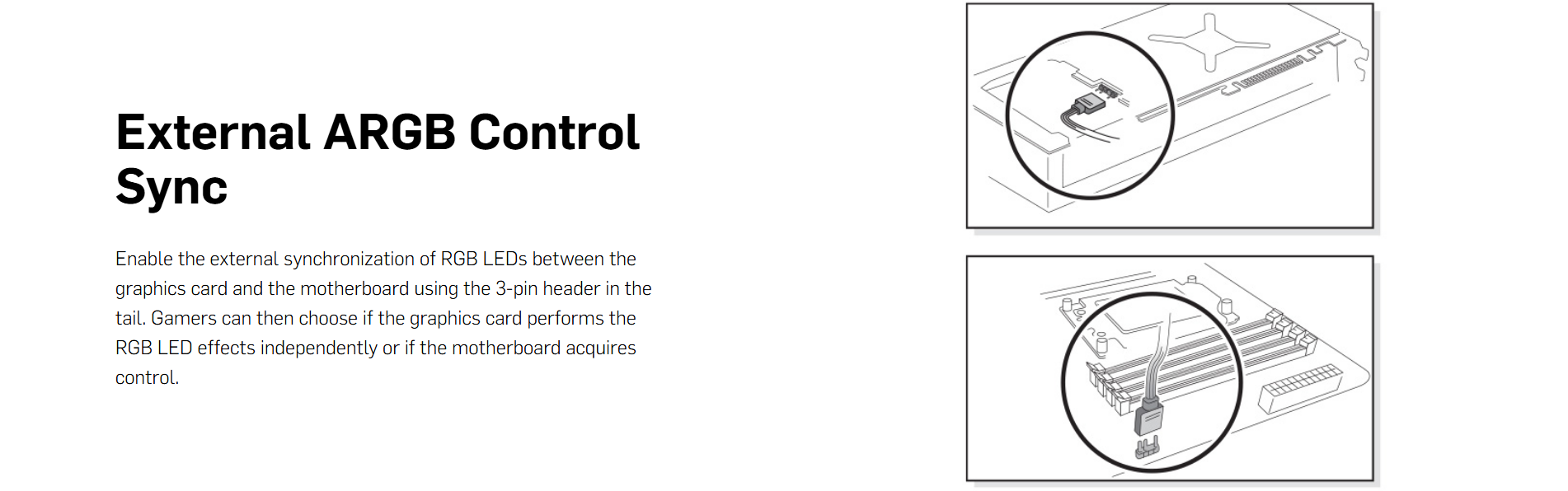

External RGB LED MB Synchronization

Accessories Bundled

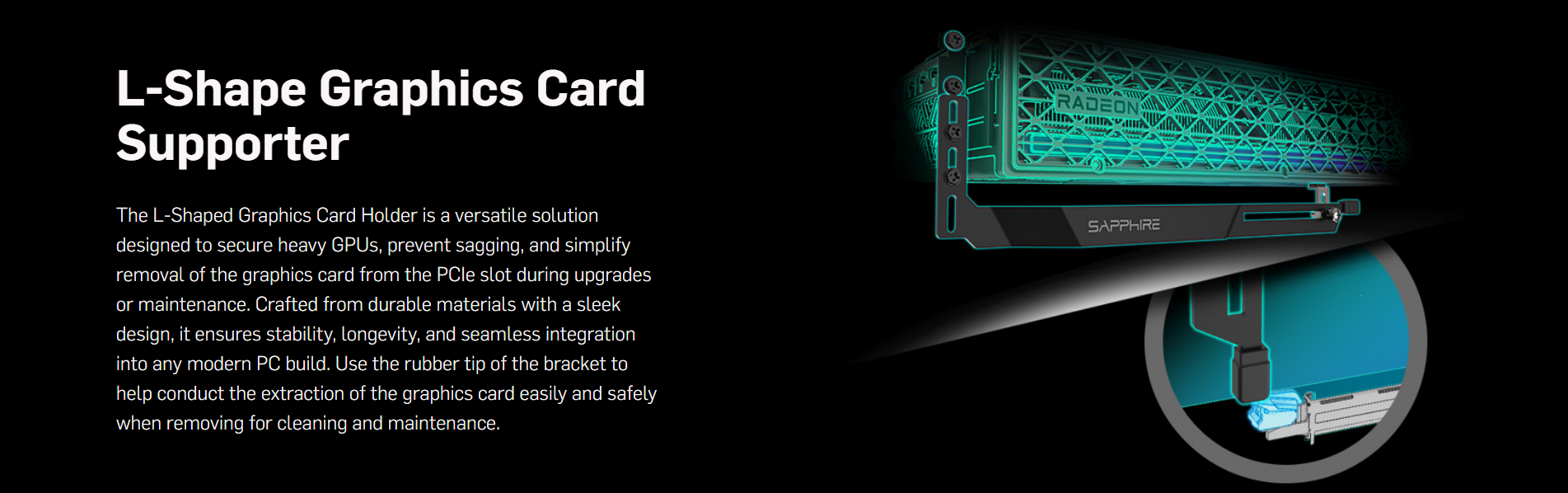

L-Shape Support Bracket
3pin 5V ARGB Cable

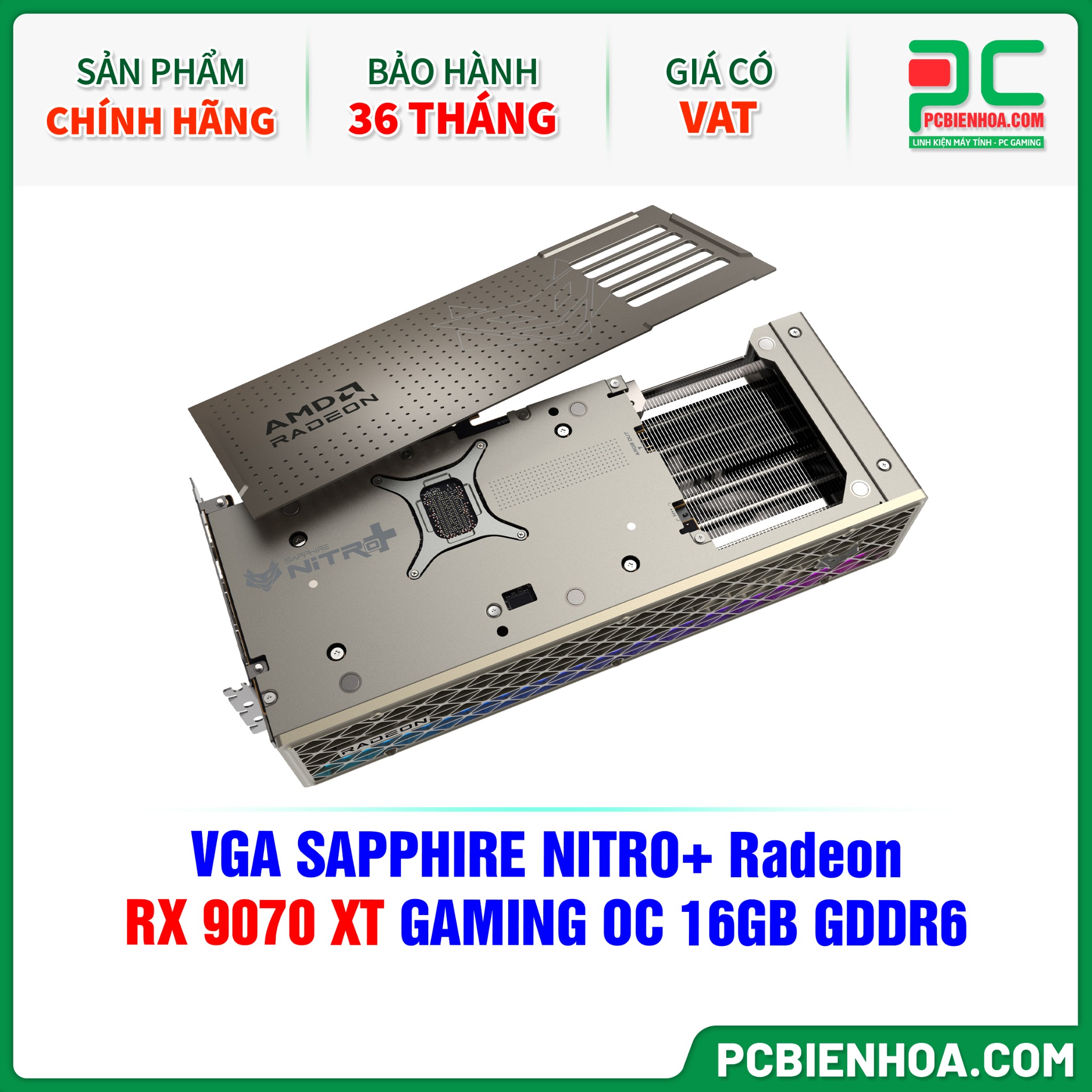

Magnetic Backplate
12V-2x6(H++) to PCI Express 3x8-pin power adapter

AMD Features

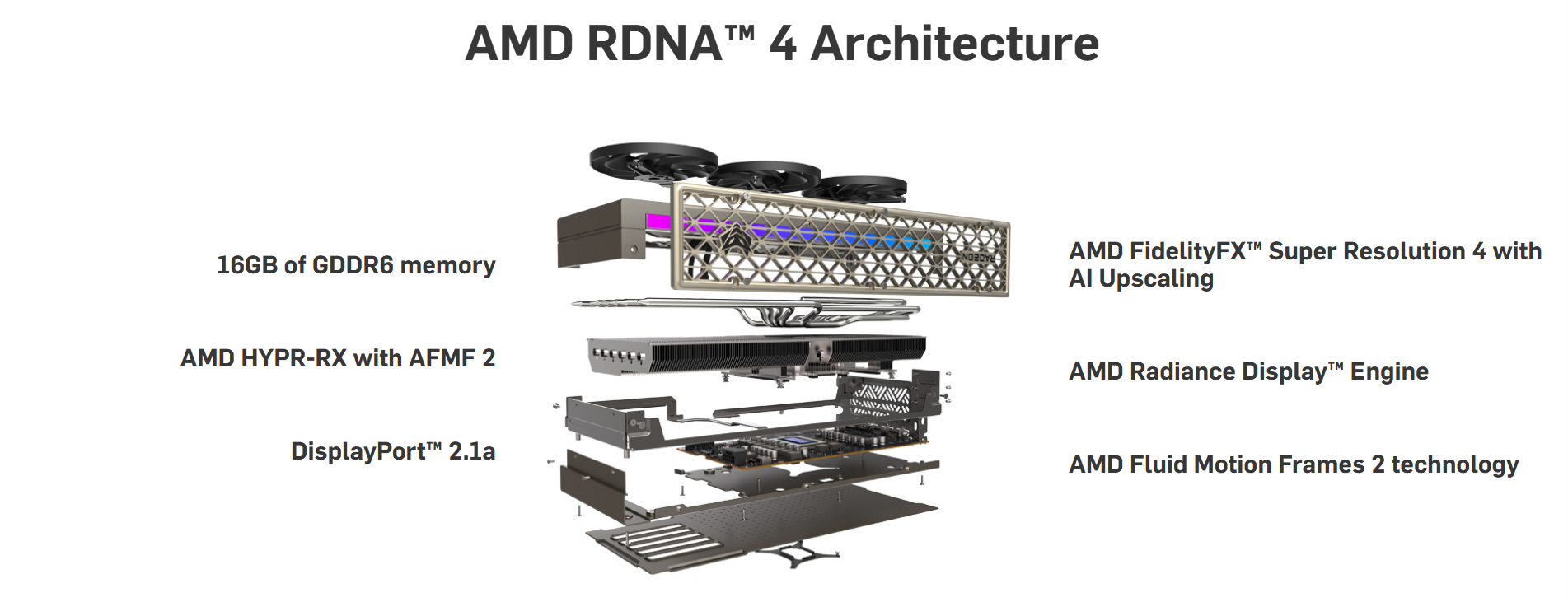

AMD RDNA™ 4 Architecture
64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
AMD HYPR-RX with AFMF 2
AMD FidelityFX™ Super Resolution 4 with AI Upscaling
DisplayPort™ 2.1a
AMD Radiance Display™ Engine
AMD Fluid Motion Frames 2 technology
AMD Radeon™ Anti-Lag 2 technology
AV1 Encode/Decode
AMD FidelityFX™ technologies
Microsoft® DirectX® 12 Ultimate
AMD Noise Suppression
AMD Freesync™ technology
16 GB of GDDR6 on 256-bit Memory Bus
AMD smart technologies
AMD Software: Adrenalin Edition™ application

Cooler Type

Tri-X Cooling
AeroCurve Fan Blade
Free Flow
Integrated Cooling Module
High TG Copper PCB
Optimized Composite Heatpipes
Two-Ball Bearing

Form Factor

3.2 slot, ATX

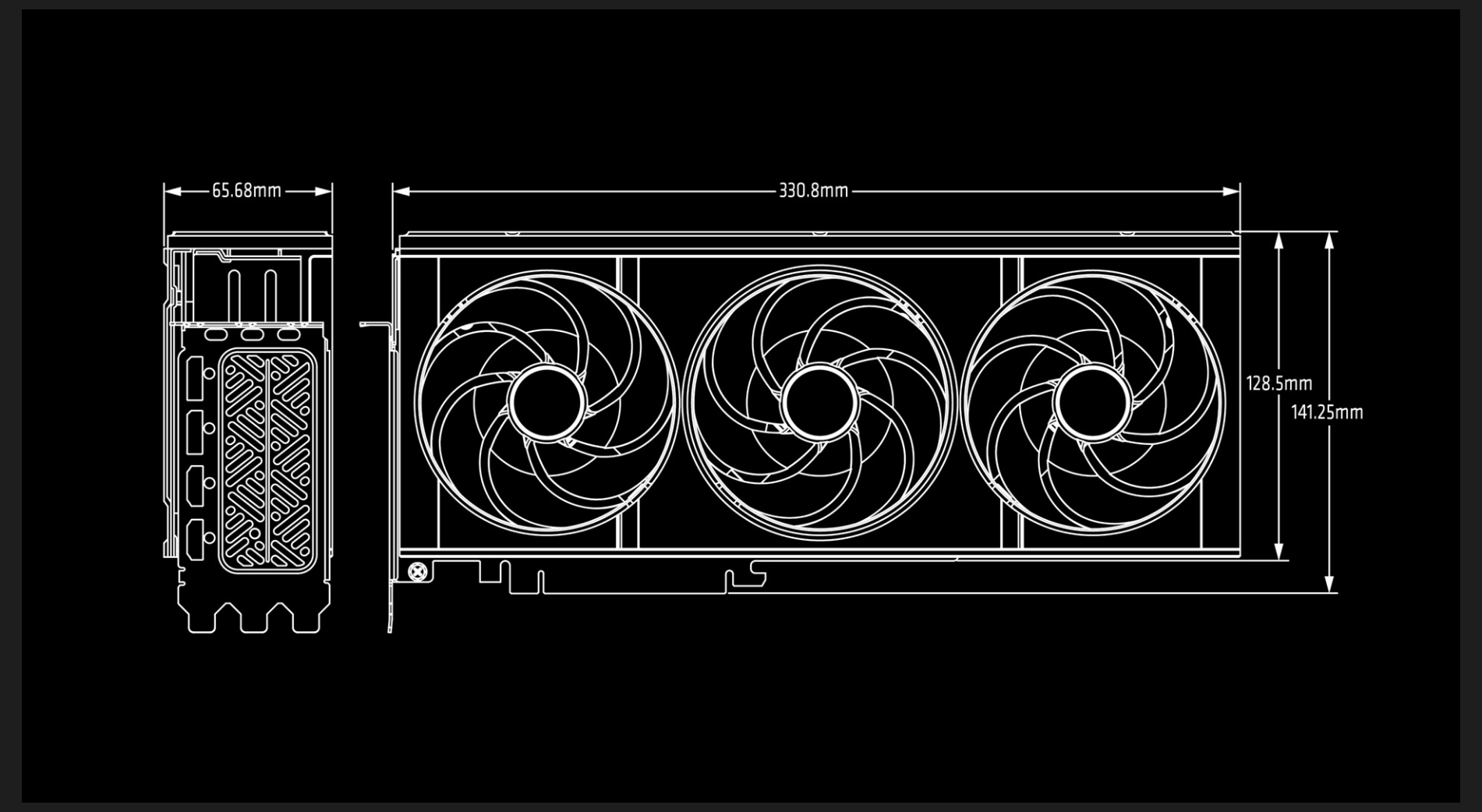

Dimension: 330.8(L)X 128.5(W)X 65.68 (H)mm

Power Consumption

330W Typical Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 750 Watt Power Supply
12V-2x6(H++) Power Connector (3x8-pin power adapter is also included if your PC's Power Supply Unit does not have 12V-2x6)
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
