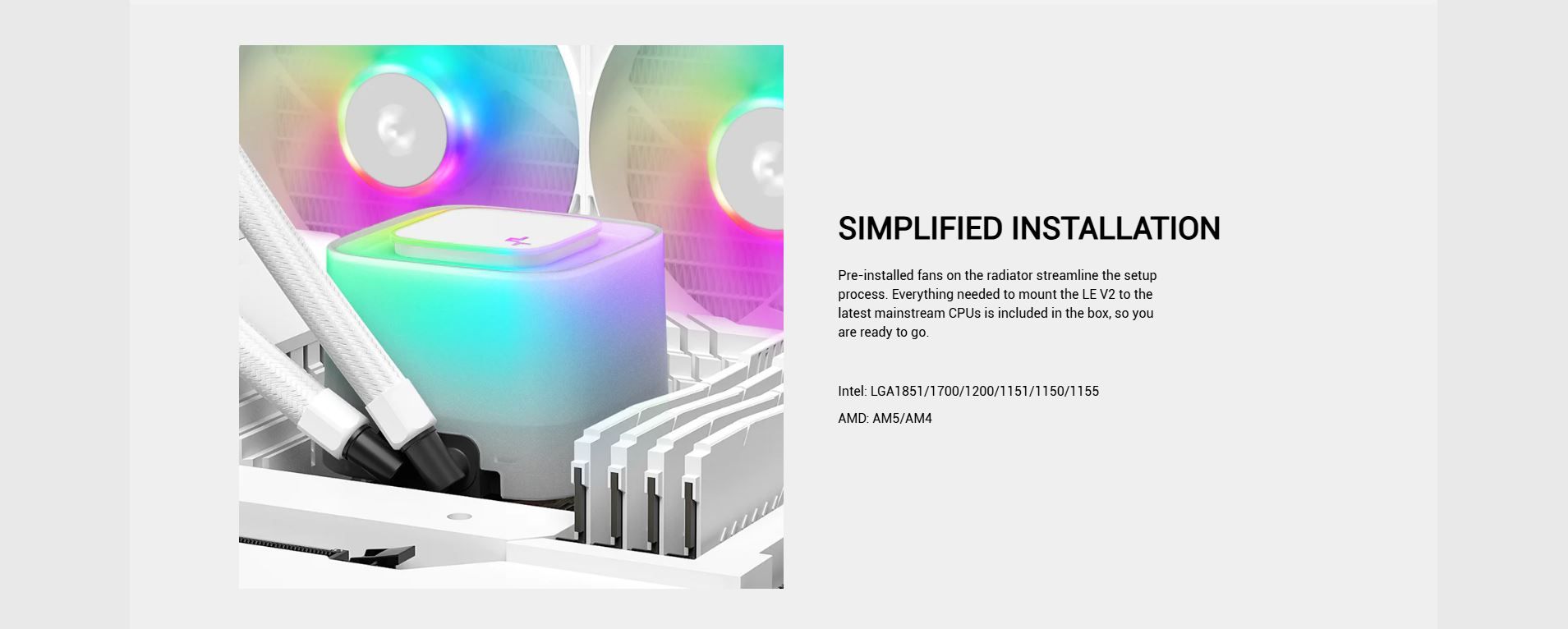

Application For

Intel

LGA1851/1700/1200/1151/1150/1155

AMD

AM5/AM4

Net Weight

1632 g

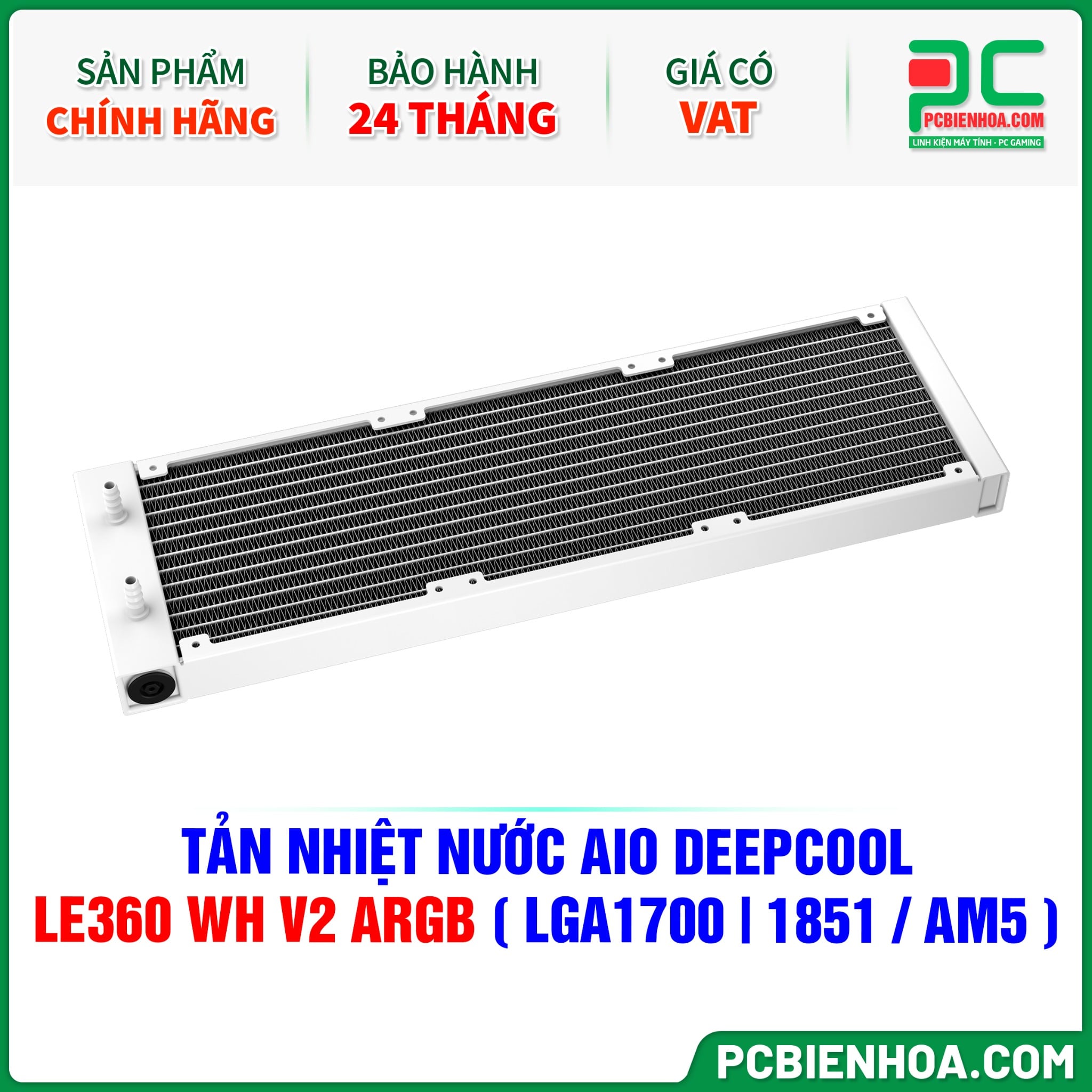

Radiator Dimensions

402×120×27 mm(L×W×H)

Radiator Material

Aluminum

Tube length

410 mm(L×W×H)

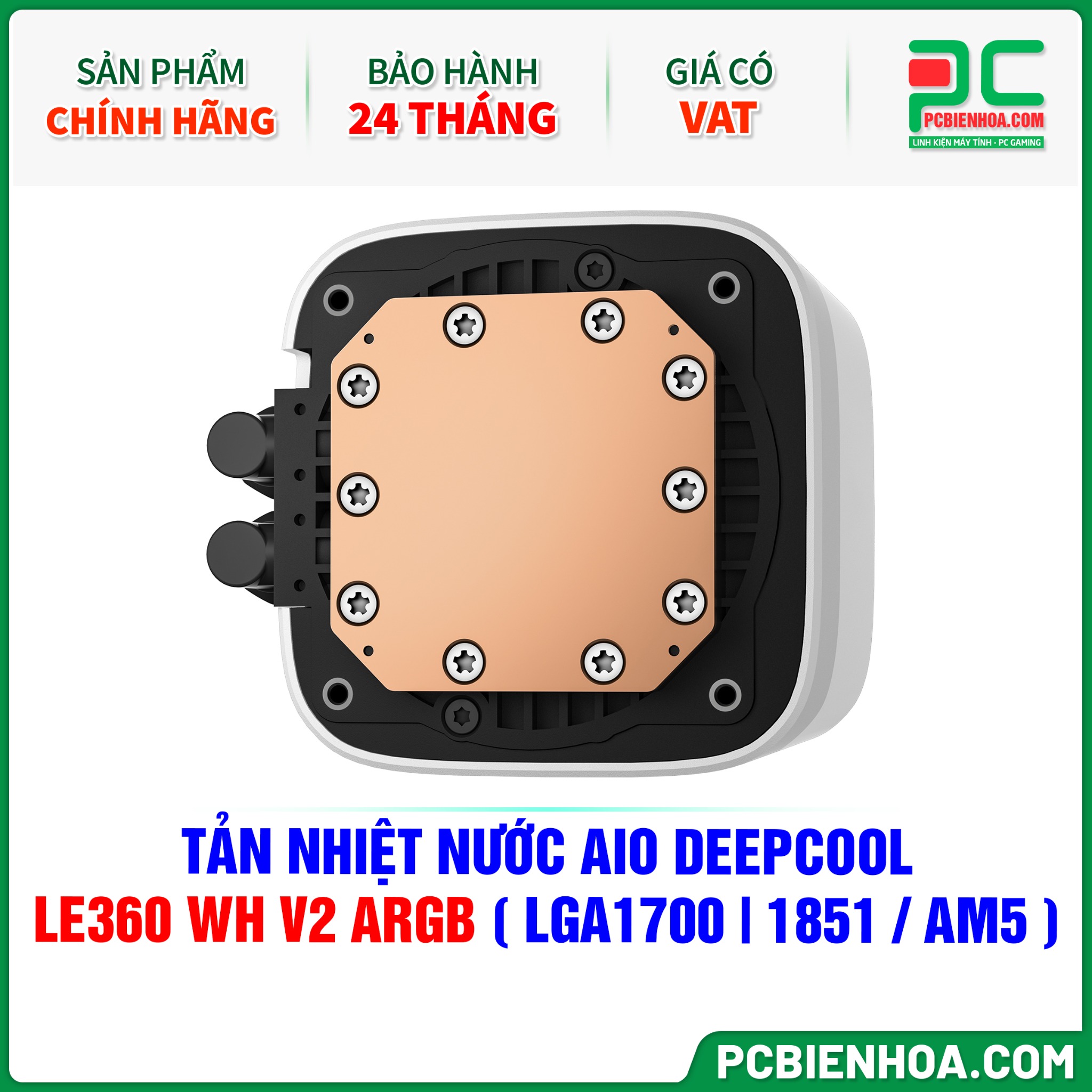

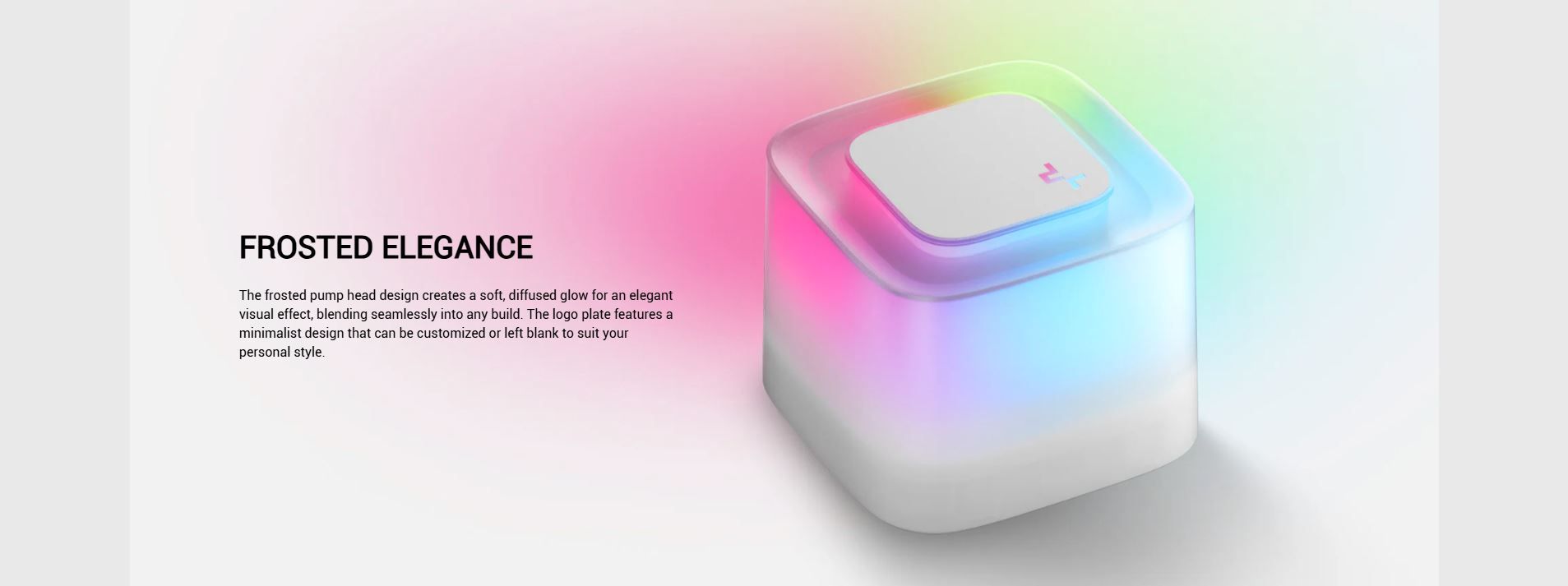

Pump Dimensions

91×78×65 mm(L×W×H)

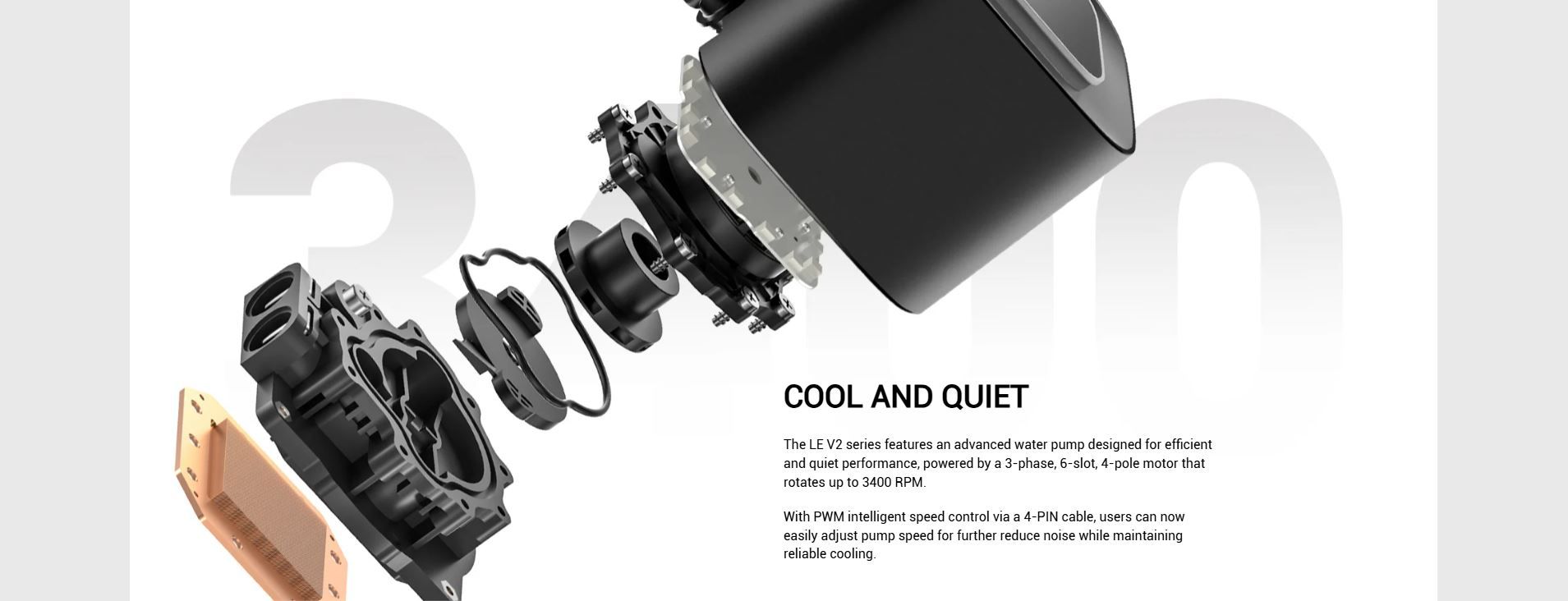

Pump Speed

2500~3400 RPM±10%

Pump Connector

4-pin PWM

Pump Rated Voltage

12 VDC

Pump Rated Current

0.29 A

Pump Power Consumption

3.48 W

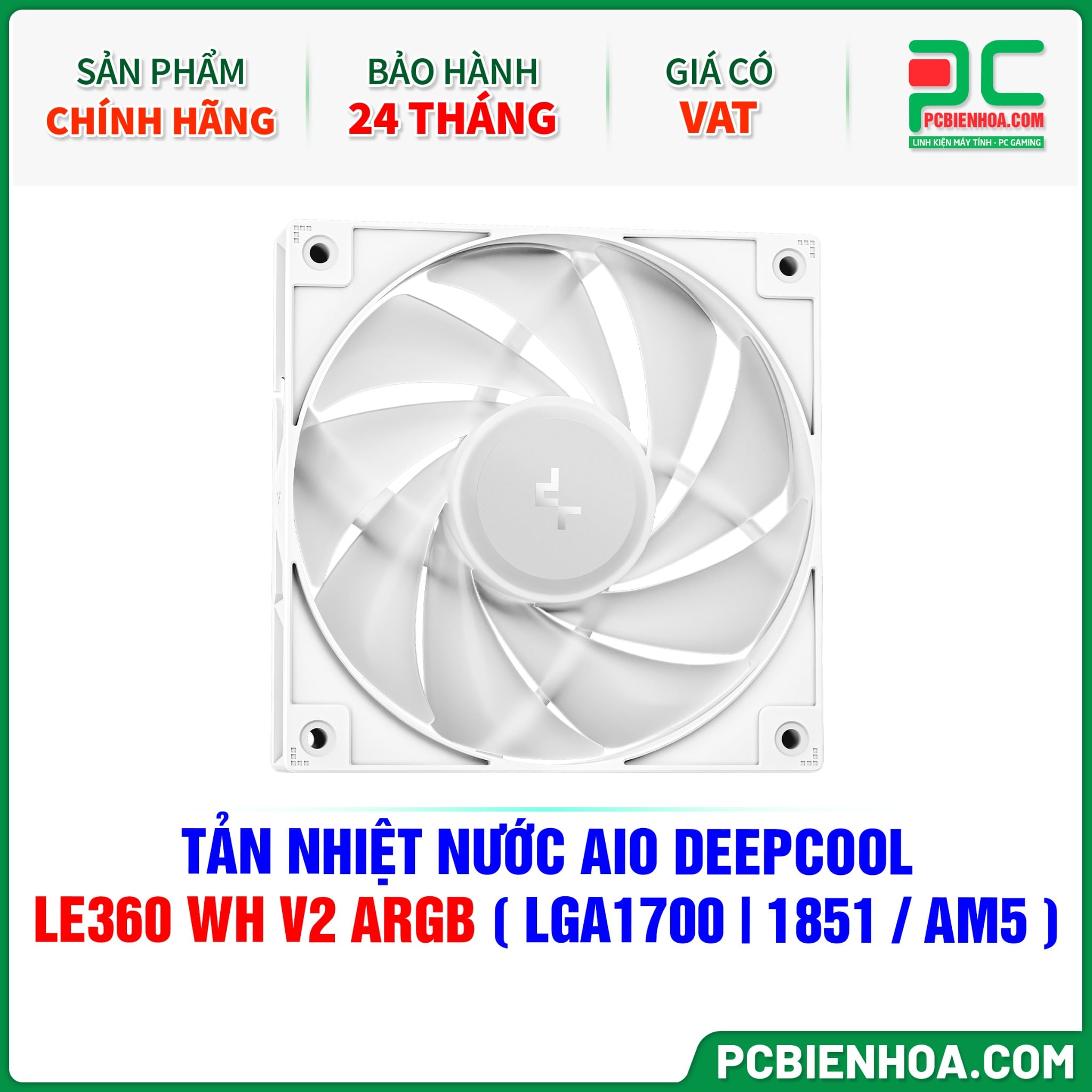

Fan Dimensions

120×120×25 mm(L×W×H)

Fan Speed

500~2100 RPM±10%

Fan Airflow

75.89 CFM

Fan Air Pressure

2.53 mmAq

Fan Connector

4-pin PWM

Bearing Type

Hydro Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.17 A

Fan Power Consumption

2.04 W

LED Type

Addressable RGB LED

LED Connector

3-pin(+5V-D-G)

LED Rated Voltage

5 VDC

LED Power Consumption

2.8 W（PUMP）/ 3.15 W（FAN×3）
