Model Code (Capacity)

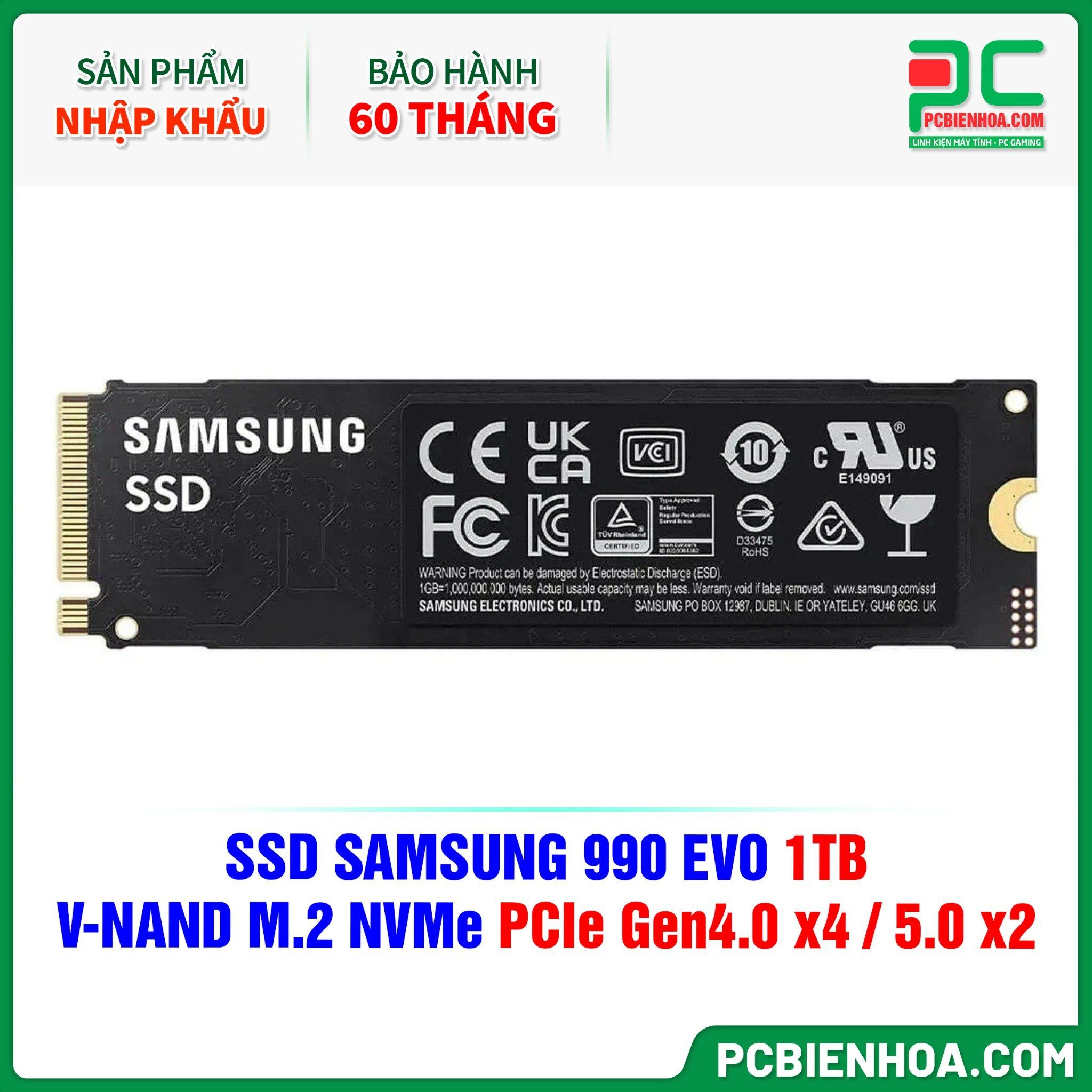

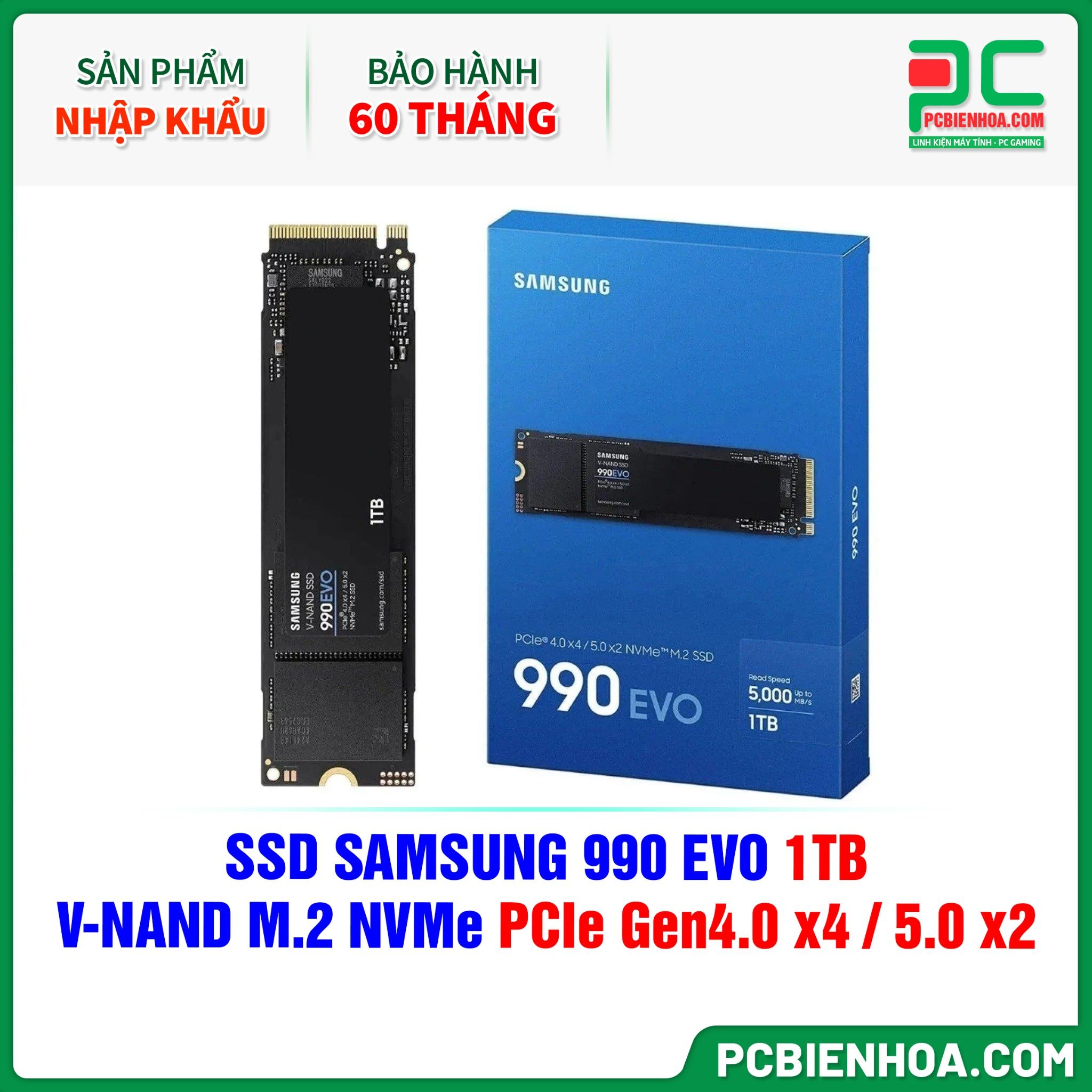

MZ-V9E1T0BW (1TB)

General Feature

Application: Client PCs

FORM FACTOR: M.2 (2280)

INTERFACE: PCIe® 4.0 x4 / 5.0 x2 NVMe™ 2.0

DIMENSION (WxHxD): 80 x 22 x 2.38mm

WEIGHT: Max 9.0g Weight

STORAGE MEMORY: Samsung V-NAND TLC

CONTROLLER: Samsung in-house Controller

CACHE MEMORY: HMB(Host Memory Buffer)

Special Feature

TRIM SUPPORT: Supported

S.M.A.R.T SUPPORT: Supported

GC (GARBAGE COLLECTION): Auto Garbage Collection Algorithm

ENCRYPTION SUPPORT: AES 256-bit Encryption (Class 0) / TCG/Opal IEEE1667 (Encrypted drive)

WWN SUPPORT: Not supported

DEVICE SLEEP MODE SUPPORT: Yes

Performance

SEQUENTIAL READ: Up to 5,000 MB/s

SEQUENTIAL WRITE: Up to 4,200 MB/s

RANDOM READ (4KB, QD32): Up to 680,000 IOPS

RANDOM WRITE (4KB, QD32): Up to 800,000 IOPS

RANDOM READ (4KB, QD1): Up to 20,000 IOPS

RANDOM WRITE (4KB, QD1): Up to 90,000 IOPS

Environment

AVERAGE POWER CONSUMPTION (System Level): Average: Read 4.9 W / Write 4.5 W

POWER CONSUMPTION (IDLE): Typical 60 mW

POWER CONSUMPTION (DEVICE SLEEP): Typical 5 mW

ALLOWABLE VOLTAGE: 3.3 V ± 5 % Allowable voltage

RELIABILITY (MTBF): 1.5 Million Hours Reliability (MTBF)

OPERATING TEMPERATURE: 0 - 70 ℃ Operating Temperature

SHOCK: 1,500 G & 0.5 ms (Half sine)

Accessories

INSTALLATION KIT: Not Available

Software

MANAGEMENT SW: Magician Software for SSD management
