Interface

PCI-Express 3.0 x4, NVMe 1.4

Form Factor

M.2 2280

Total Capacity

256GB

NAND

3D TLC NAND Flash

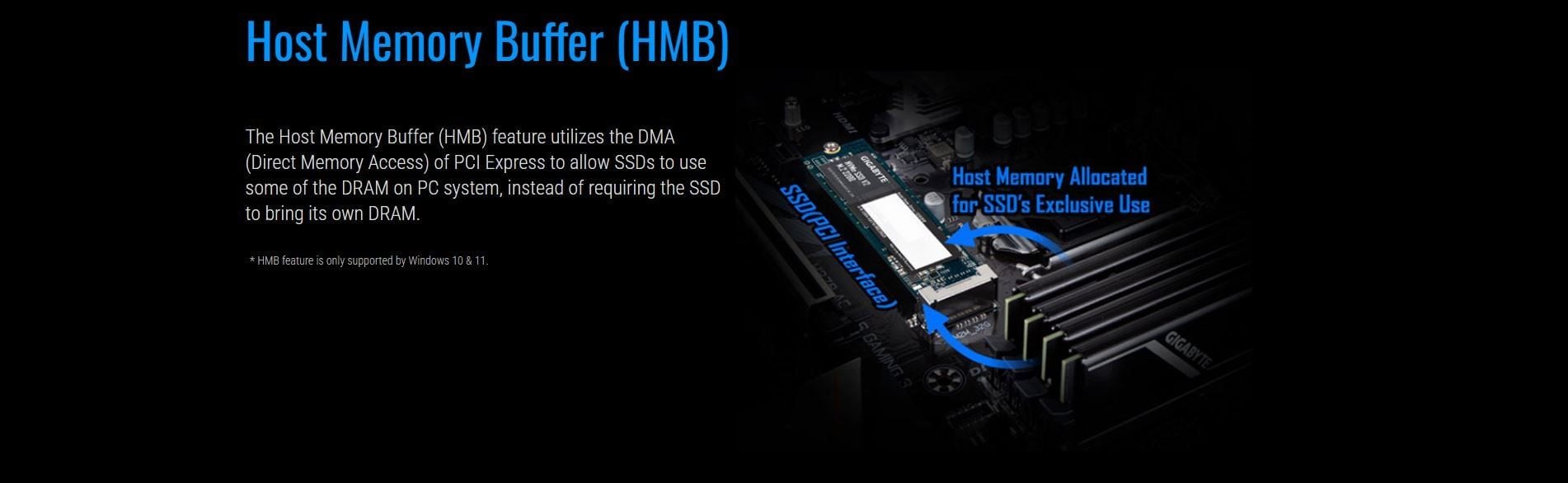

External DDR Cache

N/A

Sequential Read speed

Up to 3,200 MB/s

Sequential Write speed

Up to 1,200MB/s

Dimension

80 x 22 x 2.3 mm

Mean time between failure (MTBF)

1.5 million hours

Power Consumption (Active)

Read : 4.2W

Write : 3.0W

Power Consumption (Idle, PS3)

35mW

Power Consumption(PS4, L1.2)

5mW

Temperature (Operating)

0°C to 70°C

Temperature (Storage)

-40°C to 85°C

Note

• Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
• Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
• Speeds based on internal testing. Actual performance may vary.
• 1GB = 1 billion bytes. Actual useable capacity may vary.
