CPU

Supports AMD Socket AM5 Ryzen™ 9000/8000/7000 Series Processors, up to 65W

Chipset

AMD X600

Cooler

Supports AMD AM5/AM4 Cooler (Max. Height ≦ 47mm)

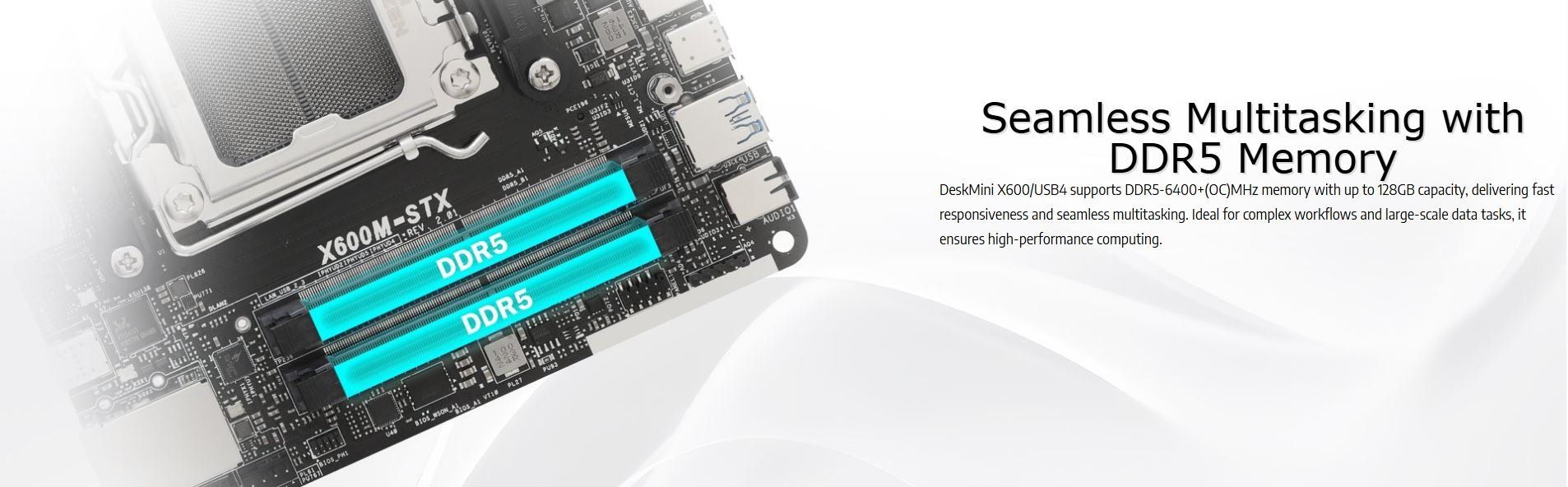

Memory

Supports 2 x SO-DIMM DDR5-6400+(OC)MHz memory, Max. 128GB (non-ECC)

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

Graphics

1 x DisplayPort 1.4 (4K@120Hz)
1 x HDMI 2.1 (4K@120Hz)
1 x USB Type-C with DP Alt Mode

Audio

Realtek ALC269 Audio Codec

Storage

2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive
1 x M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode*
1 x M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

*Supports NVMe SSD as boot disks
To achieve PCIe Gen5 x4 speeds on the Blazing M.2 Socket (M2_1), a Raphael CPU is required.

RAID

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

LAN

2.5 Gigabit LAN (RTL8125BG)

WLAN

1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module

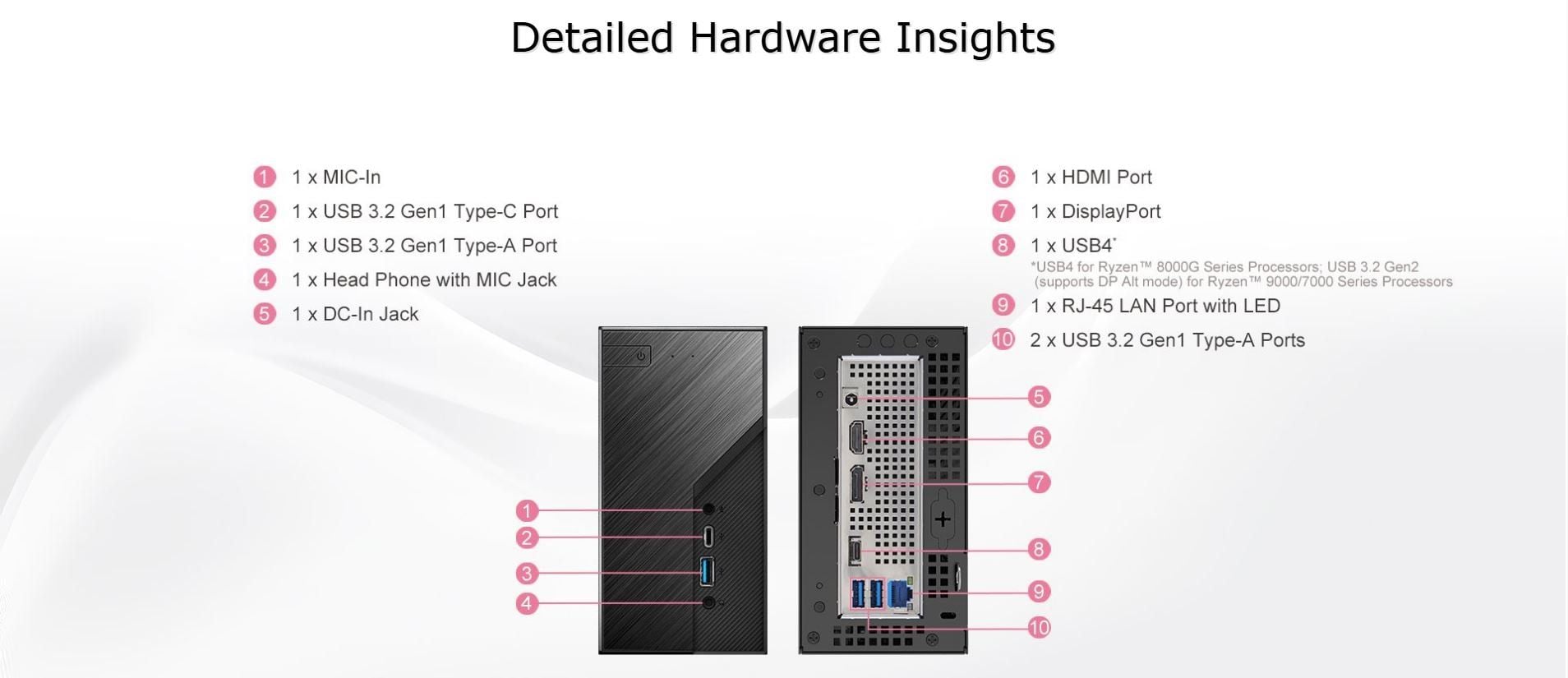

Front I/O

1 x MIC-in
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1 Type-A
1 x Headphone/Headset Jack

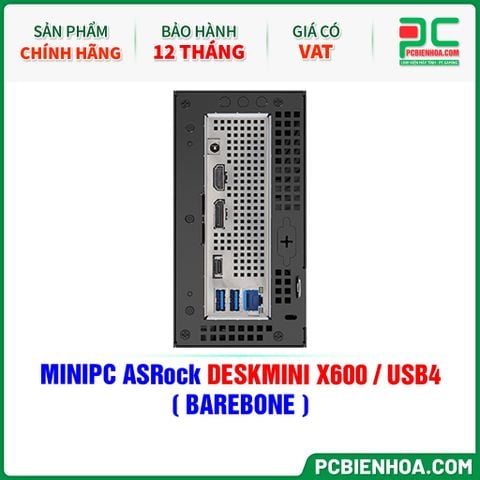

Rear I/O

1 x DC-In Jack (Compatible with the 19V power adapter)
1 x USB4 Type-C with Ryzen™ 8000G Series Processors*
1 x USB 3.2 Gen2 Type-C with Ryzen™ 9000/7000 Series Processors*
2 x USB 3.2 Gen1 Type-A
1 x RJ-45 LAN Port (2.5G)

Supports USB PD 3.0 up to 5V@3A (15W) charging. Supports DP Alt Mode.

Connectors

1 x USB 2.0 Header
1 x Front Panel Header
2 x 4-Pin fan connectors (CPU, SYS)
1 x Internal Speaker Header (4-Pin)
1 x Chassis Intrusion Header (2-Pin)
1 x Audio Header (4-Pin)

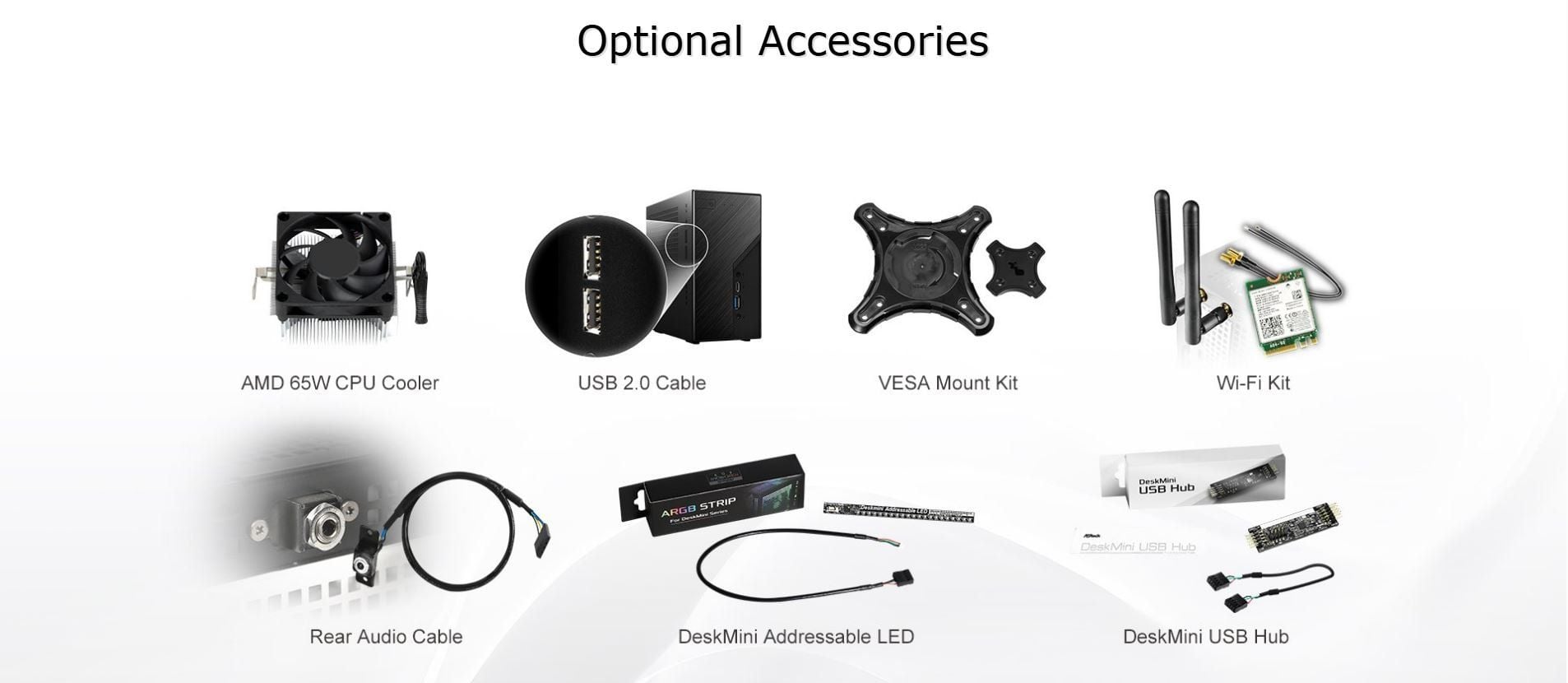

Accessory

2 x SATA Data with Power Cable
1 x 120W/19V adapter
1 x Screws Pack

Dimension

155 x 155 x 80 mm (1.92L)

OS

Microsoft^® Windows^® 11 64-bit
