  3. DDR5 - MAINBOARD MSI PRO X870-P WIFI ( WiFi 7 / Bluetooth 5.4 / AM5 / ATX / 4xDDR5 )
DDR5 - MAINBOARD MSI PRO X870-P WIFI ( WiFi 7 / Bluetooth 5.4 / AM5 / ATX / 4xDDR5 )
-20%

DDR5 - MAINBOARD MSI PRO X870-P WIFI ( WiFi 7 / Bluetooth 5.4 / AM5 / ATX / 4xDDR5 )

Thương hiệu: MSI
Loại: Mainboard

Giá Niêm Yết: 11,190,000₫

Giá KM tại PCBIENHOA.COM: 8,990,000₫

- Bảo Hành: 36 Tháng 1 đổi 1

- Tình trạng: Hàng chính hãng mới 100%

- Kho hàng: Liên hệ đặt hàng

Liên hệ đặt hàng

  • GIAO HÀNG

    Miễn phí giao máy tính toàn quốc

  • Sản phẩm

    Cam kết hàng chính hãng
    Bảo hành nhanh chóng

  • ĐỔI TRẢ

    Hàng lỗi kỹ thuật đổi mới trong vòng 30 ngày

  • Trả góp

    Trả góp CCCD và GPLX, Thẻ Tín Dụng

  • Thời gian làm việc

    Sáng từ 8h - 6h Tối, CN 9h-6h Tối ( Lễ tết nghỉ )

  • Chấp nhận thanh toán
Bán hàng - Tư vấn - CSKH
Kỹ thuật - Bảo hành

MAINBOARD MSI PRO X870-P WIFI ( WiFi 7 / Bluetooth 5.4 / AM5 / ATX / 4xDDR5 )

CHIPSET

AMD X870

CPU SUPPORT

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• The DIMM slots on this motherboard have double-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

ONBOARD GRAPHICS

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
AudioRealtek® ALC897
7.1-Channel High Definition Audio
Storage3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAIDSupports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)

LAN

Realtek® 8126VB 5G LAN

INTERNAL I/O

2x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE

4x EZ Debug LED

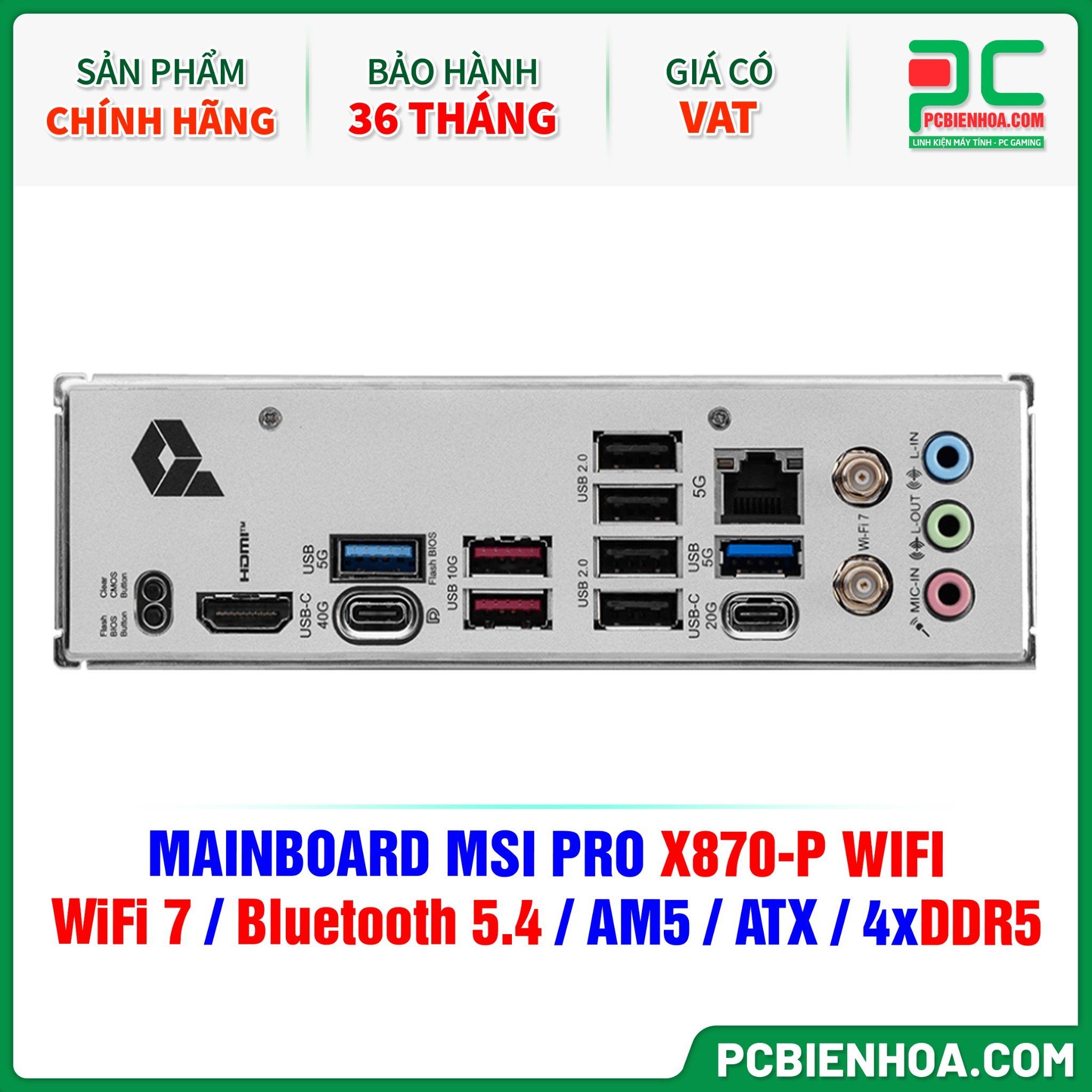

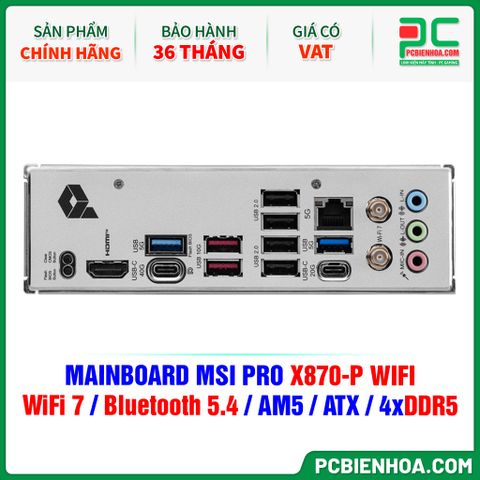

BACK PANEL PORTS

  1. Clear CMOS Button
  2. USB 5Gbps Type-A
  3. USB 2.0
  4. 5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio connectors
  7. Flash BIOS Button
  8. HDMI™
  9. USB 40Gbps Type-C
  10. USB 10Gbps Type-A
  11. USB 20Gbps Type-C

OPERATING SYSTEM

Support for Windows® 11 64-bit

OPERATING SYSTEM

PCB Info

ATX
243.84mmx304.8mm
