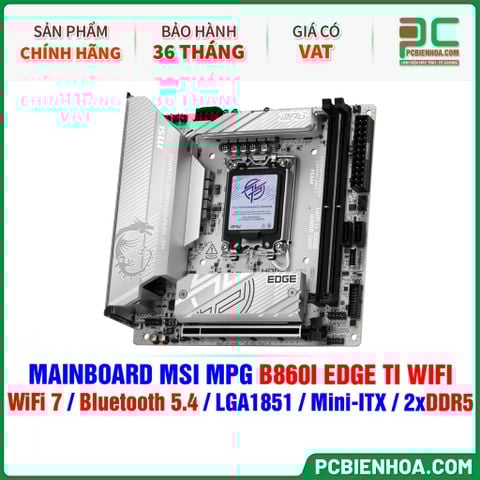

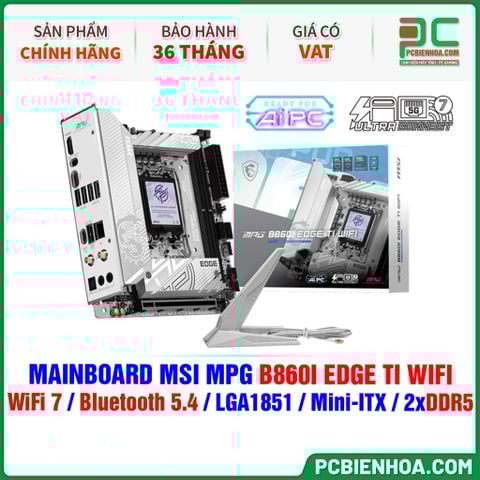

DDR5 - MAINBOARD MSI MPG B860I EDGE TI WIFI ( WiFi 7 / Bluetooth 5.4 / LGA1851 / Mini-ITX / 2xDDR5 )

Tình trạng : Hết hàng | Thương hiệu : MSI |

Giá gốc : 7,550,000₫

Giá khuyến mại : 6,690,000₫ (Tiết kiệm: 860,000₫)

Build PC với sản phẩm này

Default Title

Bảo hành: 36 tháng

Liên hệ đặt hàng

Chính Sách Nổi Bật Tại PCBIENHOA.COM

GIAO HÀNG
● Ship COD toàn quốc
● Giao nhanh trong ngày, không ngại xa

SẢN PHẨM
● Cam kết hàng chính hãng mới 100%

BẢO HÀNH - ĐỔI TRẢ
   ●  Hàng lỗi kỹ thuật đổi mới trong vòng
       30 ngày
   ●  Bảo hành chính hãng

TRẢ GÓP
● Home Credit, HDSAISON và Thẻ tín dụng
● Mua ngay trả sau qua Home PayLater

BÁN HÀNG - TƯ VẤN - CSKH

Tư Vấn Cấu Hình PC Giá Tốt
- 0388.954.721 (Mrs.Nhàn)
- 0359.694.006 (Mr.Tuân)

Giao Hàng - Bán Online COD
- 0984.654.348 (Mr.Dũng)

Kỹ Thuật - Bảo Hành
- 0359.694.006 (Mr.Tuân)

Mô tả sản phẩm

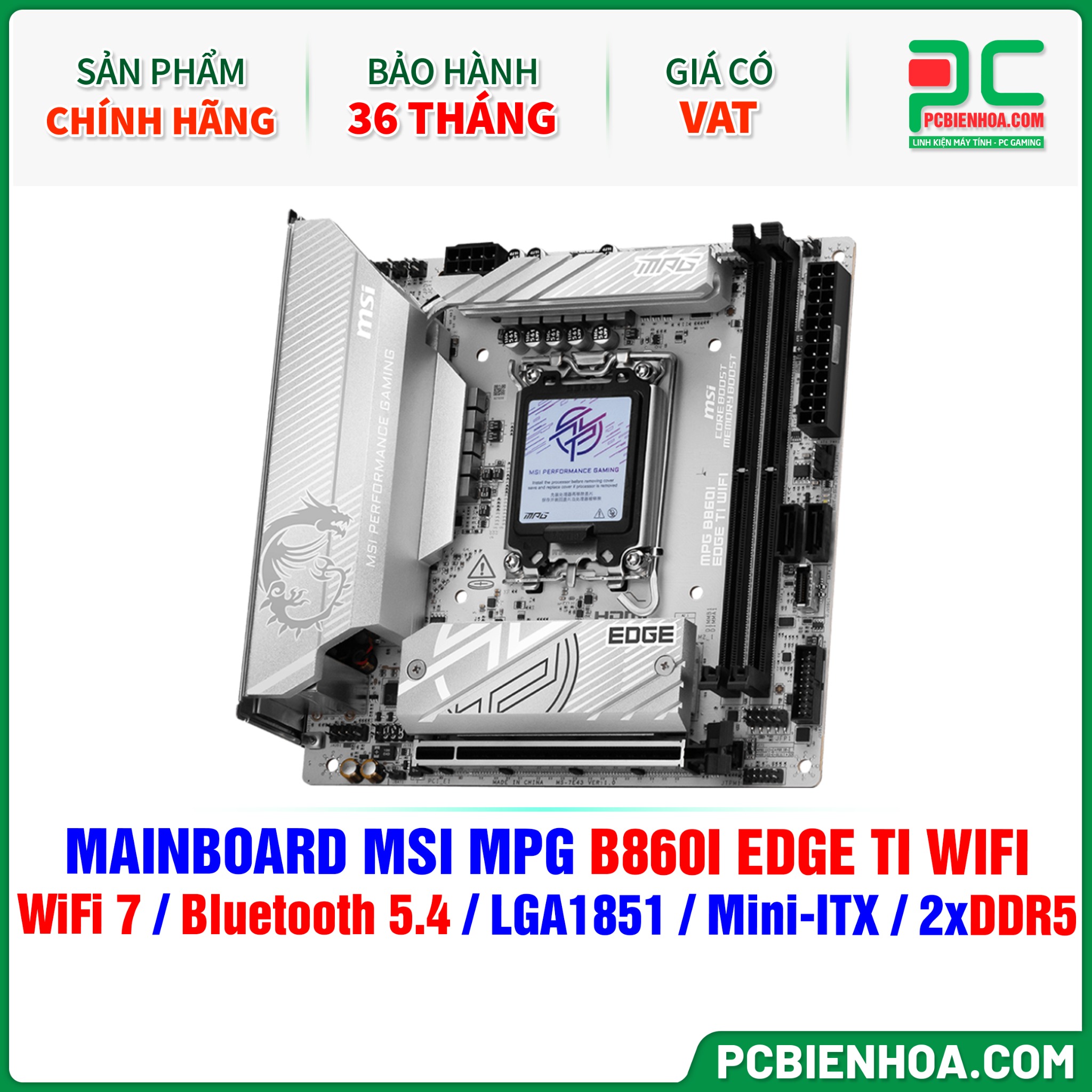

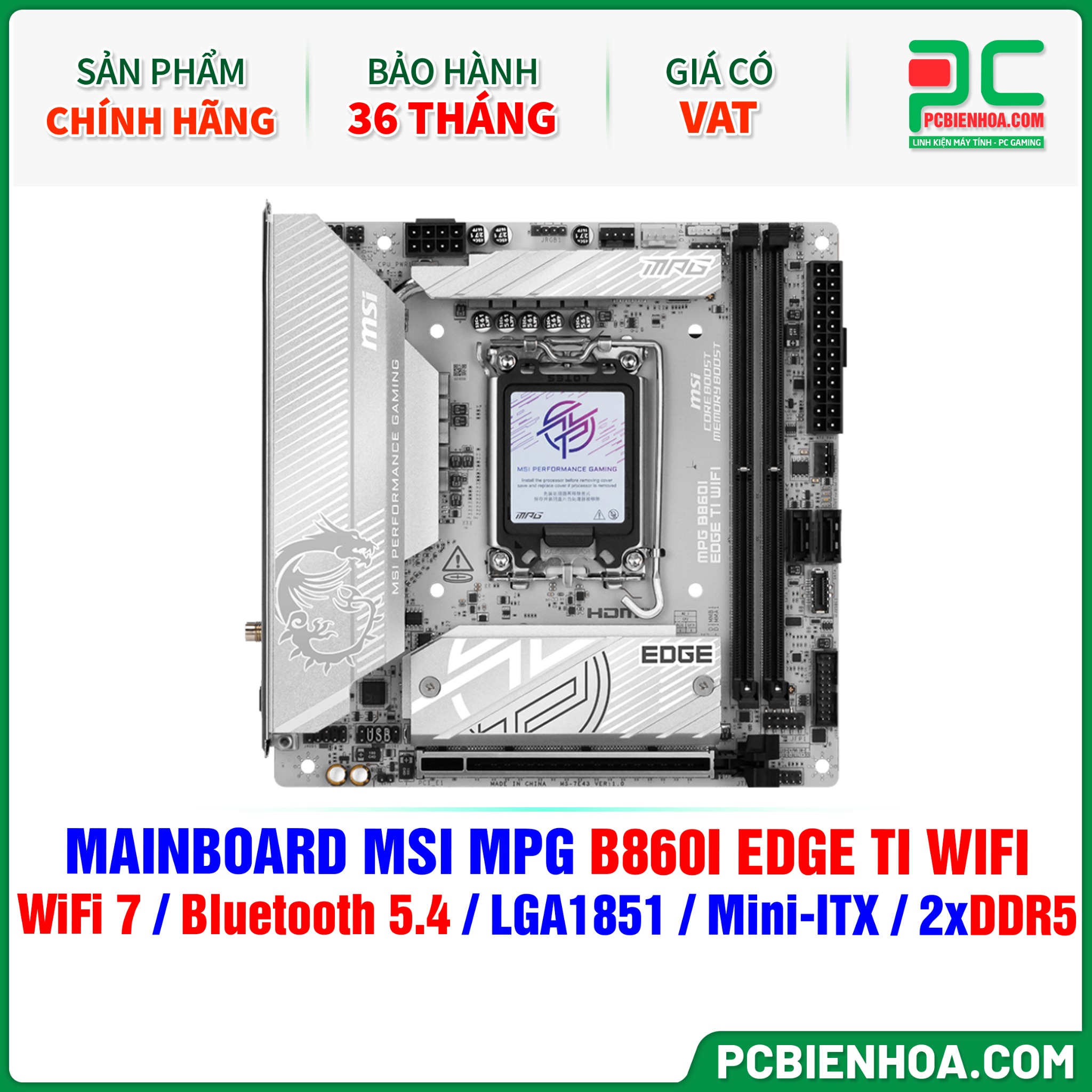

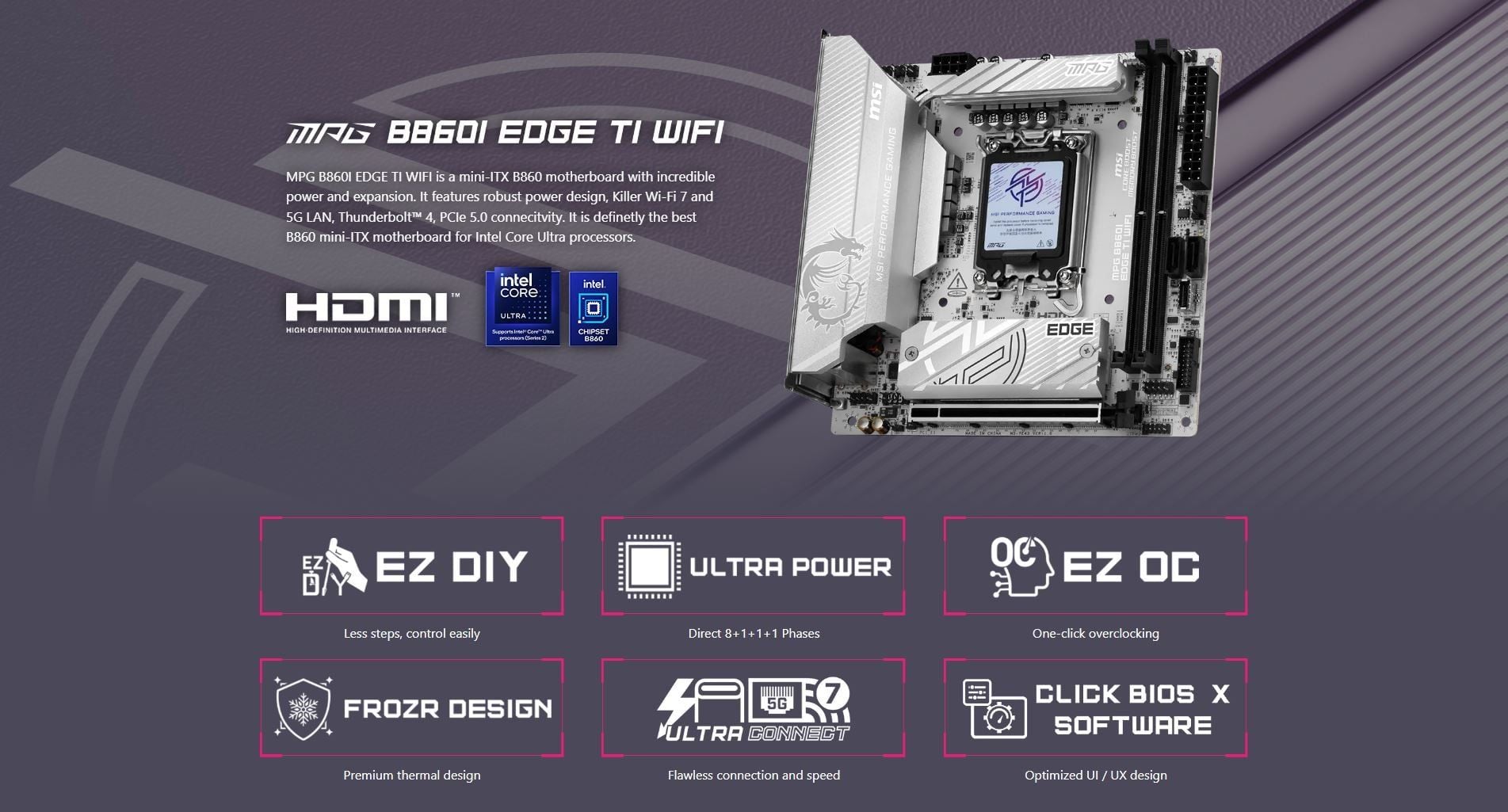

MAINBOARD MSI MPG B860I EDGE TI WIFI ( WiFi 7 / Bluetooth 5.4 / LGA1851 / Mini-ITX / 2xDDR5 )

CHIPSET

INTEL B860

CPU SUPPORT

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851

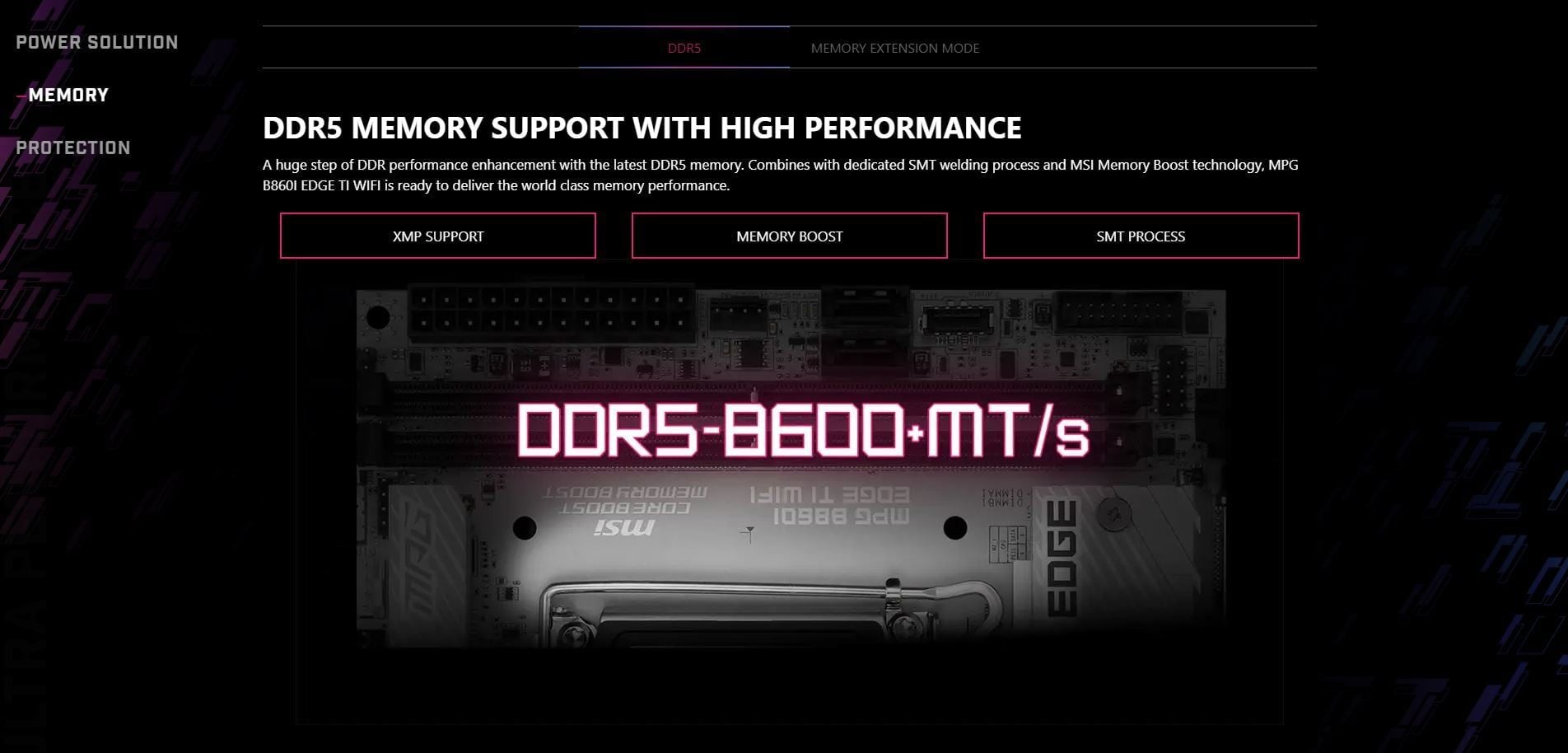

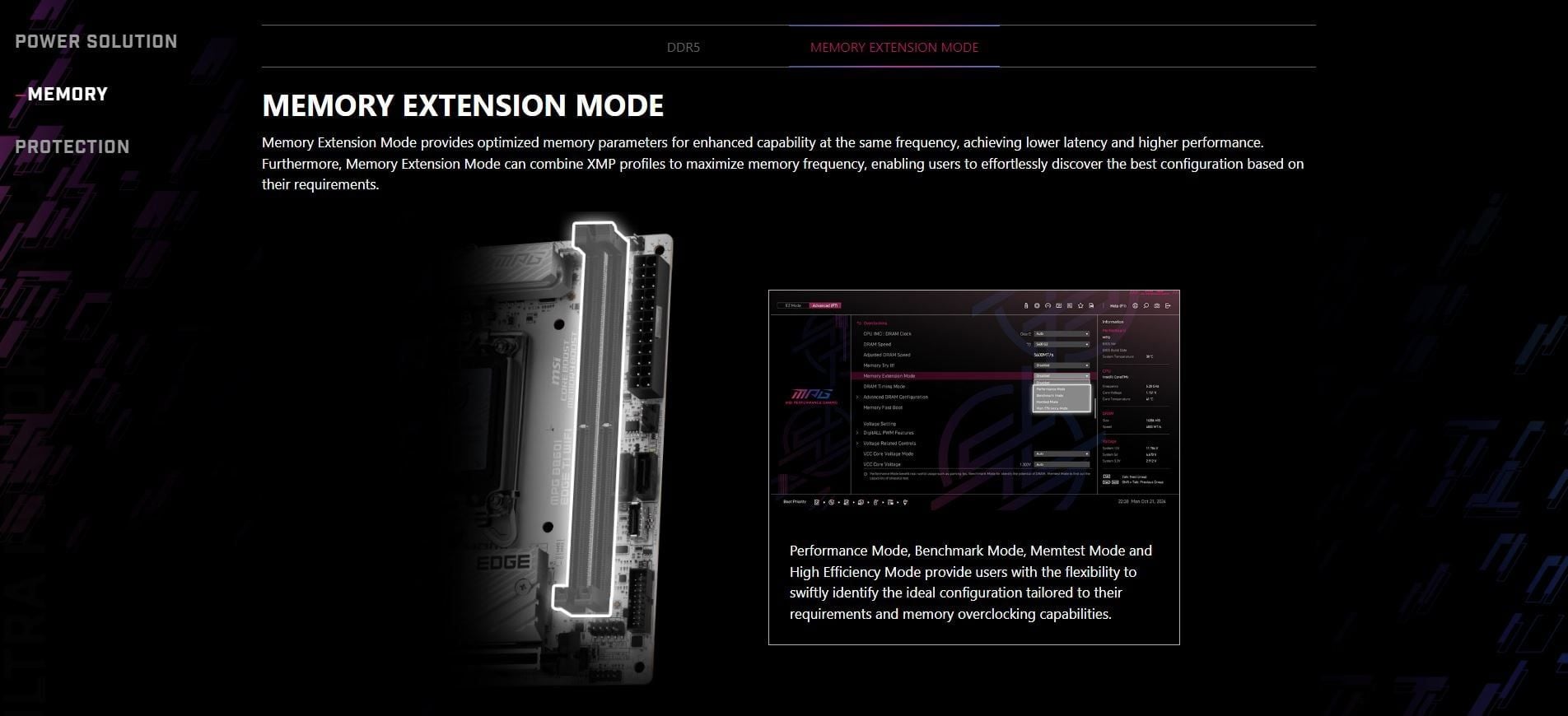

MEMORY

2x DDR5 UDIMM, Maximum Memory Capacity 128GB
Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8600+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
Supports Intel POR Speed and JEDEC Speed

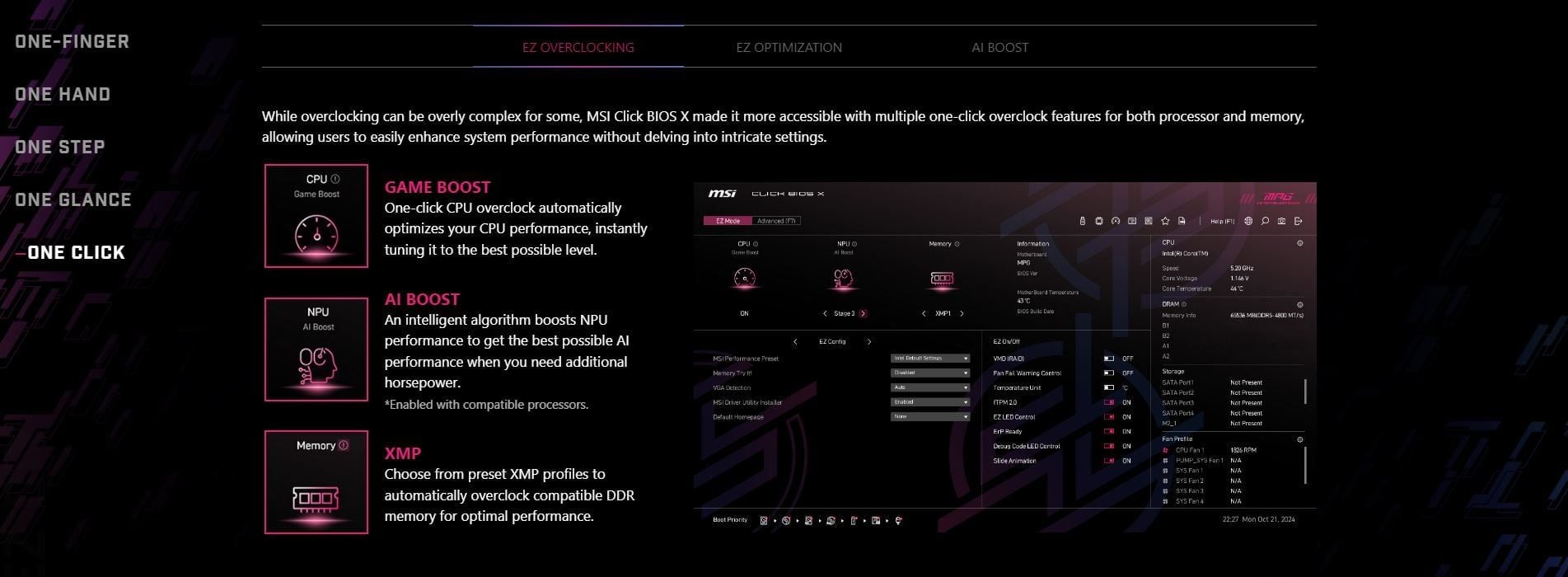

Supports Memory Overclocking and Intel XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM
• The DIMM slots on this motherboard have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

ONBOARD GRAPHICS

1x HDMI™
Supports HDMI^TM 2.1 with FRL port, maximum resolution of 8K 60Hz*
1x Type-C DisplayPort
Thundebolt^TM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

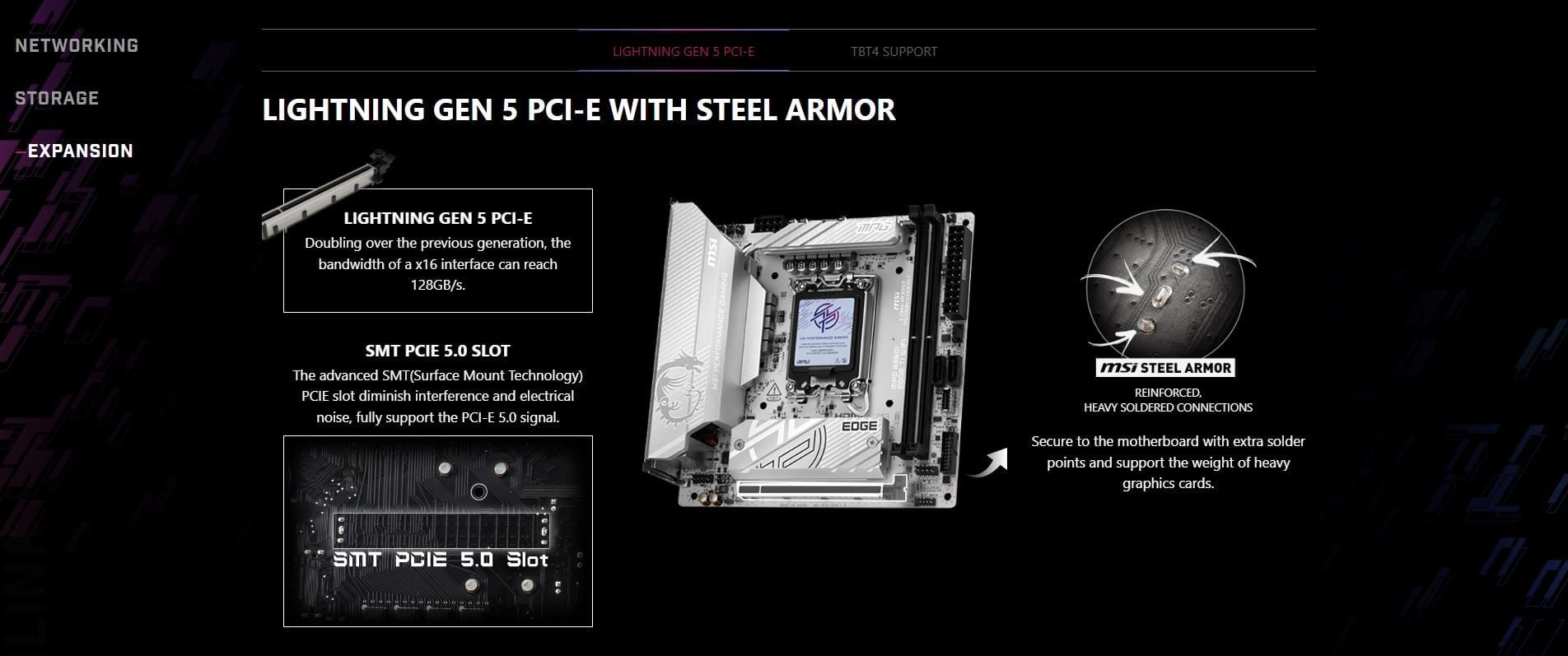

1x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

Audio

Realtek^® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

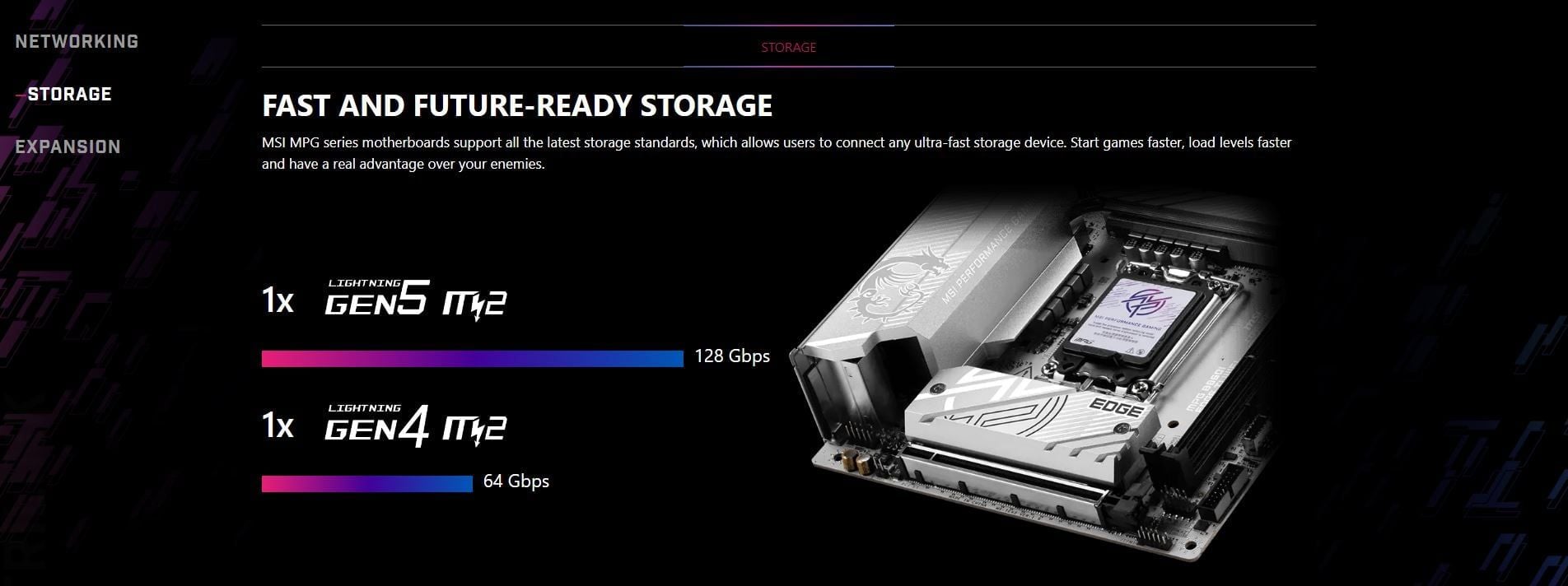

Storage

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
2x SATA 6G

RAID

•Supports RAID 0 and RAID 1 for SATA storage devices

Onboard Thunderbolt

Thunderbolt Resource CPU
1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

USB

2x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)

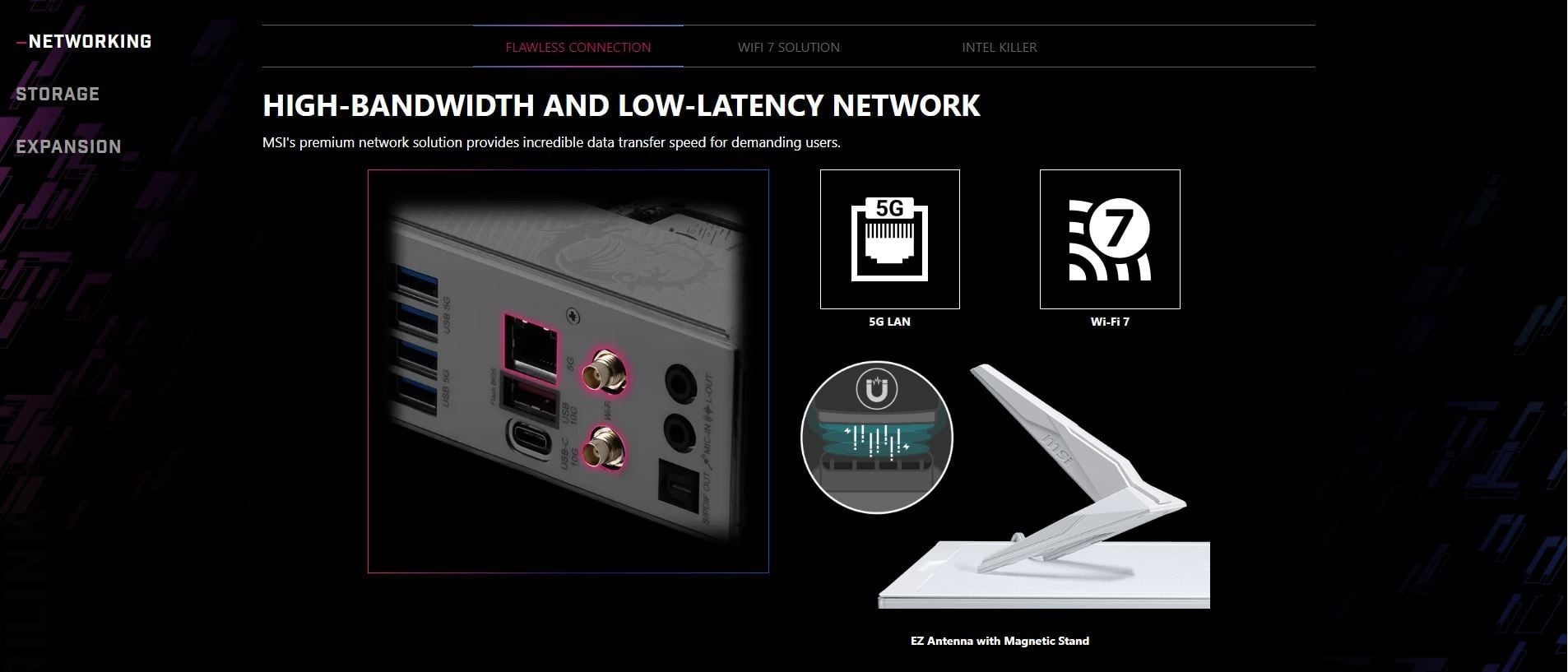

LAN

1x Intel^® Killer™ E5000B 5G LAN

INTERNAL I/O

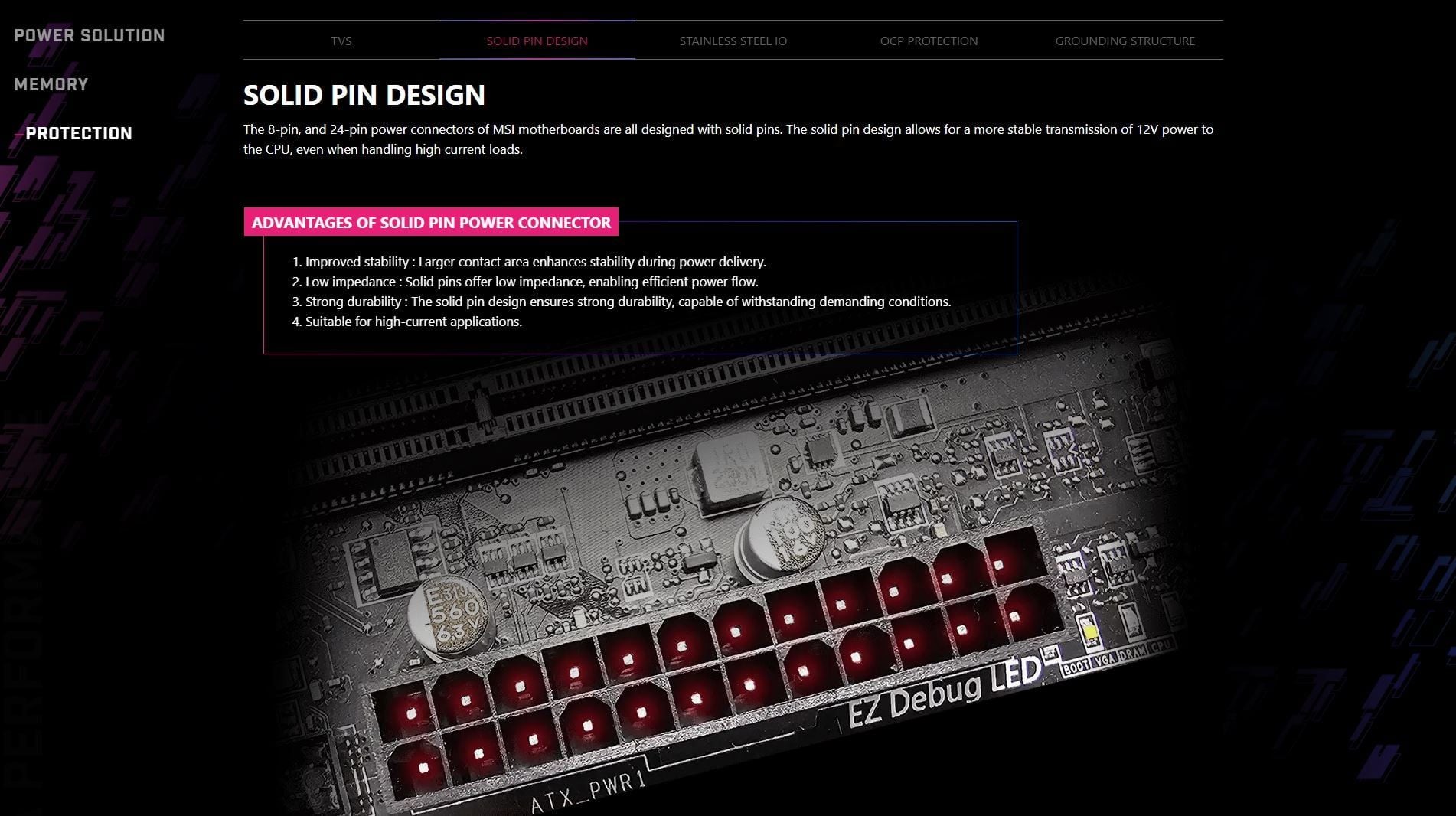

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan

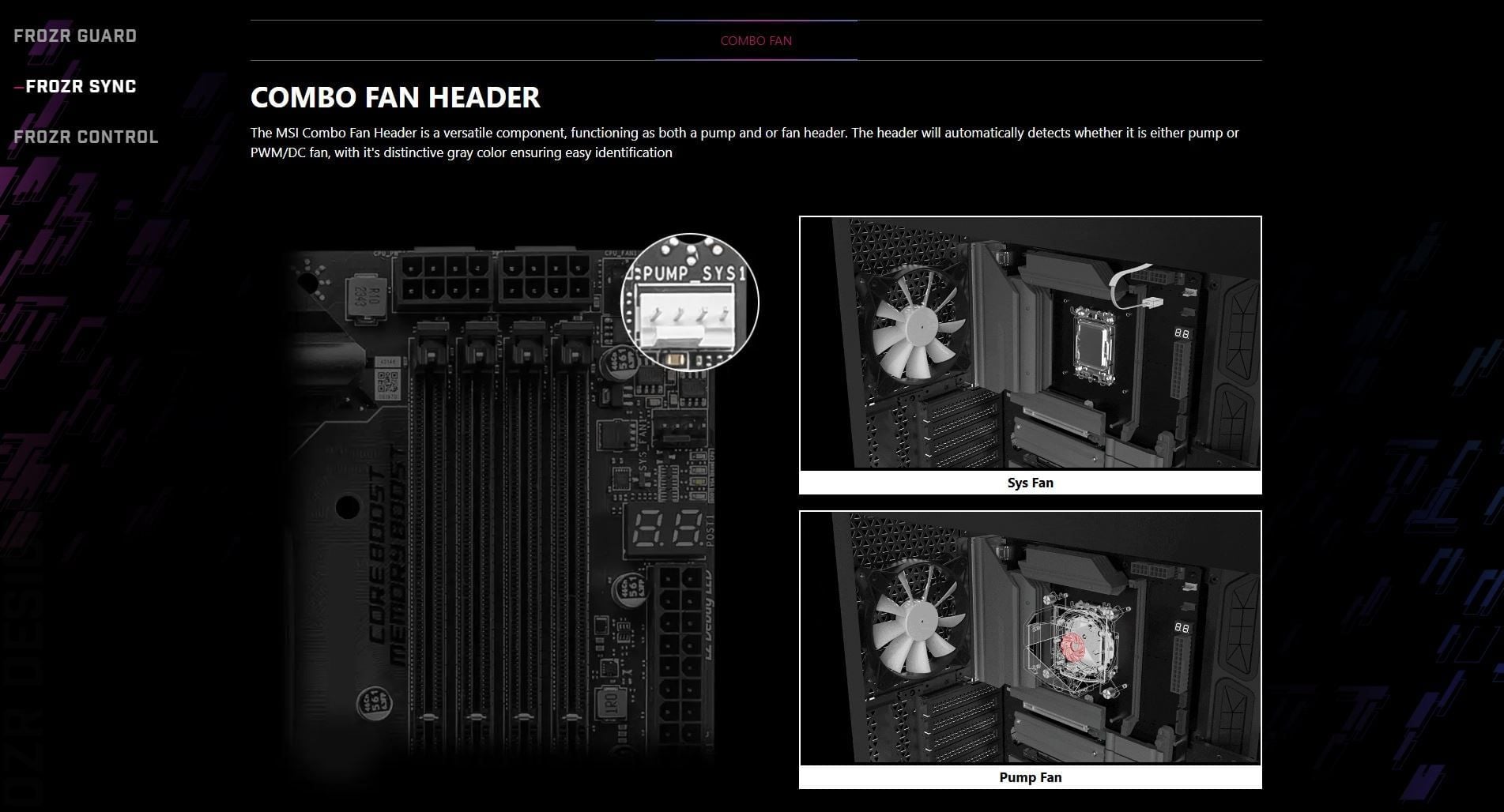

1x Combo Fan (Pump_Sys Fan)
1x System Fan

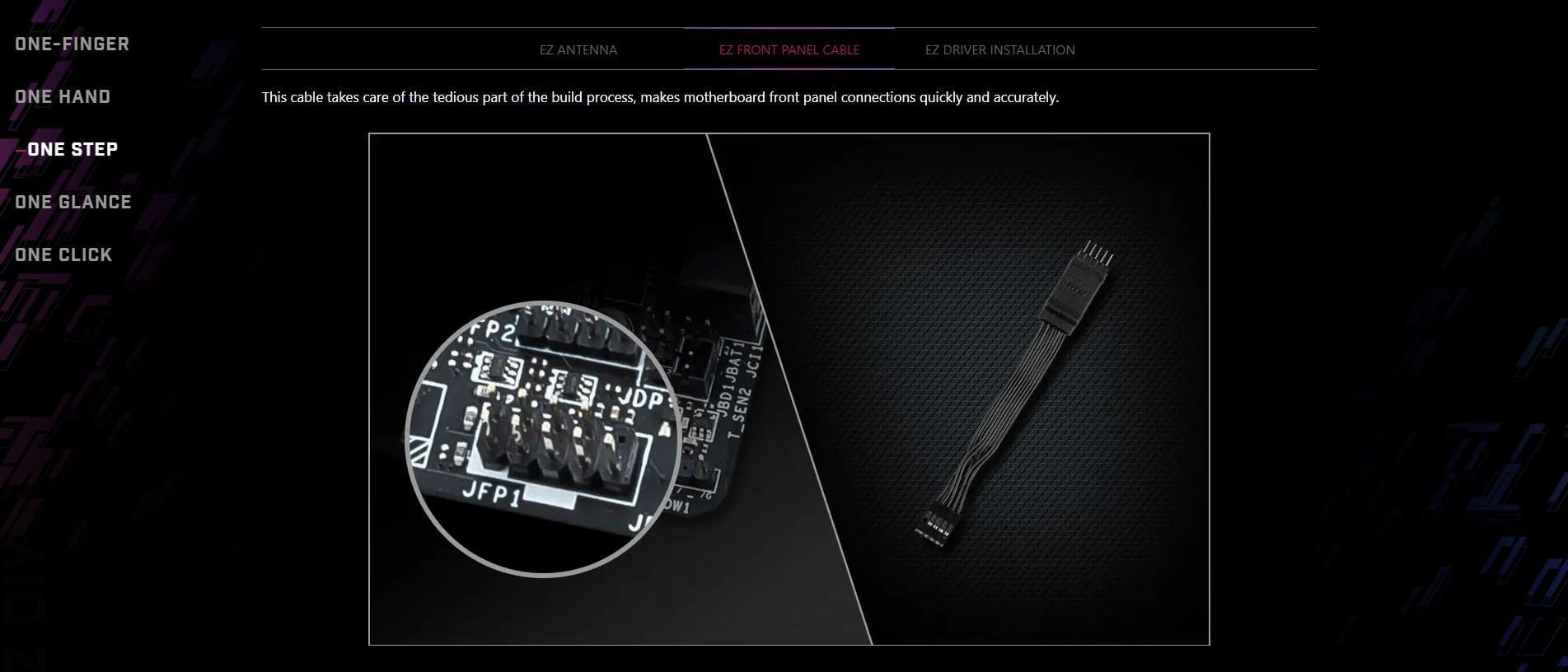

2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)

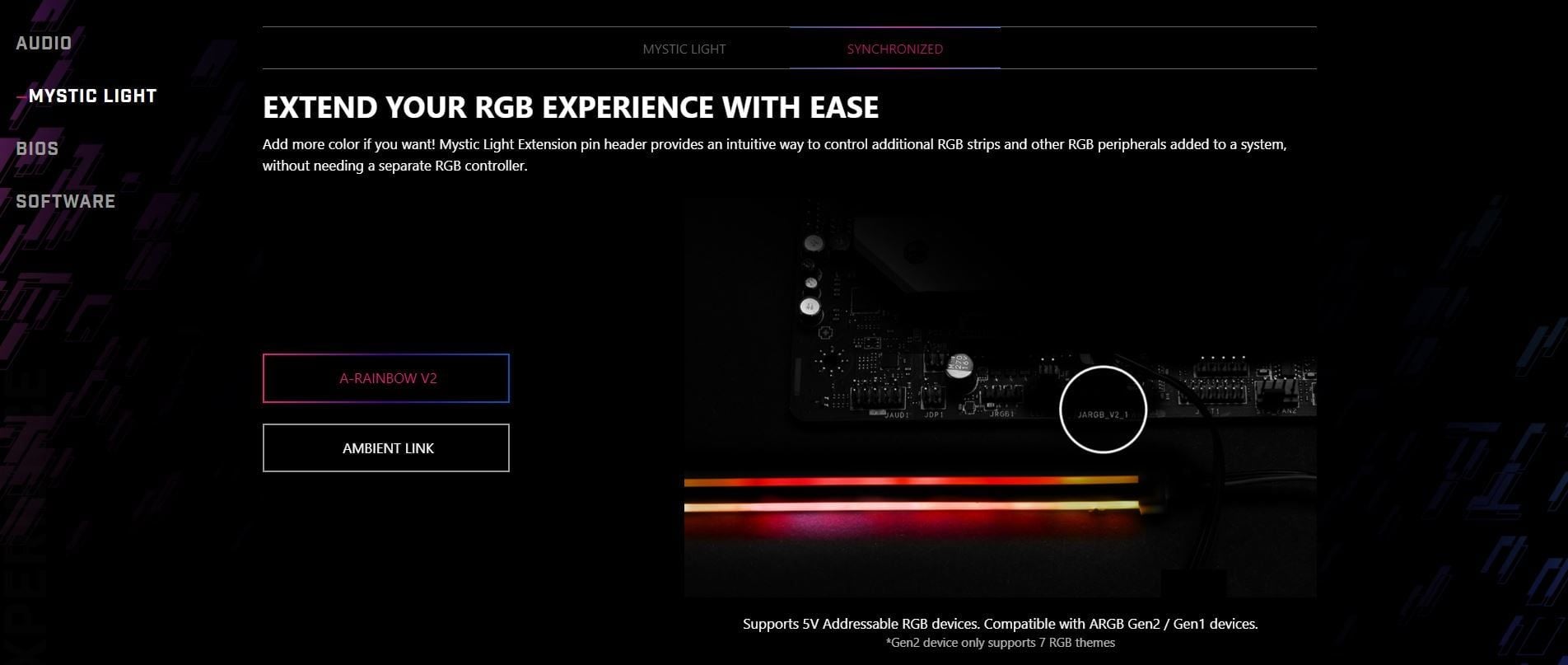

1x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports

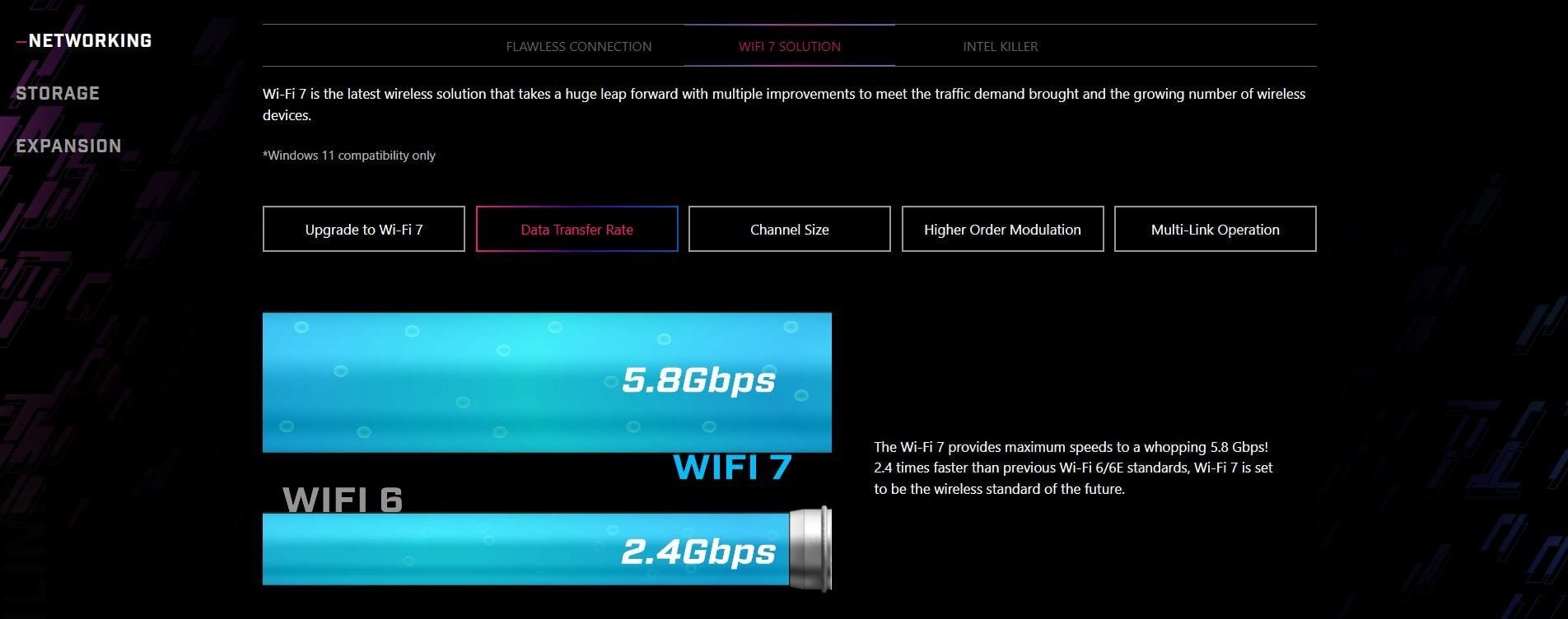

WIRELESS LAN & BLUETOOTH

Intel^® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth^® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE

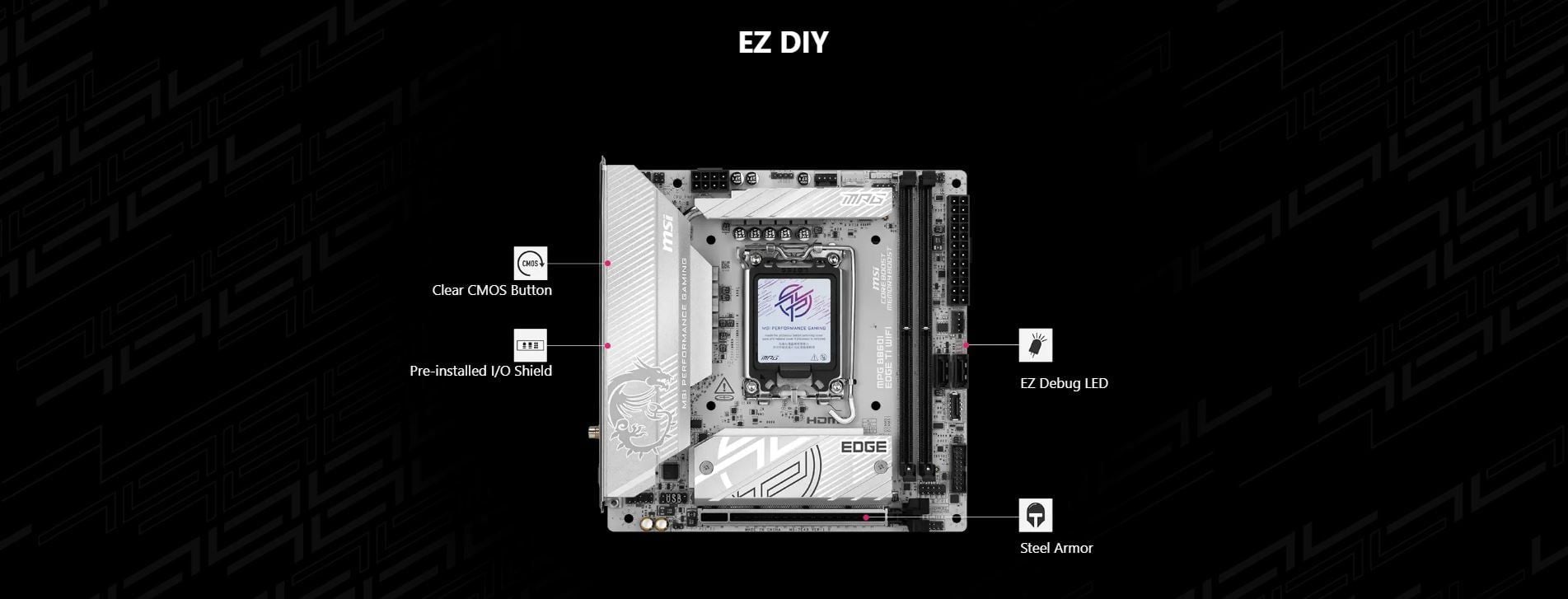

4x EZ Debug LED
1x EZ Memory Detection LED

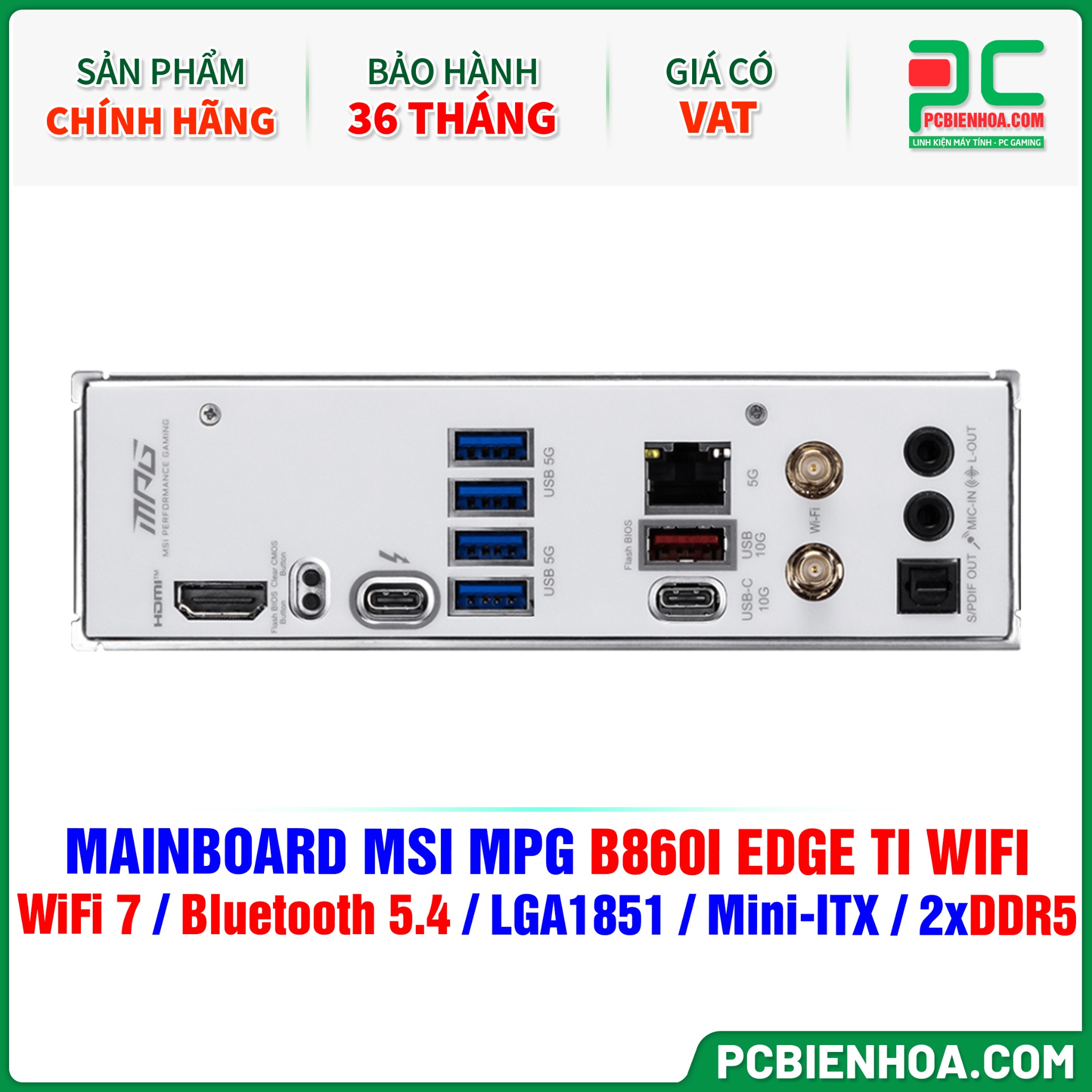

BACK PANEL PORTS
