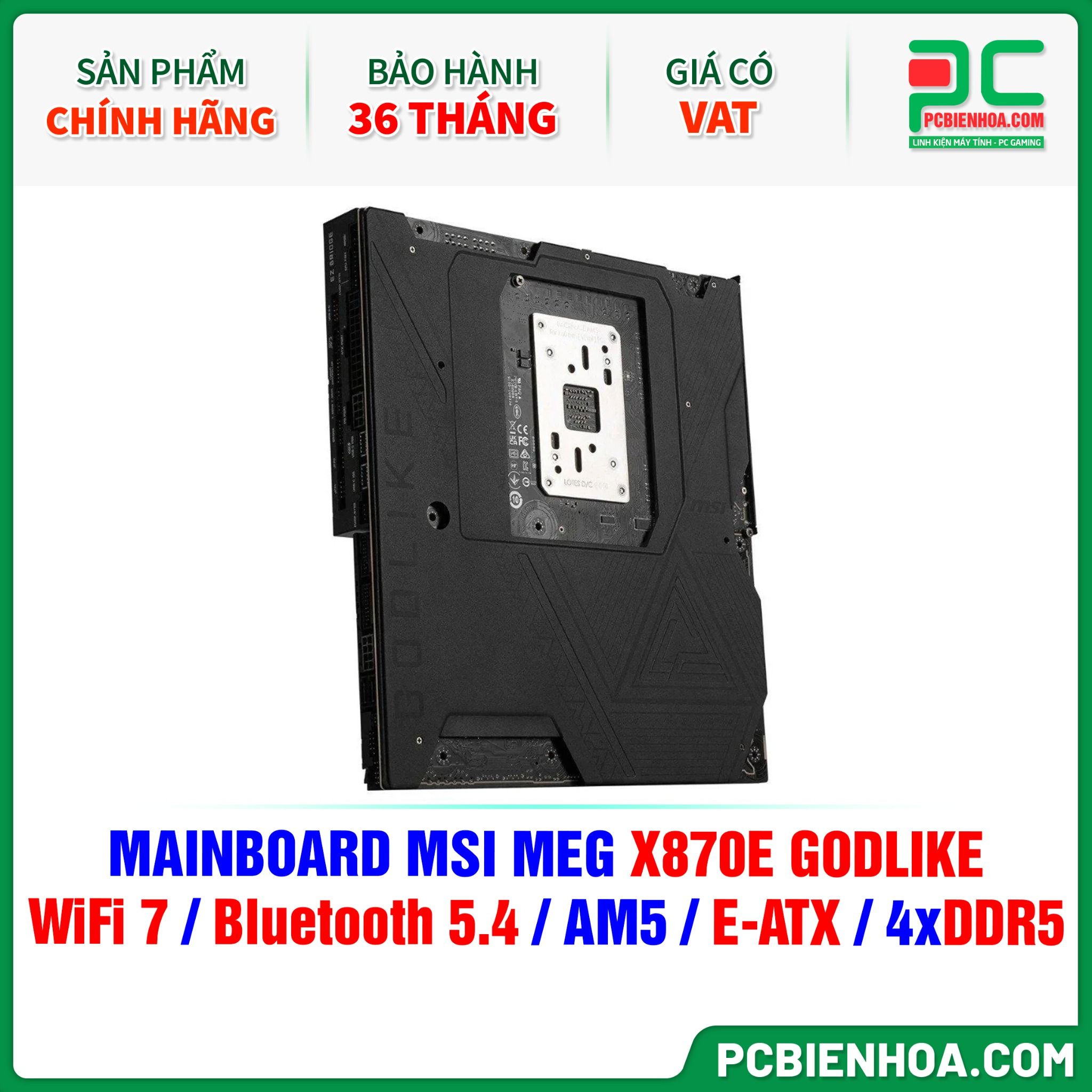

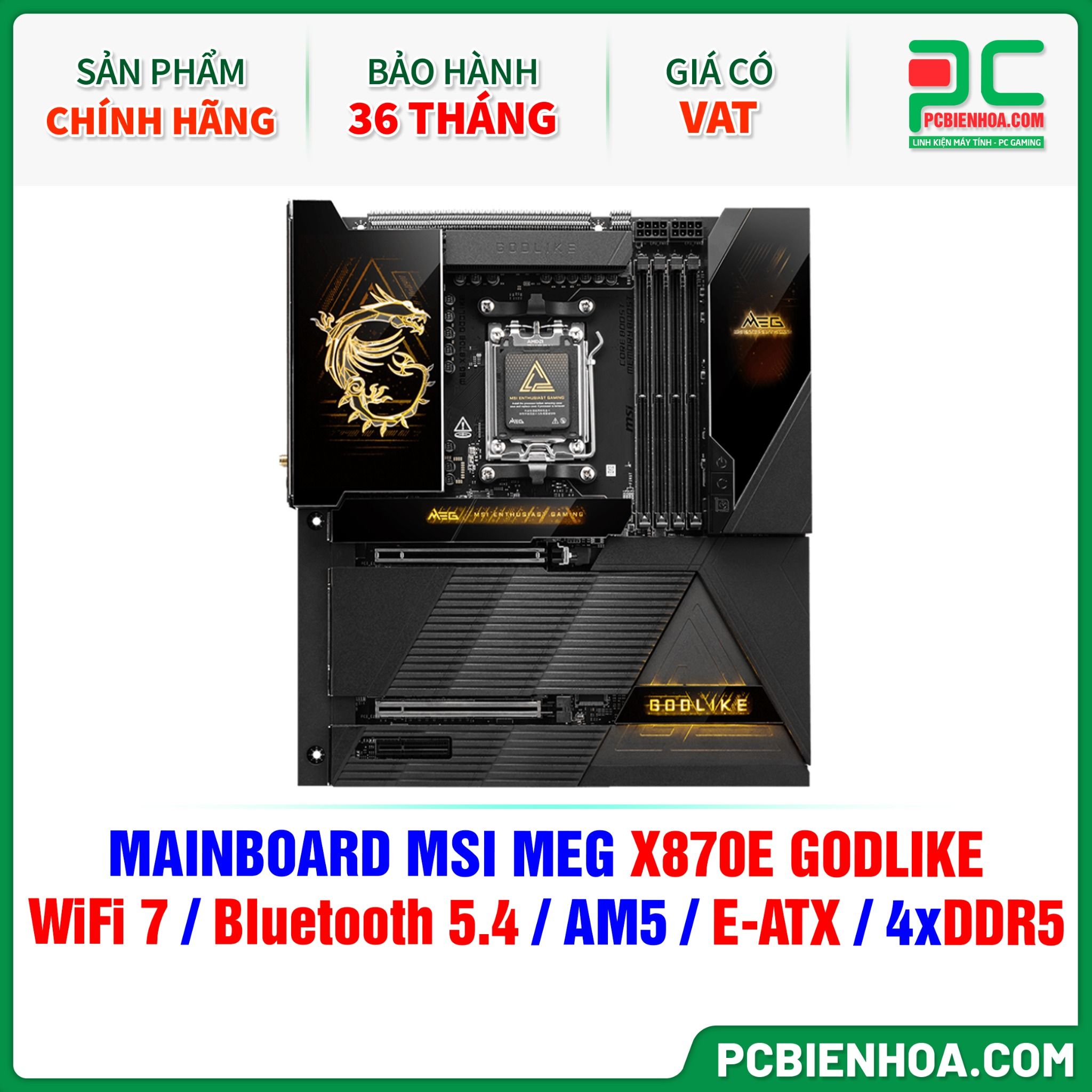

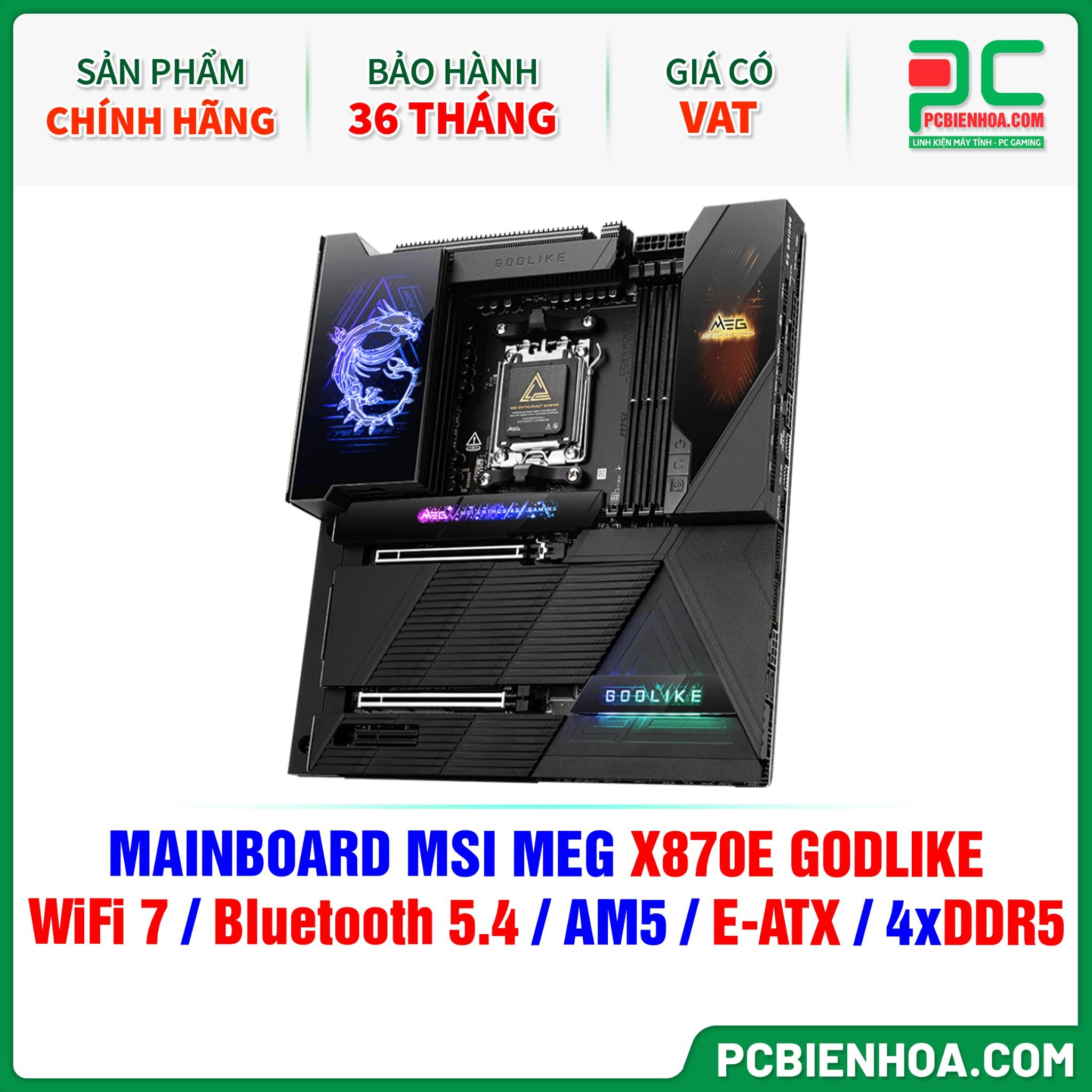

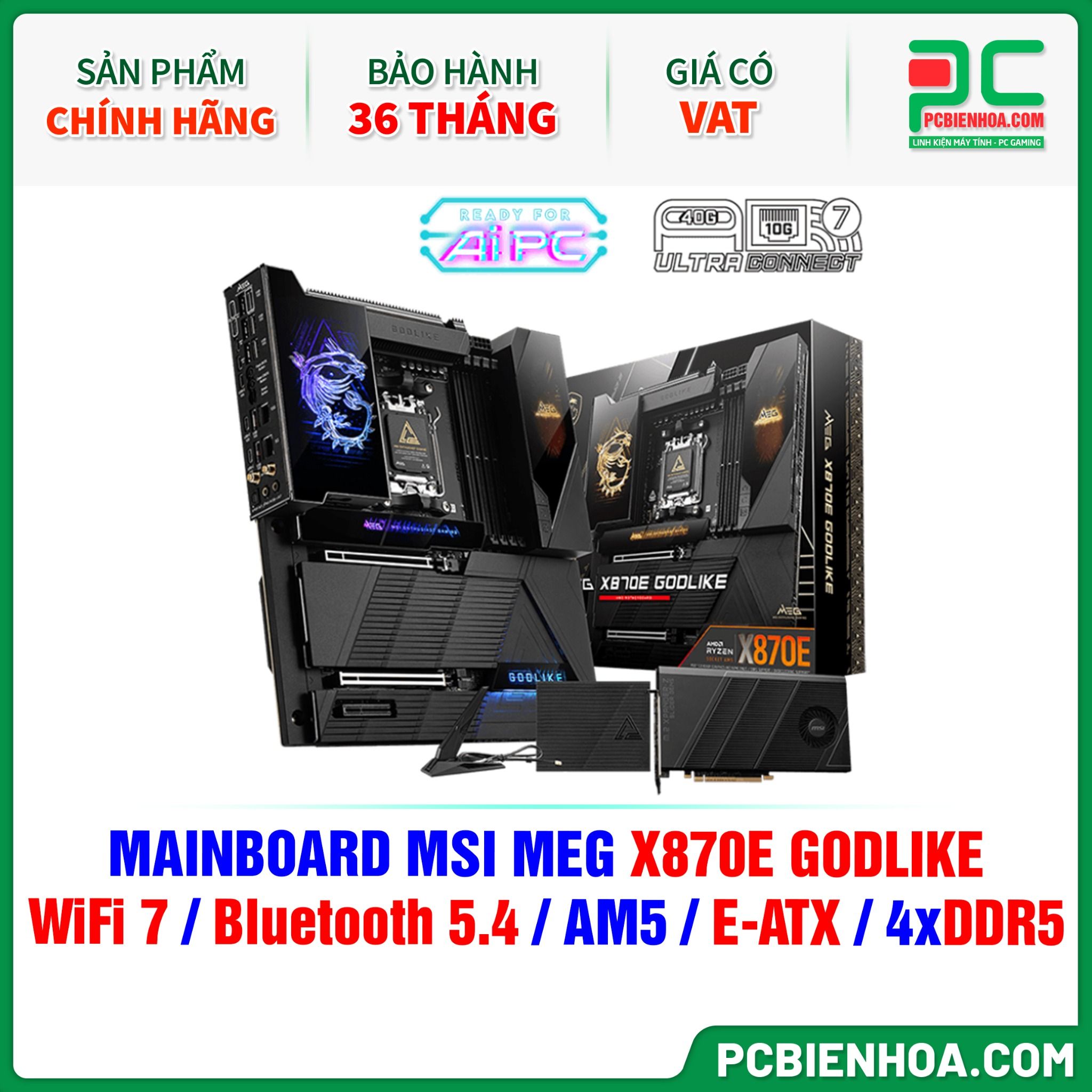

DDR5 - MAINBOARD MSI MEG X870E GODLIKE ( WiFi 7 / Bluetooth 5.4 / AM5 / E-ATX / 4xDDR5 )
-6%

DDR5 - MAINBOARD MSI MEG X870E GODLIKE ( WiFi 7 / Bluetooth 5.4 / AM5 / E-ATX / 4xDDR5 )

Thương hiệu: MSI
Loại: Mainboard

Giá Niêm Yết: 25,990,000₫

Giá KM tại PCBIENHOA.COM: 24,490,000₫

- Bảo Hành: 36 Tháng 1 đổi 1

- Tình trạng: Hàng chính hãng mới 100%

- Kho hàng: Liên hệ đặt hàng

Liên hệ đặt hàng

  • GIAO HÀNG

    Miễn phí ship COD toàn quốc
    Giao ngay trong bán kính 40km miễn phí

  • Sản phẩm

    Cam kết hàng chính hãng
    Bảo hành nhanh chóng

  • ĐỔI TRẢ

    Hàng lỗi kỹ thuật đổi mới trong vòng 30 ngày

  • Trả góp

    Trả góp qua Home Credit, HDSAISON và Thẻ Tín Dụng
    Mua ngay trả sau qua Home PayLater

  • Thời gian làm việc

    Sáng từ 8h - 7h Tối, CN 9h-7h Tối ( Lễ tết nghỉ )

  • Chấp nhận thanh toán
Bán hàng - Tư vấn - CSKH
Kỹ thuật - Bảo hành

MAINBOARD MSI MEG X870E GODLIKE ( WiFi 7 / Bluetooth 5.4 / AM5 / E-ATX / 4xDDR5 )

CHIPSET

AMD X870E

CPU SUPPORT

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

ONBOARD GRAPHICS

2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

2x PCI-E x16 slot
1x PCI-E x4 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 & PCI_E2 slots
• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E3 slot
• Supports up to PCIe 4.0 x4

* PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.
Please refer to the PCIe configuration table in the manual for more details.
AudioRealtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA
7.1-Channel USB High-Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage5x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M.2_1:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
M.2_2:
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
M2_4:
PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.

* Supports additional 2x M.2 up to PCIe 5.0 x4 via M.2 card.
** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID•Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices
•Supports RAID 0, RAID 1 and Raid 10 for M.2 NVMe storage devices

USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Front)
8x USB 10Gbps Type A (Rear)
5x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Front)
2x USB 40Gbps Type C (Rear)

LAN

1x Marvell® AQC113CS 10Gbps LAN
1x Realtek® 8126 5Gbps LAN

INTERNAL I/O

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Combo Fan (Pump_Sys Fan)
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
1x Addressable V2 RGB LED connector (JARGB_V2)
V-check point
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

LED FEATURE

1x Dynamic Dashboard III
1x EZ Digit Debug LED
1x EZ LED Control switch

BACK PANEL PORTS


  1. USB 10Gbps (Type-A)
  2. Flash BIOS Button
  3. Clear CMOS Button
  4. Smart Button
  5. 10G LAN
  6. 5G LAN
  7. Wi-Fi / Bluetooth
  8. HD Audio Connectors
  9. USB 40Gbps (Type-C)
  10. USB 10Gbps (Type-C)
  11. USB 10Gbps (Type-A)
  12. Optical S/PDIF-Out

OPERATING SYSTEM

Support for Windows® 11 64-bit

PCB DIMENSION

E-ATX
304.8mmx277mm
