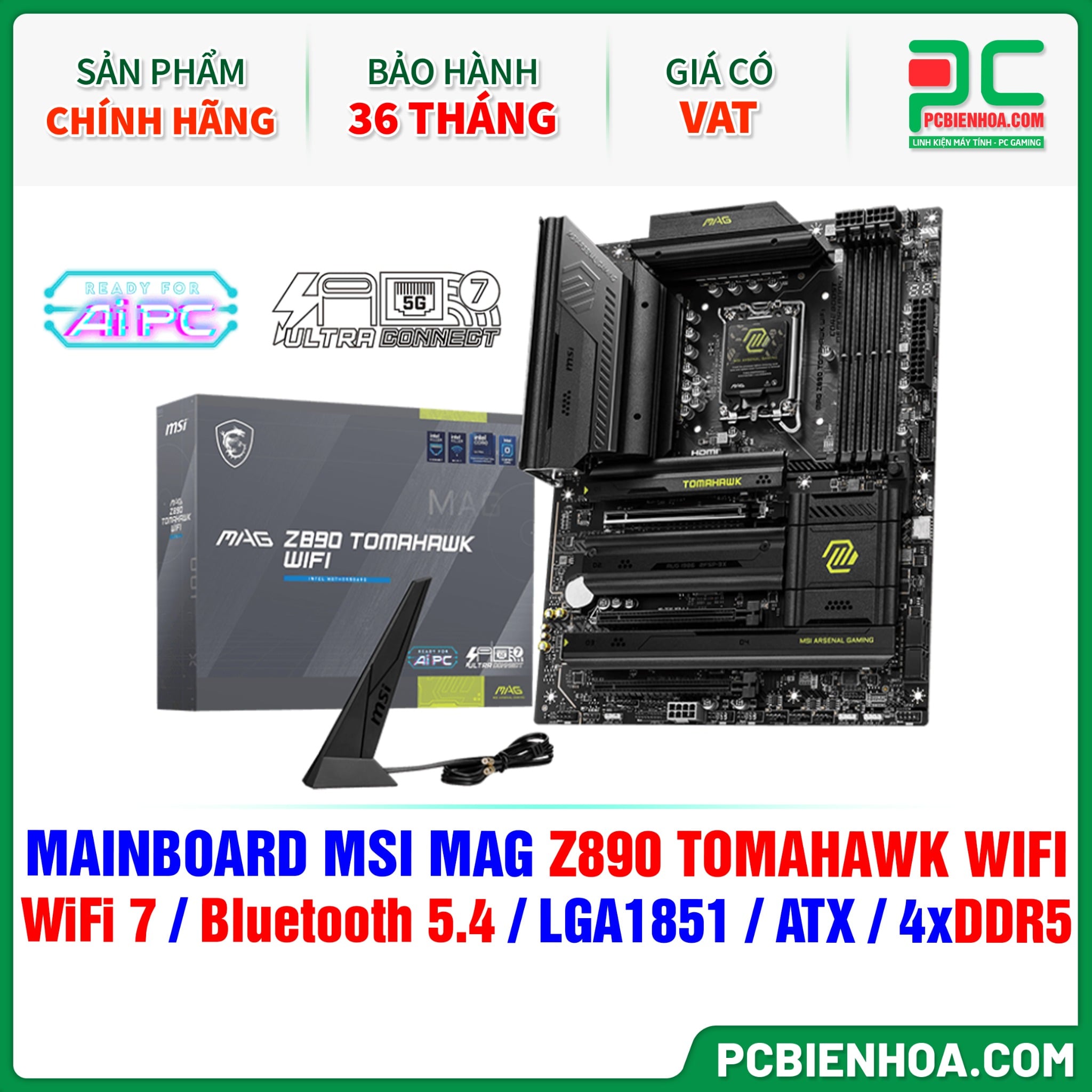

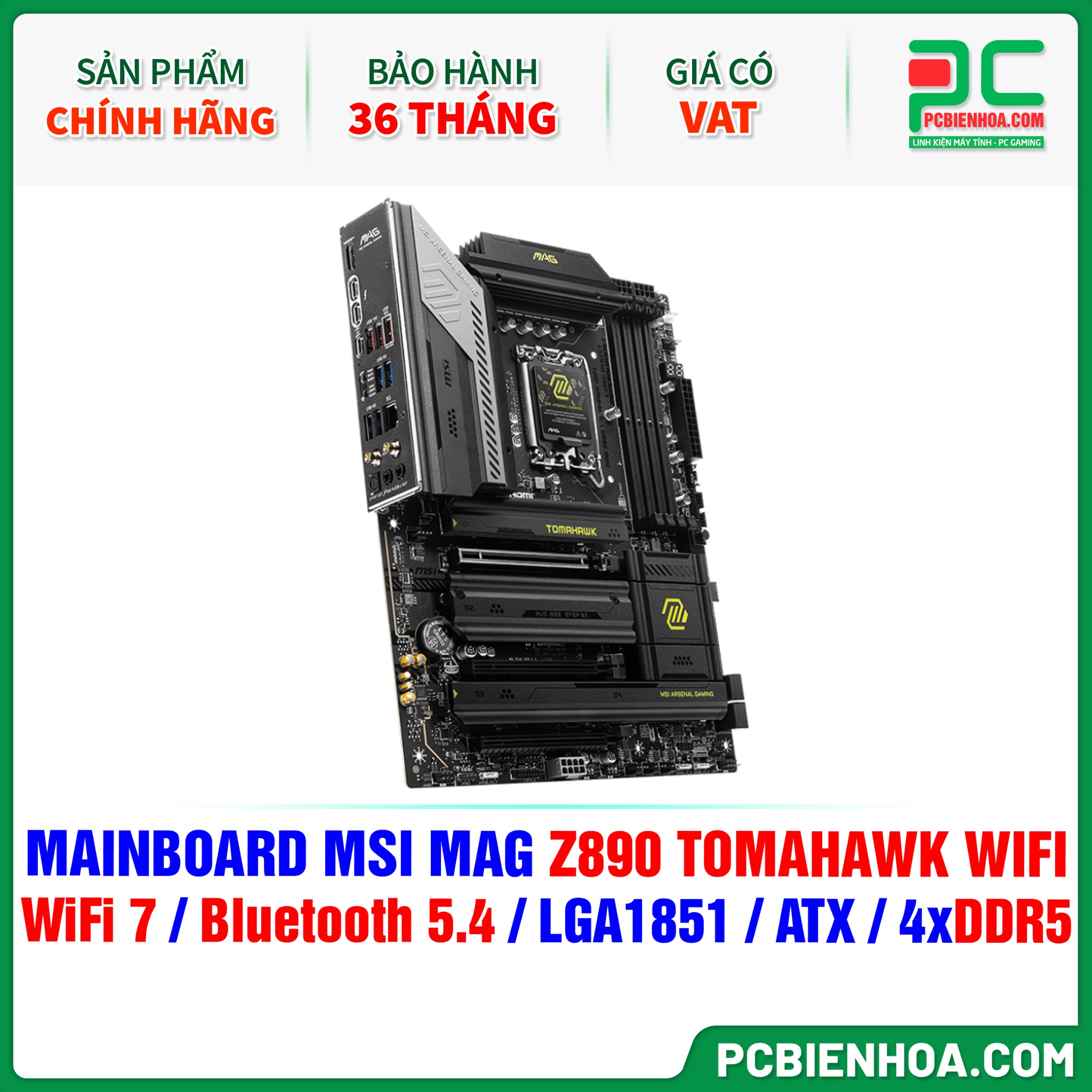

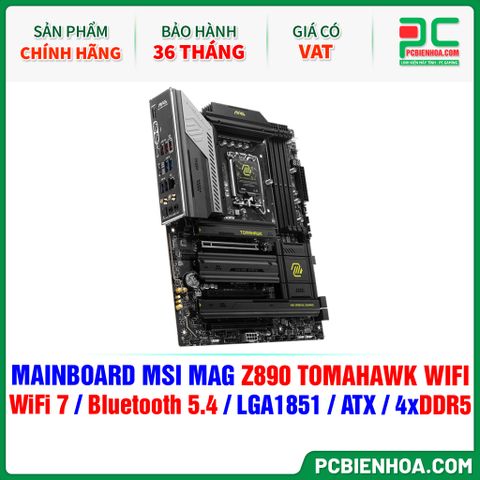

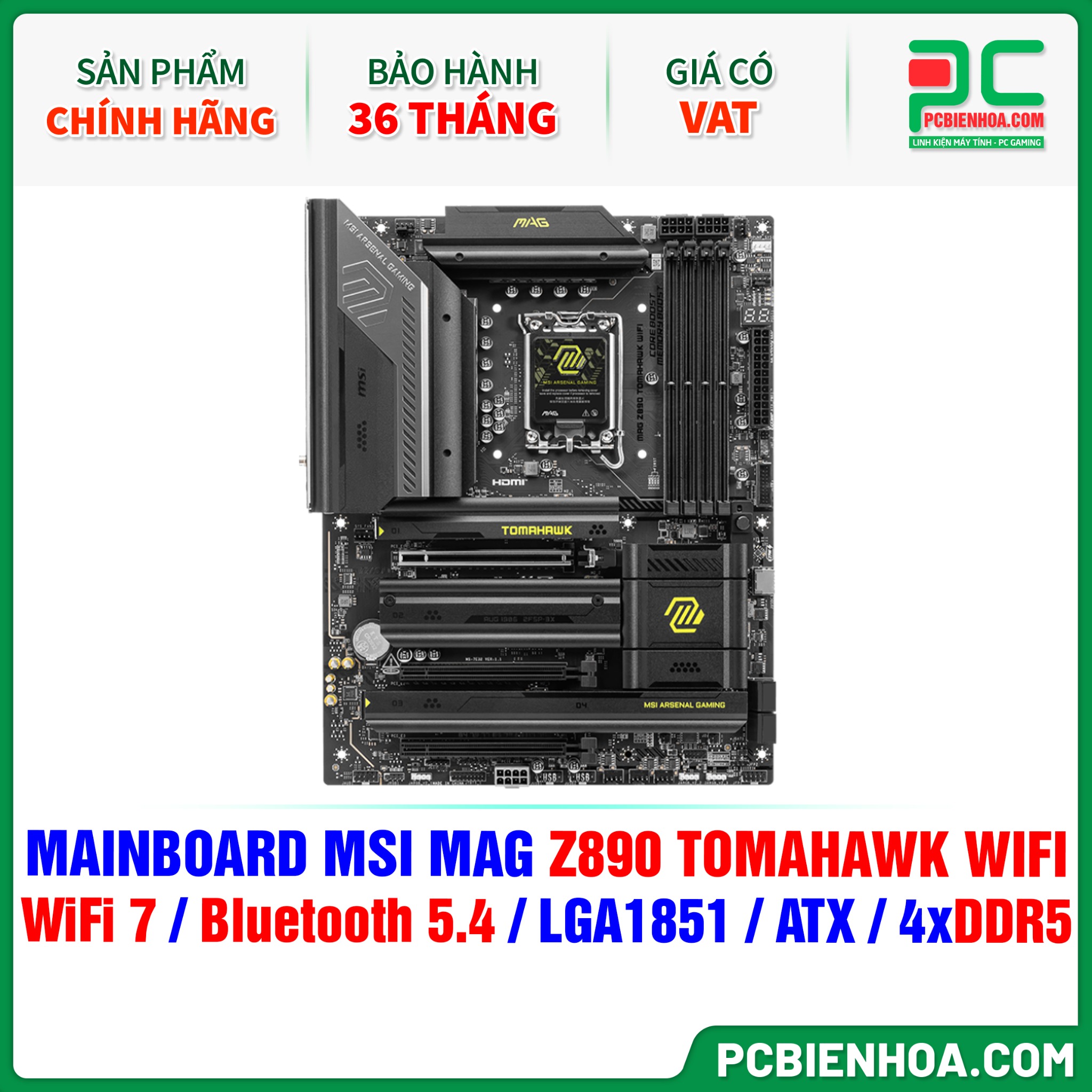

DDR5 - MAINBOARD MSI MAG Z890 TOMAHAWK WIFI ( WiFi 7 / Bluetooth 5.4 / LGA1851 / ATX / 4xDDR5 )

Thương hiệu: MSI
Loại: Mainboard

Giá Niêm Yết: 11,590,000₫

Giá KM tại PCBIENHOA.COM: 10,590,000₫

- Bảo Hành: 36 Tháng 1 đổi 1

- Tình trạng: Hàng chính hãng mới 100%

- Kho hàng: Liên hệ đặt hàng

  • GIAO HÀNG

    Miễn phí giao máy tính toàn quốc

  • Sản phẩm

    Cam kết hàng chính hãng
    Bảo hành nhanh chóng

  • ĐỔI TRẢ

    Hàng lỗi kỹ thuật đổi mới trong vòng 30 ngày

  • Trả góp

    Trả góp CCCD và GPLX, Thẻ Tín Dụng

  • Thời gian làm việc

    Sáng từ 8h - 6h Tối, CN 9h-6h Tối ( Lễ tết nghỉ )

  • Chấp nhận thanh toán
Bán hàng - Tư vấn - CSKH
Kỹ thuật - Bảo hành

MAINBOARD MSI MAG Z890 TOMAHAWK WIFI ( WiFi 7 / Bluetooth 5.4 / LGA1851 / ATX / 4xDDR5 )

CHIPSET

INTEL Z890

CPU SUPPORT

Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

ONBOARD GRAPHICS

1x HDMI™
Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*
2x Type-C DisplayPort
Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
AudioRealtek® ALC1220P Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Storage4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt2x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display

USB

4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
3x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1

LAN

Intel® Killer™ E5000 5Gbps LAN

INTERNAL I/O

1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.

LED FEATURE

4x EZ Debug LED
1x EZ Digit Debug LED

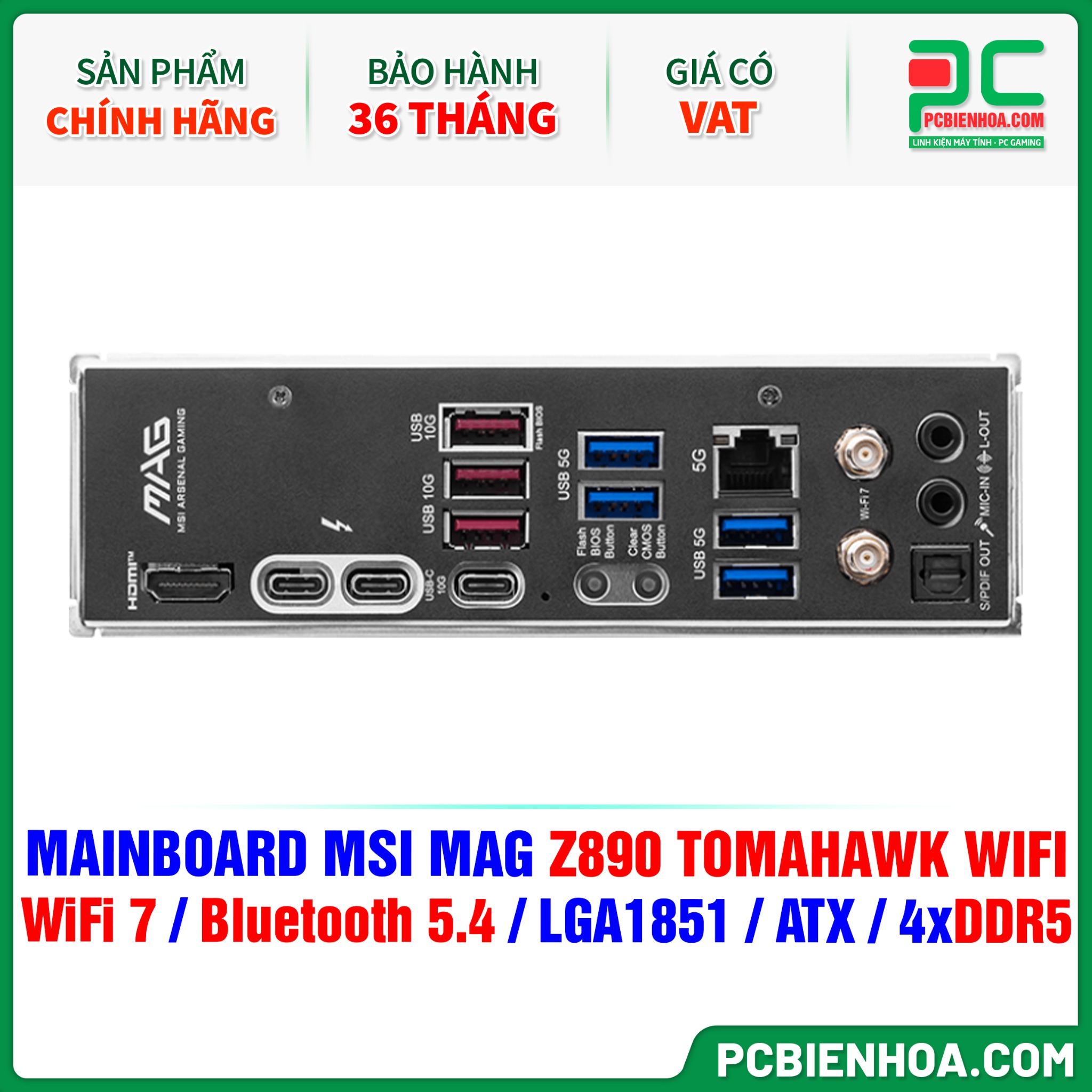

BACK PANEL PORTS

  1. USB 10Gbps Type-A
  2. USB 5Gbps Type-A
  3. 5G LAN
  4. Wi-Fi / Bluetooth
  5. Audio Connectors
  6. HDMI™
  7. Thunderbolt™ 4 40Gbps (Type-C)
  8. USB 10Gbps Type-C
  9. Flash BIOS Button
  10. Clear CMOS Button
  11. USB 5Gbps Type-A
  12. S/PDIF-OUT

OPERATING SYSTEM

Support for Windows® 11 64-bit
BOX CONTENT
PCB InfoATX
243.84mmx304.8mm
