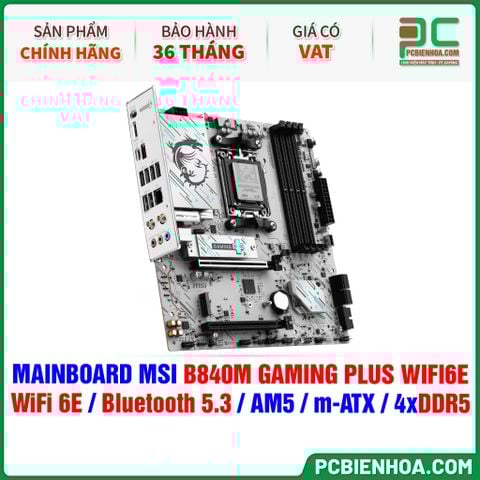

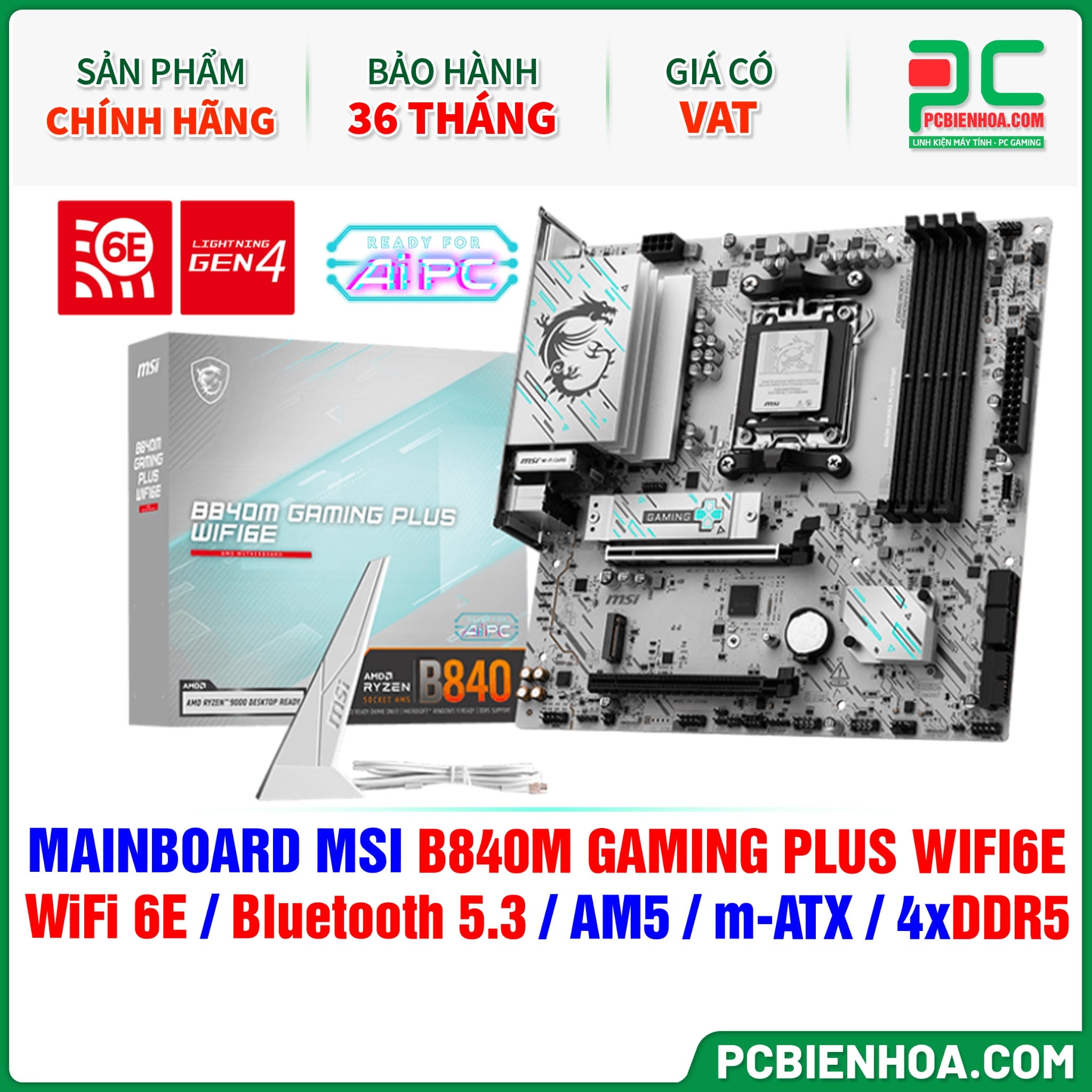

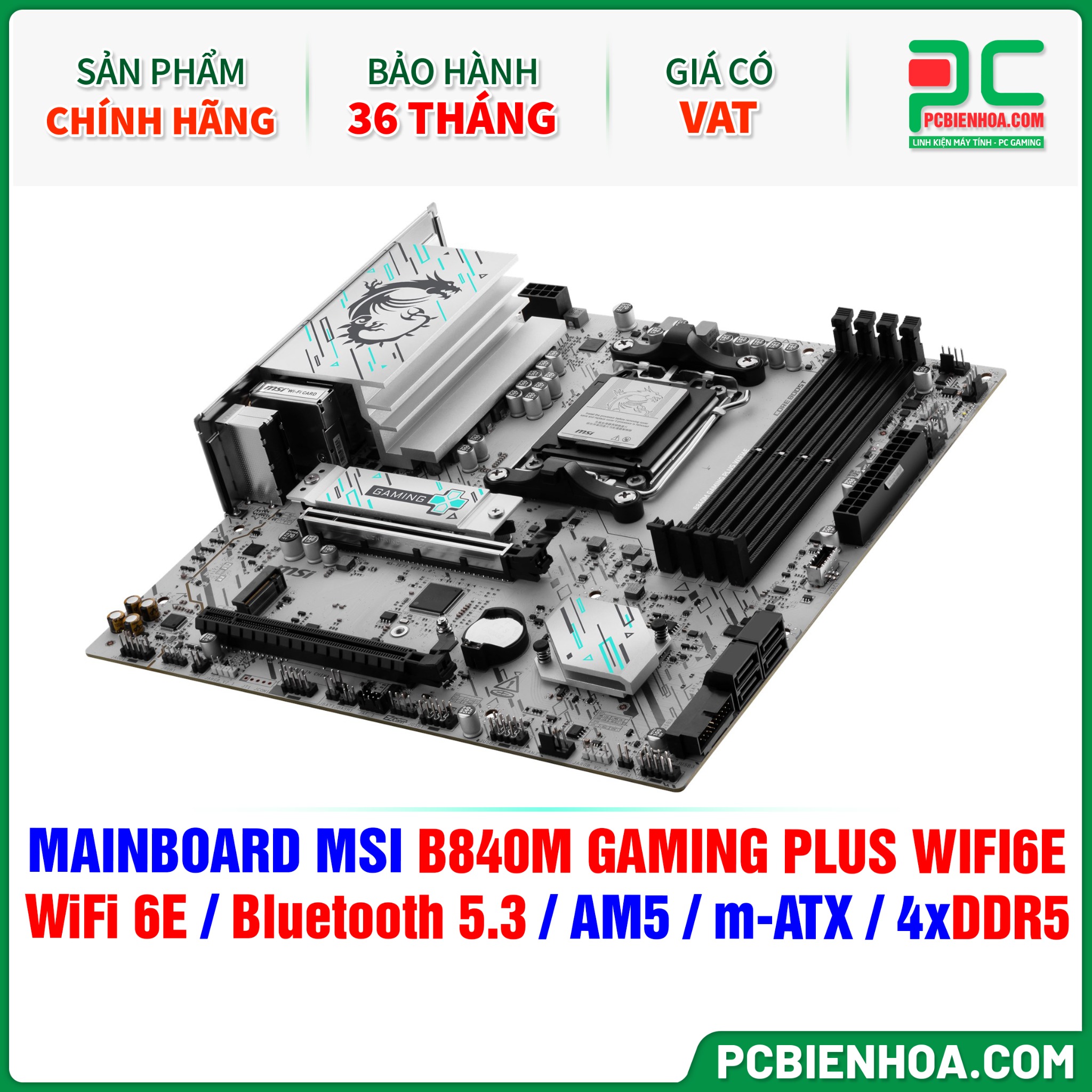

DDR5 - MAINBOARD MSI B840M GAMING PLUS WIFI6E ( WiFi 6E / Bluetooth 5.3 / AM5 / m-ATX / 4xDDR5 )

Tình trạng : Hết hàng | Thương hiệu : MSI |

Giá gốc : 4,950,000₫

Giá khuyến mại : 4,090,000₫ (Tiết kiệm: 860,000₫)

Build PC với sản phẩm này

Default Title

Bảo hành: 36 tháng

Liên hệ đặt hàng

Chính Sách Nổi Bật Tại PCBIENHOA.COM

GIAO HÀNG
● Ship COD toàn quốc
● Giao nhanh trong ngày, không ngại xa

SẢN PHẨM
● Cam kết hàng chính hãng mới 100%

BẢO HÀNH - ĐỔI TRẢ
   ●  Hàng lỗi kỹ thuật đổi mới trong vòng
       30 ngày
   ●  Bảo hành chính hãng

TRẢ GÓP
● Home Credit, HDSAISON và Thẻ tín dụng
● Mua ngay trả sau qua Home PayLater

BÁN HÀNG - TƯ VẤN - CSKH

Tư Vấn Cấu Hình PC Giá Tốt
- 0388.954.721 (Mrs.Nhàn)

Giao Hàng - Bán Online COD
- 0984.654.348 (Mr.Dũng)

Kỹ Thuật - Bảo Hành
- 0359.694.006 (Mr.Tuân)

Mô tả sản phẩm

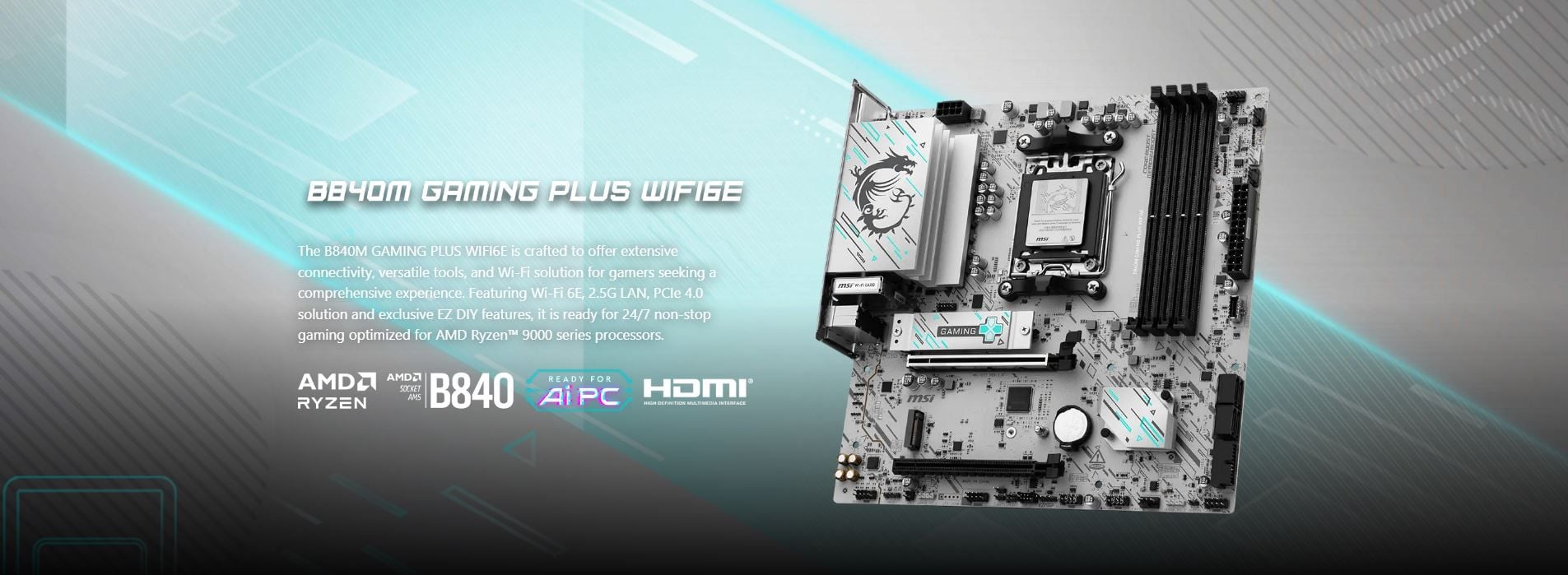

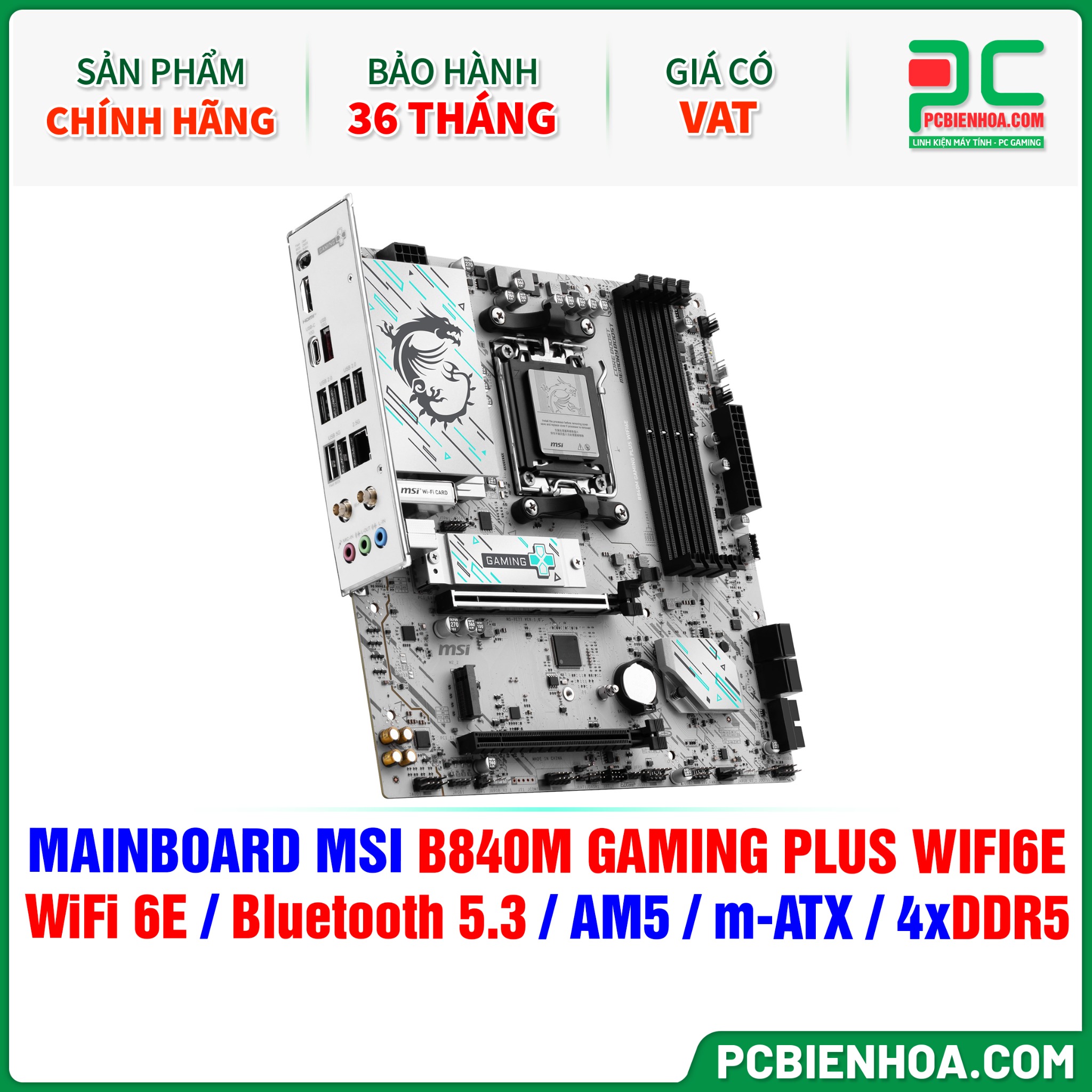

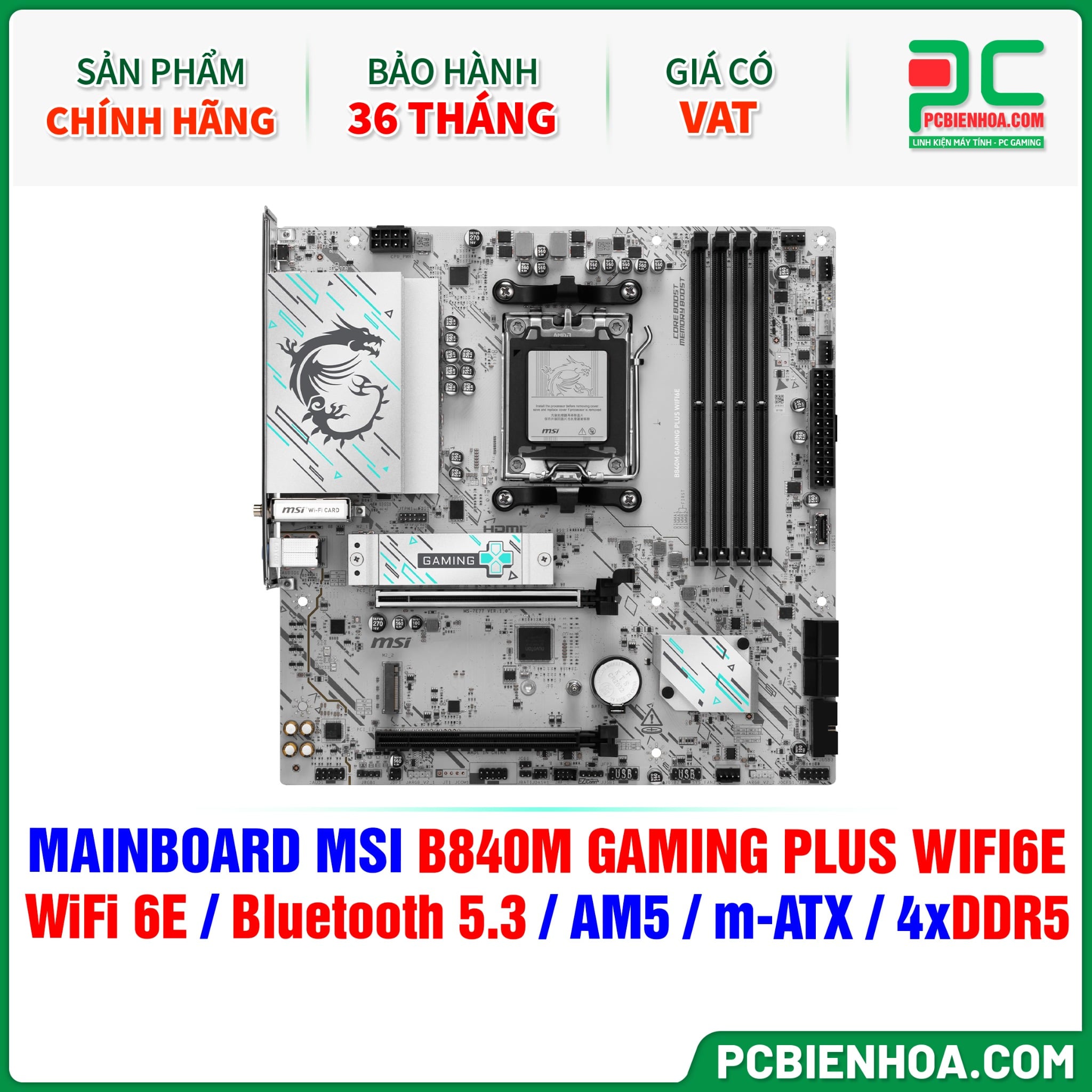

MAINBOARD MSI B840M GAMING PLUS WIFI6E ( WiFi 6E / Bluetooth 5.3 / AM5 / m-ATX / 4xDDR5 )

CHIPSET

AMD B840

CPU SUPPORT

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

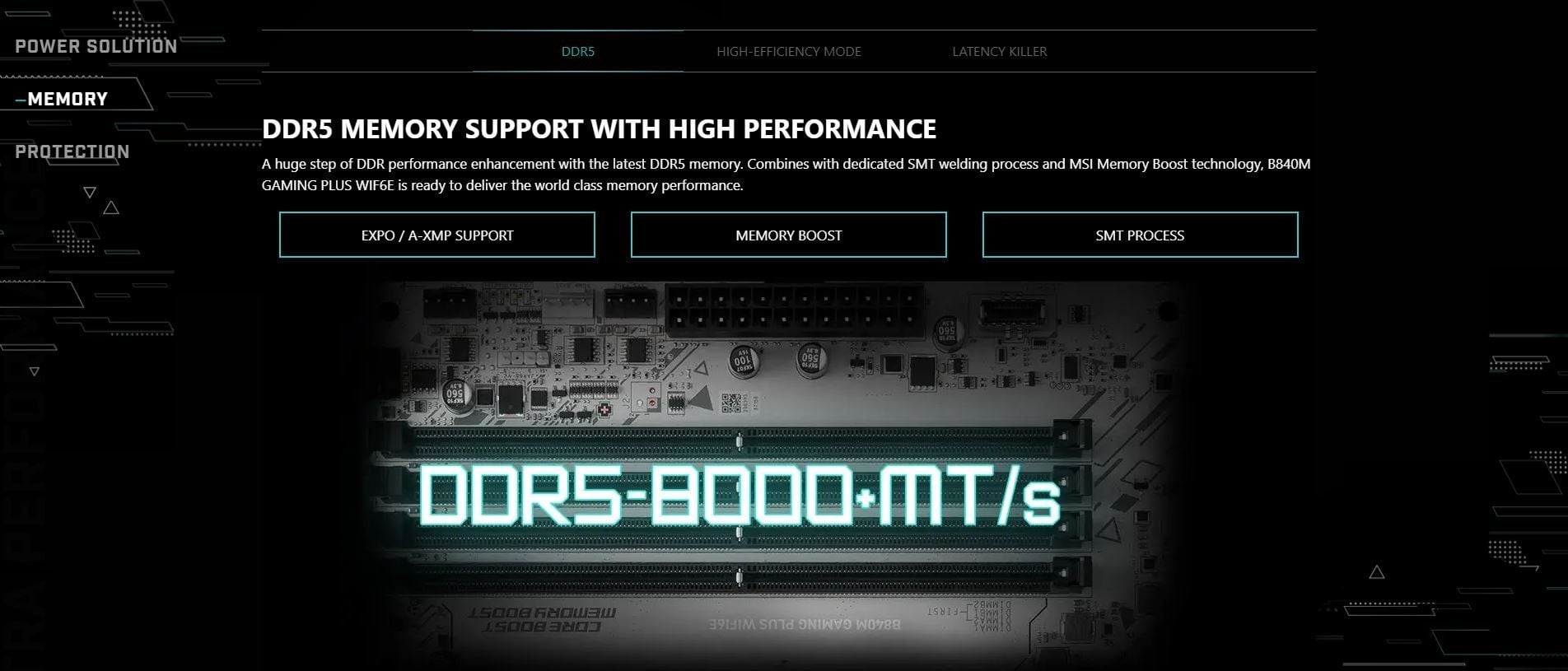

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 5600+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO^TM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

ONBOARD GRAPHICS

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

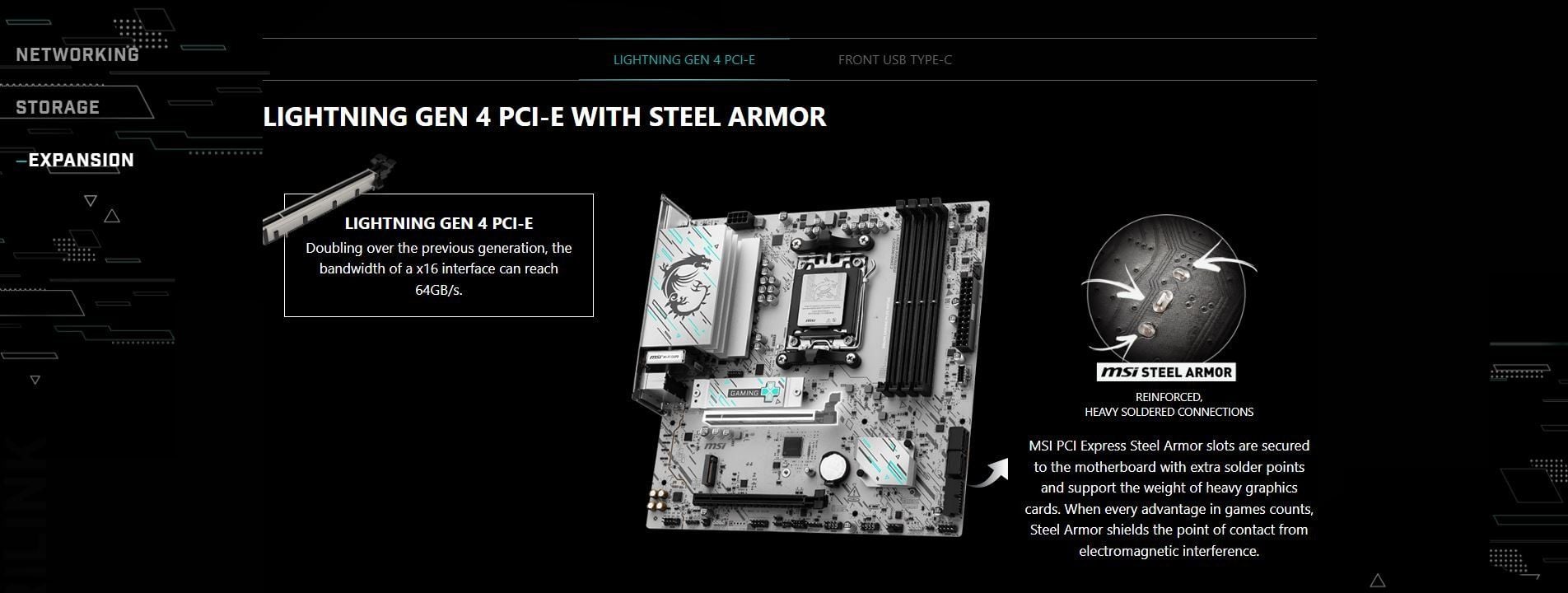

2x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)

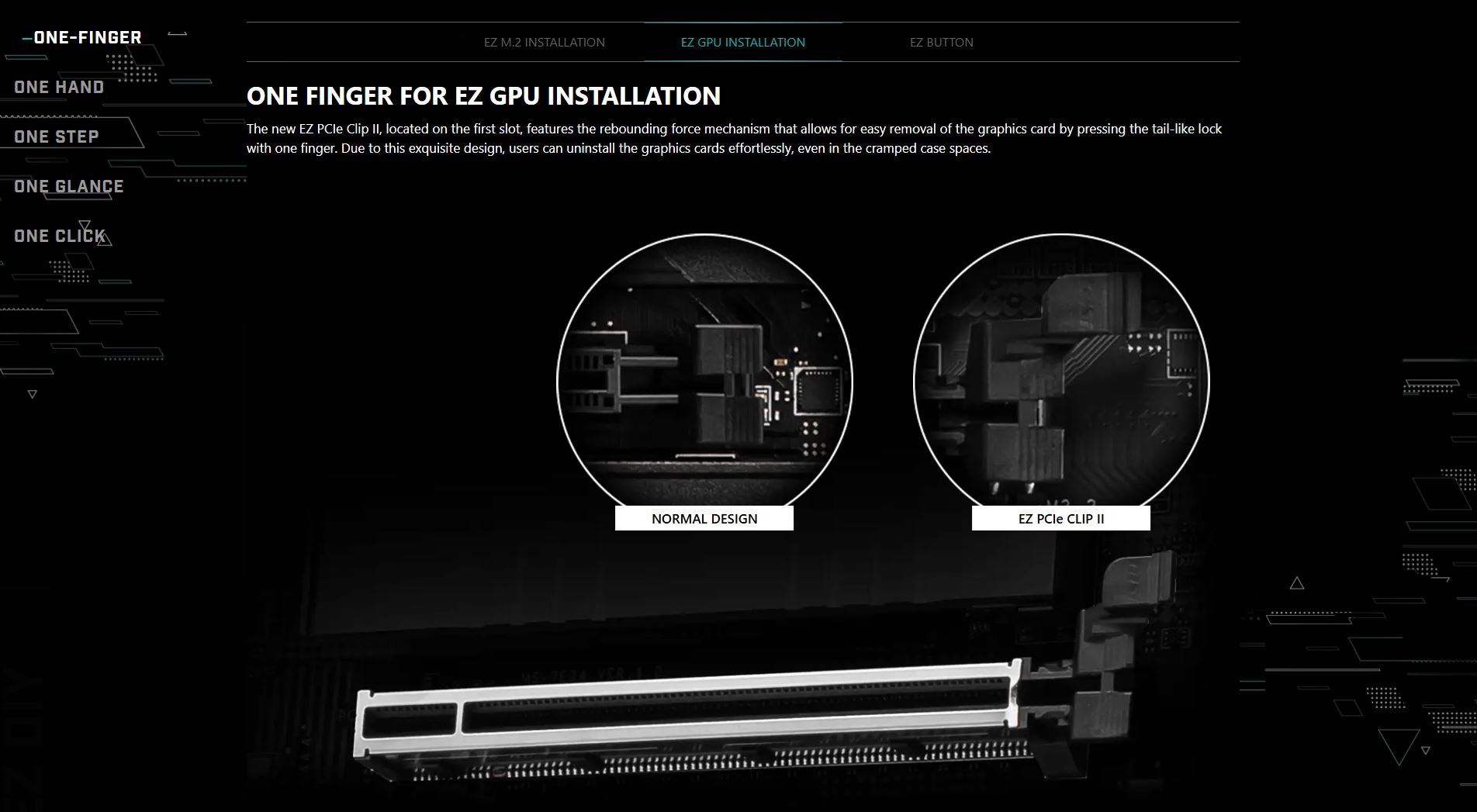

PCI_E1 slot
• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

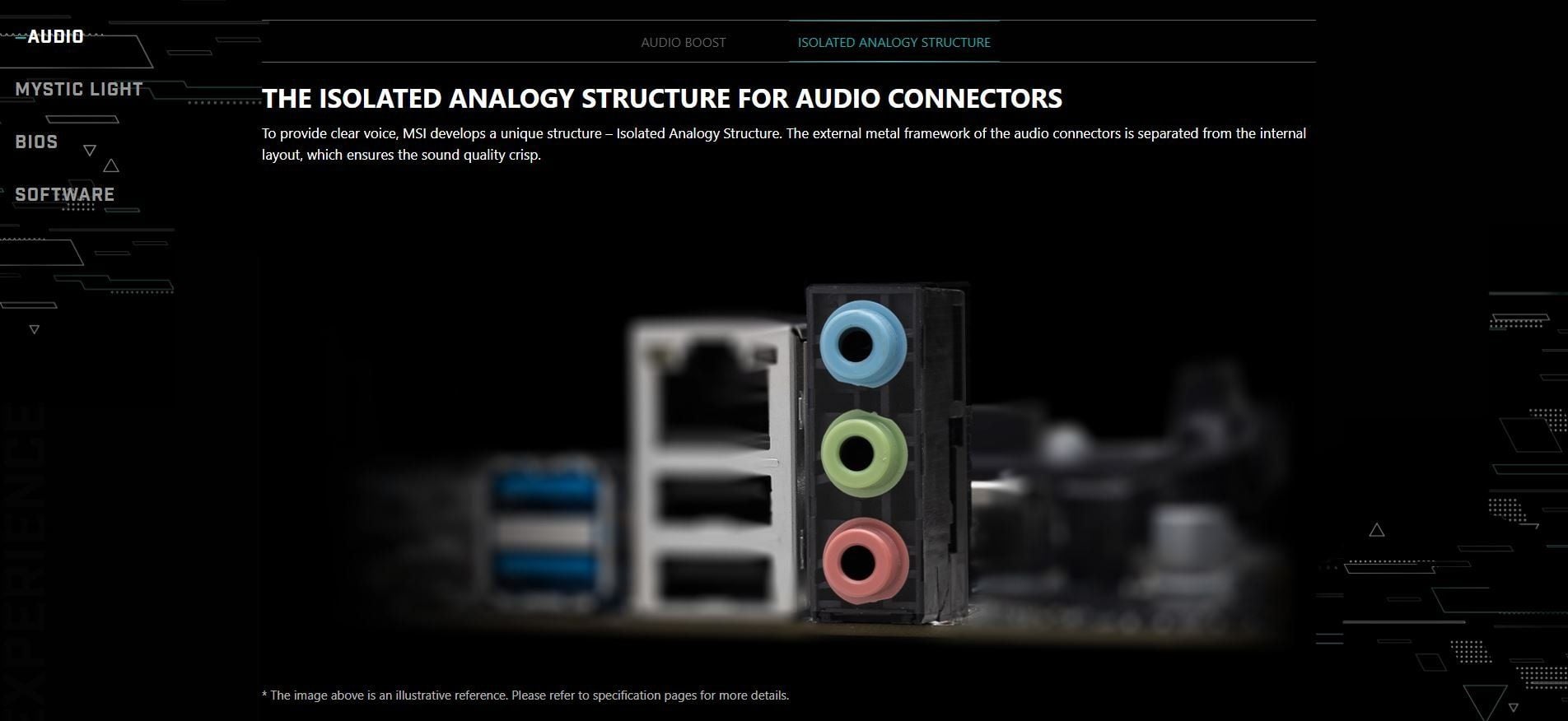

AUDIO

Realtek^® ALC897 Codec
7.1-Channel High Definition Audio

STORAGE

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
*Please refer to the manual for M.2 SSD heatsink restrictions.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
1x USB 5Gbps Type C (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)

LAN

Realtek^® 8125D 2.5G LAN

INTERNAL I/O

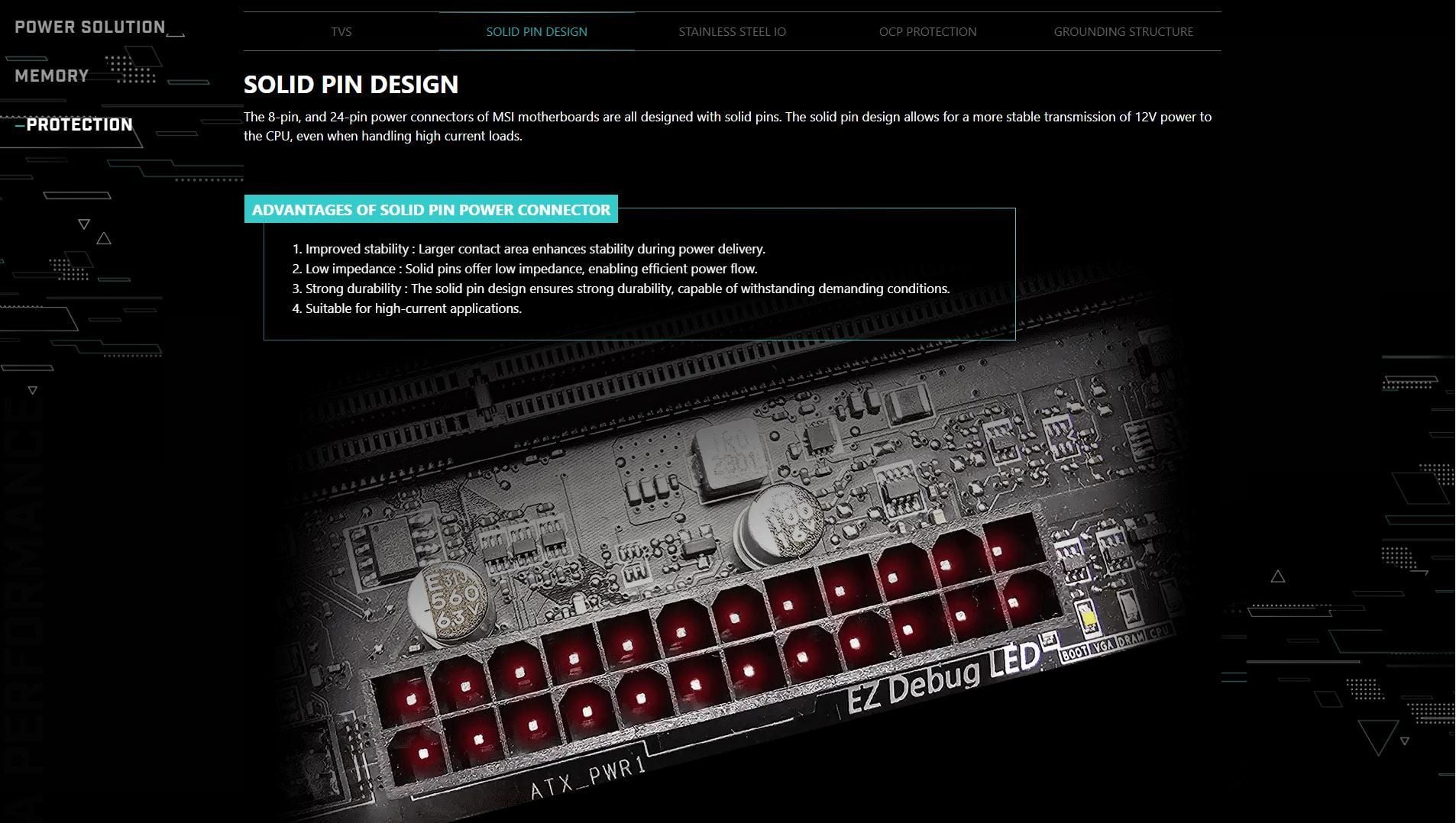

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
3x System Fan

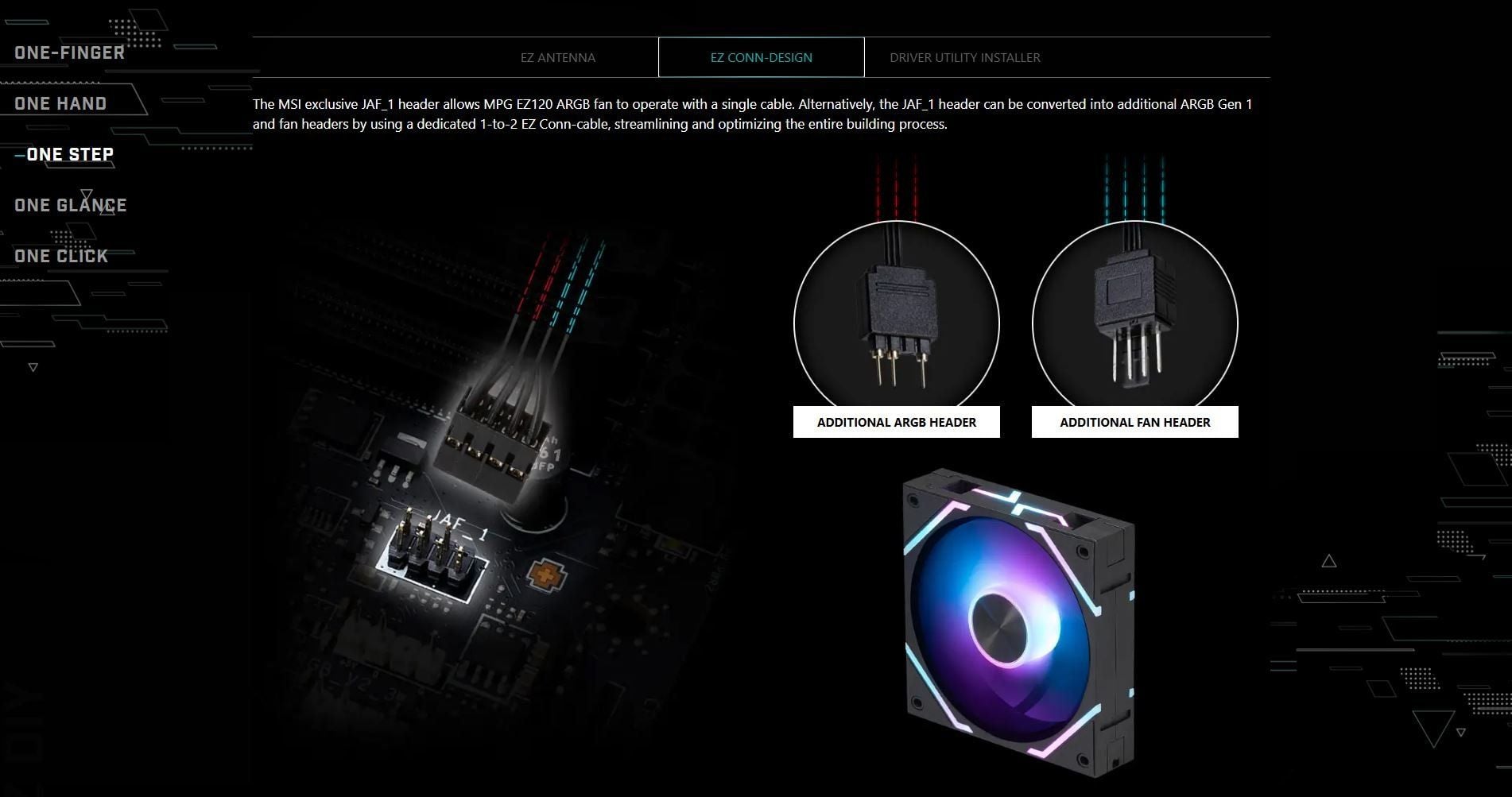

1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)

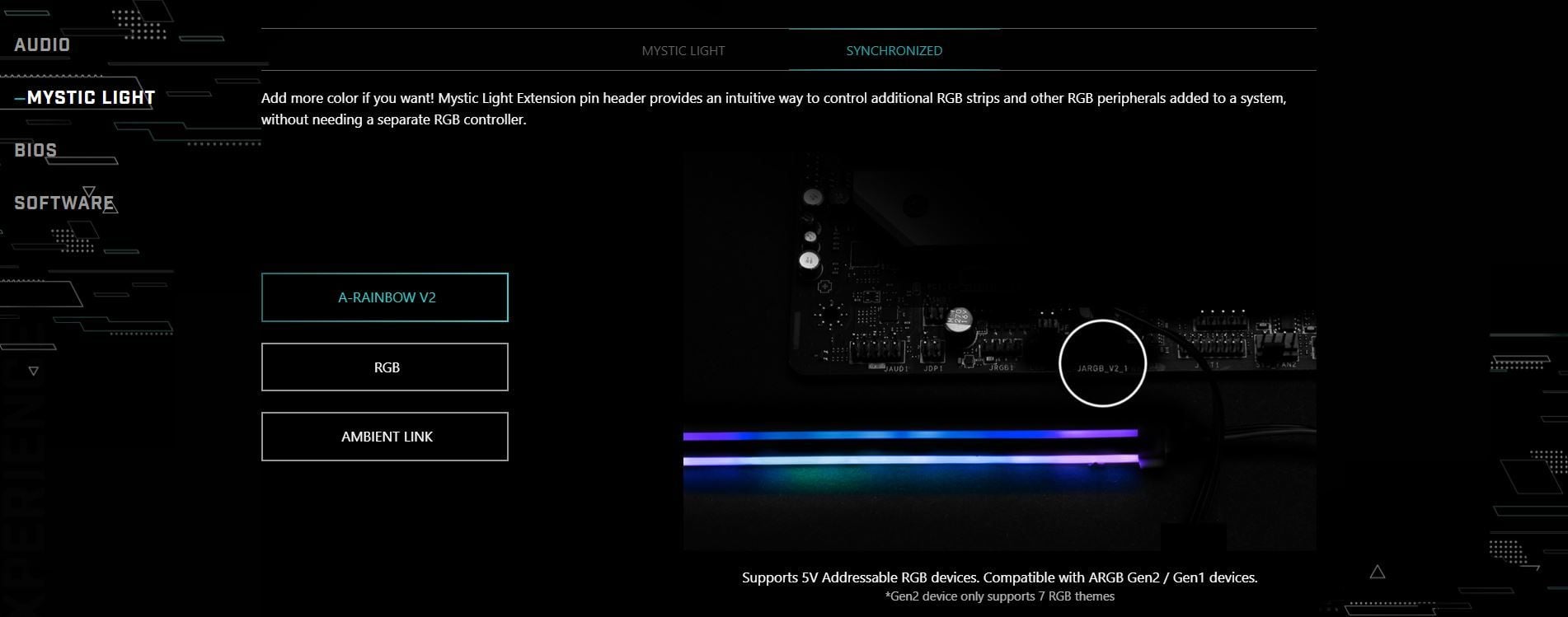

3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 6E Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth^® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

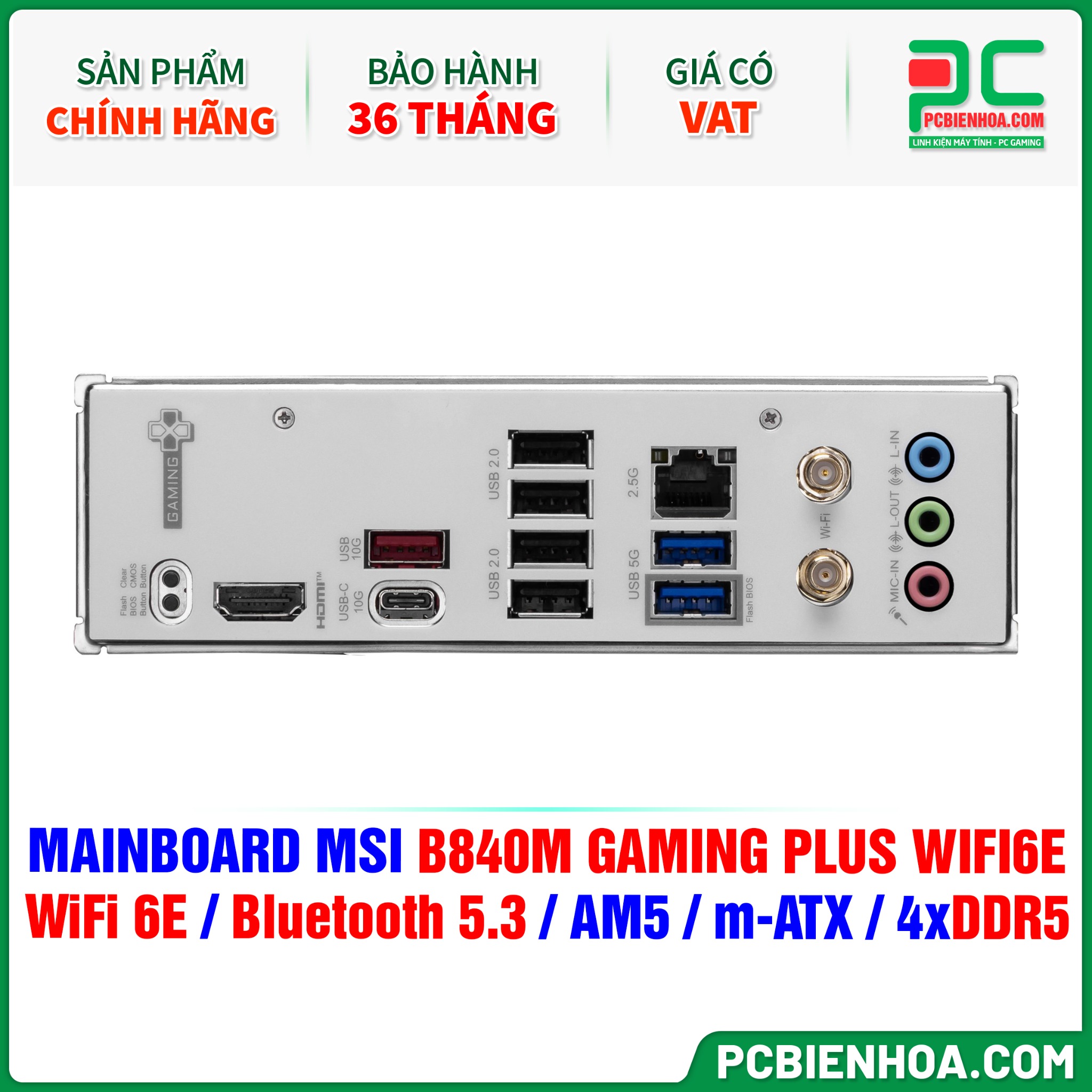

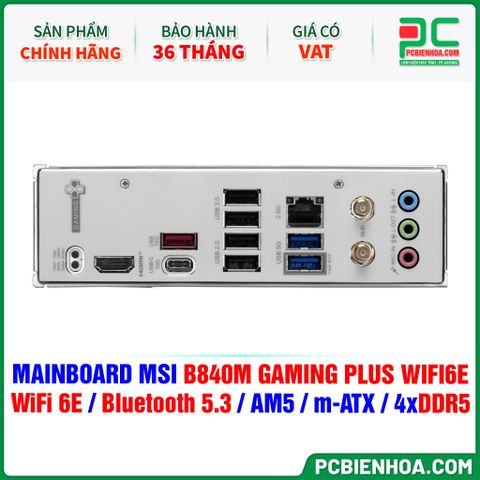

BACK PANEL PORTS
