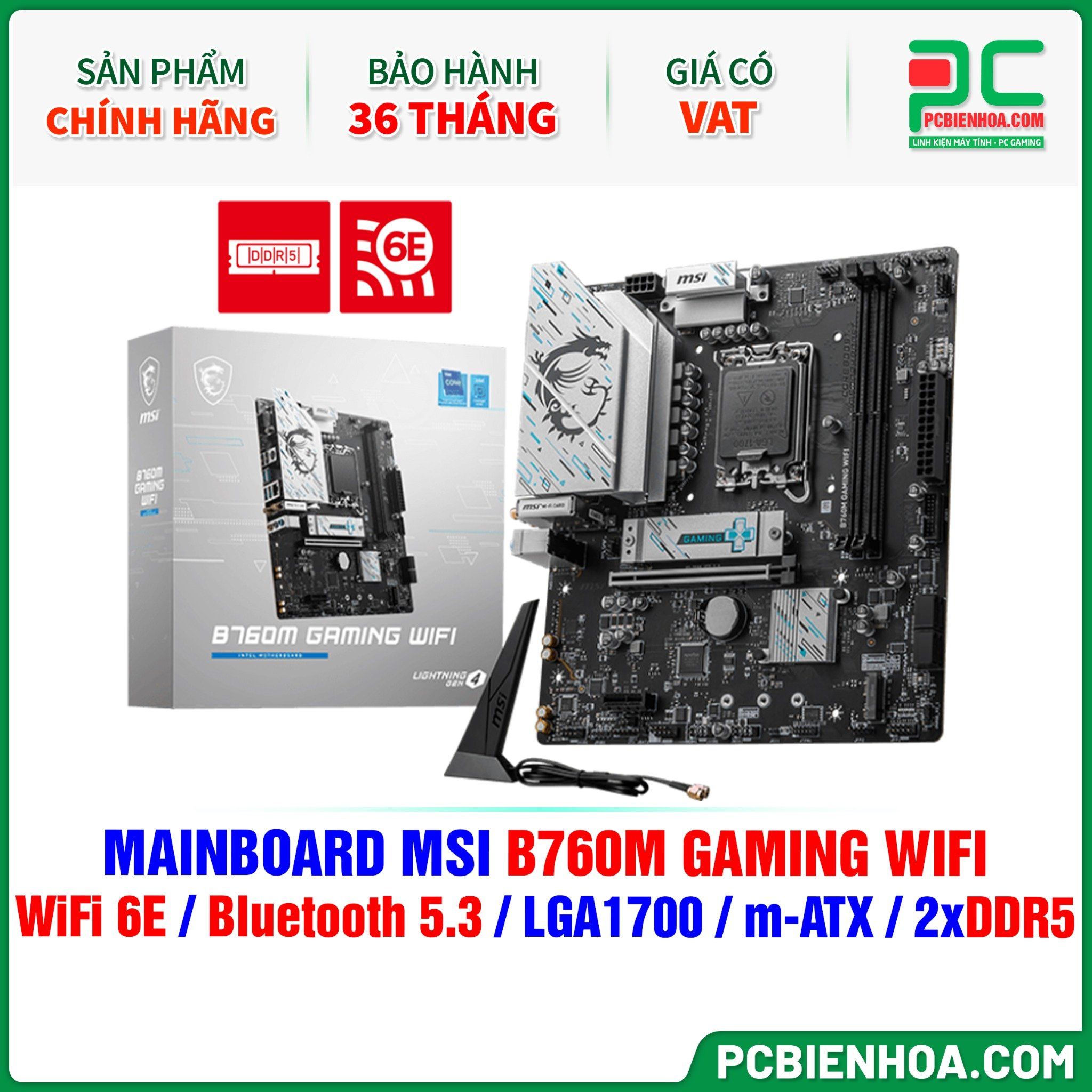

DDR5 - MAINBOARD MSI B760M GAMING WIFI ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 2xDDR5 )

-22%

DDR5 - MAINBOARD MSI B760M GAMING WIFI ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 2xDDR5 )

Thương hiệu: MSI

Loại: Mainboard

Giá niêm yết: ~~4,090,000₫~~

Giá KM tại PCBIENHOA.COM: 3,190,000₫

Thông Tin

- Bảo hành 36 tháng 1 đổi 1

- Hàng chính hãng, mới 100%

- Freeship COD toàn quốc

- Miễn phí giao nhanh trong bán kính 30km

- Từ km 31 tính phí 5k/km (40km tính phí 10km =50k)

- Giao nhanh liên hệ anh Dũng số zalo: 0984654348

- Có sẵn hàng

- Hỗ trợ thế hệ Intel 12, 13 và 14

GIAO HÀNG

Miễn phí ship COD toàn quốc
Giao ngay trong bán kính 40km miễn phí
Sản phẩm

Cam kết hàng chính hãng
Bảo hành nhanh chóng
ĐỔI TRẢ

Hàng lỗi kỹ thuật đổi mới trong vòng 30 ngày
Trả góp

Trả góp qua Home Credit, HDSAISON và Thẻ Tín Dụng
Mua ngay trả sau qua Home PayLater
Thời gian làm việc

Sáng từ 8h - 7h Tối, CN 9h-7h Tối ( Lễ tết nghỉ )
Chấp nhận thanh toán

Bán hàng - Tư vấn - CSKH

0388954721 - Mrs.Nhàn
0984654348 - Kinh Doanh

Kỹ thuật - Bảo hành

0359694006 - Mr.Tuân

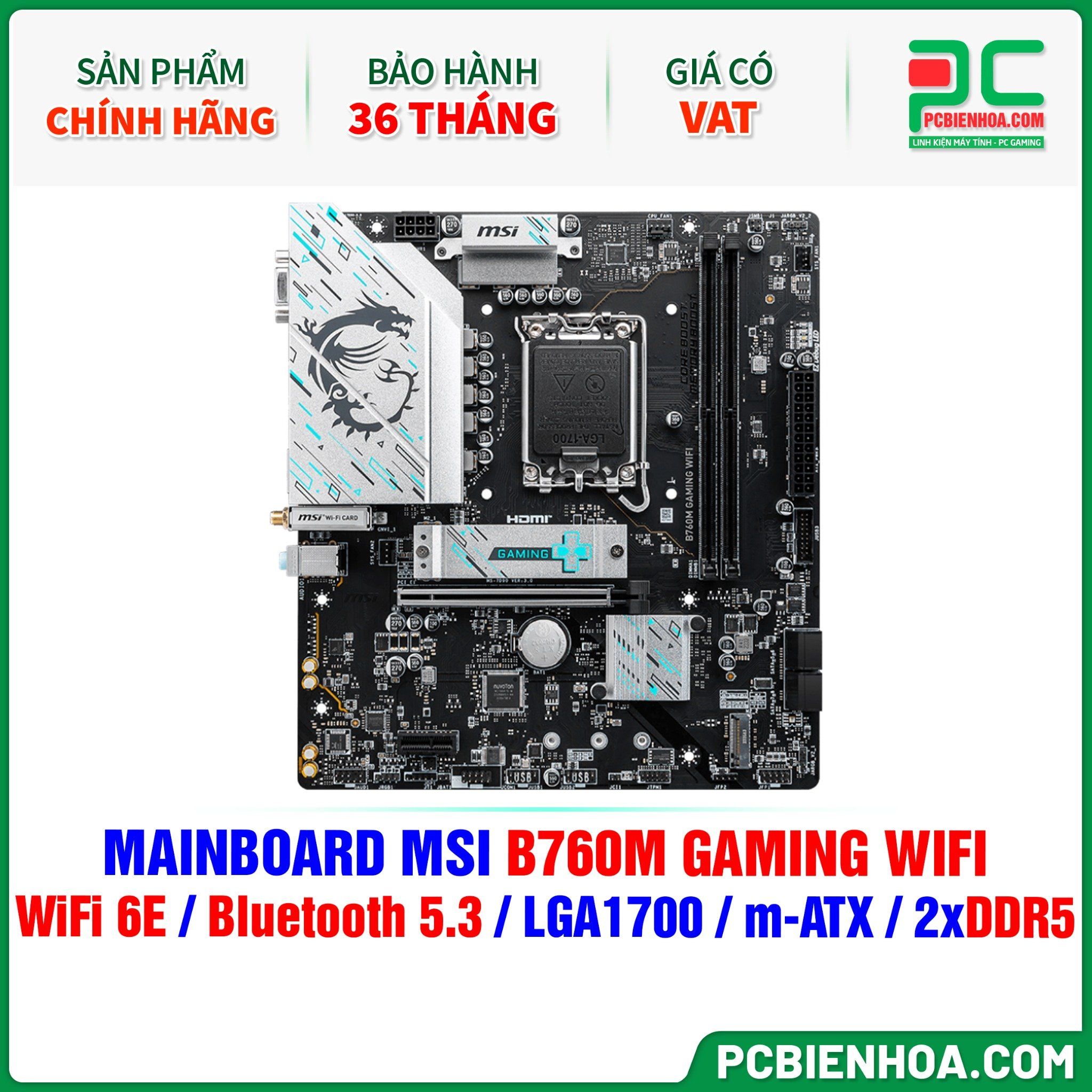

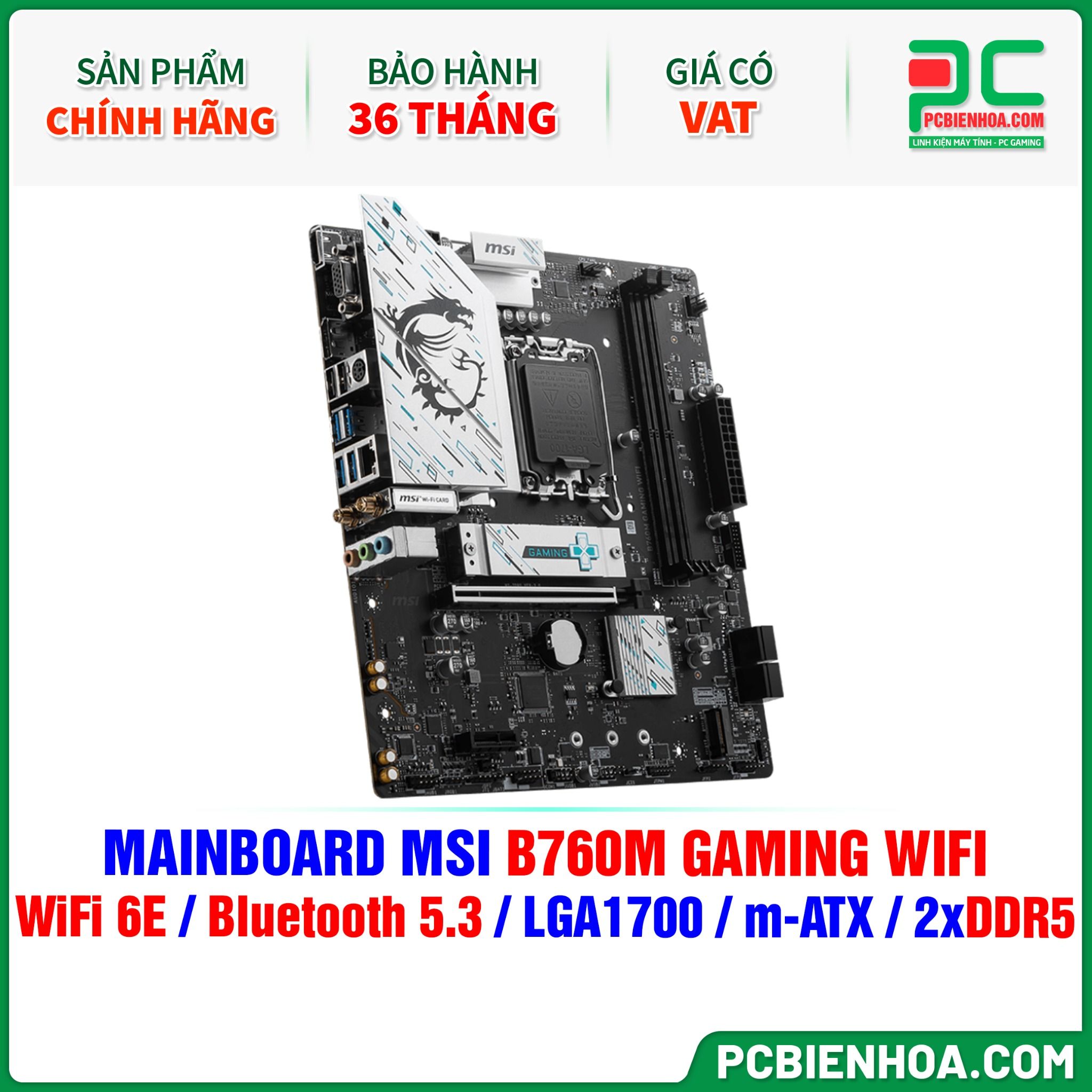

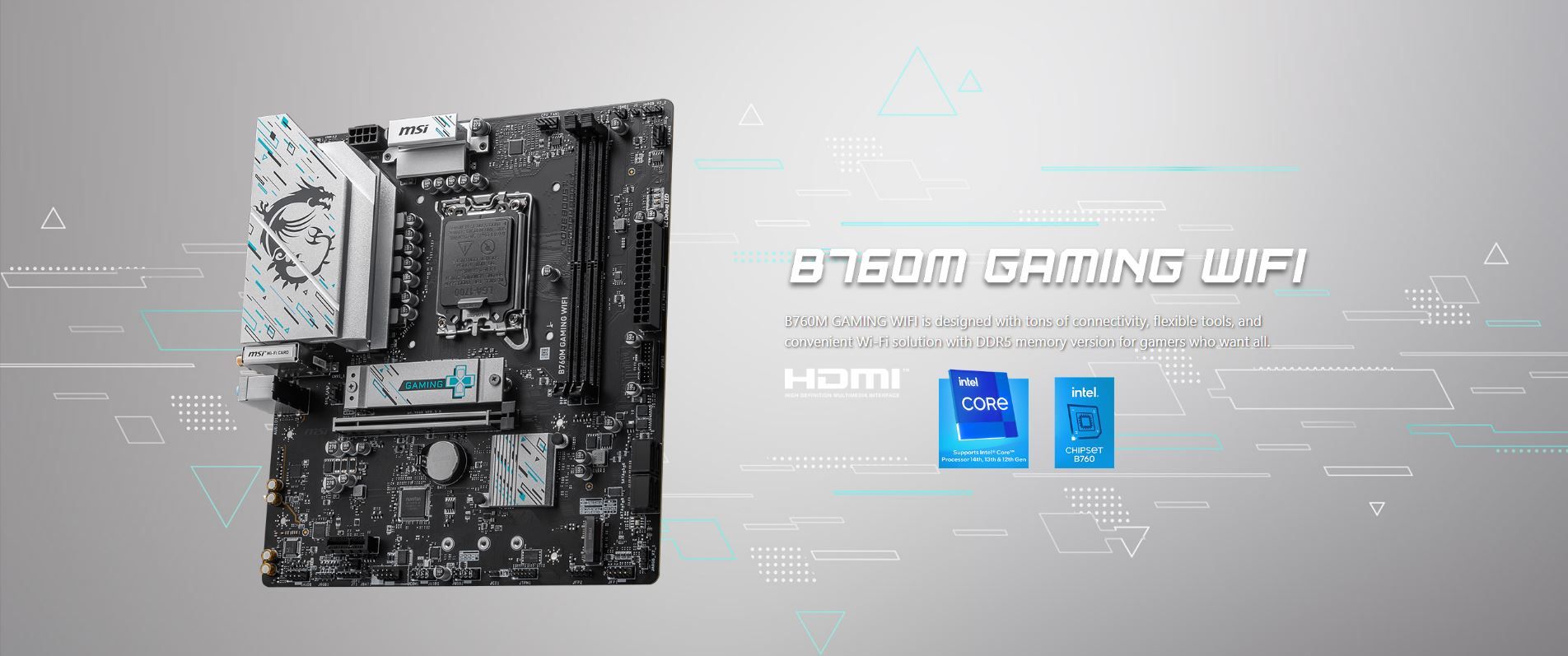

MAINBOARD MSI B760M GAMING WIFI ( WiFi 6E / Bluetooth 5.3 / LGA1700 / m-ATX / 2xDDR5 )

CHIPSET

INTEL B760

CPU SUPPORT

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
LGA1700

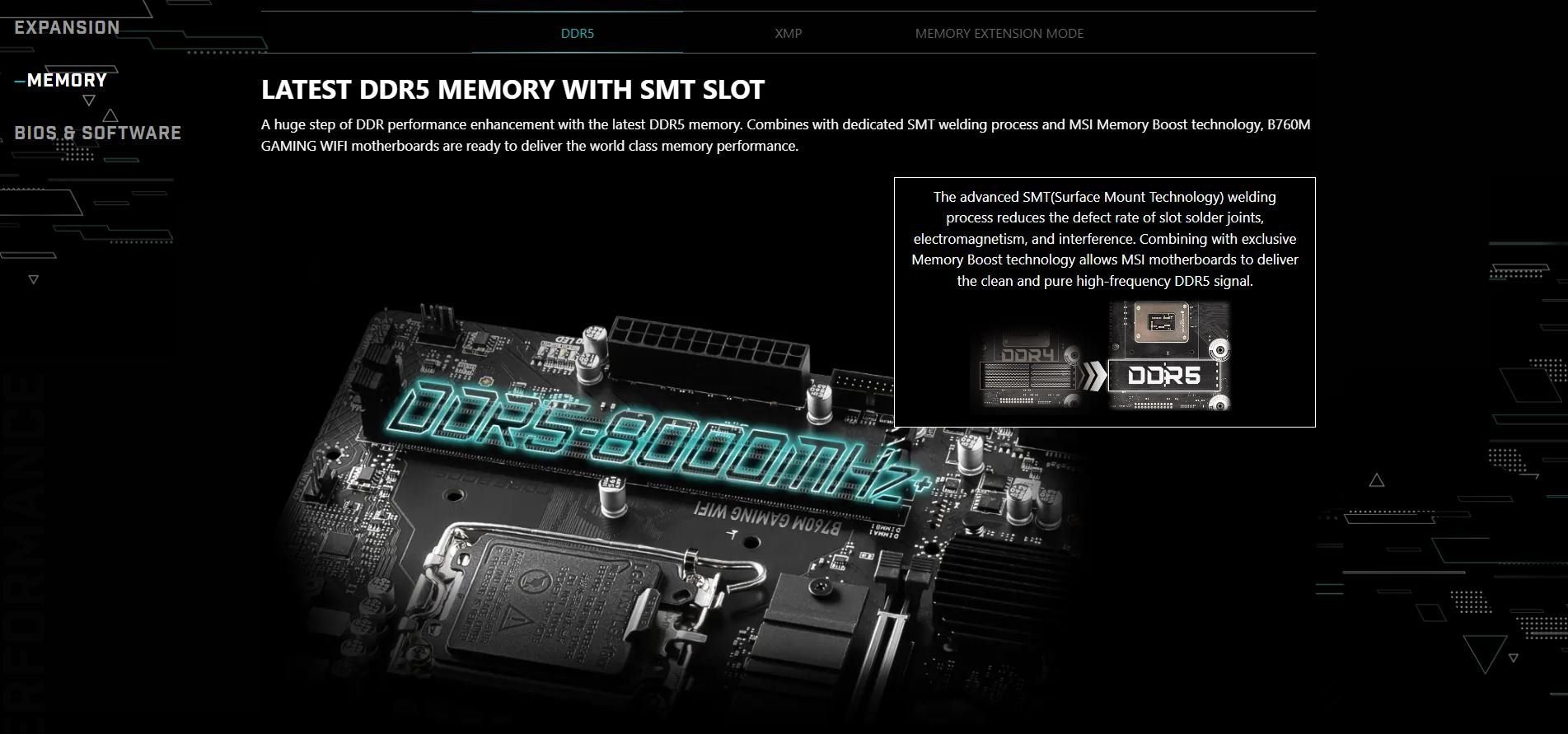

MEMORY

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MHz
• 1DPC 2R Max speed up to 6400+ MHz

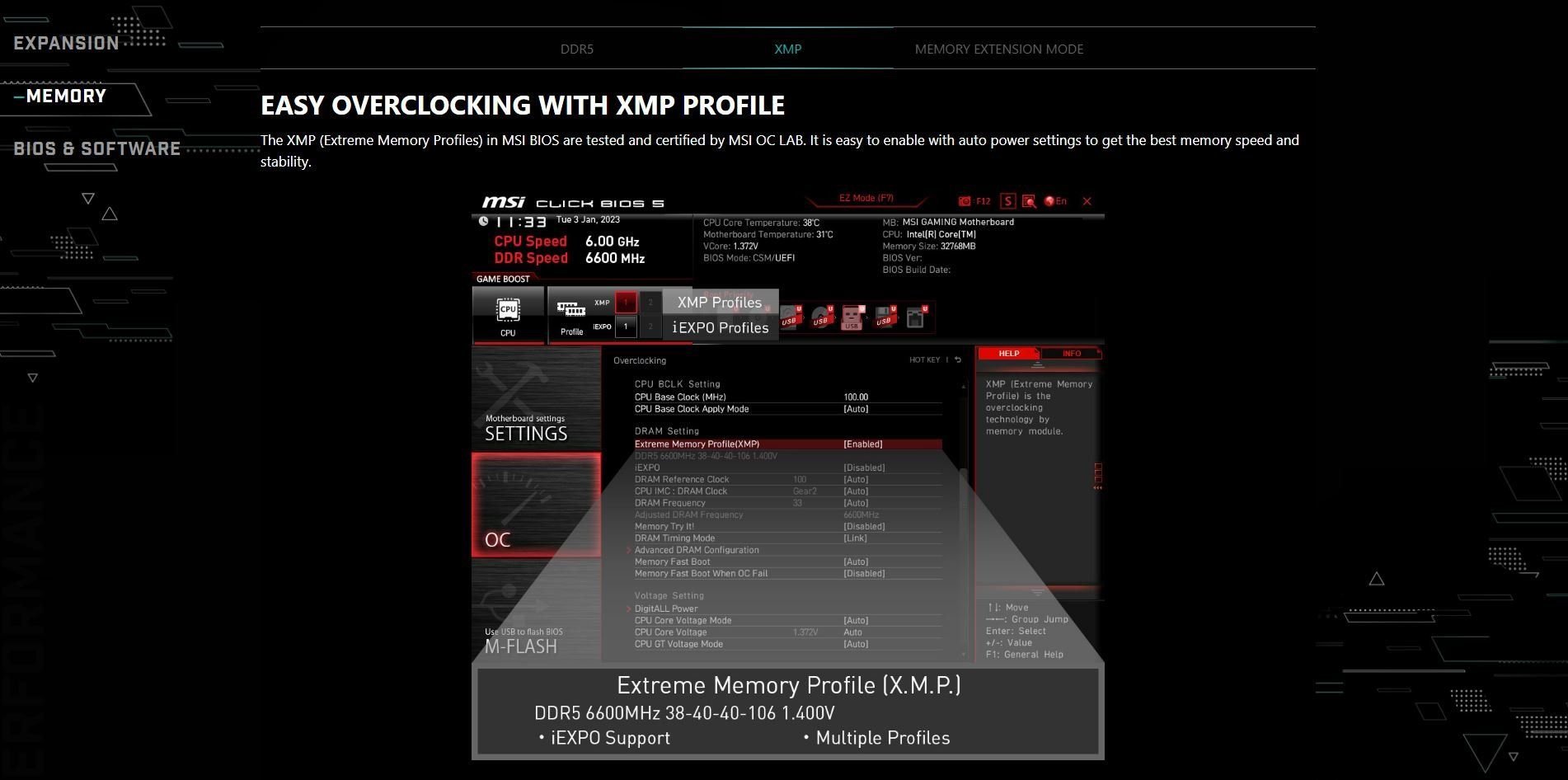

Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory

ONBOARD GRAPHICS

1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

SLOT

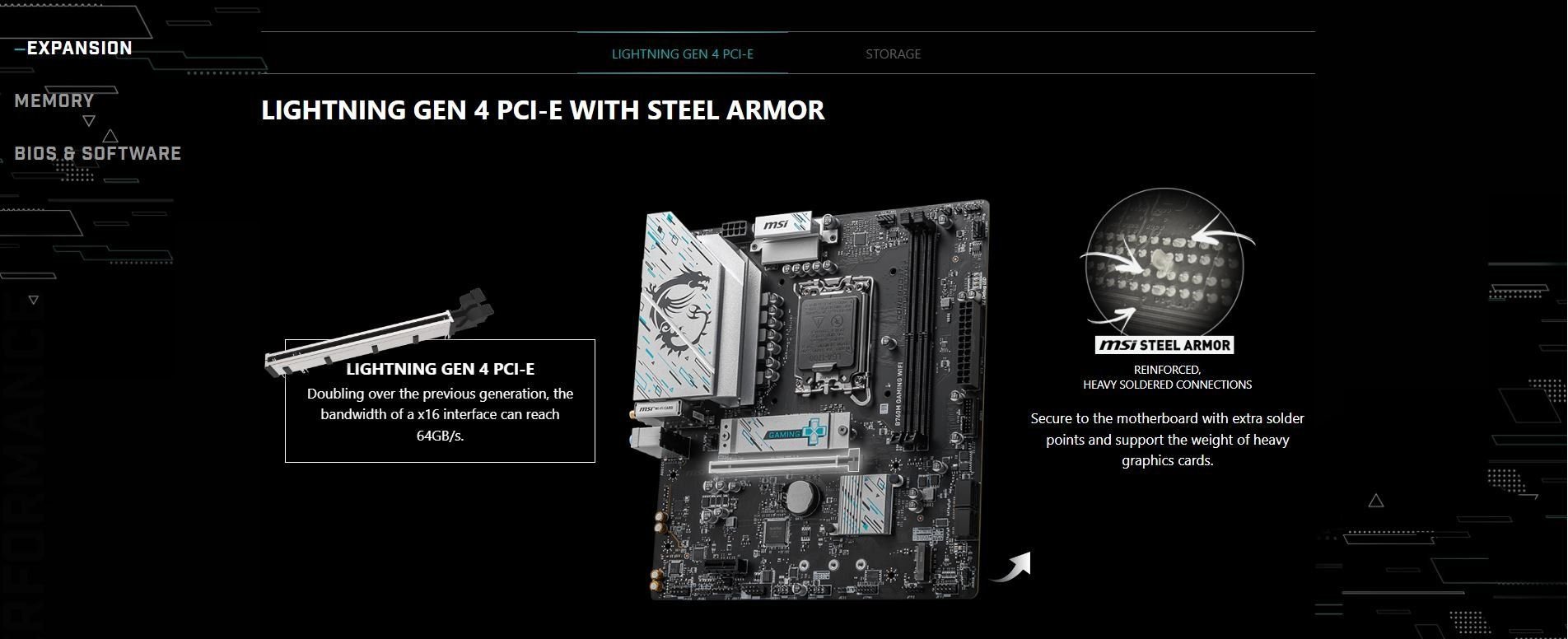

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)

AUDIO

Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output

STORAGE

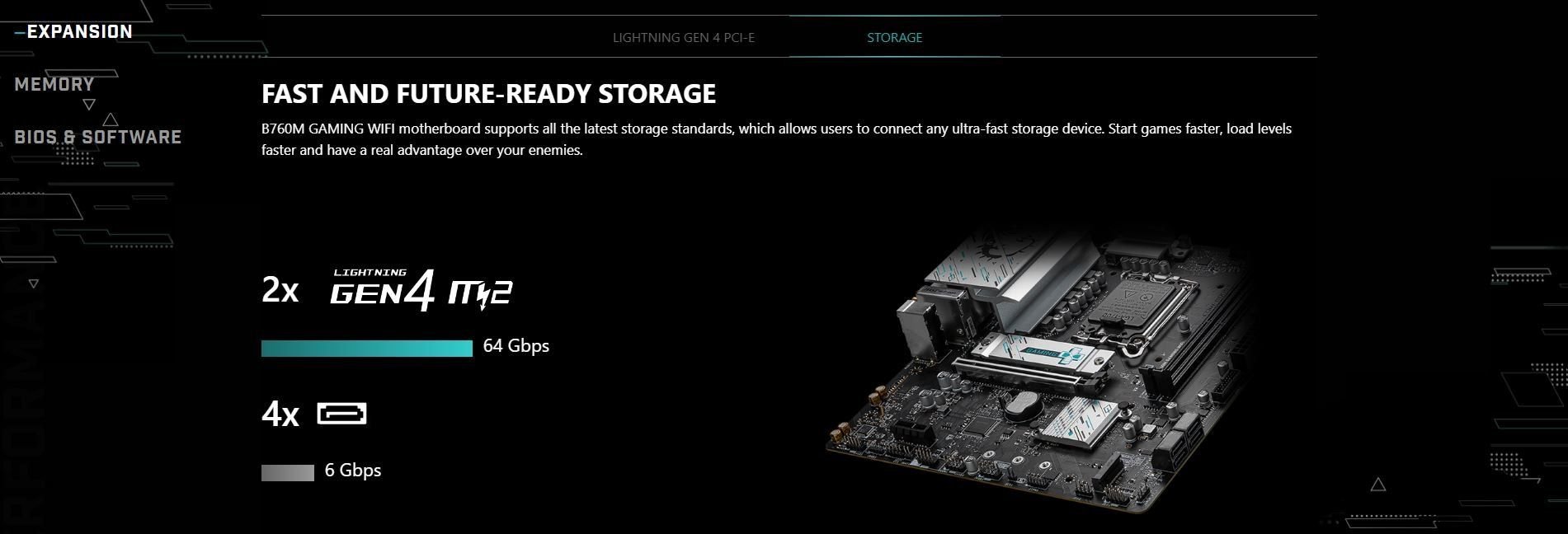

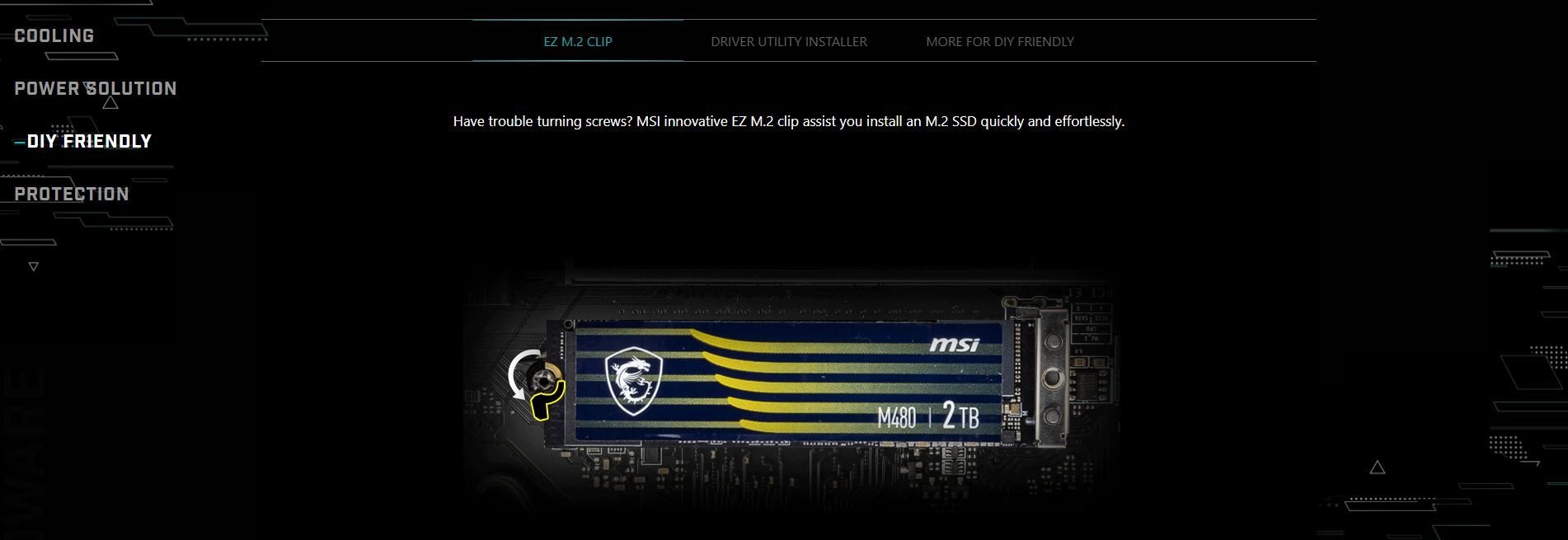

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

RAID

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)

LAN

Realtek^® RTL8125B 2.5Gbps LAN

INTERNAL I/O

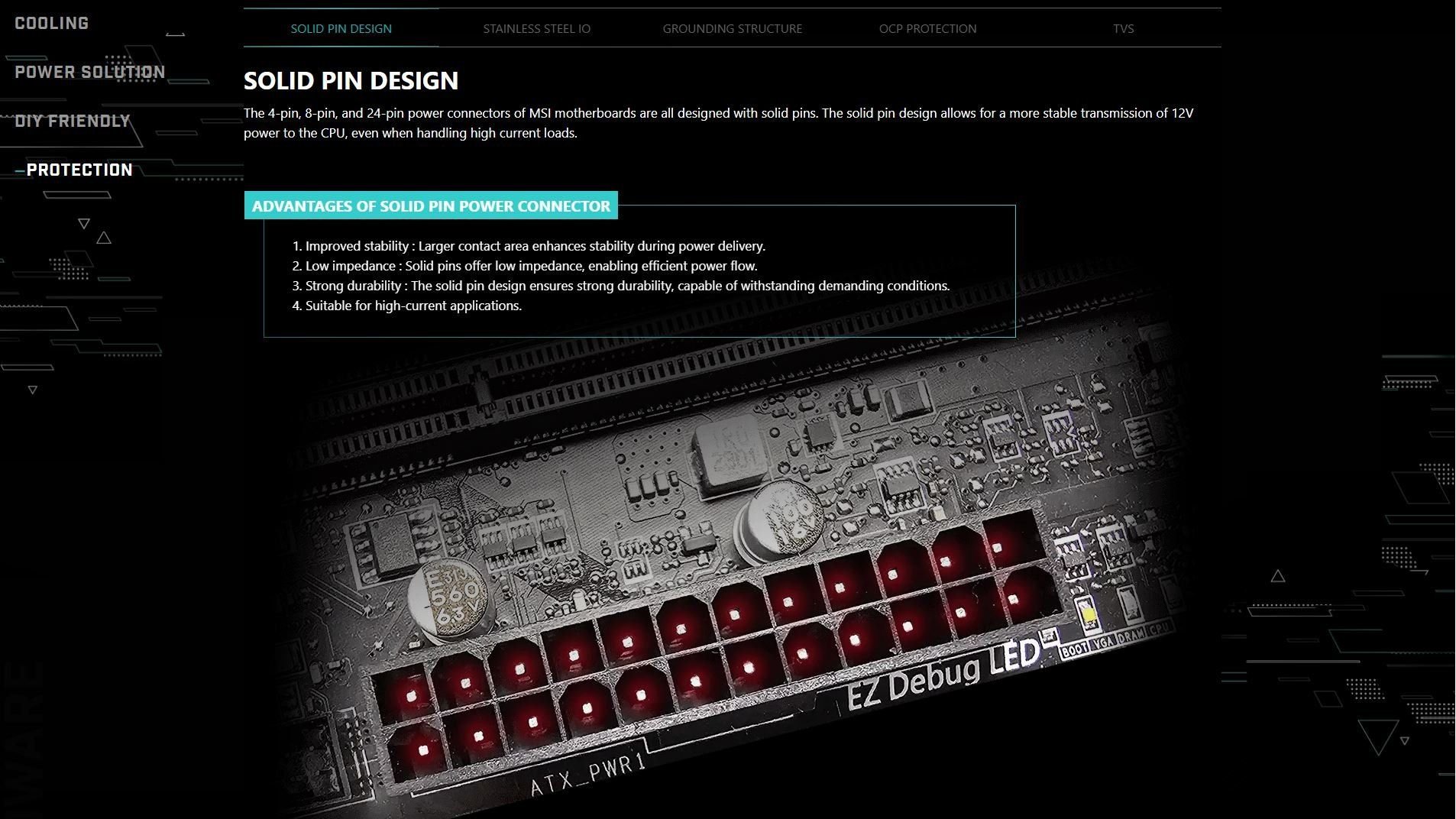

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)

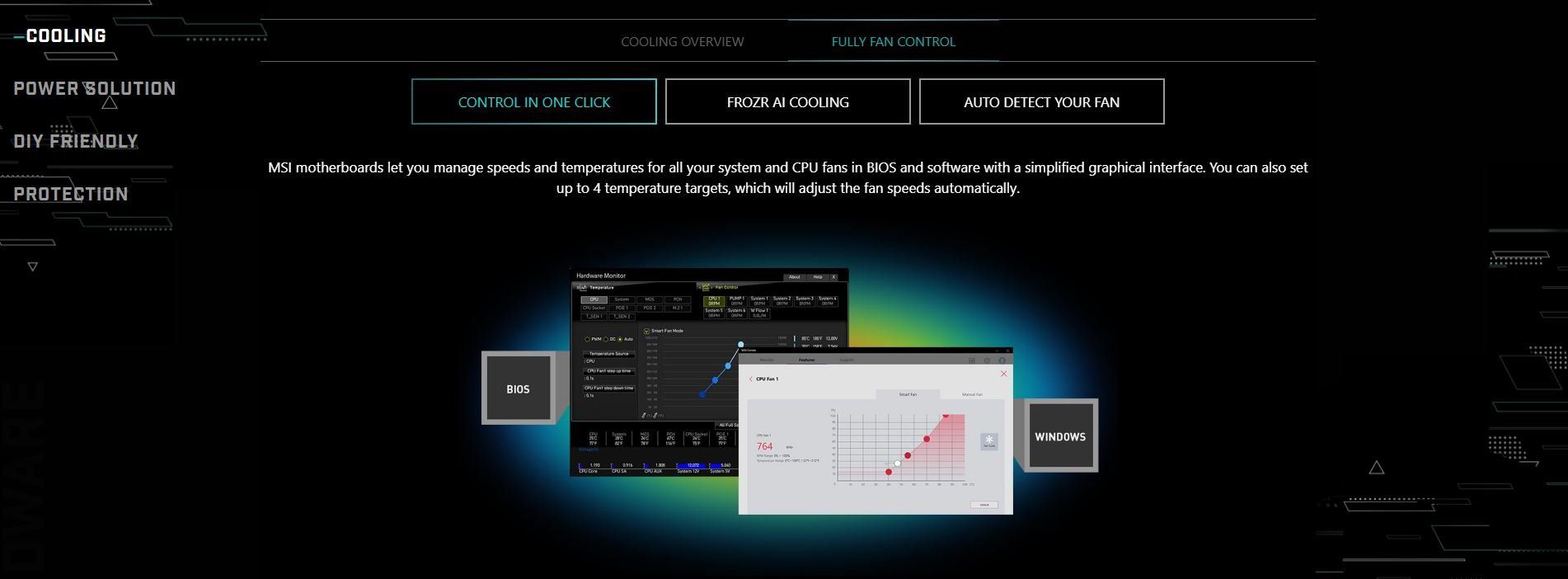

1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports

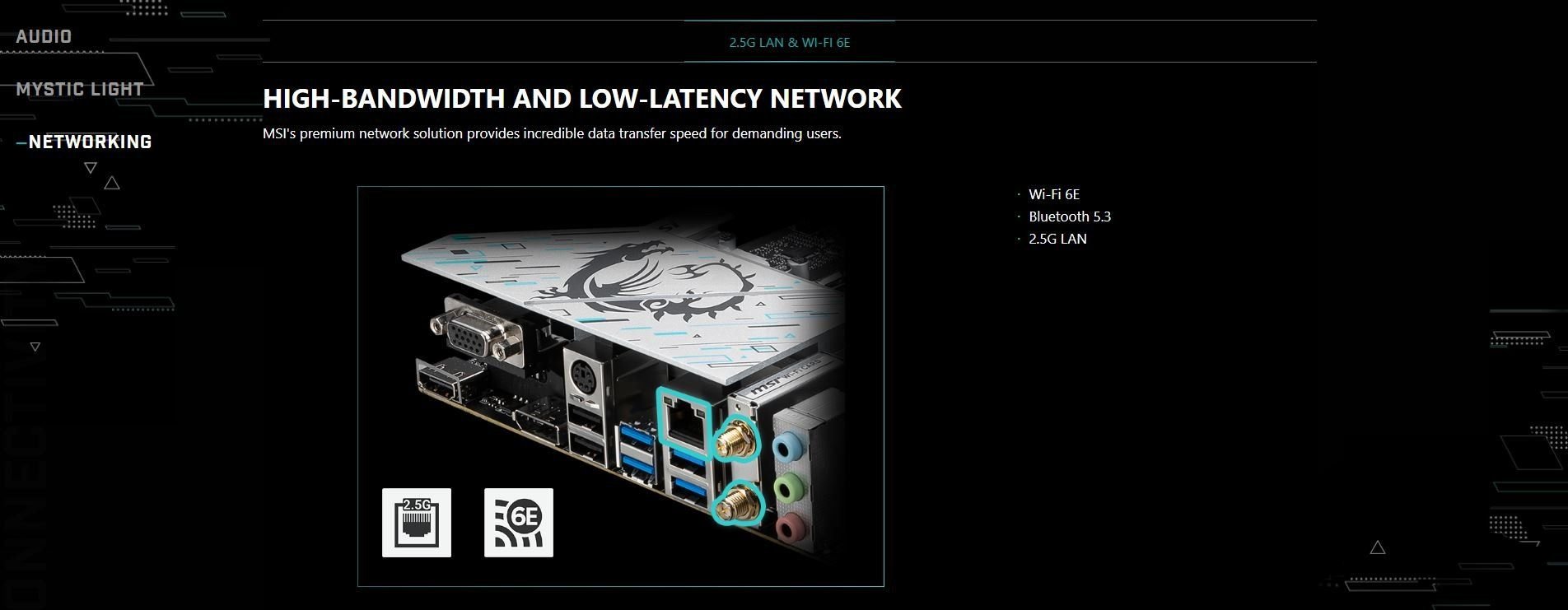

WIRELESS LAN & BLUETOOTH

Intel^® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth^® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE

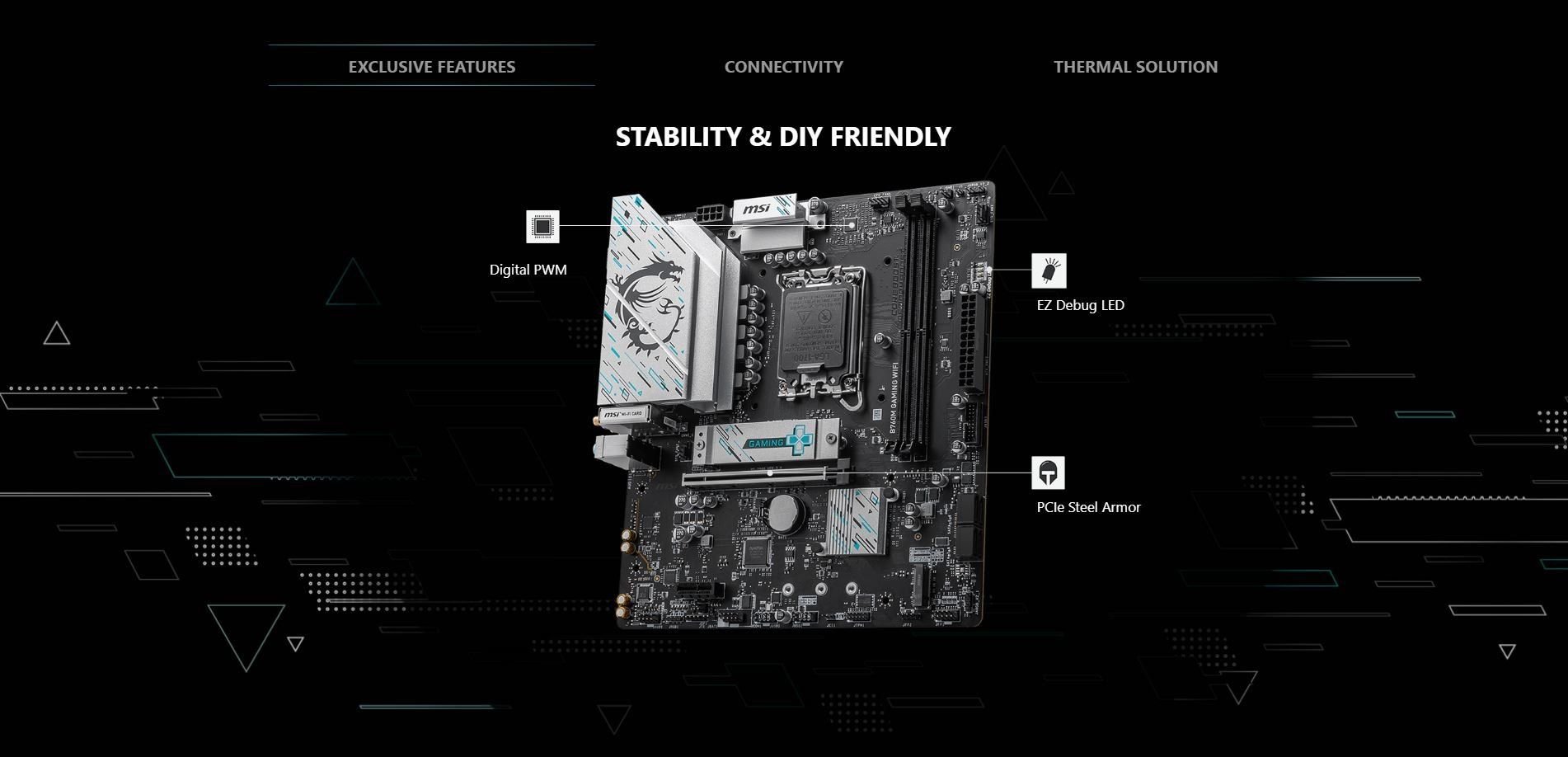

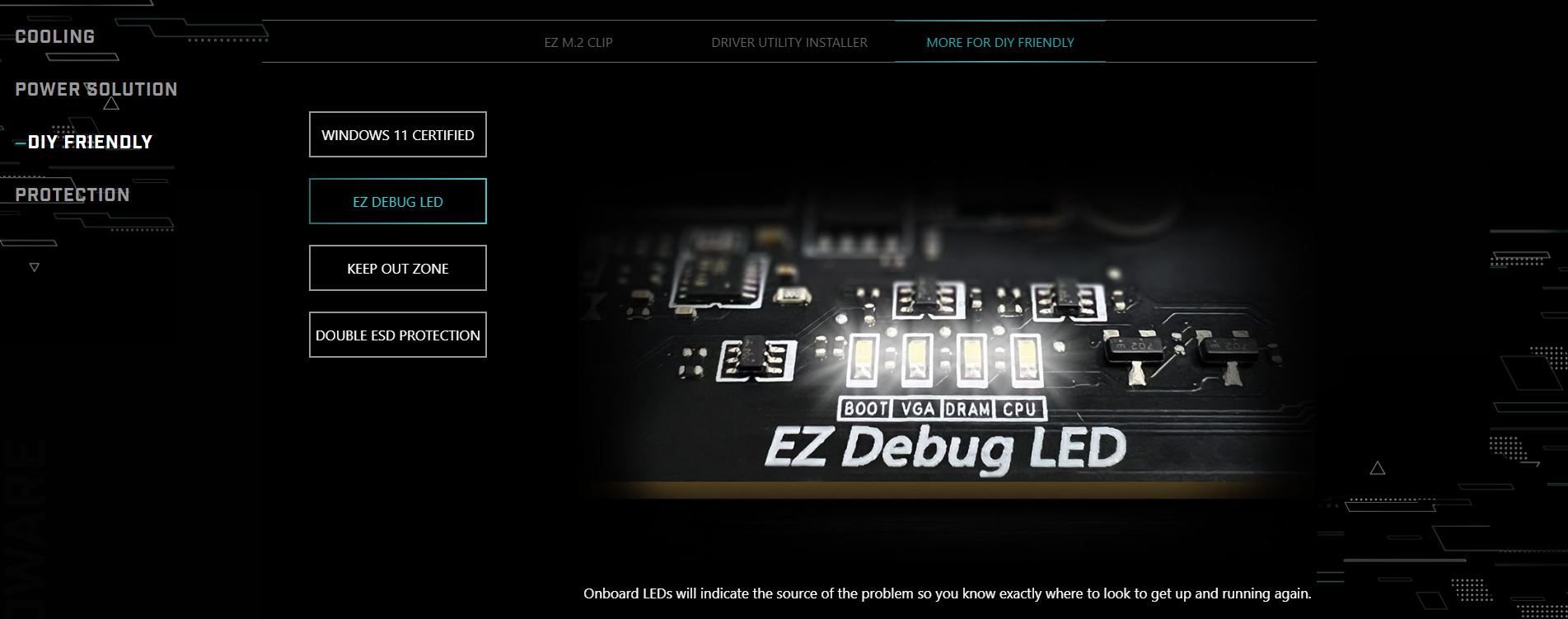

4x EZ Debug LED

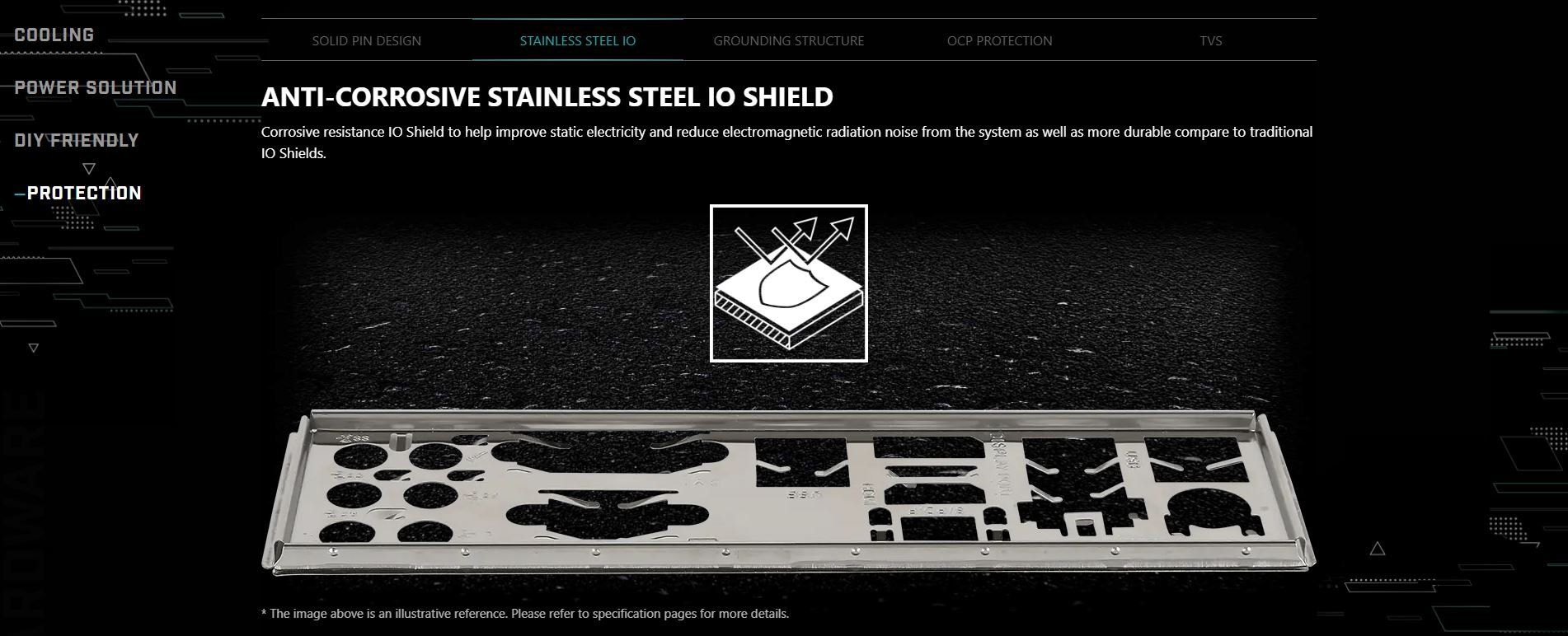

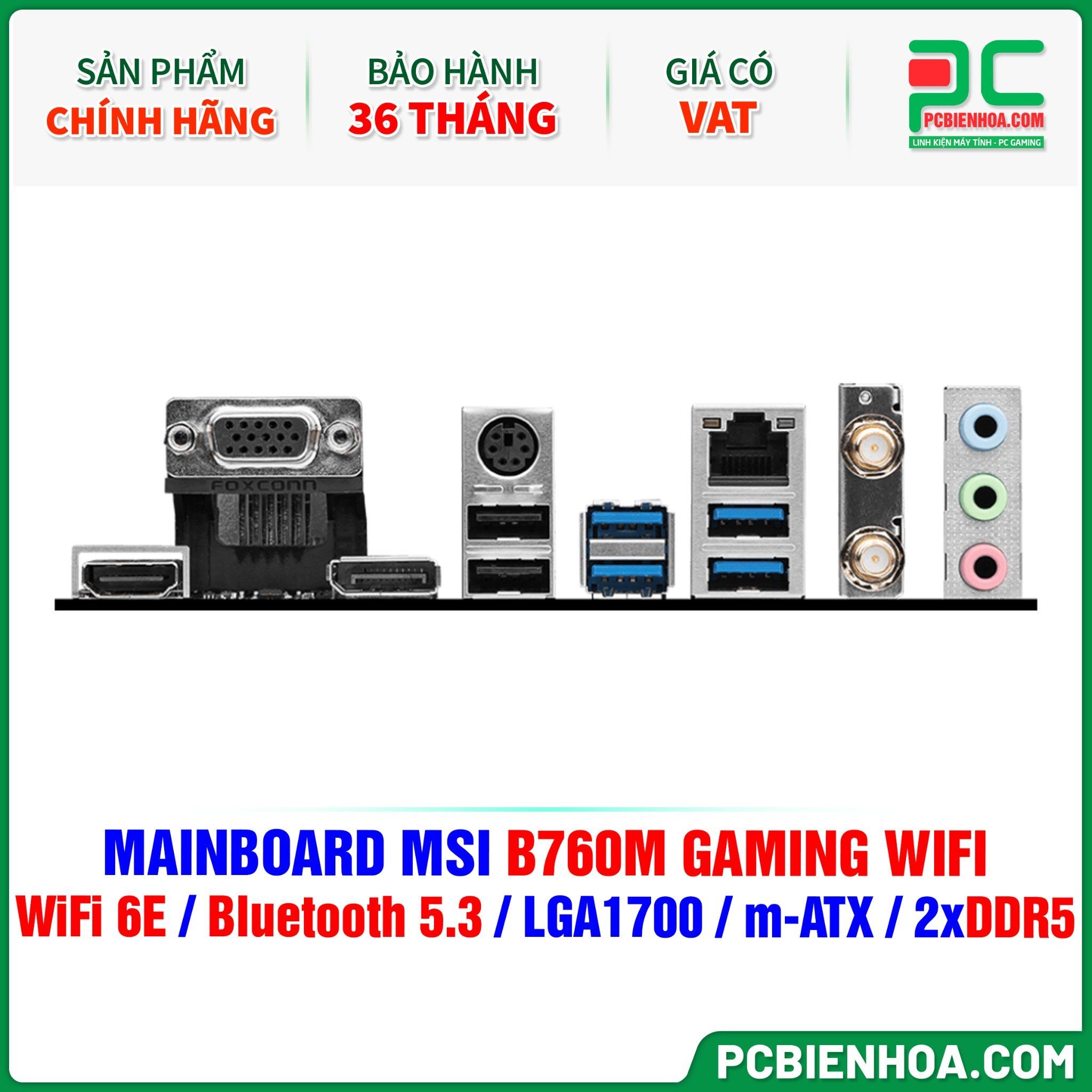

BACK PANEL PORTS

VGA
Keyboard / Mouse
2.5G LAN
Wi-Fi / Bluetooth

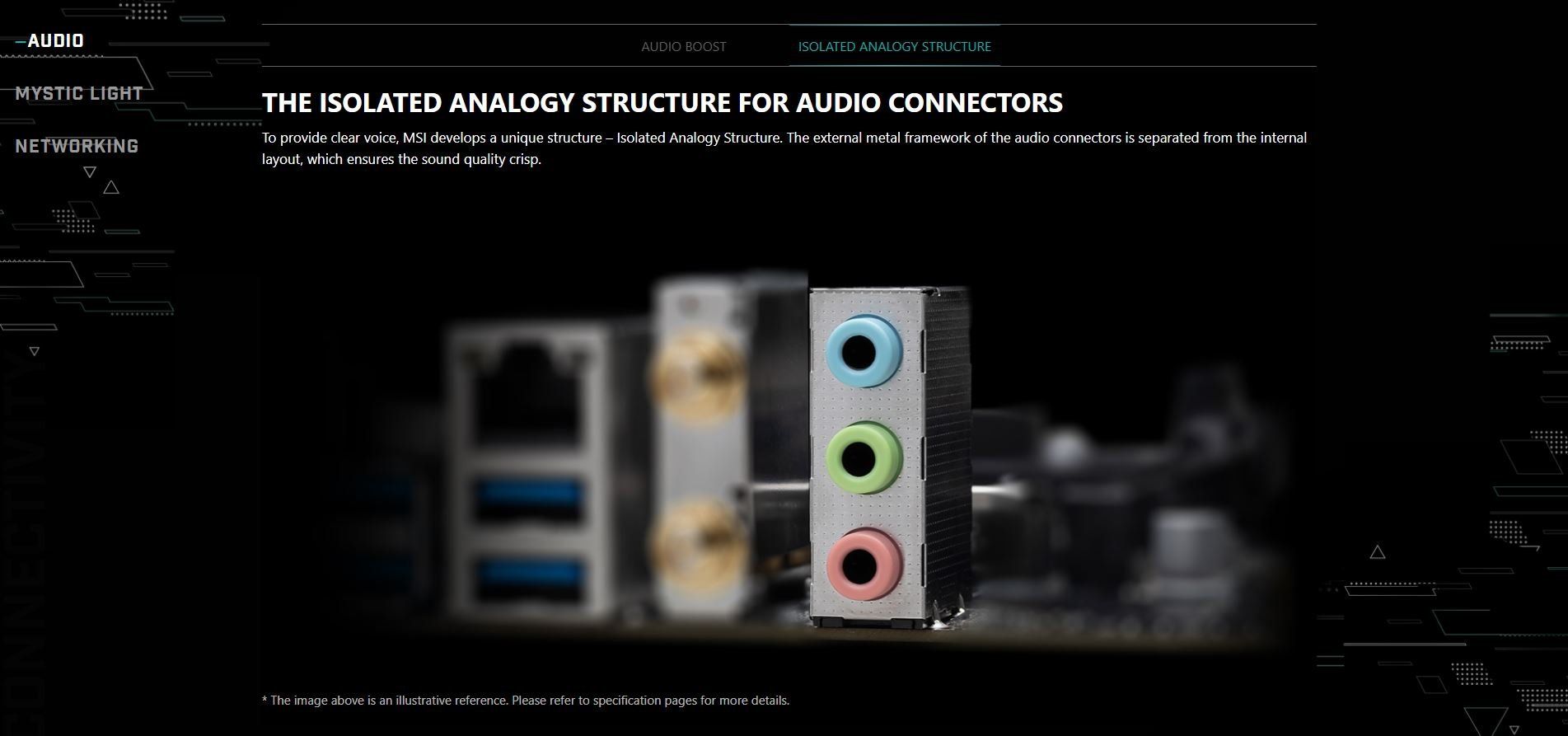

Audio Connectors
HDMI™
DisplayPort
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)

OPERATING SYSTEM

Support for Windows^® 11 64-bit, Windows^® 10 64-bit

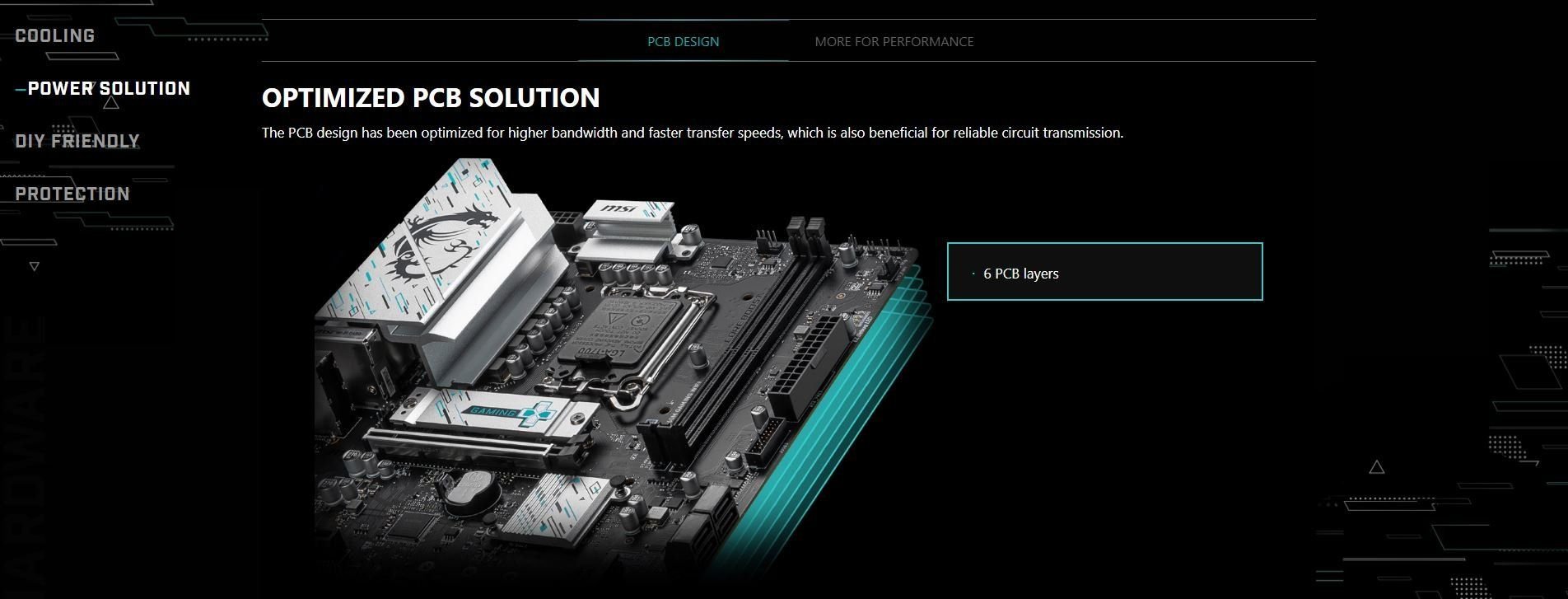

PCB DIMENSION

mATX
220mmx243.84mm

BOX CONTENT
