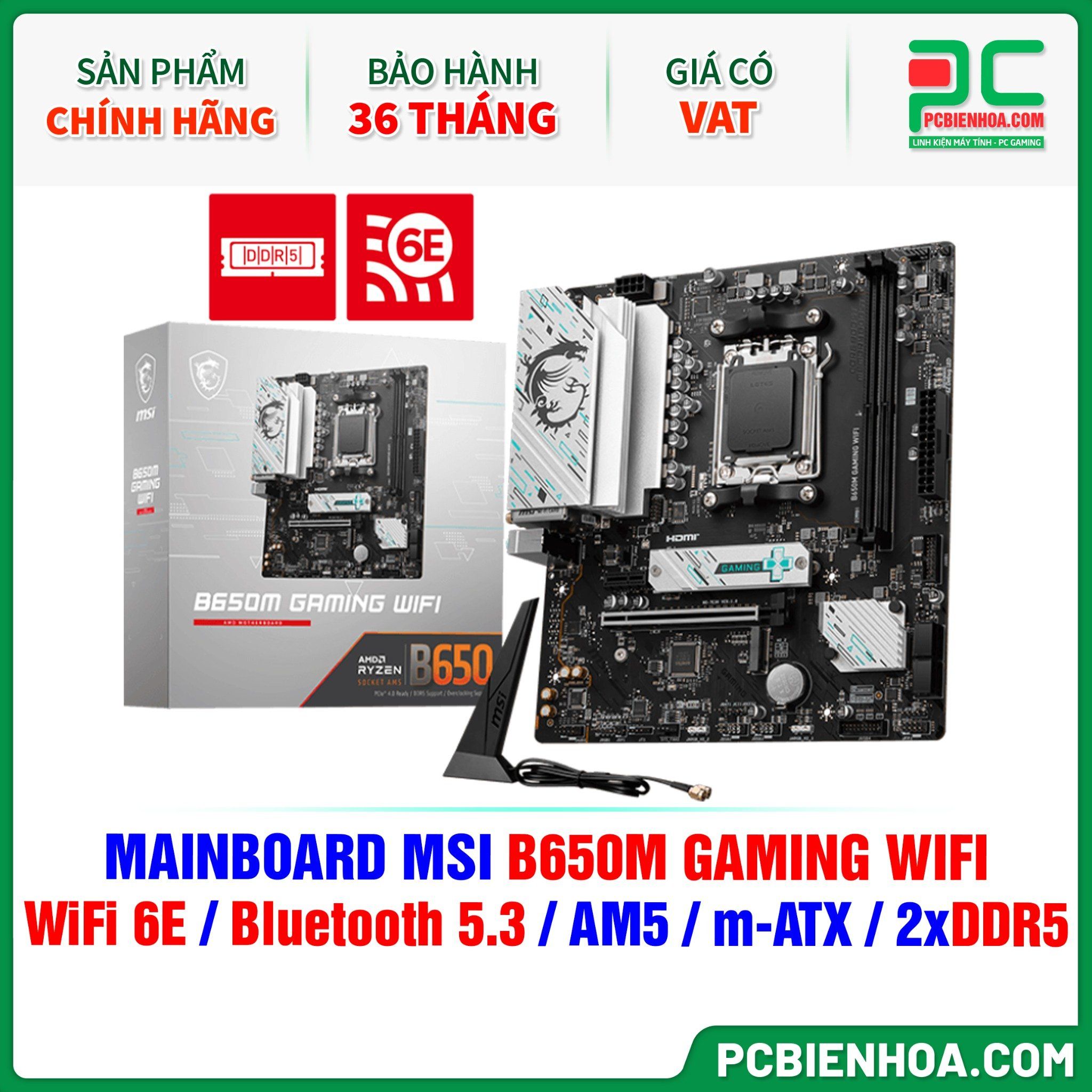

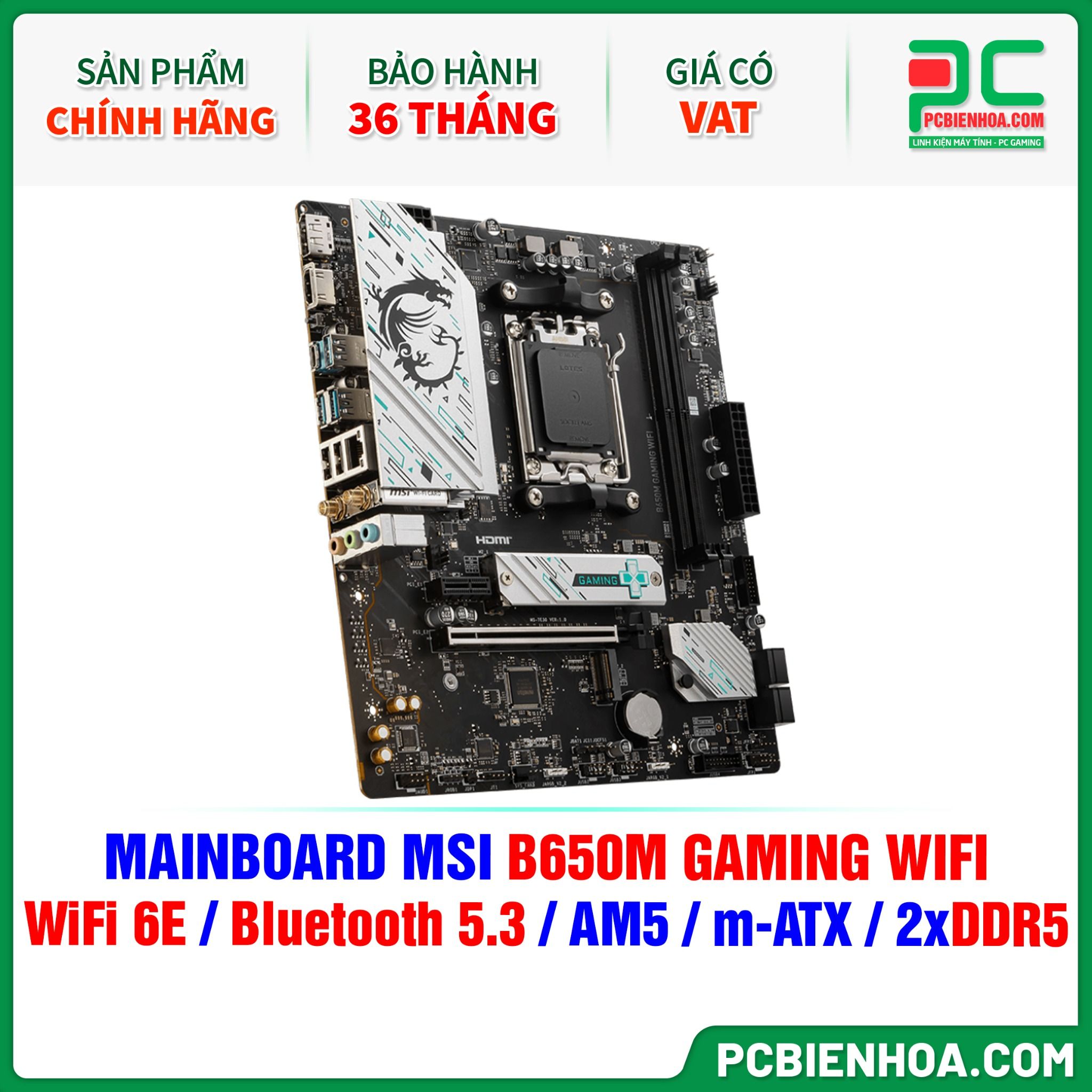

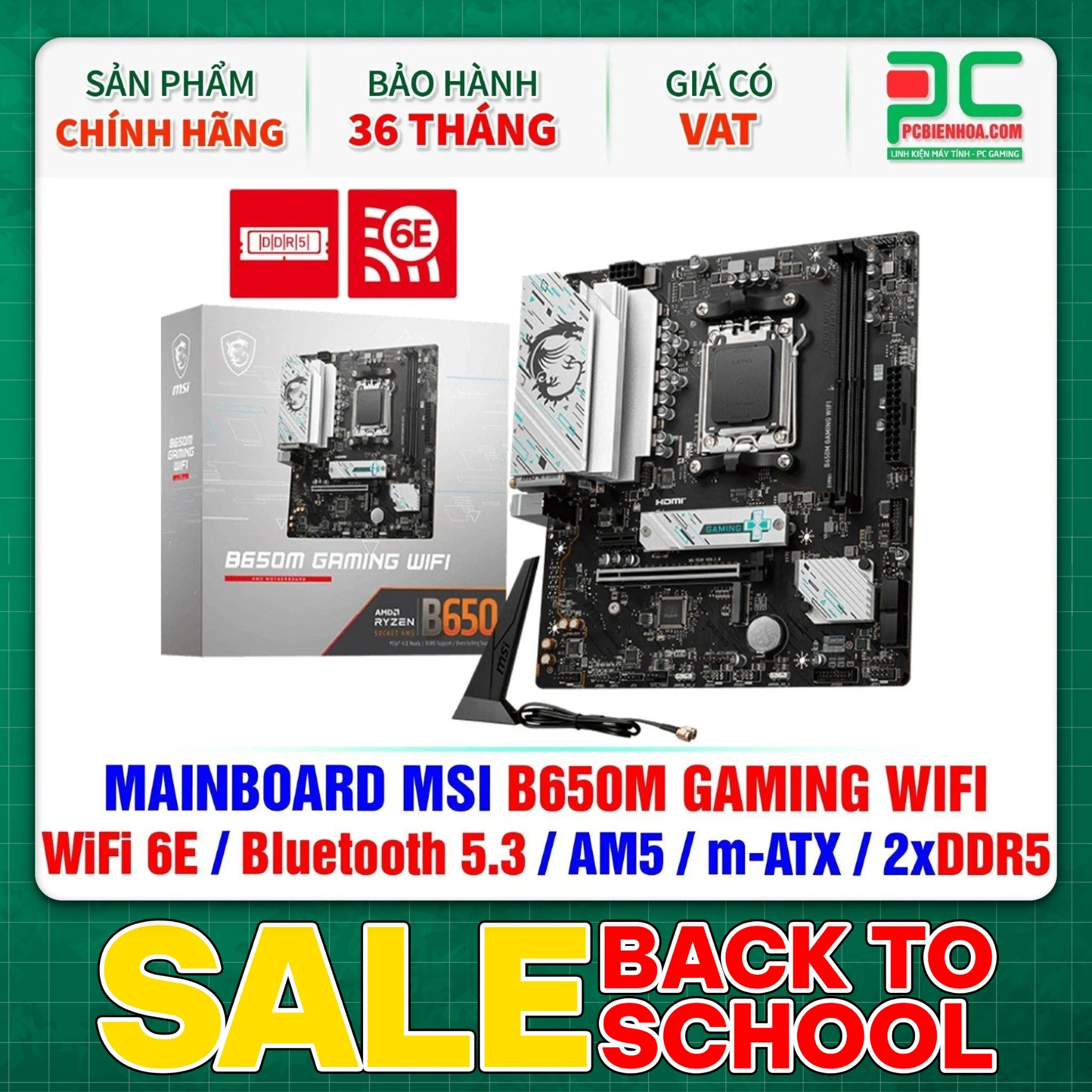

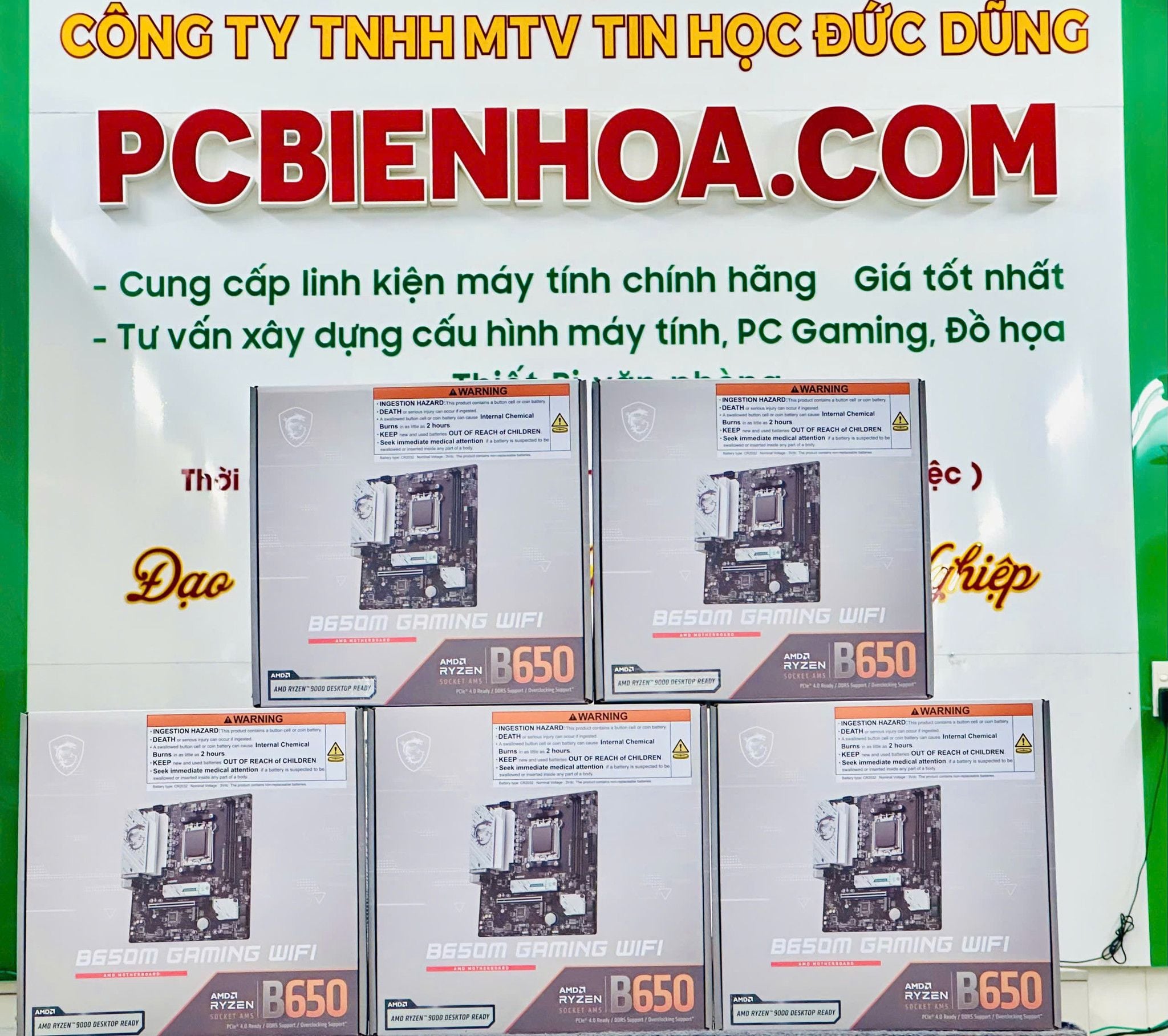

DDR5 - MAINBOARD MSI B650M GAMING WIFI ( WiFi 6E / Bluetooth 5.3 / AM5 / m-ATX / 2xDDR5 )

-23%

DDR5 - MAINBOARD MSI B650M GAMING WIFI ( WiFi 6E / Bluetooth 5.3 / AM5 / m-ATX / 2xDDR5 )

Thương hiệu: MSI

Loại: Mainboard

Giá Niêm Yết: ~~4,390,000₫~~

Giá KM tại PCBIENHOA.COM: 3,390,000₫

Thông Tin

- Bảo hành 36 tháng 1 đổi 1

- Hàng chính hãng, mới 100%

- Freeship COD toàn quốc

- Miễn phí giao nhanh trong bán kính 30km

- Từ km 31 tính phí 5k/km (40km tính phí 10km =50k)

- Giao nhanh liên hệ anh Dũng số zalo: 0984654348

- Có sẵn hàng

GIAO HÀNG

Miễn phí ship COD toàn quốc
Giao ngay trong bán kính 40km miễn phí
Sản phẩm

Cam kết hàng chính hãng
Bảo hành nhanh chóng
ĐỔI TRẢ

Hàng lỗi kỹ thuật đổi mới trong vòng 30 ngày
Trả góp

Trả góp qua Home Credit, HDSAISON và Thẻ Tín Dụng
Mua ngay trả sau qua Home PayLater
Thời gian làm việc

Sáng từ 8h - 7h Tối, CN 9h-7h Tối ( Lễ tết nghỉ )
Chấp nhận thanh toán

Bán hàng - Tư vấn - CSKH

0388954721 - Mrs. Nhàn
0984654348 - Mr. Dũng

Kỹ thuật - Bảo hành

0359694006 - Bảo Hành
0942499850 - Kỹ Thuật

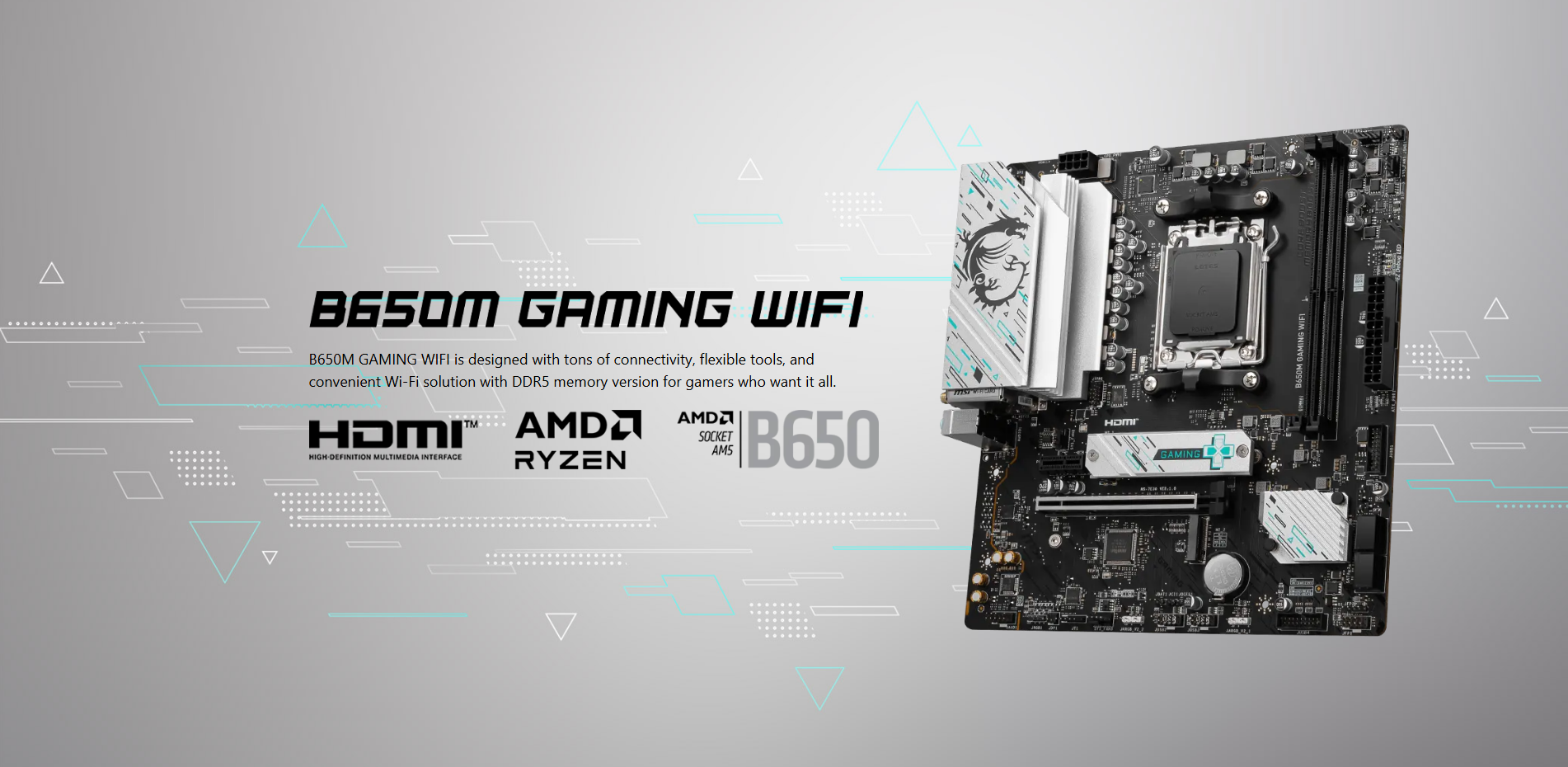

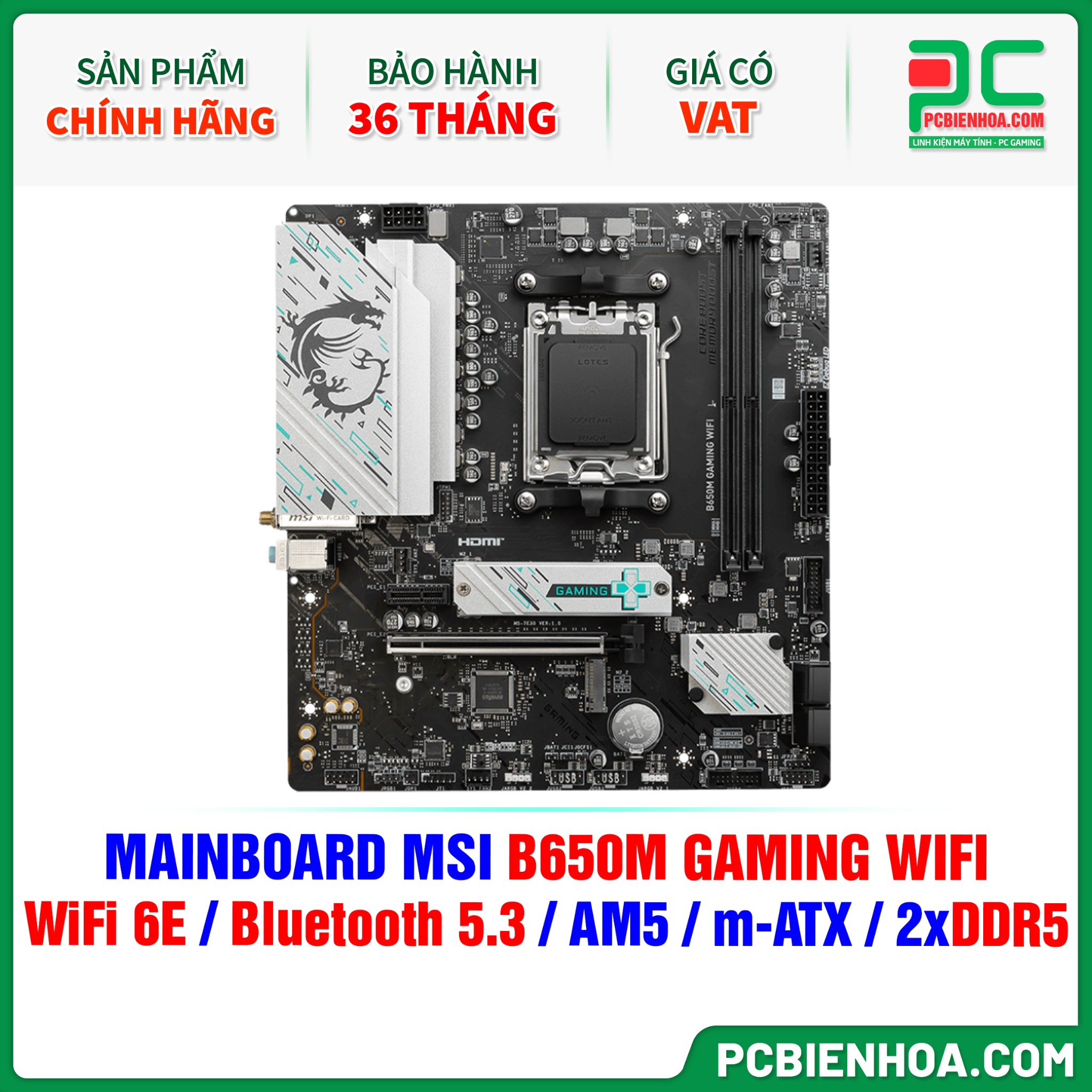

MAINBOARD MSI B650M GAMING WIFI ( WiFi 6E / Bluetooth 5.3 / AM5 / m-ATX / 2xDDR5 )

CHIPSET

AMD B650

CPU SUPPORT

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5

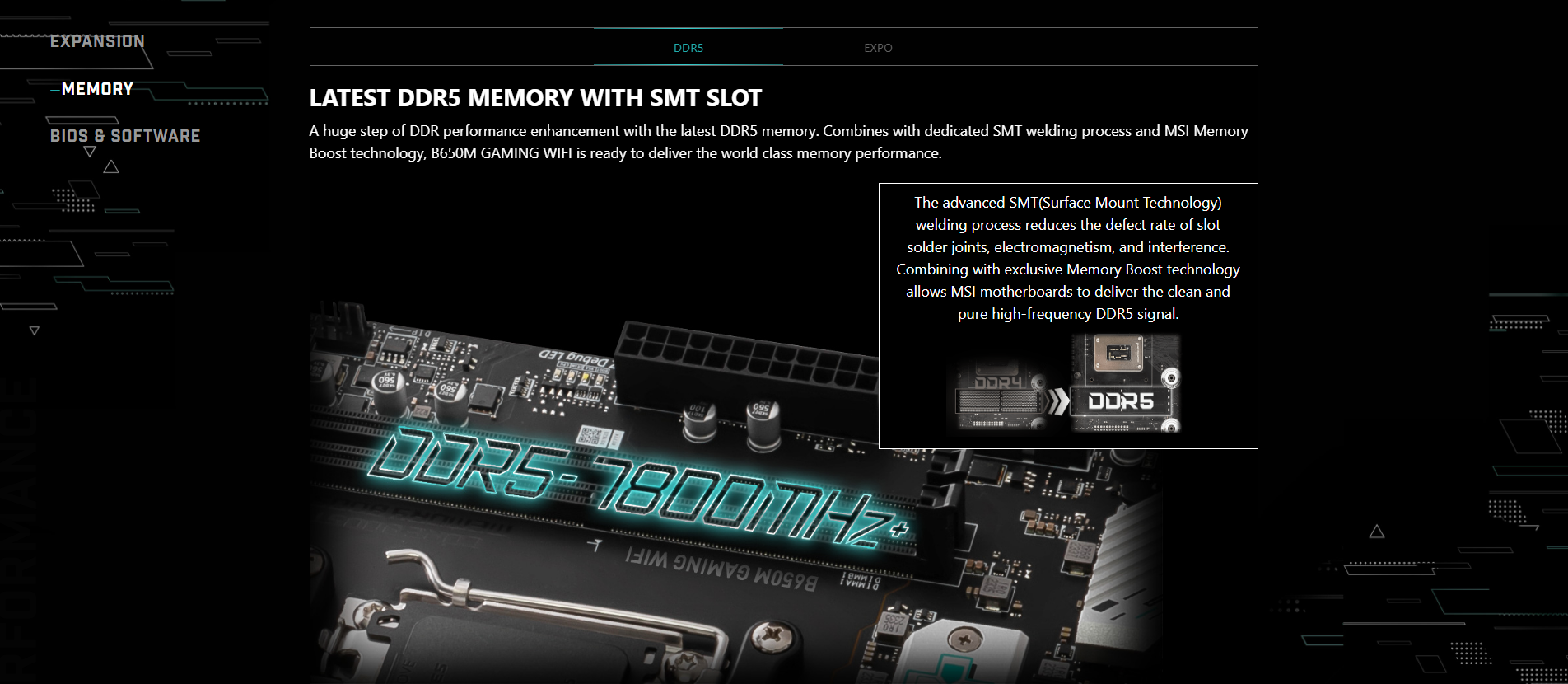

MEMORY

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™

ONBOARD GRAPHICS

1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

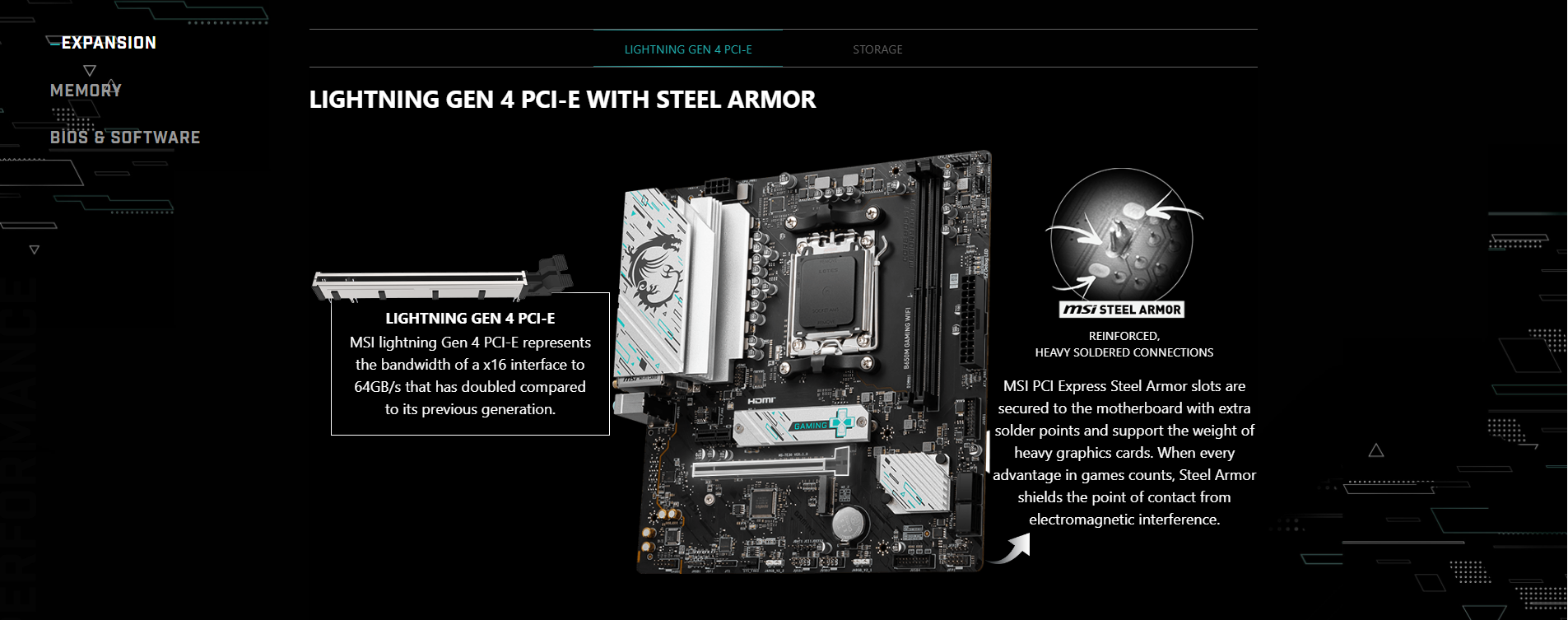

SLOT

1x PCI-E x16 slot
Supports x16/x1
• Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)

Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio

STORAGE

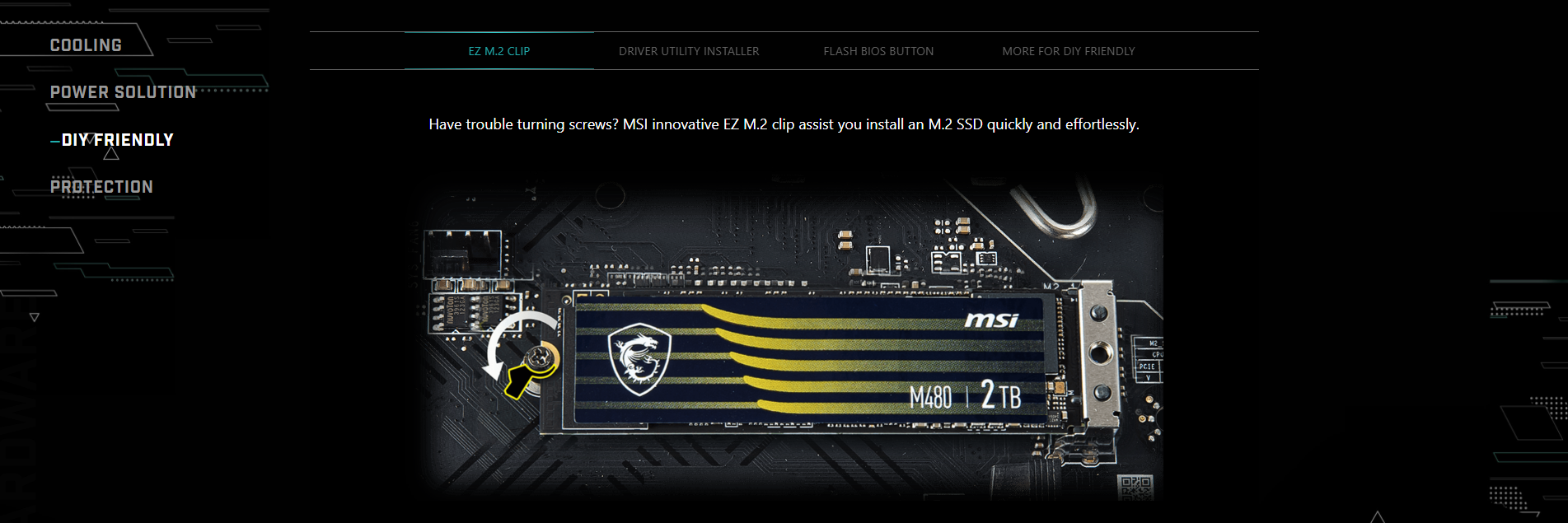

2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
•The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

RAID

Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 5Gbps Type A (Rear)
1x USB 5Gbps Type C (Rear)
4x USB 5Gbps Type A (Front)

LAN

Realtek^® RTL8125BG 2.5Gbps LAN

Internal IO

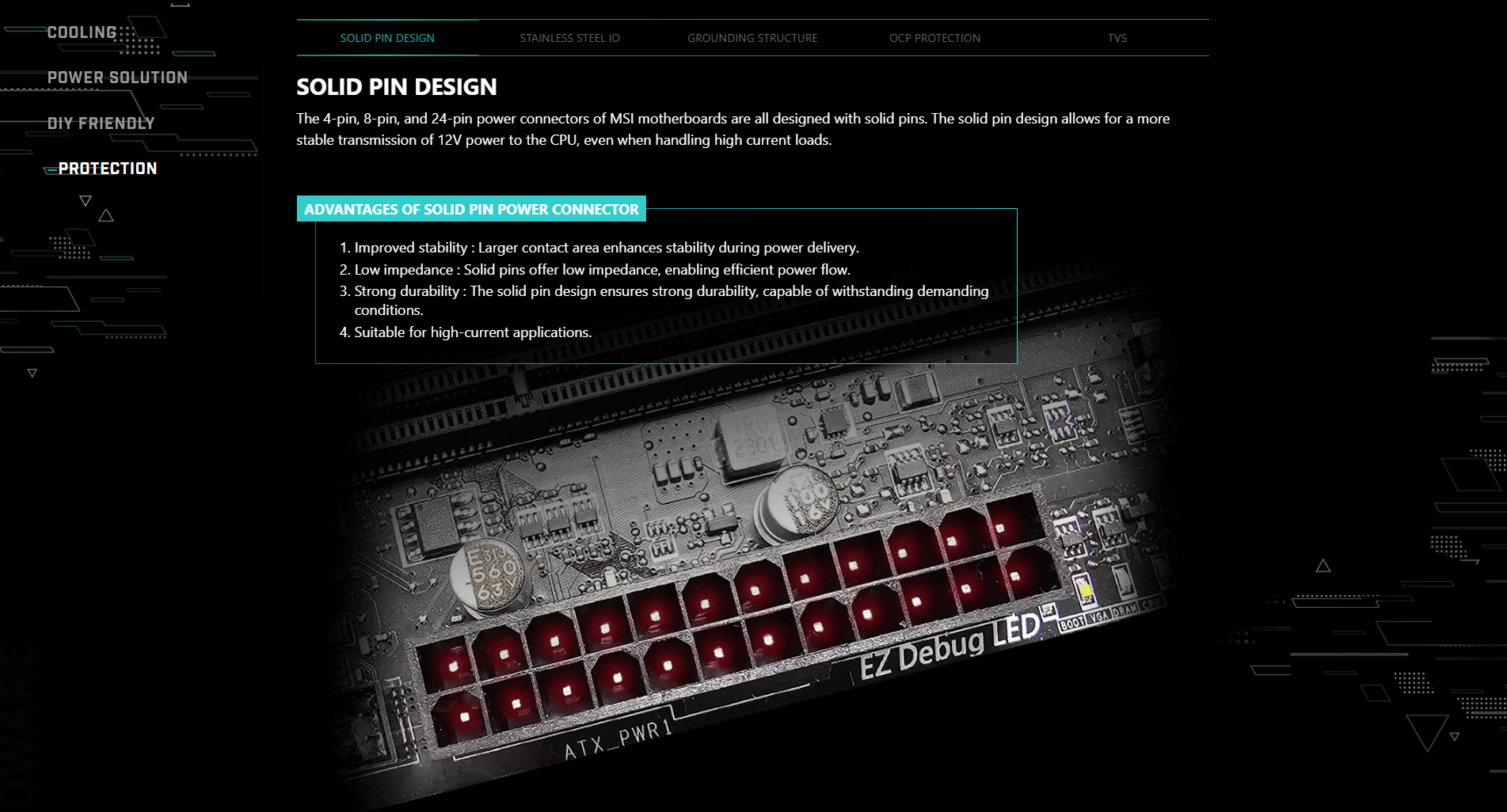

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)

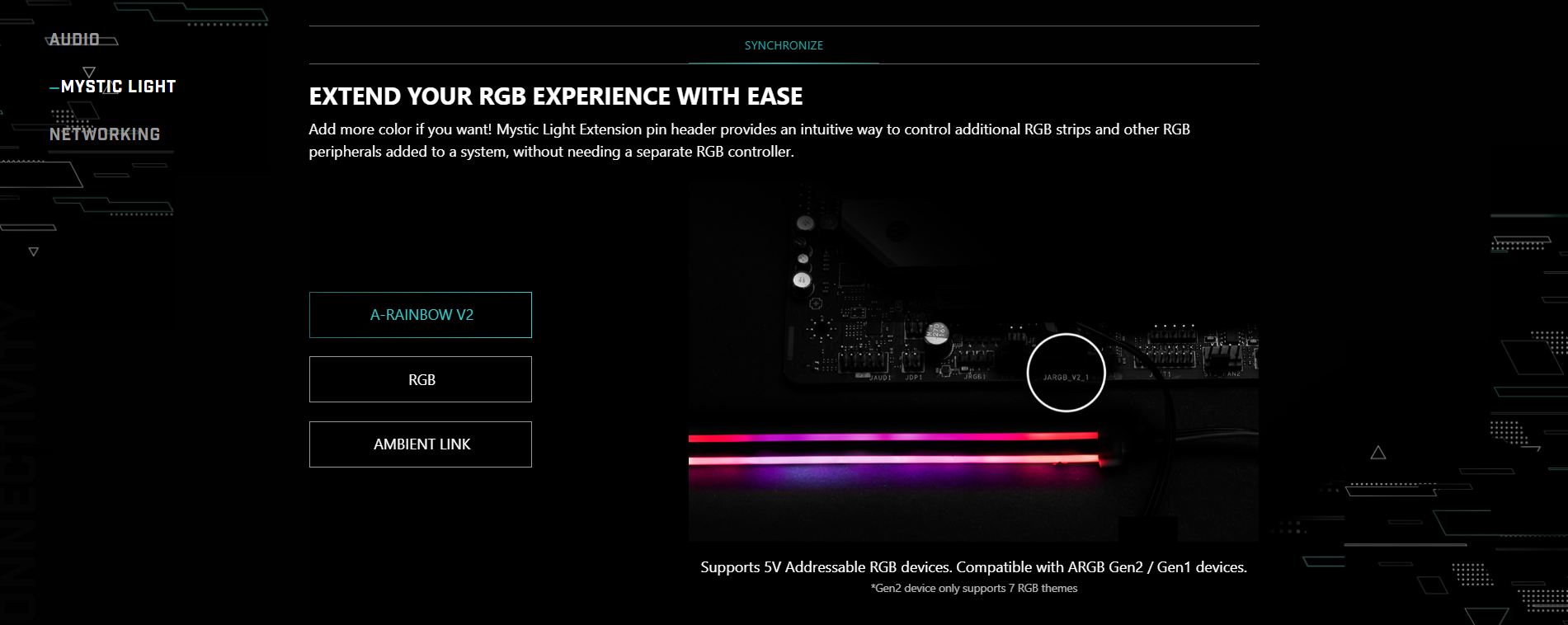

2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports

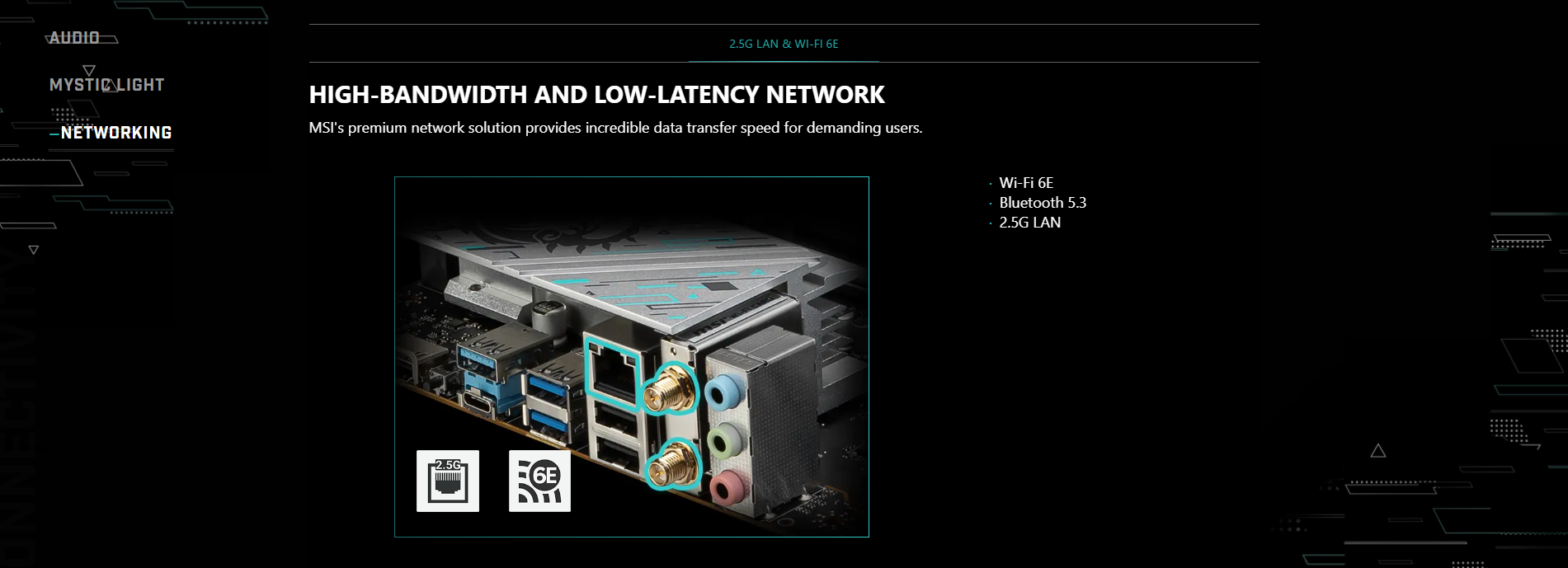

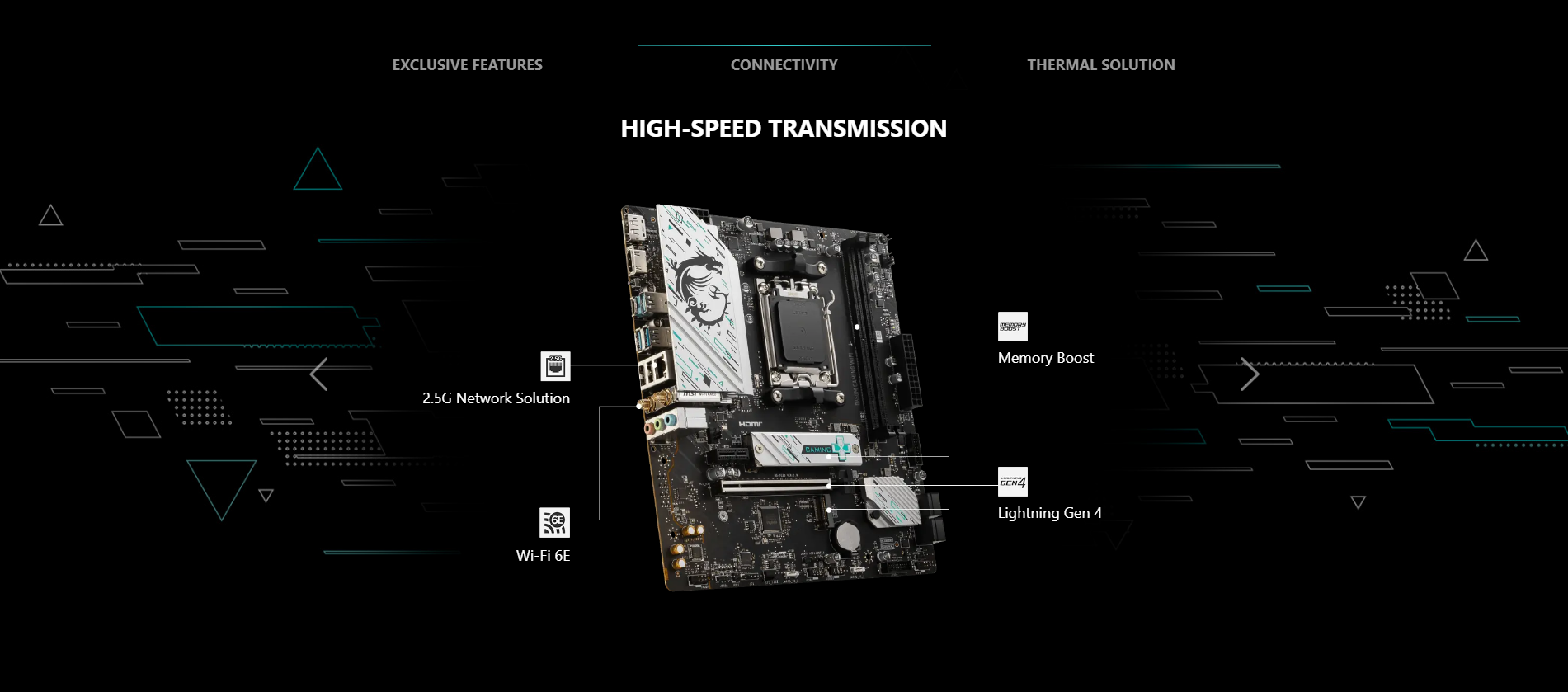

WIRELESS LAN & BLUETOOTH

Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth^® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

LED FEATURE

4x EZ Debug LED

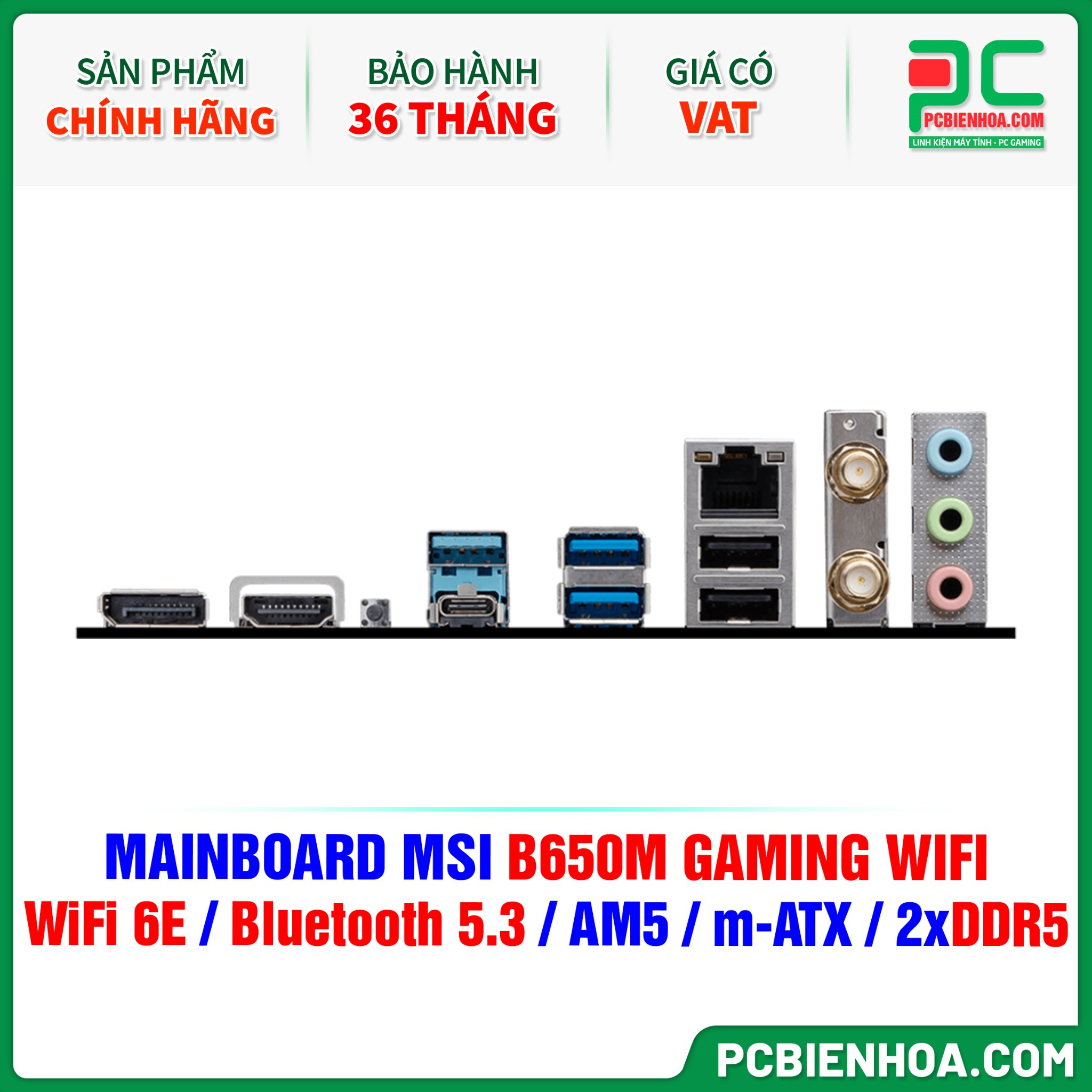

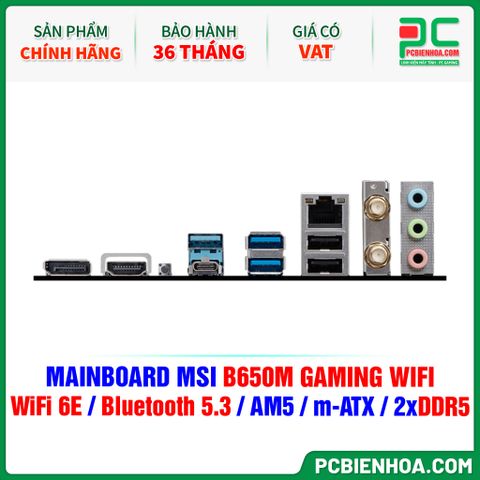

BACK PANEL PORTS

DisplayPort
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
USB 3.2 Gen 1 5Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0

OPERATING SYSTEM

Support for Windows^® 11 64-bit, Windows^® 10 64-bit

BOX CONTENT

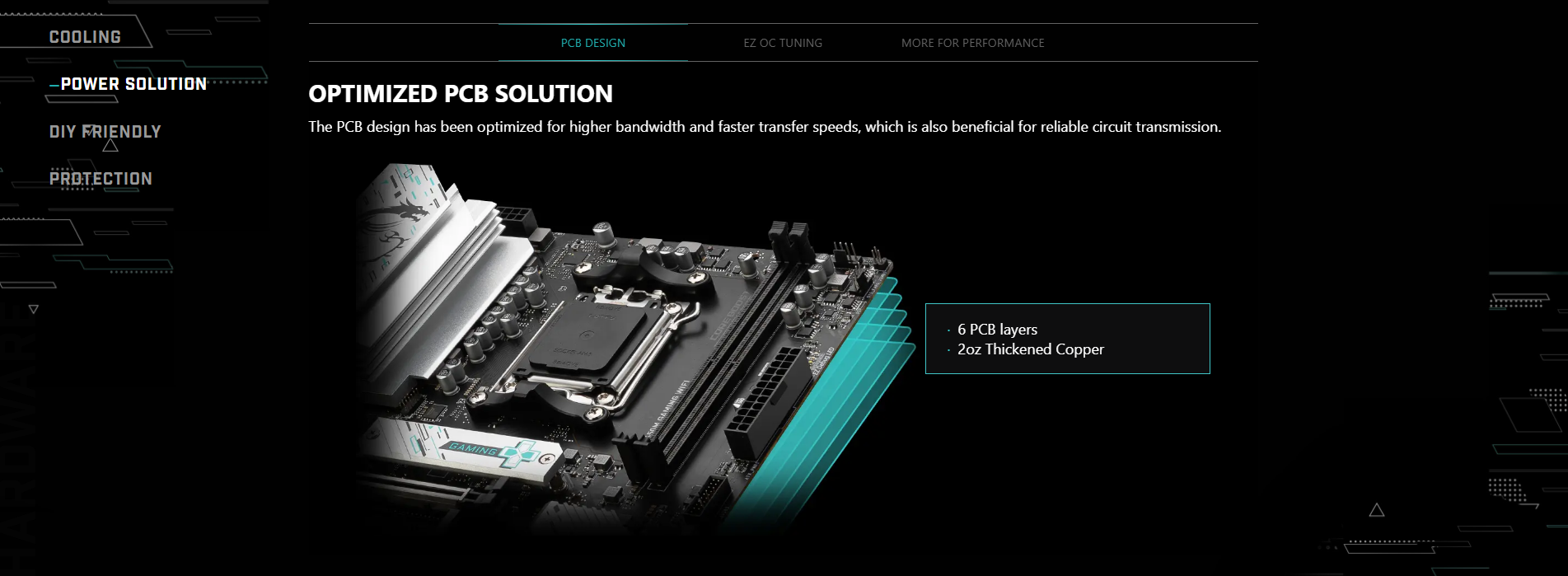

PCB DIMENSION

mATX
243.84mmx243.84mm
