CPU

CHIPSET

MEMORY

• 1x PCIe 3.0 x1 slot
• 1x PCIe 4.0/3.0 x16 slot

ONBOARD GRAPHICS

• 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
  Support HDCP 1.4 & 2.3
• 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• Maximum shared memory of 16 GB

AMD B550 Chipset

• 4x SATA 6Gb/s ports
• 1x M.2 slot (Key M) (from AMD Processor)
  • Supports PCIe 4.0/ 3.0
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices

• Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset

• 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector
• 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

• 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

LAN

Realtek^® ALC892/ALC897 Codec

• 7.1-Channel High Definition Audio

AUDIO

• 1x Realtek^® RTL8111H Gigabit LAN controller

INTERNAL CONNECTORS

• 1x 24-pin ATX main power connector
• 1x 4-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x M.2 slots (M-Key)
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connectors
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1xTPM module connector
• 1x Clear CMOS jumper

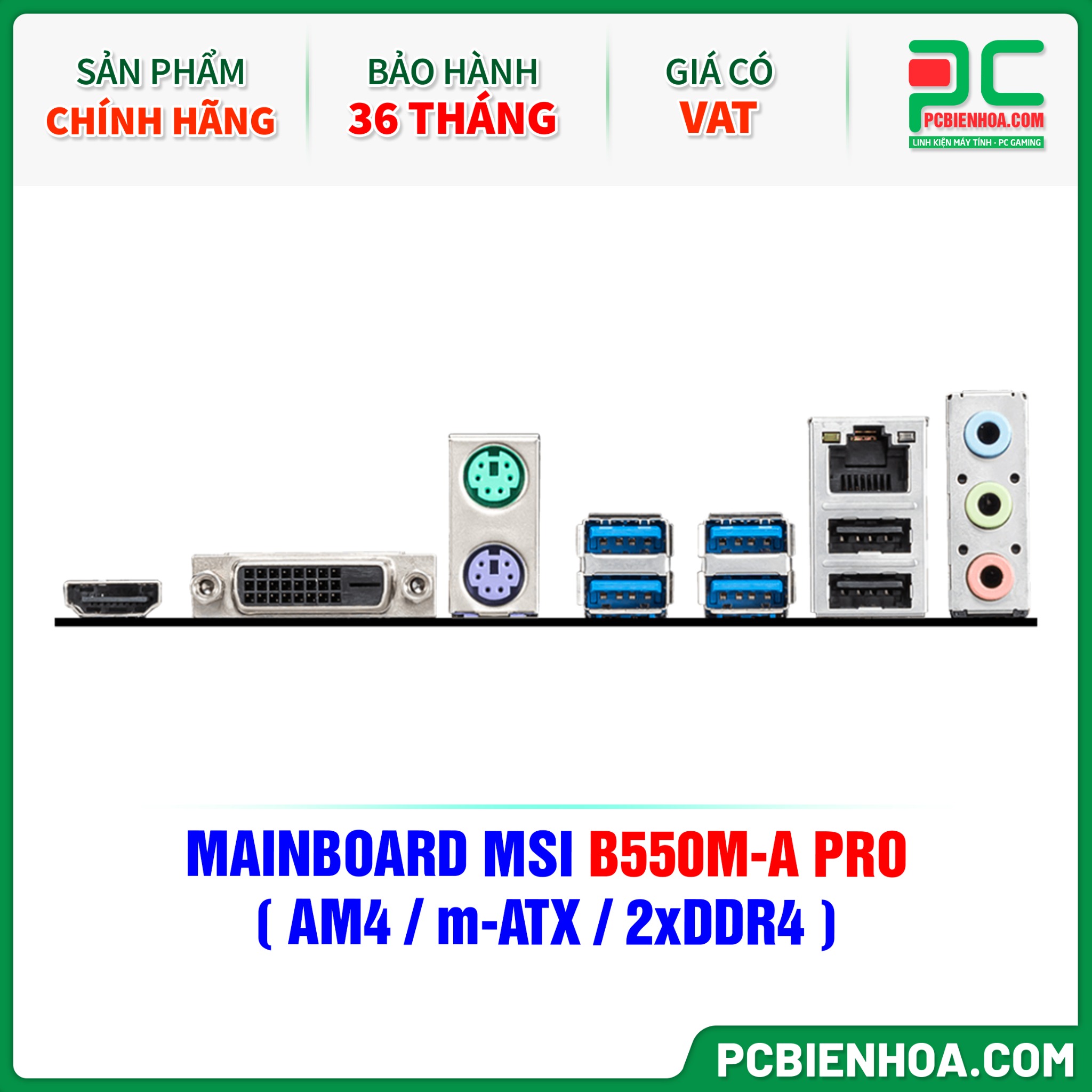

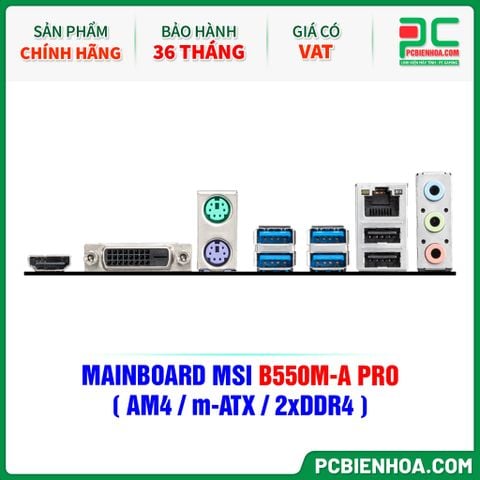

BACK PANEL PORTS

BOX CONTENT
