CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)

Chipset

Intel® H610 Express Chipset

Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD
support)
- 4 x SATA 6Gb/s connectors

USB

Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

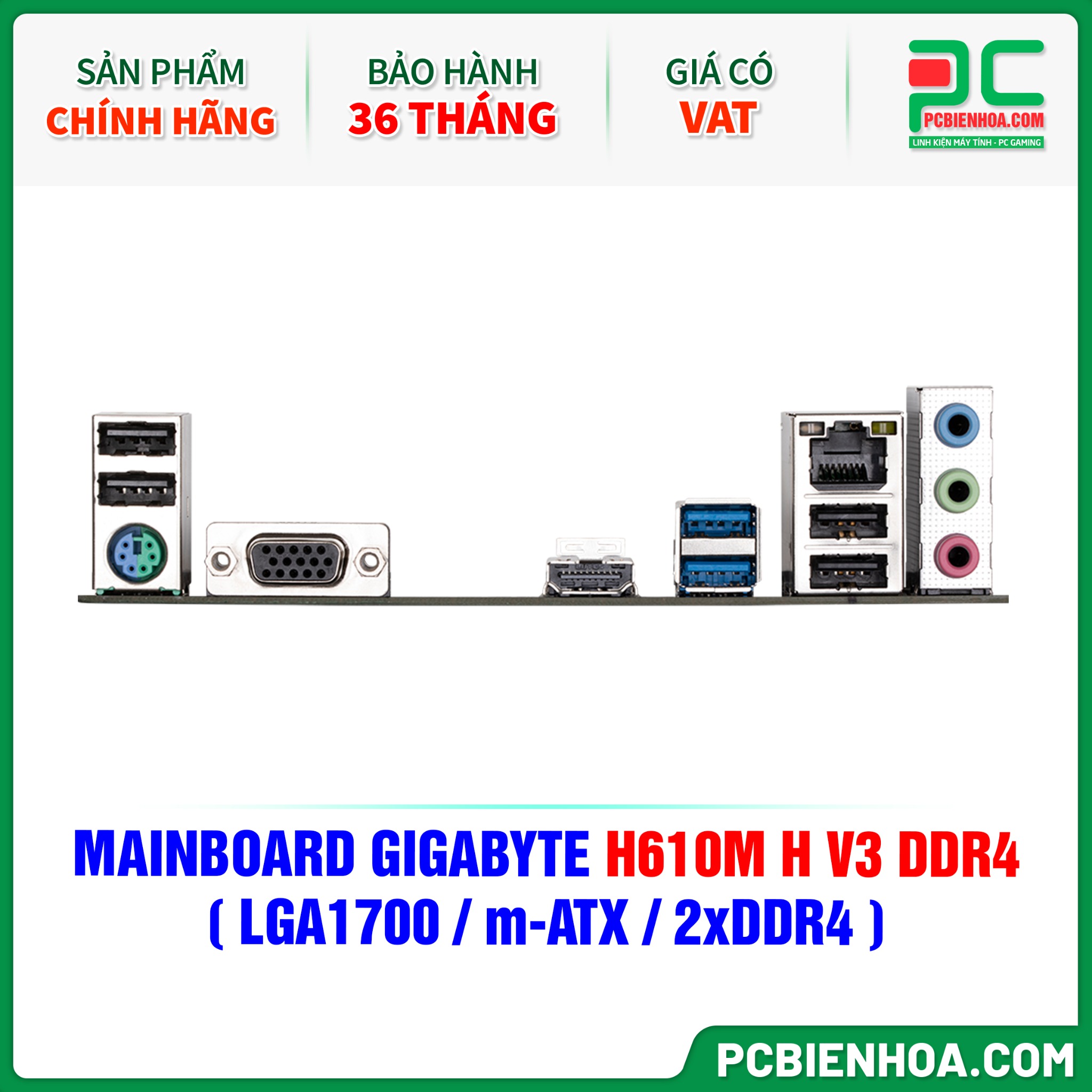

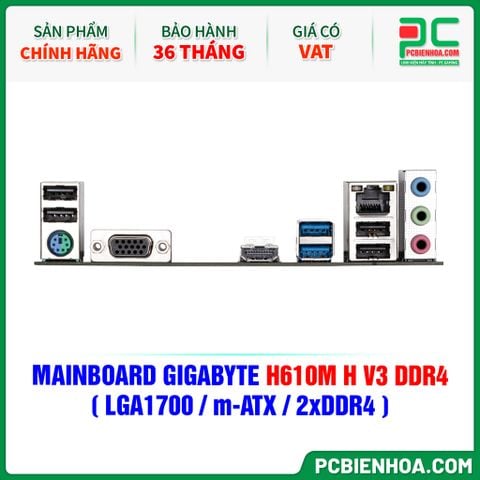

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

- @BIOS
- EasyTune
- Smart Backup
- System Information Viewer
Support for Q-Flash

Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 22.3cm x 19.3cm
