Intel B860

Supports Intel® Core™ Ultra processors that fit the LGA 1851 slot of the motherboard
(*Please visit Colorful's official website www.colorful.cn for the latest memory compatibility list)

2 DDR5 memory slots, supporting up to 96 GB of memory (a single slot can support a capacity of up to 48 GB)
- Support DDR5-7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400/6200/6000/5800/5600/5400/5200/5000/4800MHz memory
- Support Intel® Extreme Memory Profile (XMP) memory technology
- Support dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)

2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
- M.2_1 slot: support 2242/2280 M.2 SSD (PCIe 5.0 x4, CPU channel)
- M.2_2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, Chipset channel)

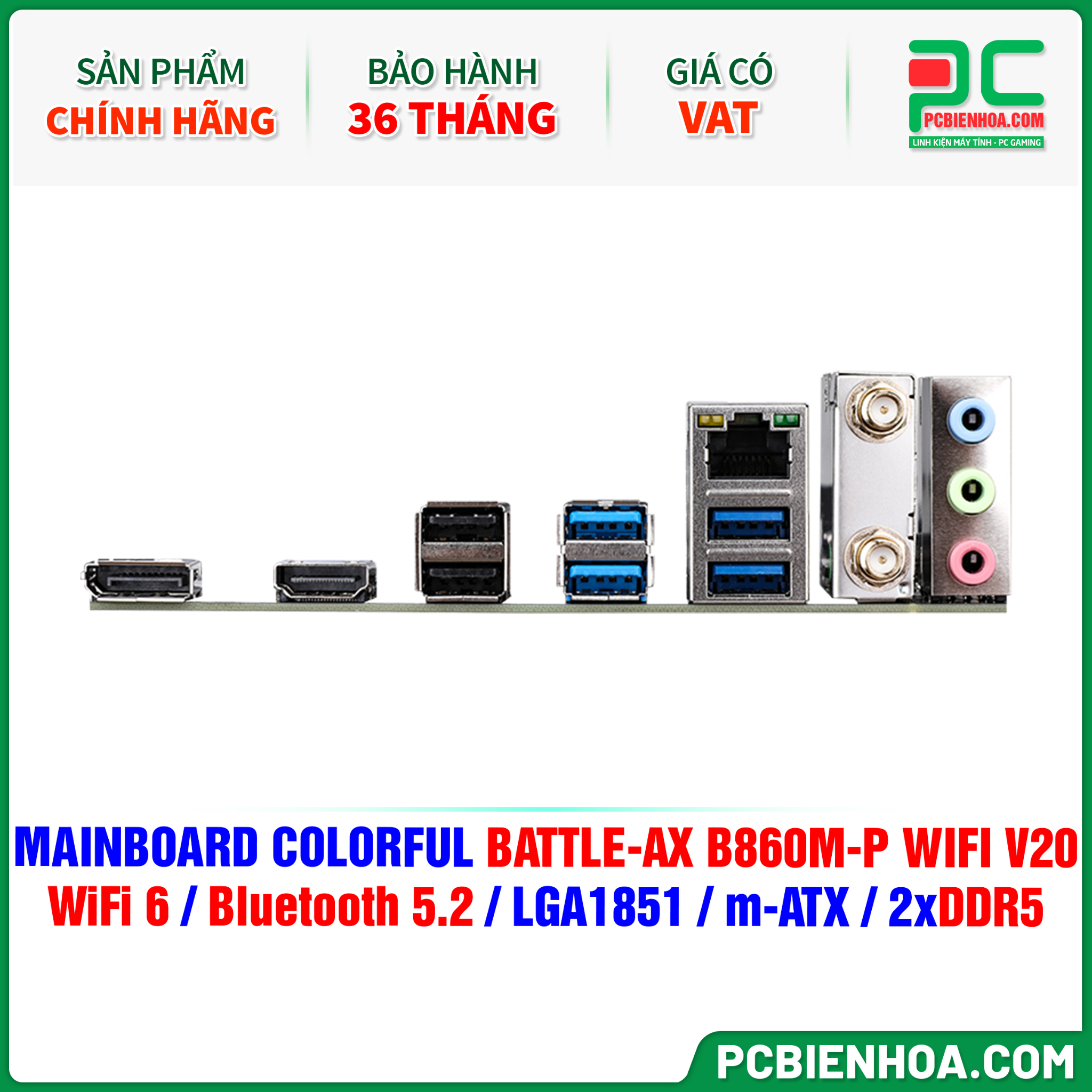

Rear I/O:
- 2×USB 2.0 interfaces
- 4×USB 3.2 Gen 1 5Gbps Type-A interfaces
- 1×DP 1.4 interface, Supports up to 8K 60Hz resolution
- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
- 1×Gigabit network interface
- 2×Wi-Fi 6 antenna interfaces
- 3×Audio interfaces
On board:
- 1×USB 2.0 pins can expand 2 USB 2.0 Type-A interfaces
- 1×USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
- 1×CPU fan pin
- 2×System fan pins
- 2×5V 3-pin ARGB pins
- 1×12V 4-pin RGB pin
- 1×Front audio pin
- 1×Front panel pin
- 1×Speaker pin
- 1×BIOS burner pin
-1×Clear CMOS jumper

1×PCIe 5.0 x16 slot
1×PCIe 4.0 x1 slot

256M UEFI，support multiple languages

RTL8111H Gigabit Ethernet AX101 WiFi 6 wireless network card, Bluetooth 5.2

Realtek ALC897 high fidelity decoding chip, Support up to 7.1 channels

M-ATX
230mm x 210 mm
