DRIVER BATTLE-AX B760M-T PRO V20

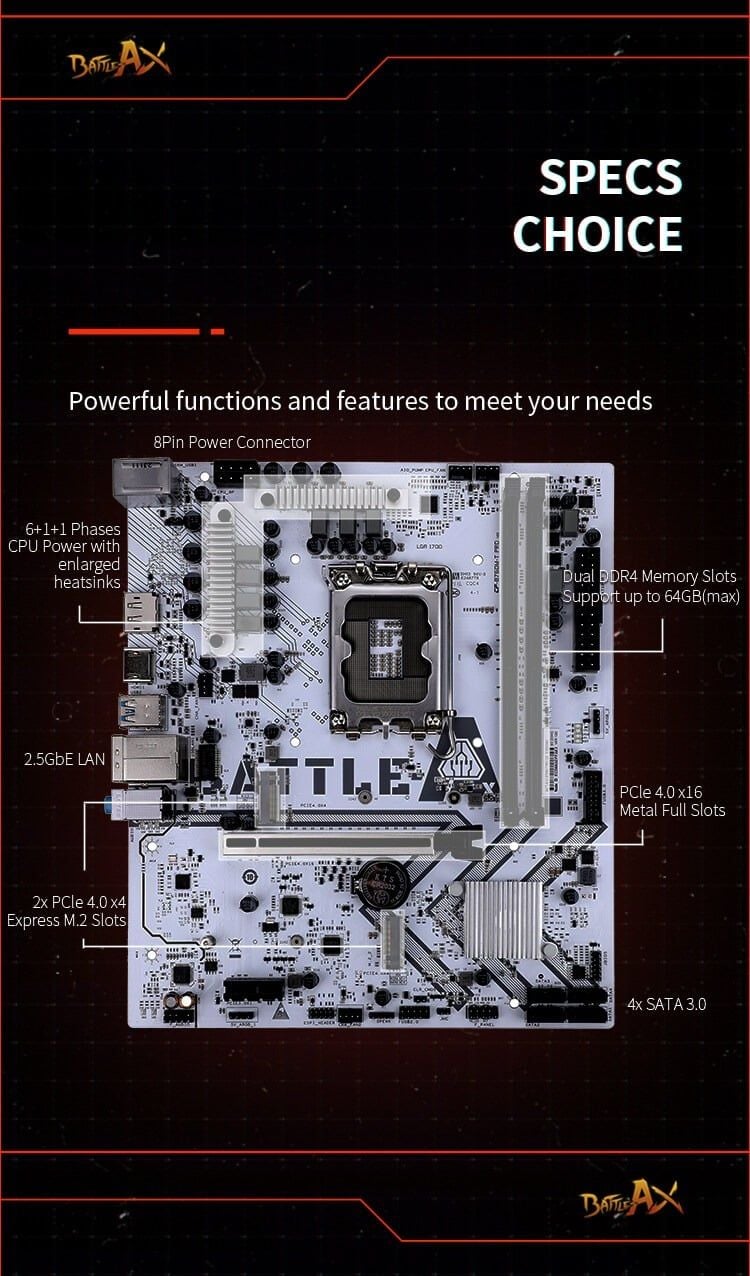

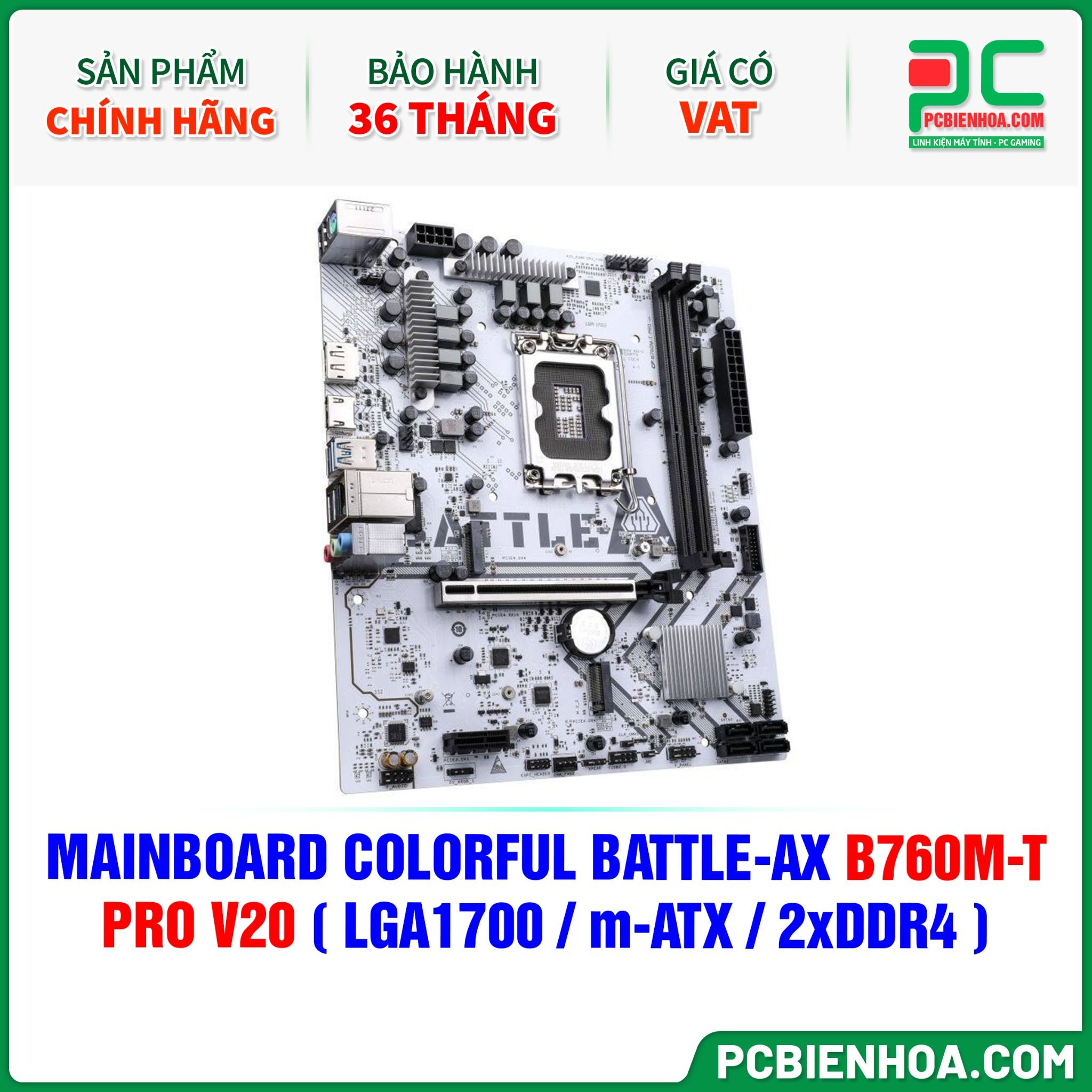

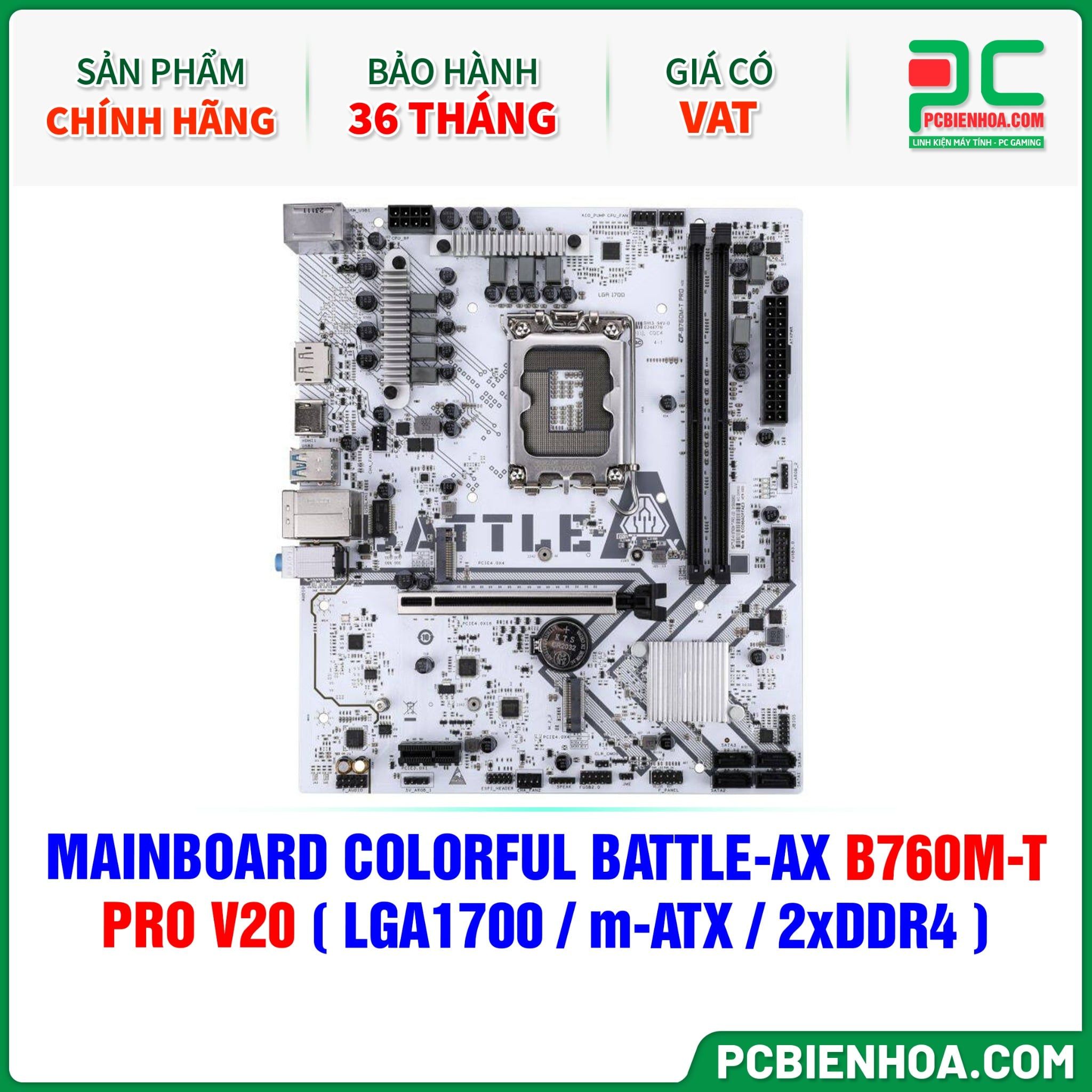

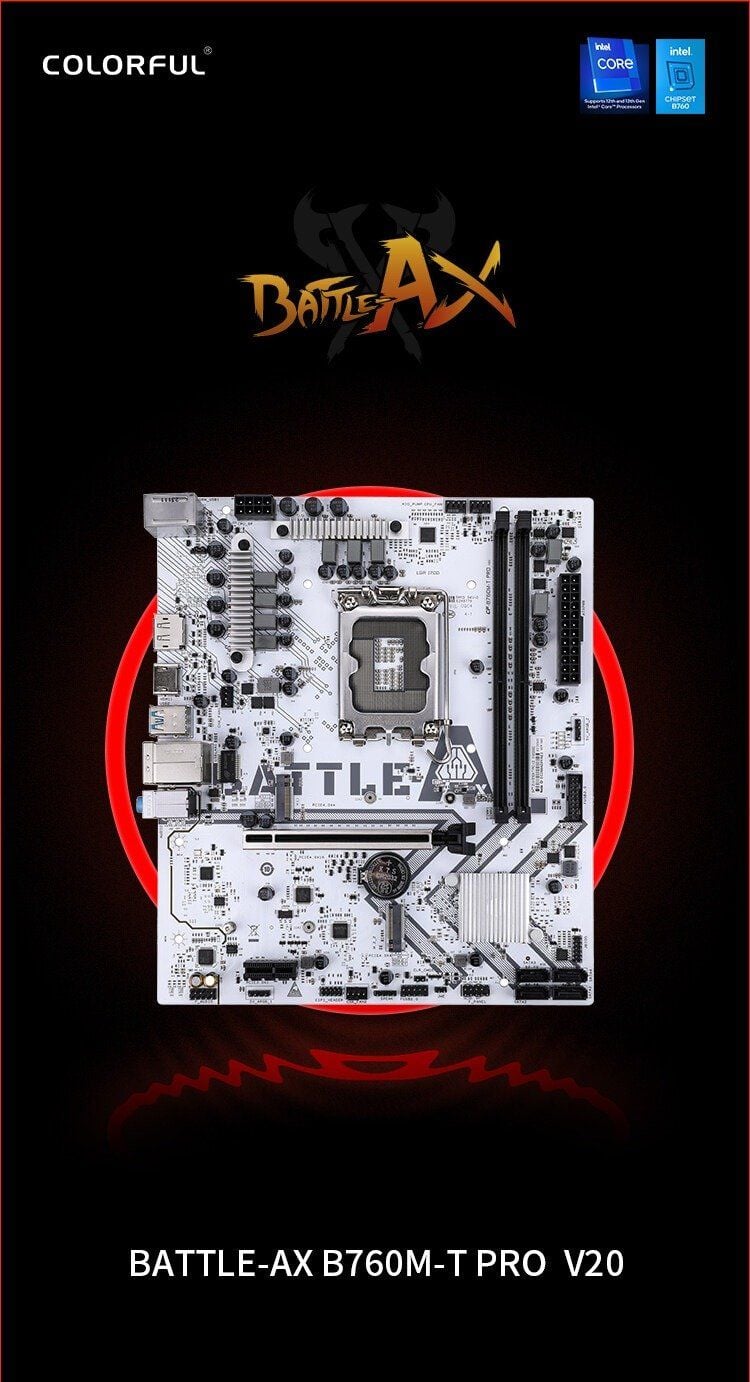

BATTLE-AX B760M-T PRO V20

BATTLE-AX series

Intel B760

Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard ® Core TM, Pentium ® And Cylon ® processor
(* Please visit www.colorful.cn for the latest memory compatibility list)

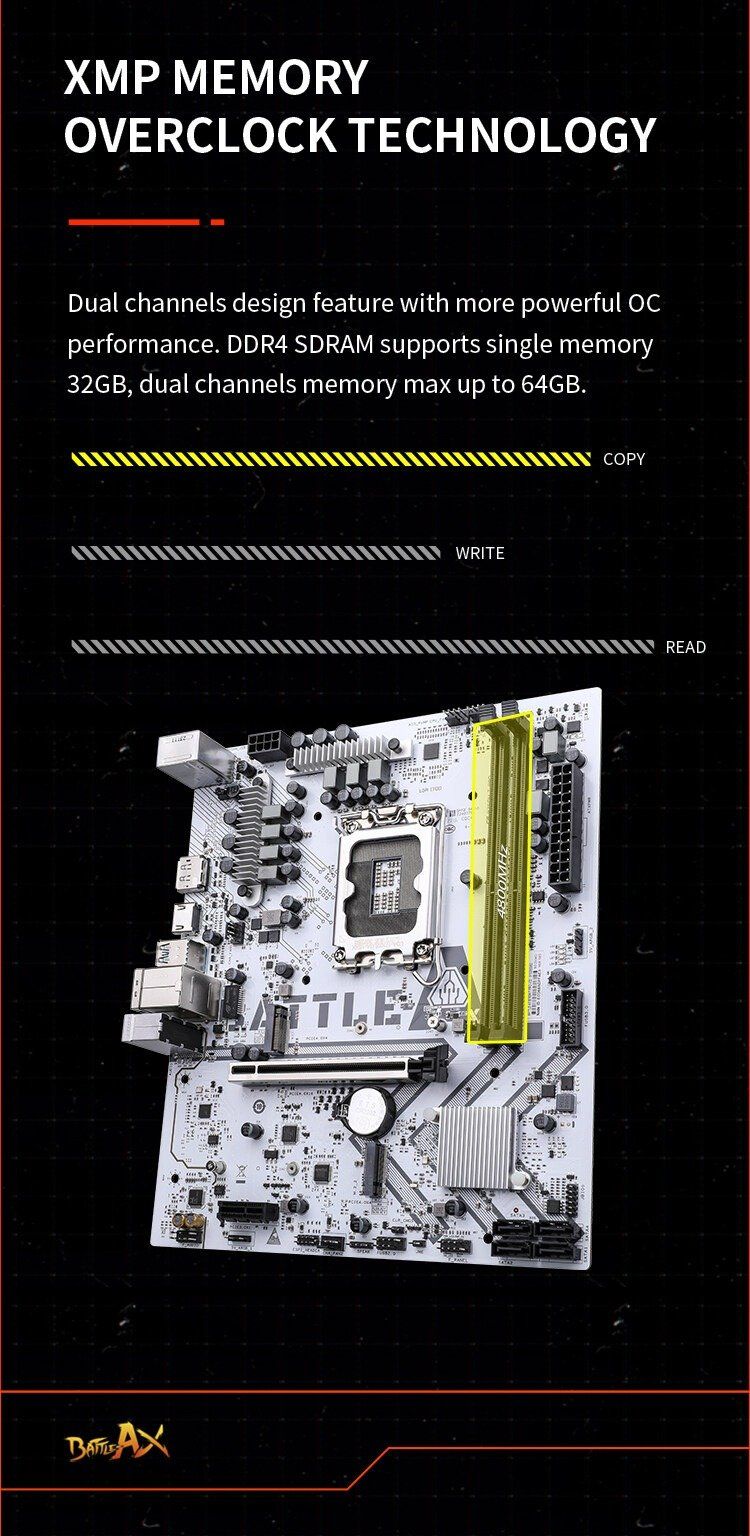

2 DDR4 memory sockets are provided, which can support up to 64 GB of memory (a single socket can support up to 32 GB of memory)
- support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory
- support Intel ® Extreme Memory Profile (XMP) memory technology
- supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)

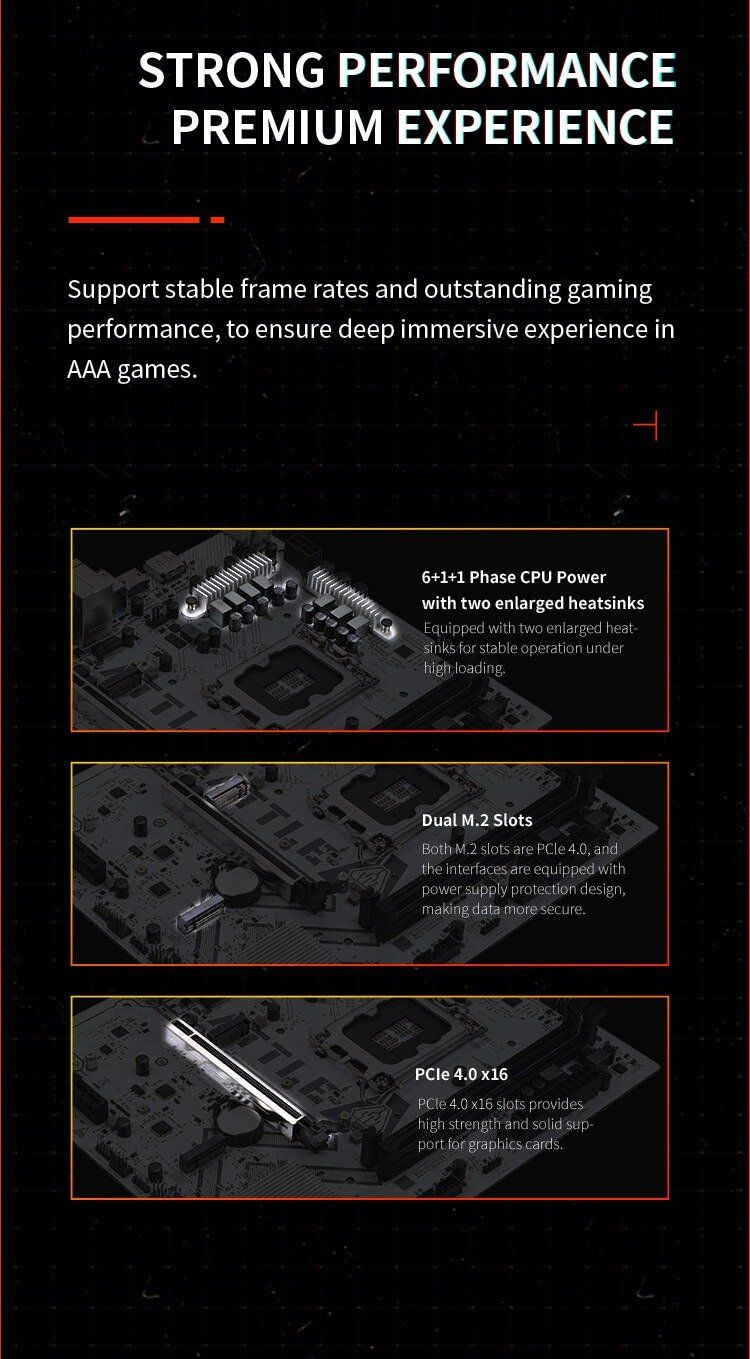

2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
- M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
- M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel)
(* See the official BIOS user guide of Colorful for the steps to create a RAID disk array)

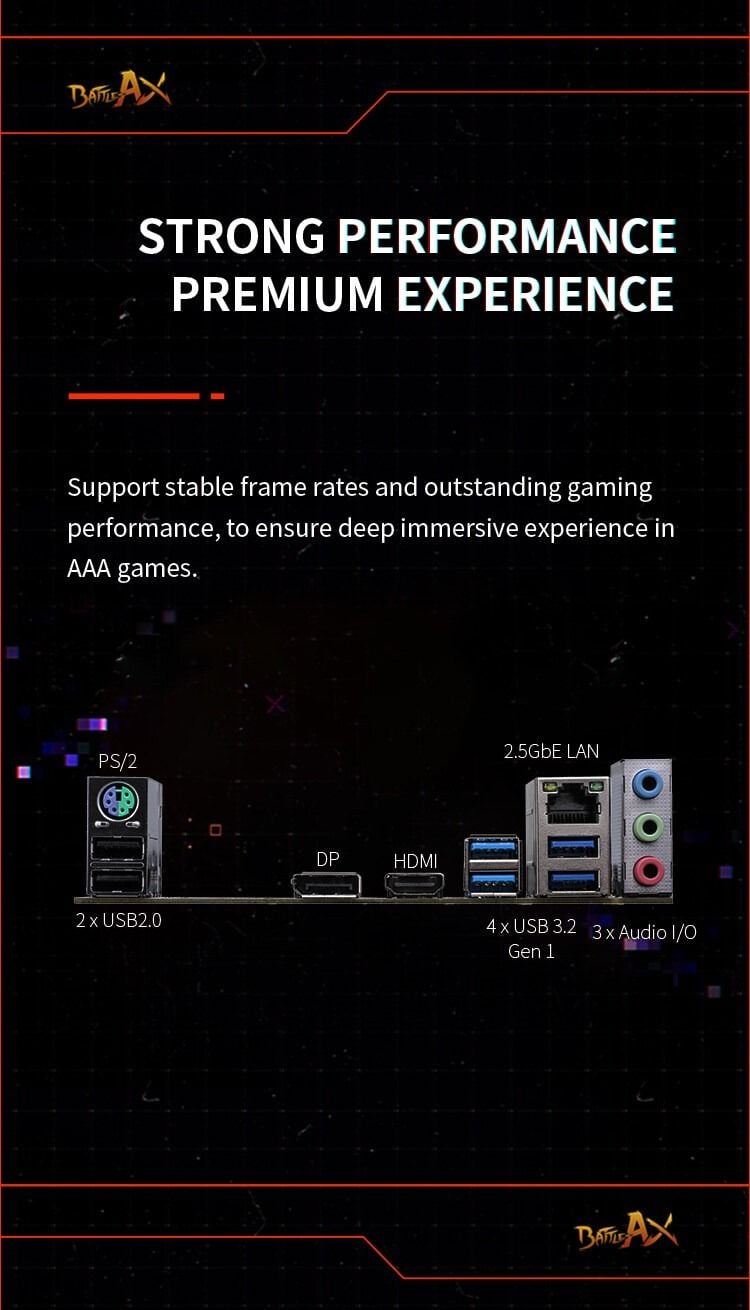

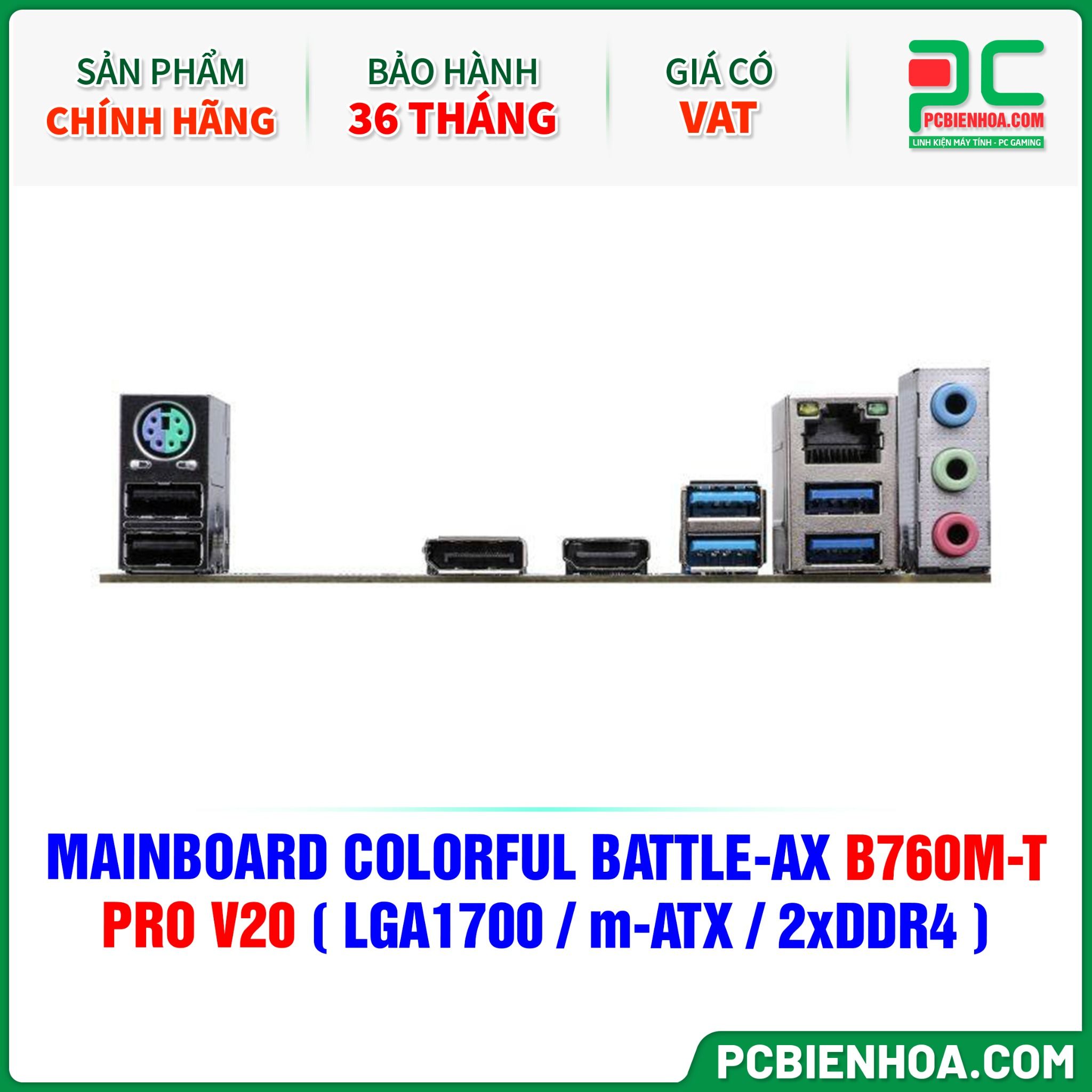

Rear I/O interface:
- 1×PS/2 interface
- 2×USB 2.0 interfaces
- 4×USB 3.2 Gen 1 Type-A interfaces
- 1×DP 1.2 interface, supporting up to 4K 60Hz resolution
- 1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution
- 1×2.5G network interface
- 3×audio interfaces (audio input/audio output/microphone)
Onboard device interface:
- 1×CPU fan pin
- 2×system fan pins
- 1×water cooling pump pin
- 1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
- 1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
- 2×5V 3-pin ARGB pins
- 1×front audio pin
- 1×front panel pin
- 1×speaker pin
- 1×ME write protection jumper
- 1×clear CMOS jumper
- 1×BIOS burner pin
- 1×POST card pin
- 1×PS/2 call Wake up control jumper

1 PCIe 4.0 x16 slot
1 PCIe 3.0 x1 slot

128M UEFI, supporting multiple languages

Support S3, S4, network S5 wake-up, regular power on and power on

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

RTL8125 2.5G network card

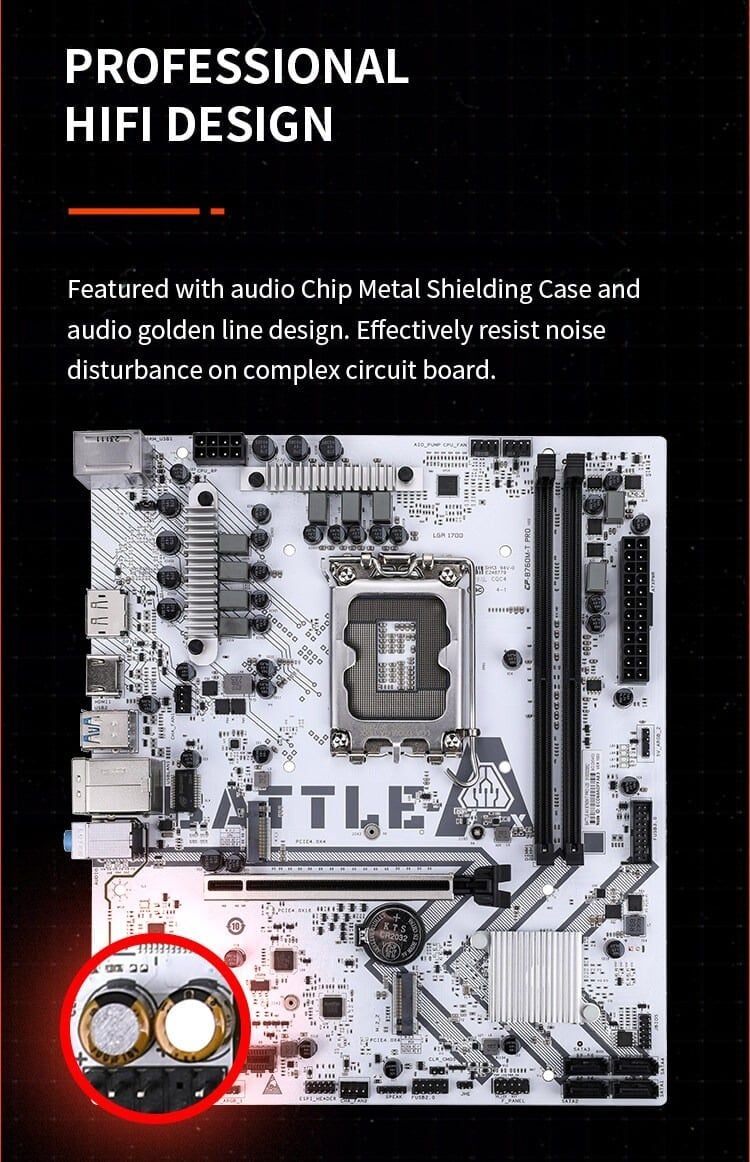

5.1 Channel sound card

M-ATX
240mm x 207mm
