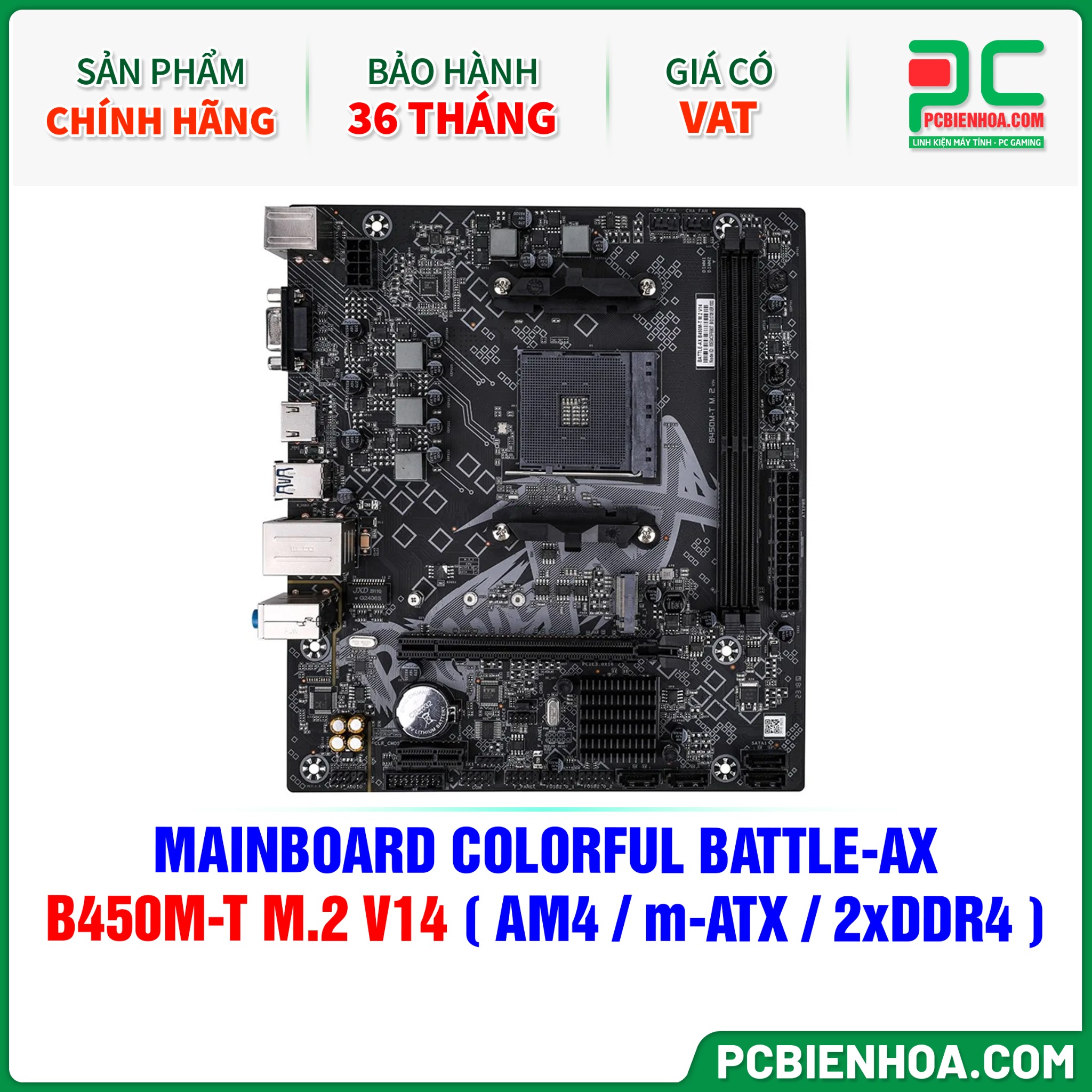

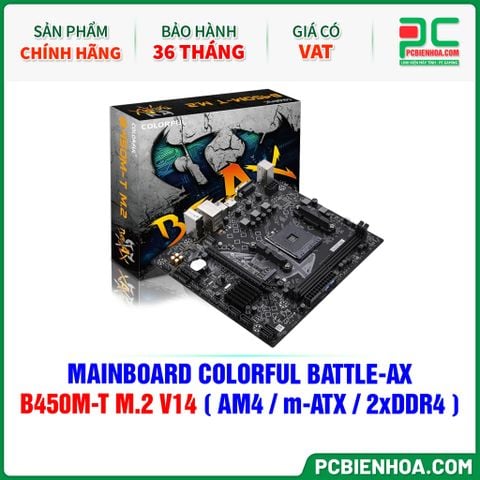

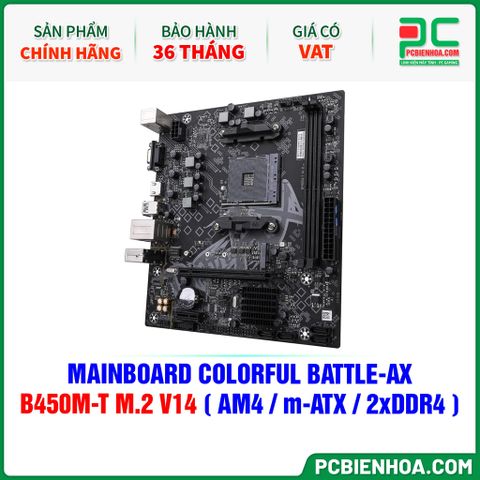

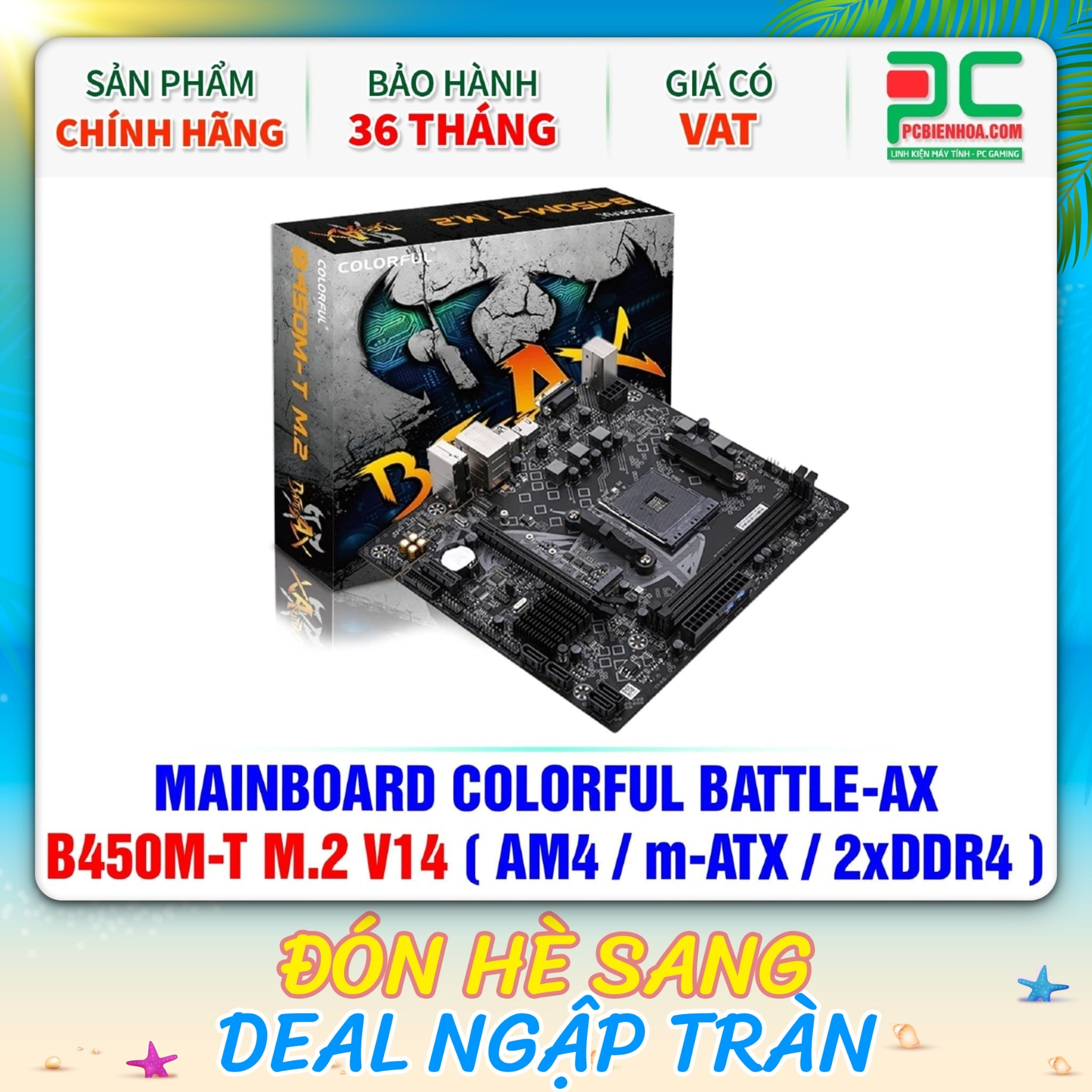

BATTLE-AX B450M-T M.2 V14

BATTLE-AX series

AMD B450

Ryzen series processors compatible with motherboard AM4 slots
(* Please visit the official website of Colorful at www.colorful.cn for the latest processor support list)

2 DDR4 memory slots that can support up to 64 GB of memory capacity (up to 32 GB per slot)
- Supports DDR4-3600 (OC)/3200 (OC)/3000 (OC)/2933 (OC)/2800 (OC)/2666/2400/2133 MHz memory
- Supports Extreme Memory Profile (XMP) memory technology
- Supports dual channel memory technology
(* Please visit the official website of Colorful at www.colorful. cn for the latest memory compatibility list)

1 M.2 slot and 4 SATA 6Gb/s hard drive interfaces
- M.2_1 slot: Supports 2242/2260/2280 specification M.2 SSDs (PCIe 3.0 x4, CPU channel)

Rear I/O:
-4×USB 2.0 interfaces
-2×USB 3.2 Gen 1 Type-A interfaces
-1×HDMI 2.0 interface, supporting up to 4K 60Hz resolution
-1×VGA interface
-1×PS/2 interface
-1×Gigabit network interface
-3×Audio interfaces (audio input/output/microphone)
On board :
-1×CPU fan pin
-1×System fan pin
-2×USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
-1×Front audio pin
-1×Front panel pin
-1×Speaker pin
-1×COM port pin
-1×Clear CMOS jumper
-1×Debug light pin

1 PCIe 4.0 x16 slot
1 PCIe 3.0 x1 slot

128M UEFI, support multiple languages

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

RTL8111H Gigabit Ethernet Card

Realtek ALC897 high-fidelity decoding chip, supports 7.1 channels

M-ATX
220mmx195 mm
