CPU

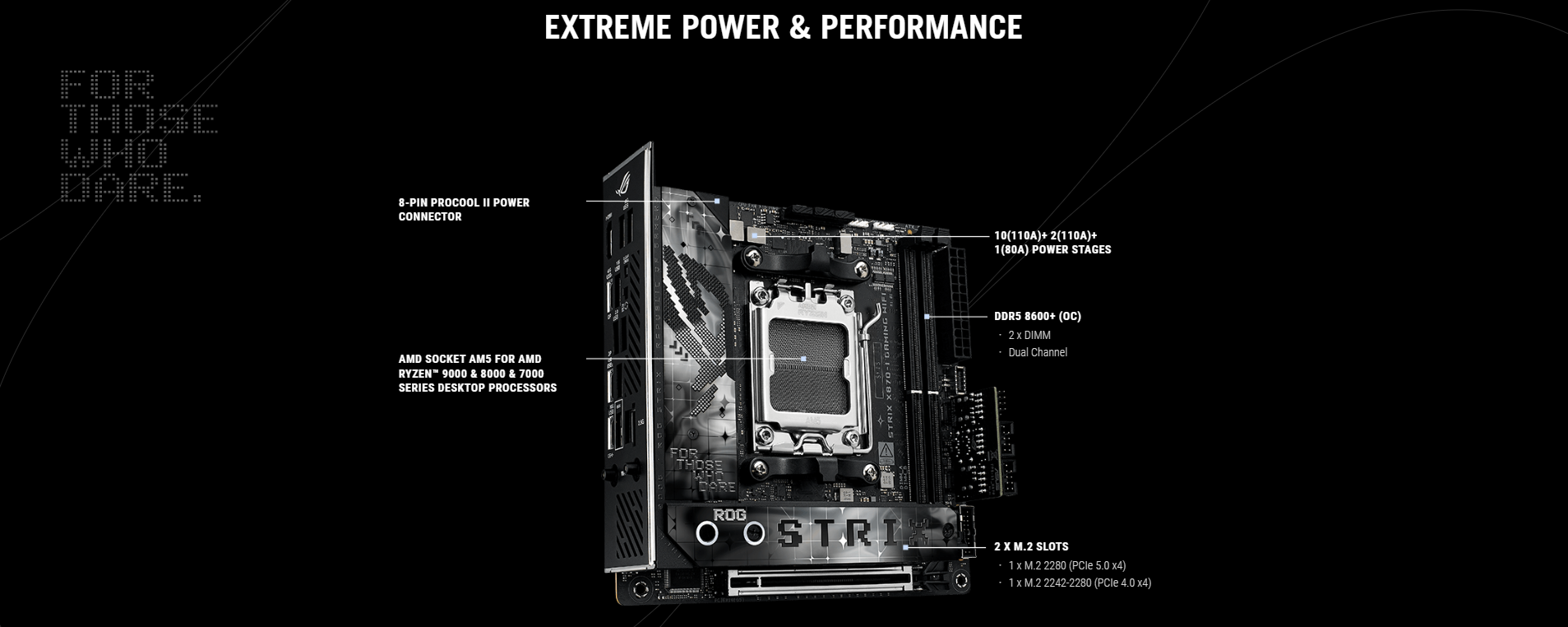

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD X870

Memory

2 x DIMM slots, max. 128GB, DDR5
Supports up to
8400+MT/s(OC) with Ryzen™ 9000 Series Processors,
8600+MT/s(OC) with Ryzen™ 8000 Series Processors,
8000+MT/s(OC) with Ryzen™ 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*"
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)

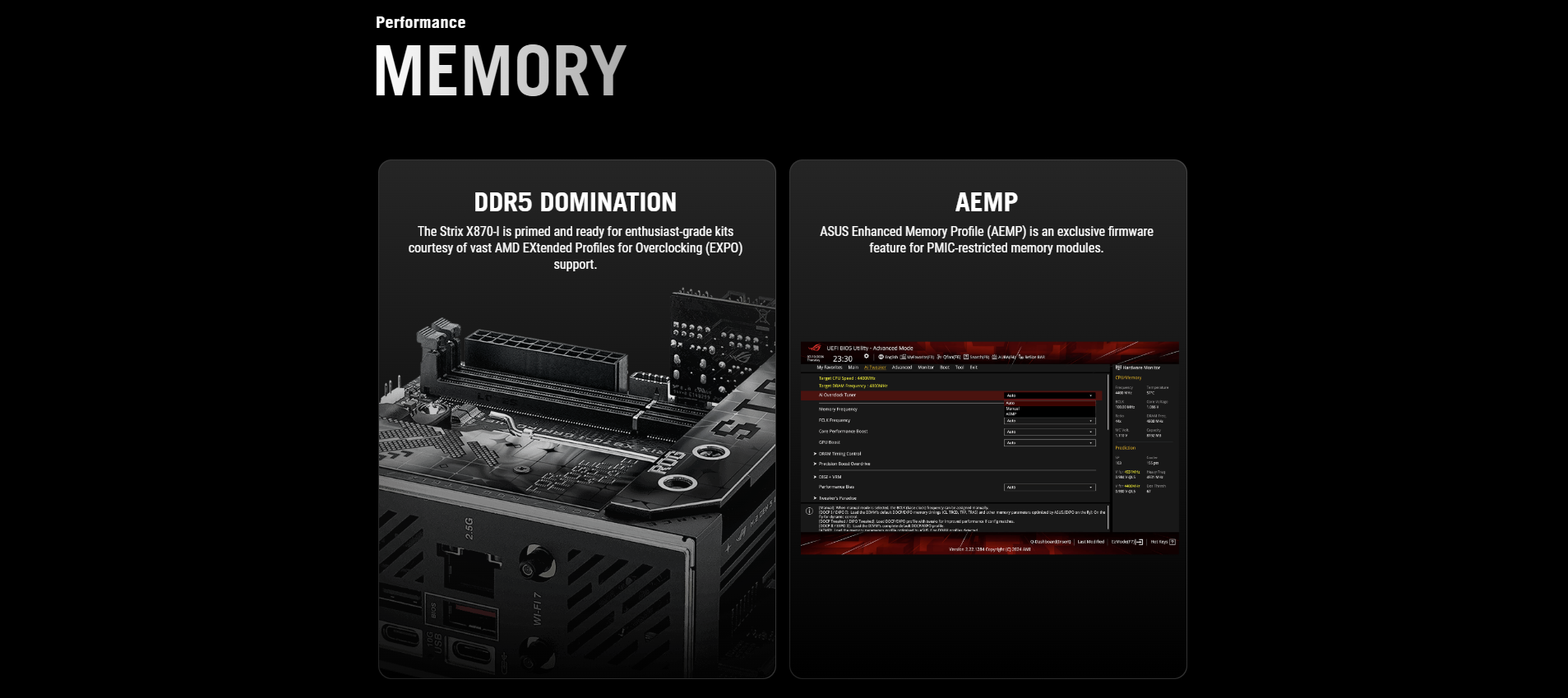

ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x HDMI™ port**
2 x USB4^® (40Gbps) ports support USB Type-C^® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a
**** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)*
* Specifications vary by CPU types.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)
AMD X870 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
2 x SATA 6Gb/s ports***
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1
*** Install ROG FPS Card to support 2 x SATA 6Gb/s ports.

Ethernet

1 x Intel^® 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.
Bluetooth^® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

USB

Rear USB (Total 10 ports)
2 x USB4^® (40Gbps) port(s)(2 x USB Type-C^®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C^®)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 3 ports)
1 x USB 10Gbps connector (supports USB Type-C^®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
* USB Type-C^® power delivery output: max. 5V/3A

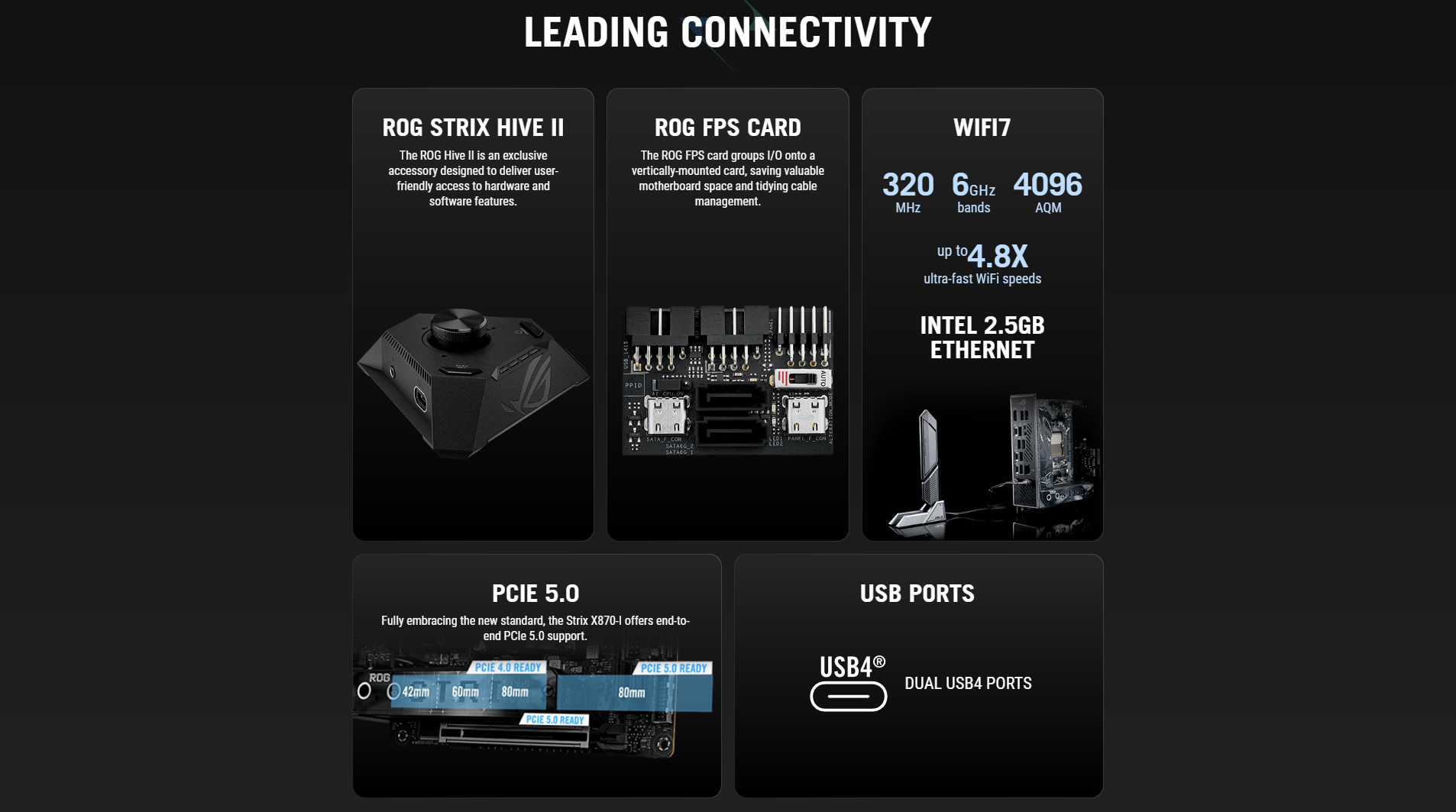

ROG STRIX HIVE II(Total 2 ports)
2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C^®)
ROG FPS Card (Total 3 ports)
2 x USB 2.0 headers additional 3 USB 2.0 ports

Audio

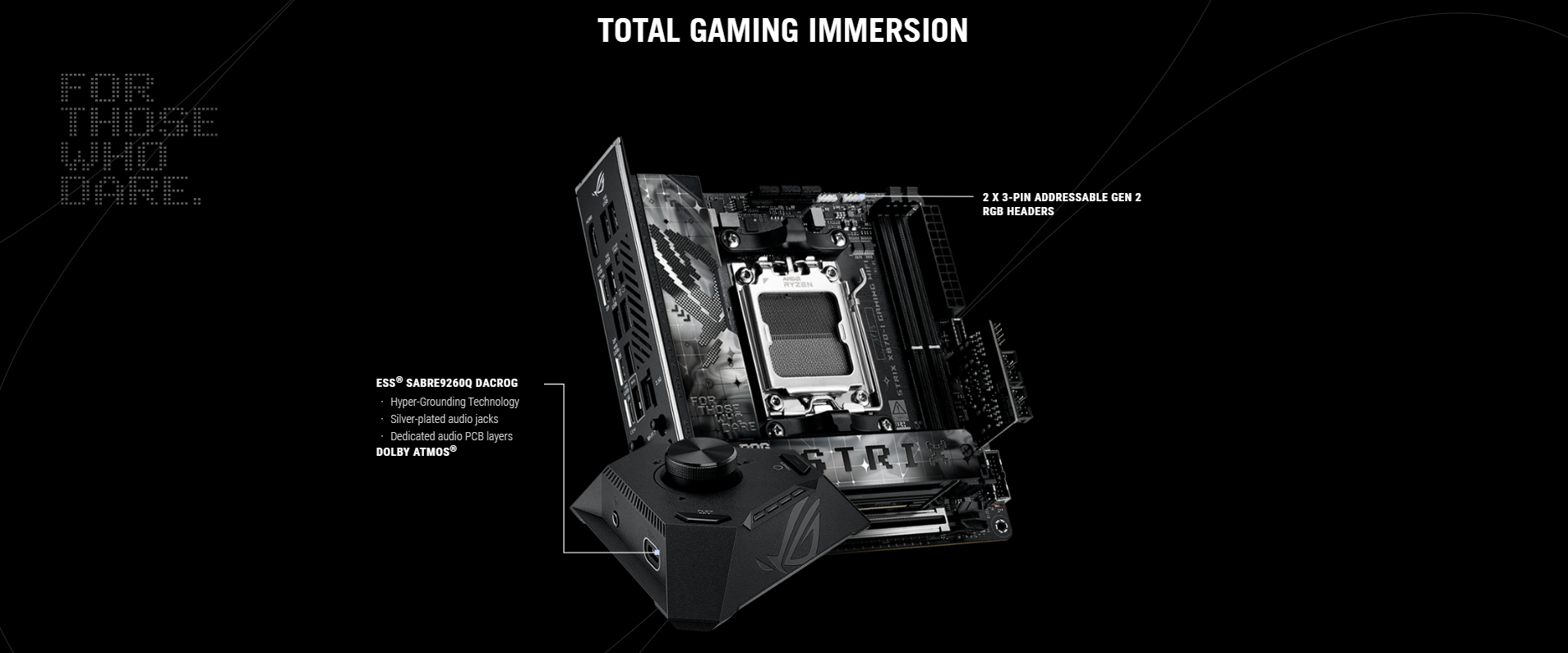

ROG Strix Hive II Audio Features
- ROG Hyper-Grounding Technology
- ESS^® SABRE9260Q DAC
- Silver-plated audio jacks
- Dedicated audio PCB layers

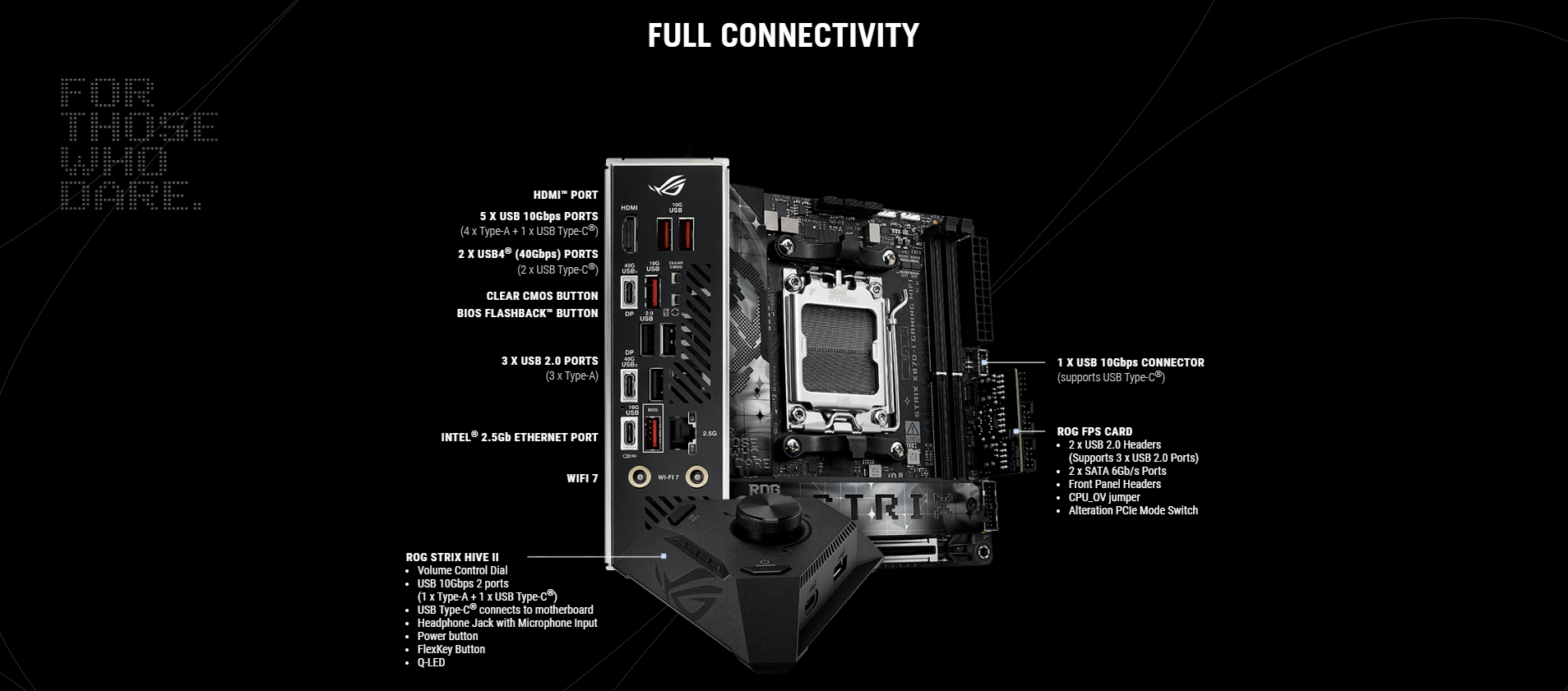

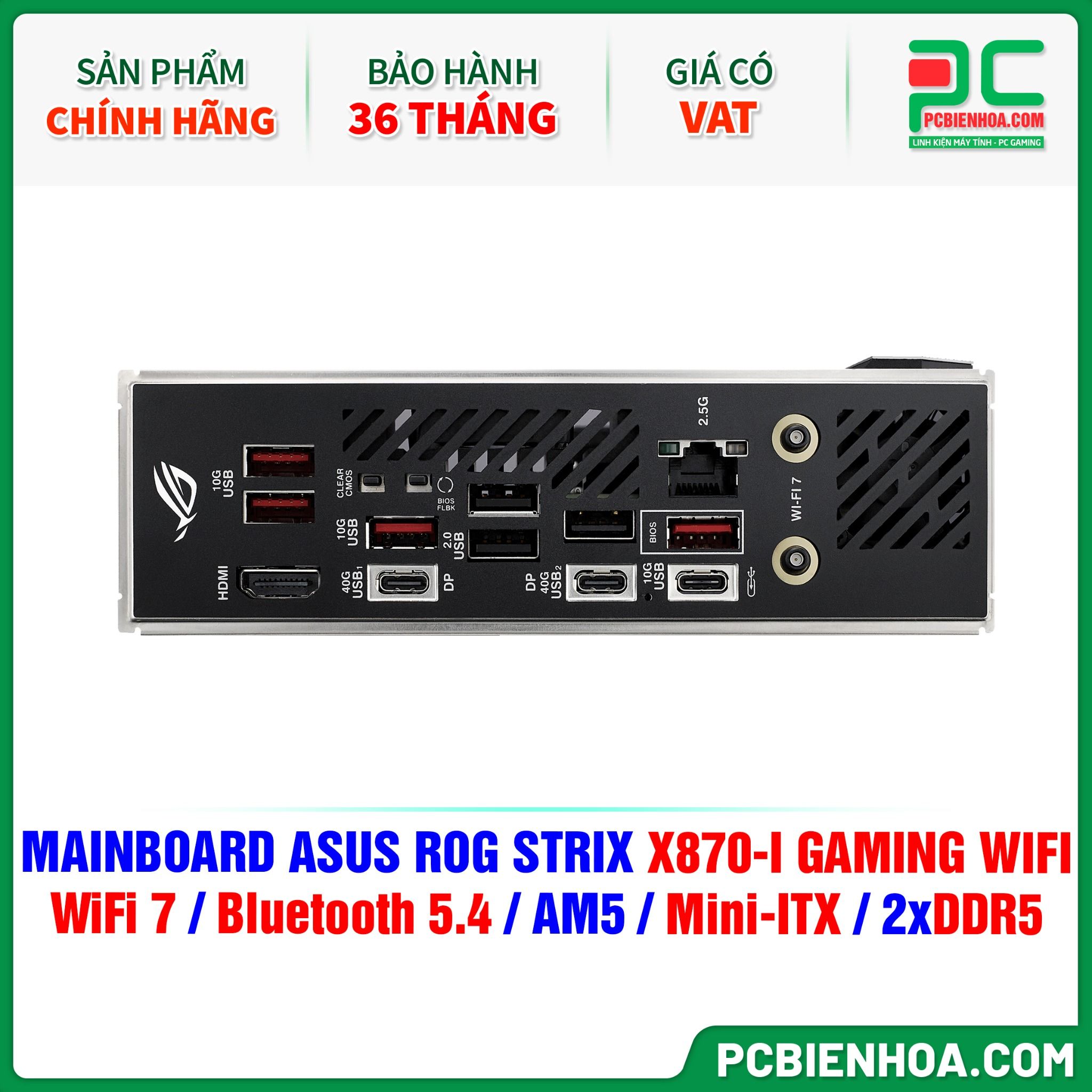

Back Panel I/O Ports

2 x USB4^® (40Gbps)(2 x USB Type-C^®)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C^®, 1 port supports ROG STRIX HIVE II)
3 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel^® 2.5Gb Ethernet port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
USB
1 x USB 10Gbps connector (supports USB Type-C^® )
1 x USB 5Gbps header support(s) 2
additional USB 5Gbps ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x 2-pin Power Button header
1 x Thermal Sensor header
2 x USB Type-C^® connectors to install ROG FPS card
ROG FPS card
2 x SATA 6Gb/s ports
1 x CPU Over Voltage jumper
1 x Front Panel header
1 x Alteration PCIe Mode switch
2 x USB 2.0 headers support 3
additional USB 2.0 ports

Special Features

ASUS TUF PROTECTION

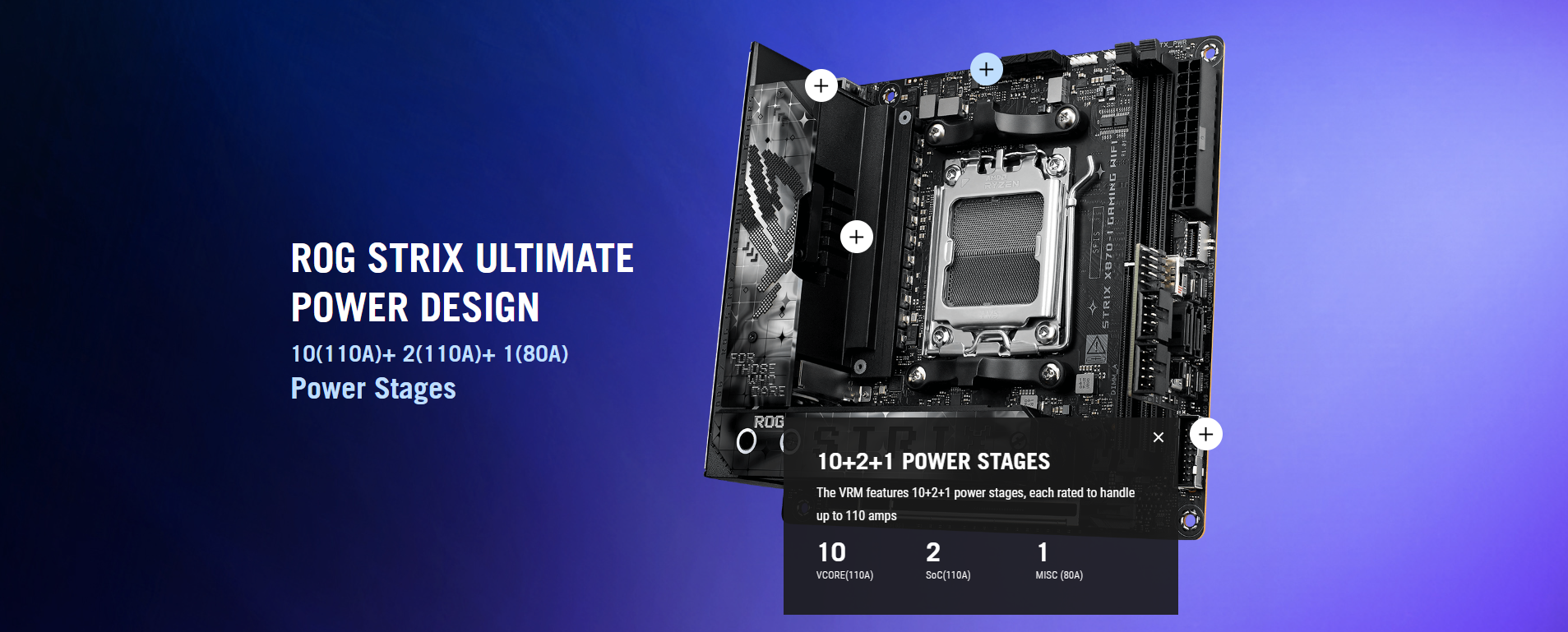

- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

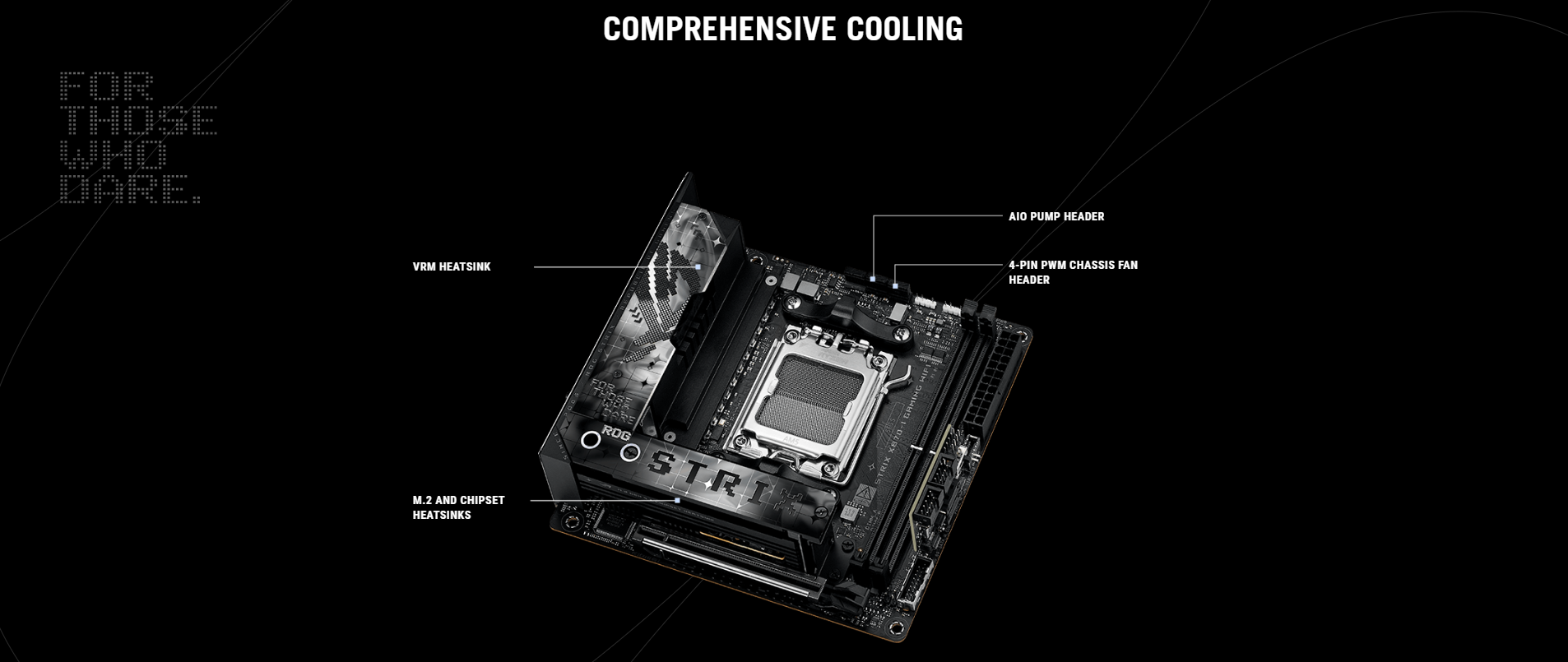

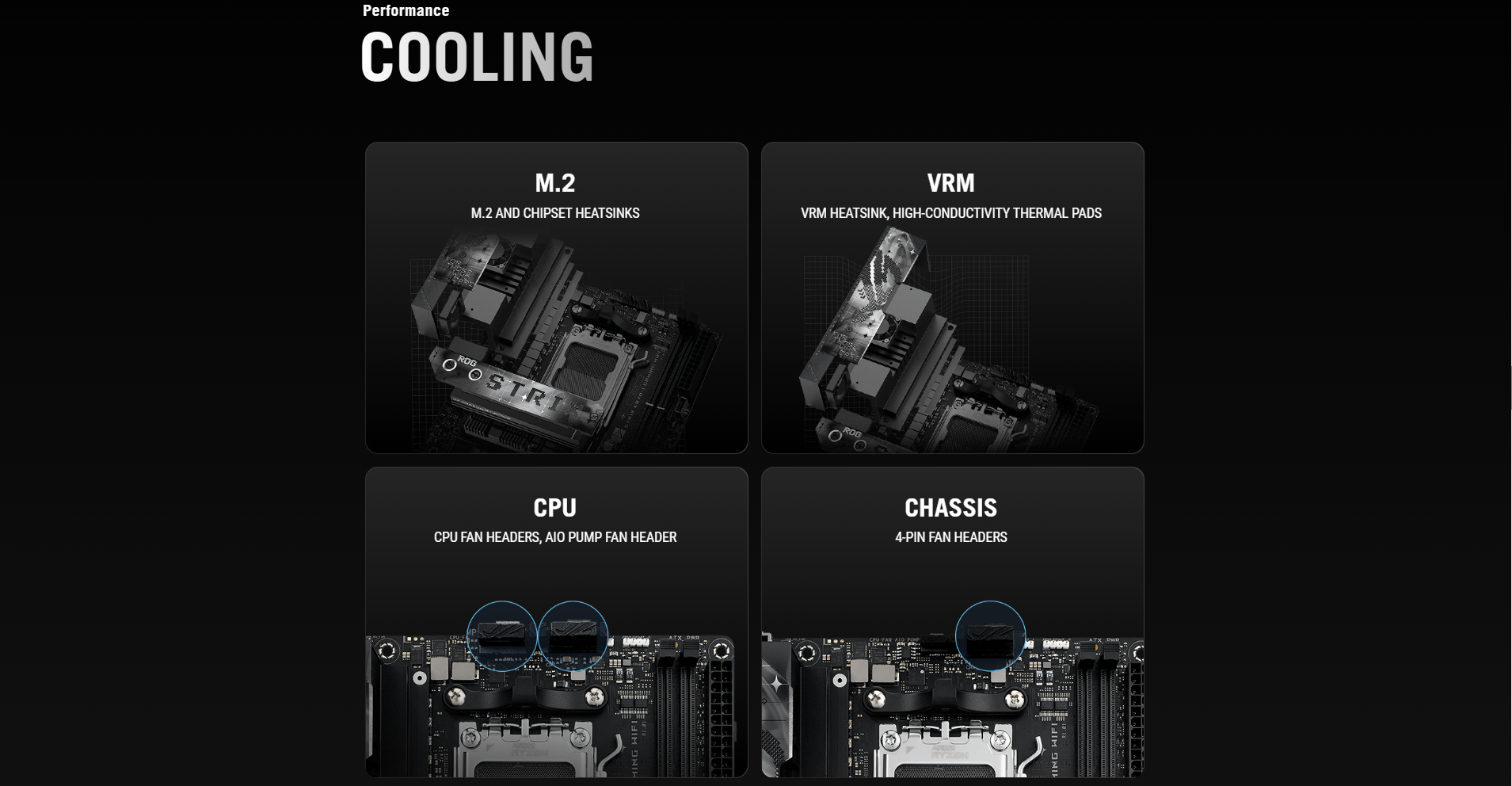

ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design

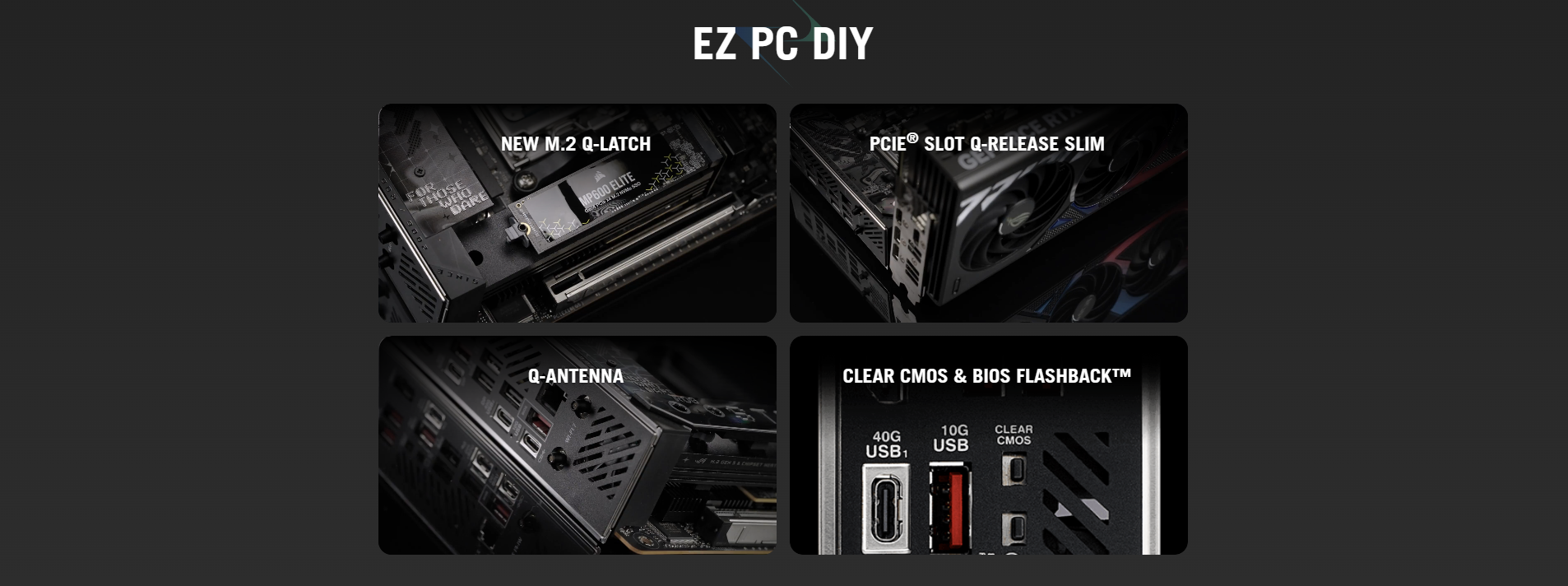

ASUS EZ DIY
- ProCool
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

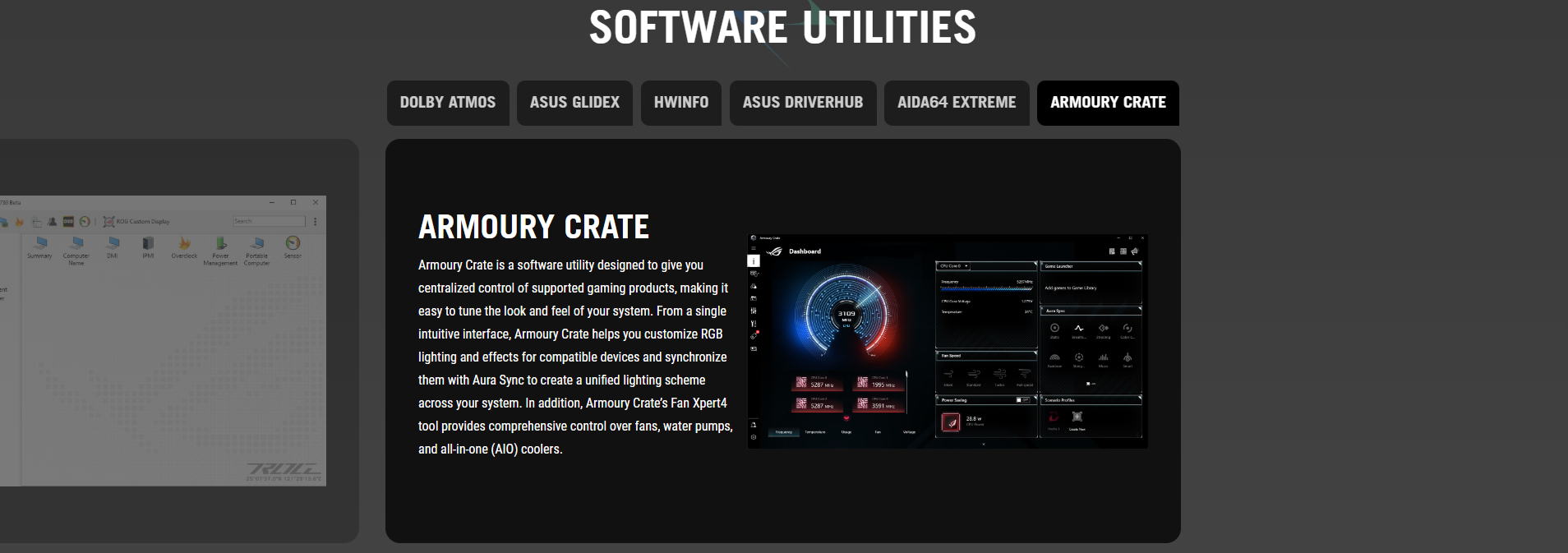

Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

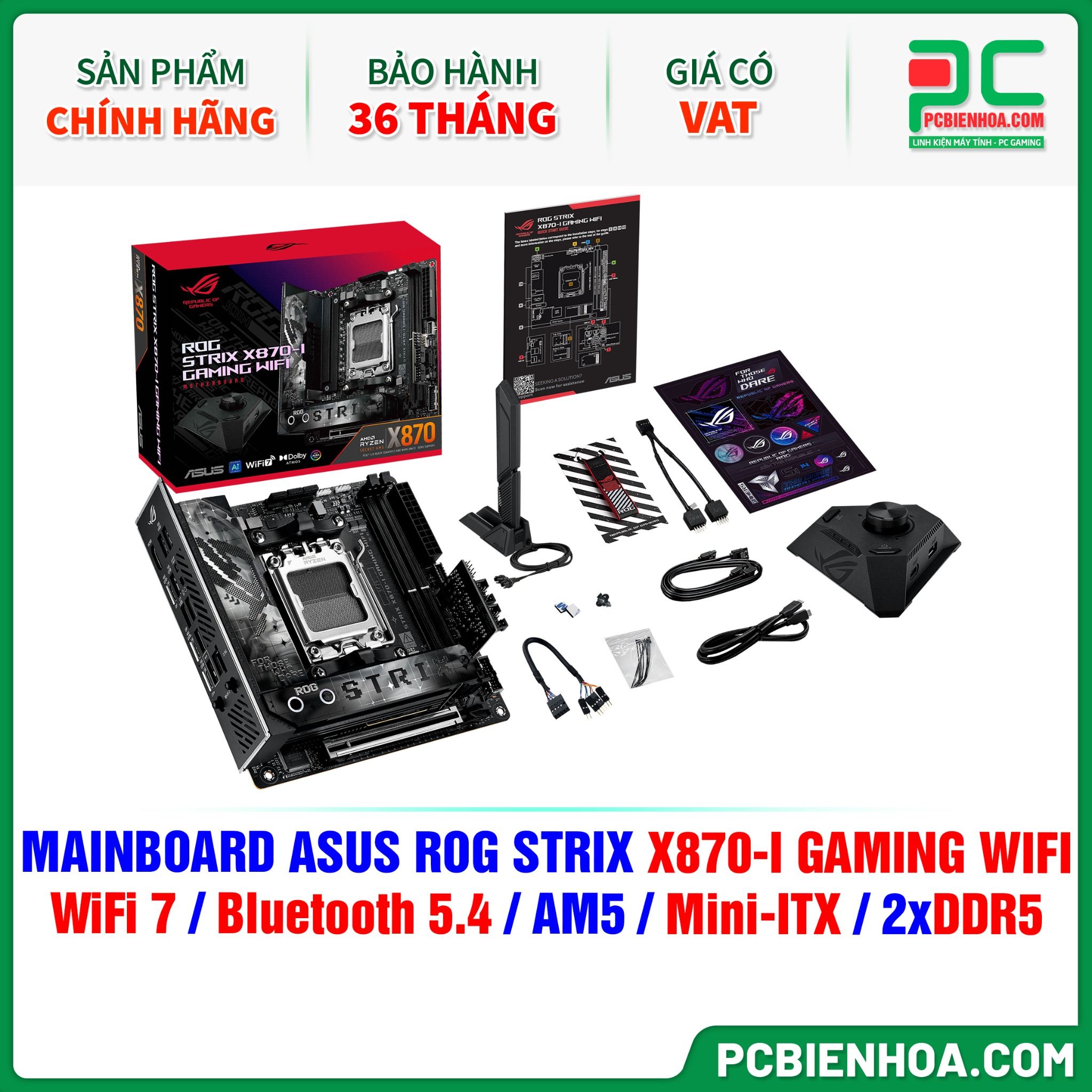

Accessories

Cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
2 x SATA 6Gb/s cables
ROG FPS Card
1 x ROG FPS Card
ROG STRIX HIVE II
1 x ROG STRIX HIVE II
1 x USB Type-C^® power connection cable
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 rubber package(s)
Documentation
1 x Quick start guide

Operating System

Mini-ITX Form Factor
6.7 inch x 6.7 inch (17 cm x 17 cm)
