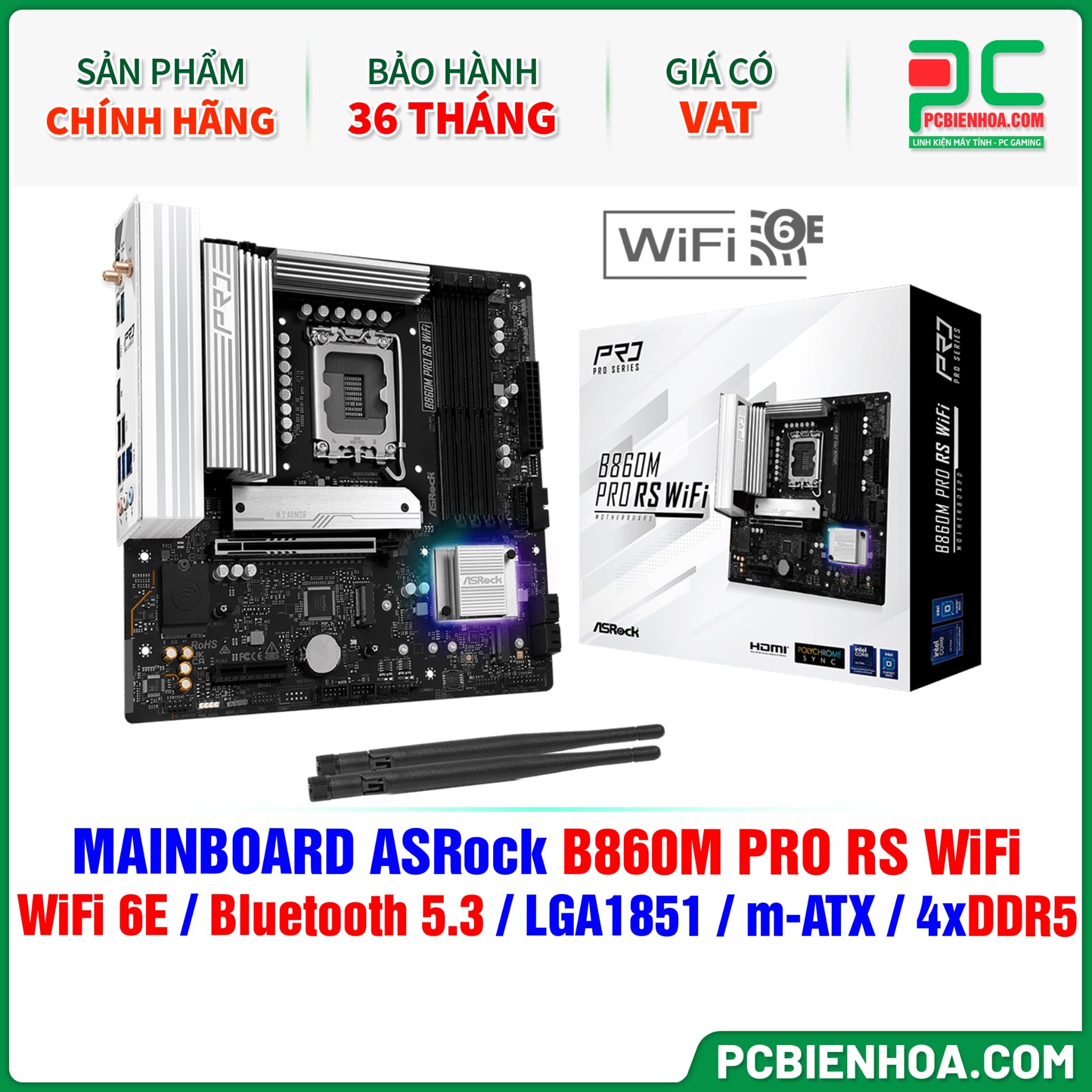

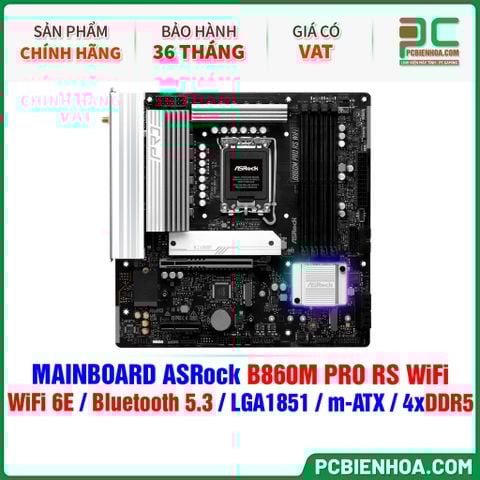

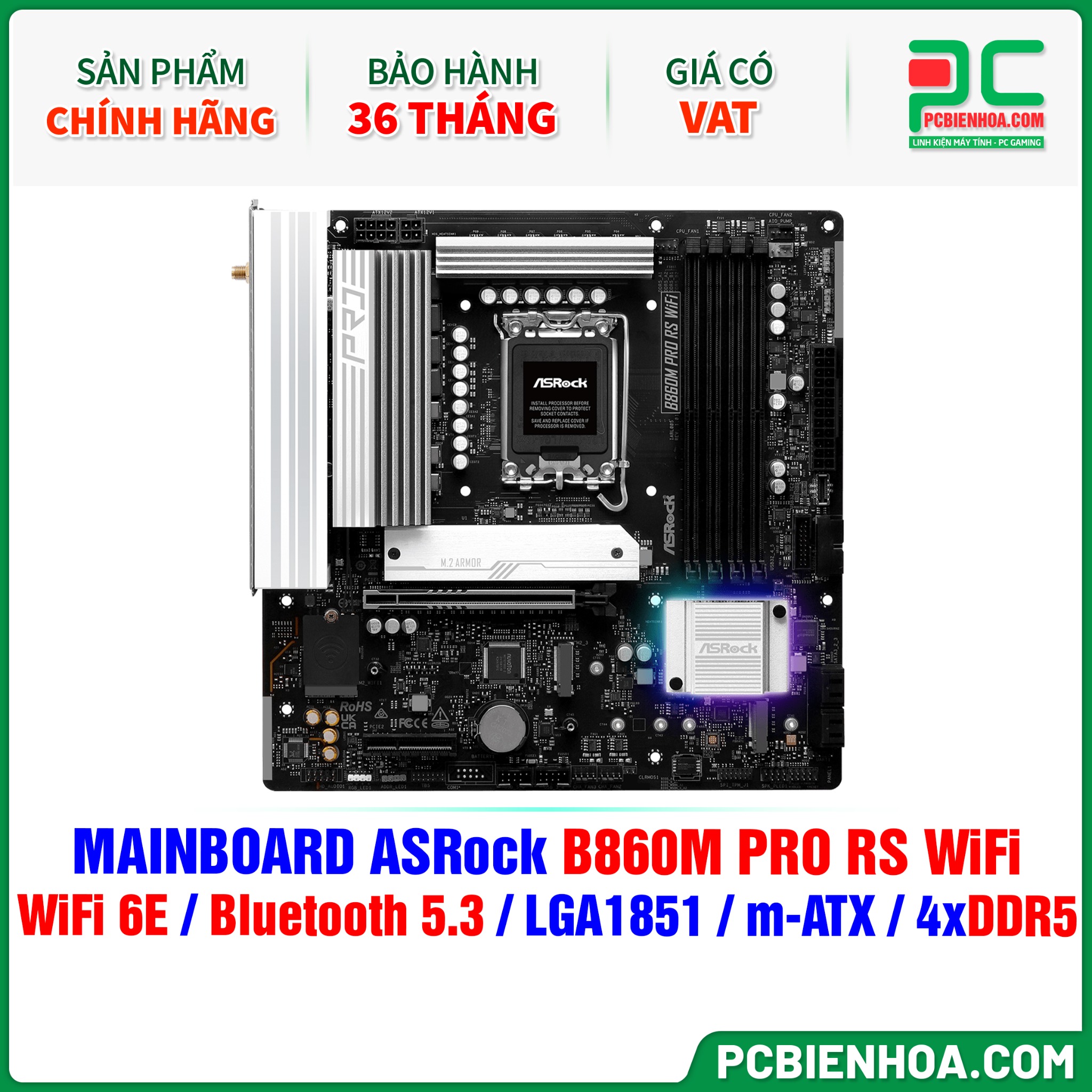

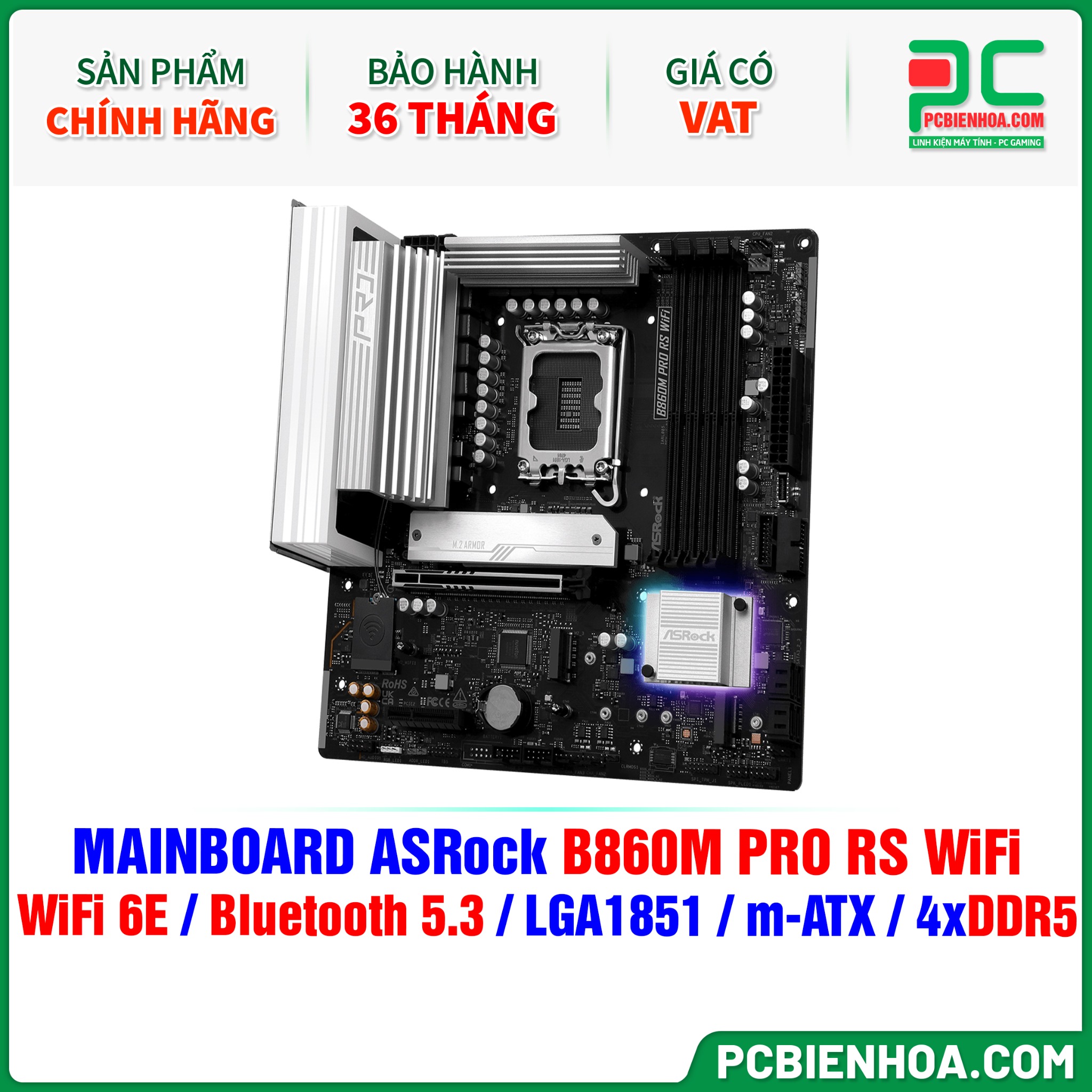

DDR5 - MAINBOARD ASRock B860M PRO RS WiFi ( WiFi 6E / Bluetooth 5.3 / LGA1851 / m-ATX / 4xDDR5 )

Tình trạng : Hết hàng | Thương hiệu : Asrock |

Giá gốc : 5,290,000₫

Giá khuyến mại : 4,390,000₫ (Tiết kiệm: 900,000₫)

Build PC với sản phẩm này

Default Title

THÔNG SỐ KỸ THUẬT

Hỗ trợ Socket: LGA1851

Số khe ram: 4x DDR5

Số khe M.2: 3

Kích thước: Micro-ATX

Hỗ trợ WIRELESS LAN : WiFi 6E

Hỗ trợ Bluetooth: Bluetooth 5.3

Bảo hành: 36 tháng

Liên hệ đặt hàng

Chính Sách Nổi Bật Tại PCBIENHOA.COM

GIAO HÀNG
● Ship COD toàn quốc
● Giao nhanh trong ngày, không ngại xa

SẢN PHẨM
● Cam kết hàng chính hãng mới 100%

BẢO HÀNH - ĐỔI TRẢ
   ●  Hàng lỗi kỹ thuật đổi mới trong vòng
       30 ngày
   ●  Bảo hành chính hãng

TRẢ GÓP
● Home Credit, HDSAISON và Thẻ tín dụng
● Mua ngay trả sau qua Home PayLater

BÁN HÀNG - TƯ VẤN - CSKH

Tư Vấn Cấu Hình PC Giá Tốt
- 0388.954.721 (Mrs.Nhàn)

Giao Hàng - Bán Online COD
- 0984.654.348 (Mr.Dũng)

Kỹ Thuật - Bảo Hành
- 0359.694.006 (Mr.Tuân)

Mô tả sản phẩm

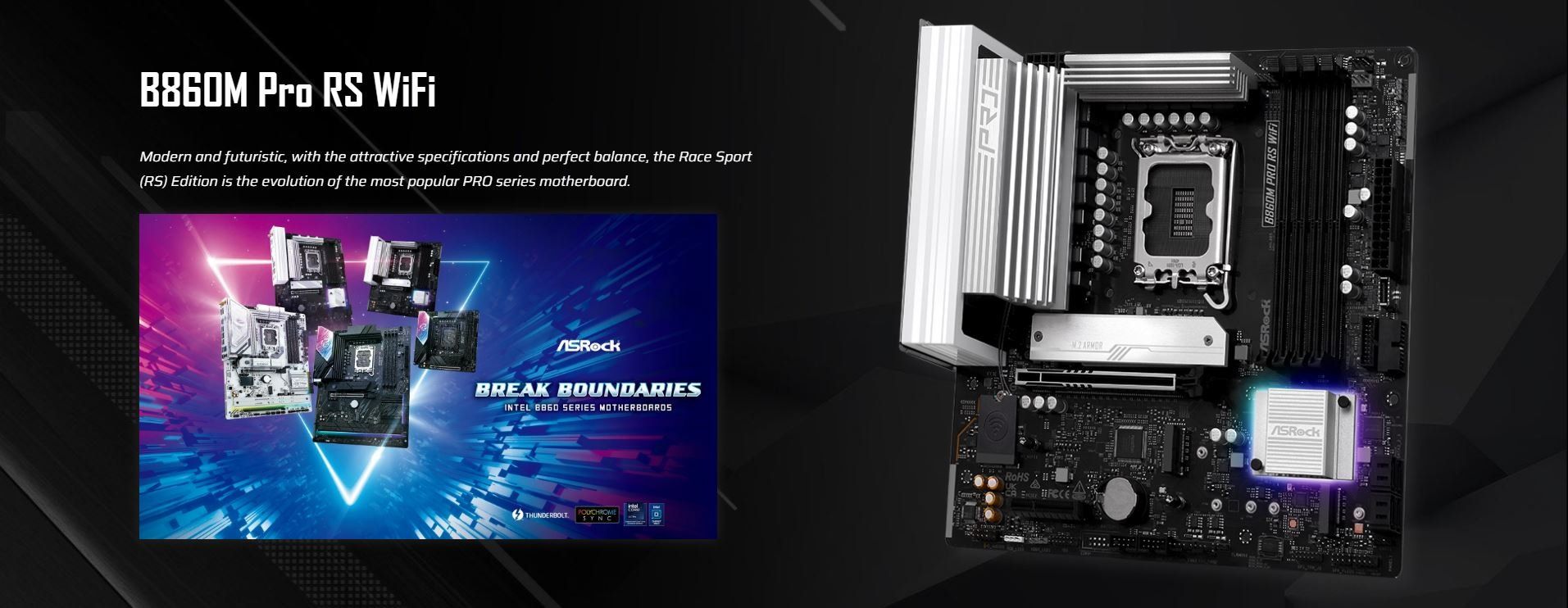

MAINBOARD ASRock B860M PRO RS WiFi ( WiFi 6E / Bluetooth 5.3 / LGA1851 / m-ATX / 4xDDR5 )

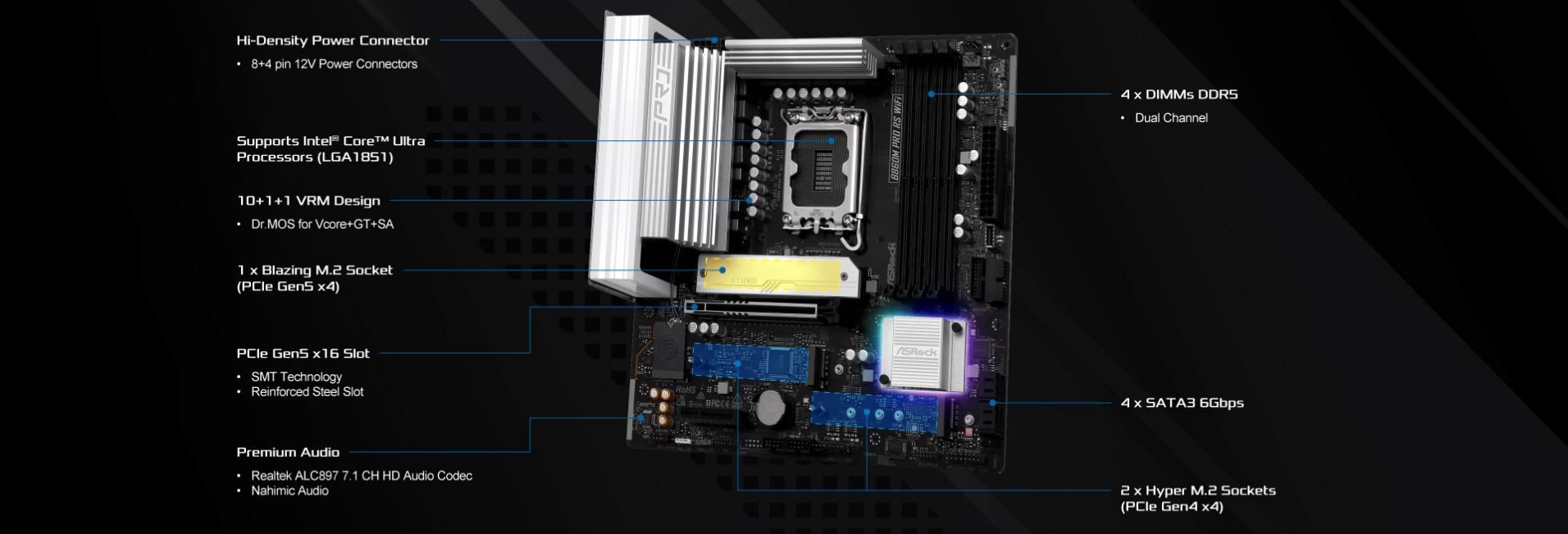

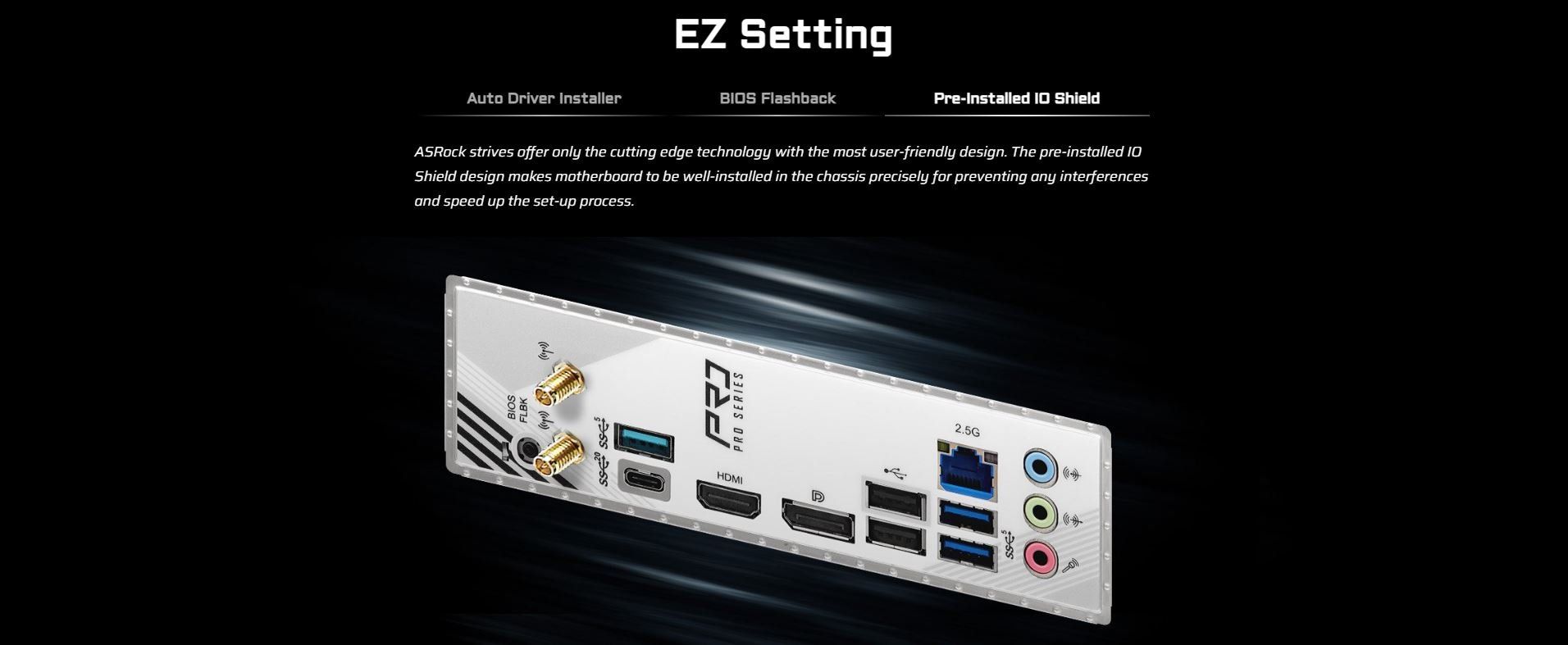

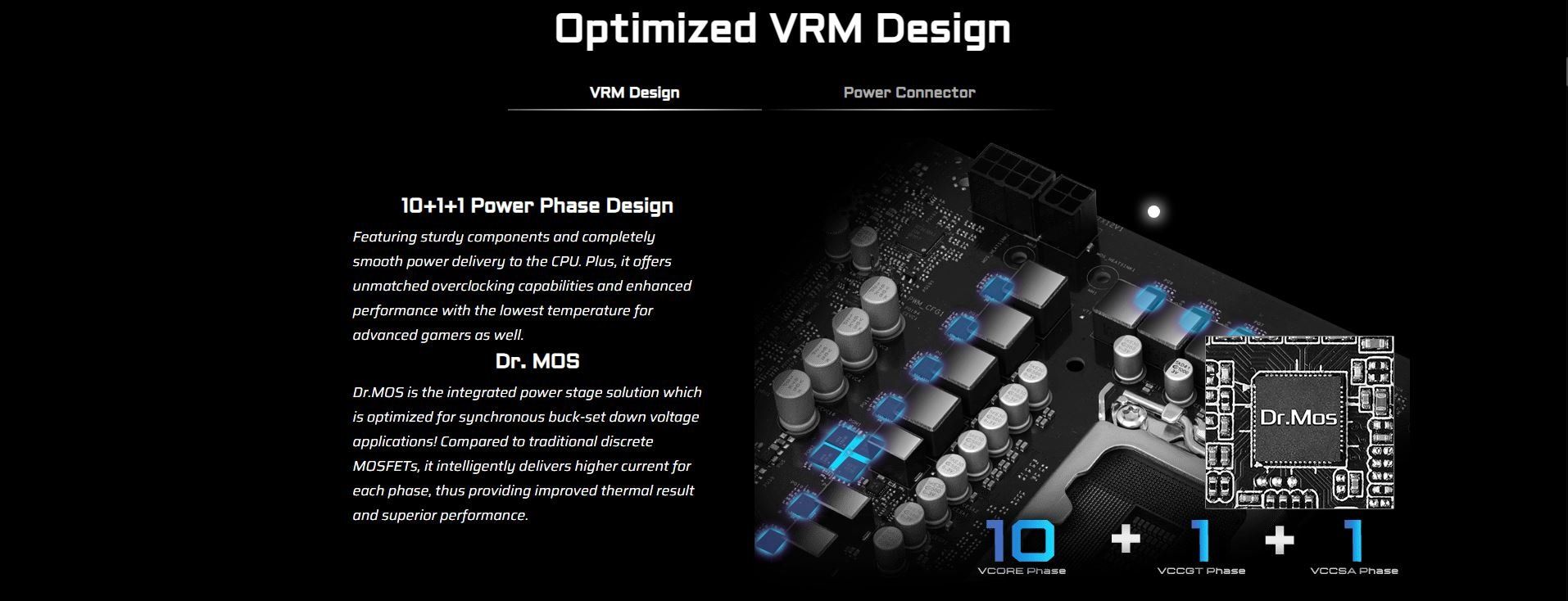

Unique Feature	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 Rock-Solid Durability - 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
CPU	- Supports Intel^® Core™ Ultra Processors (Series 2) (LGA1851) - Supports Intel^® Hybrid Technology - Supports Intel^® Turbo Boost Max 3.0 Technology - Supports Intel^® Thermal Velocity Boost (TVB) - Supports Intel^® Adaptive Boost Technology (ABT) - Integrated NPU for dedicated AI acceleration
Chipset	- Intel^® B860

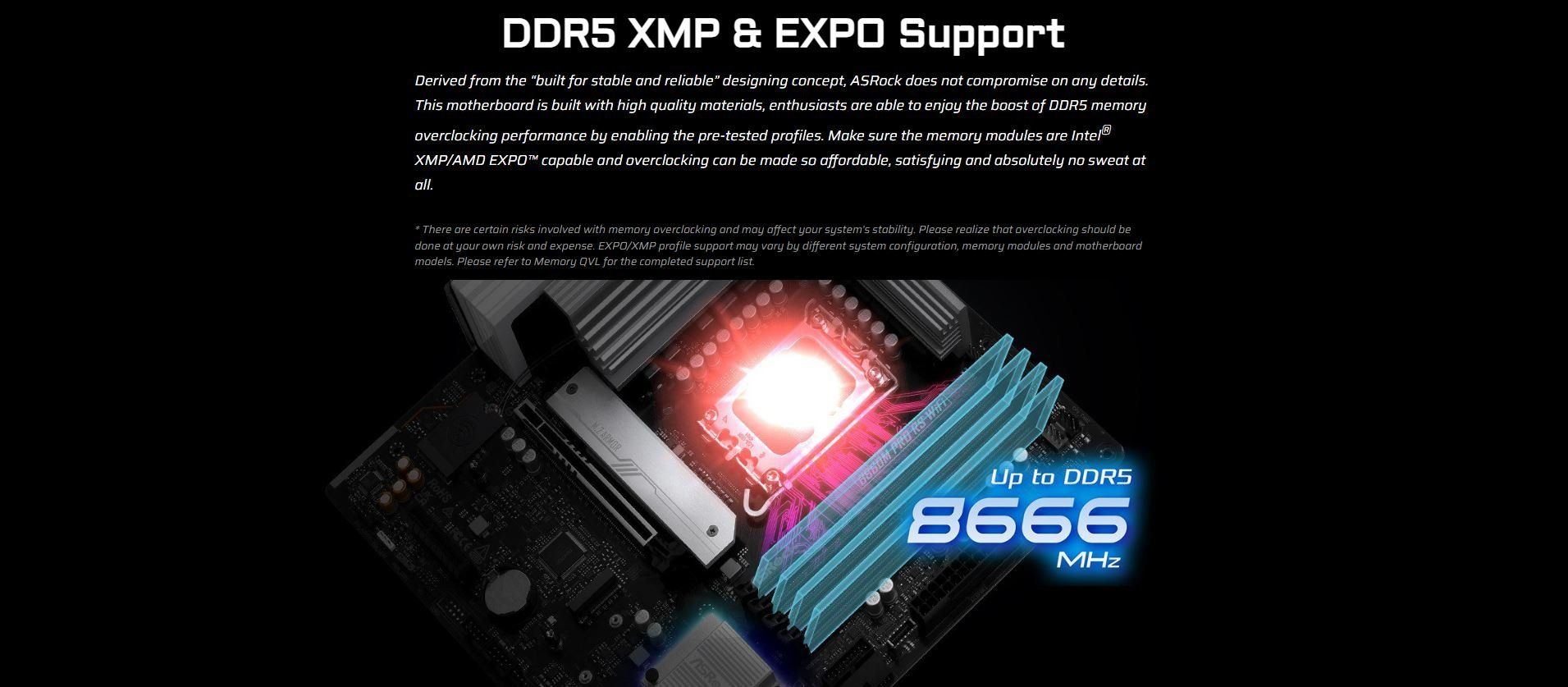

Memory	- Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)* - Supports Clocked Unbuffered DIMM (CUDIMM) - Max. capacity of system memory: 256GB - Supports Intel^® Extreme Memory Profile (XMP) 3.0x * 1DPC 1R Up to 8666+ MHz (OC), 5600 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 5600 MHz Natively. 2DPC 1R Up to 6533+ MHz (OC), 4800 MHz Natively. 2DPC 2R Up to 5600+ MHz (OC), 4400 MHz Natively.
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	- Intel^® Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel^® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
LAN	- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control

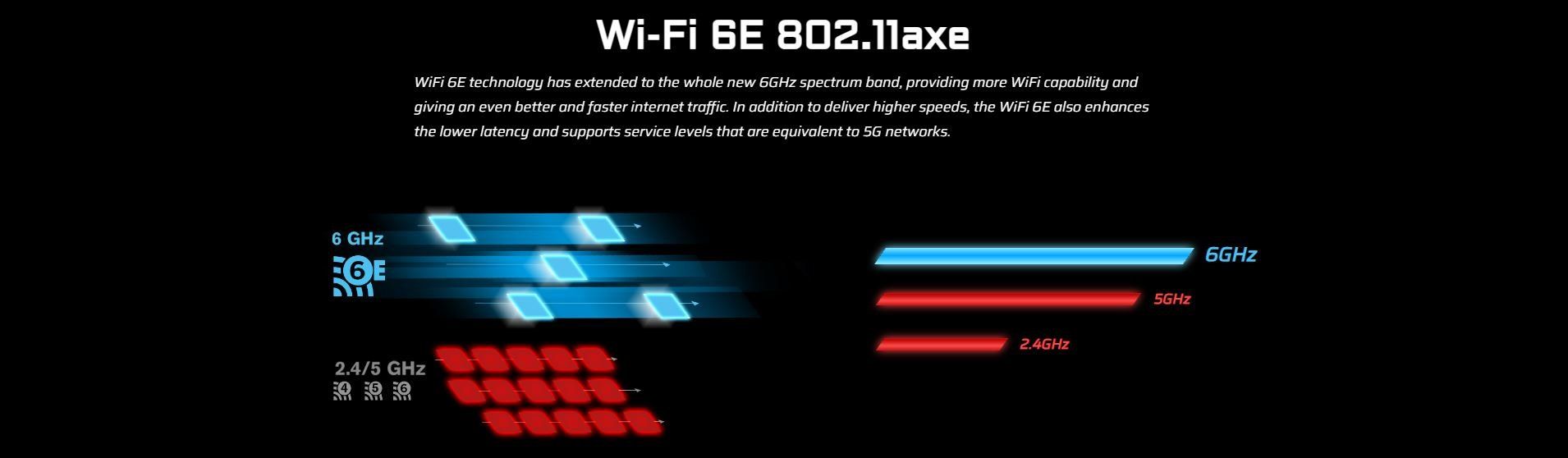

Wireless LAN	- 802.11axe Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax/axe - Supports Dual-Band 2x2 with extended 6GHz band* support - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth 5.3 - Supports MU-MIMO *The 6GHz band of Wi-Fi 6E module is supported by Microsoft Windows^® 11 only. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.

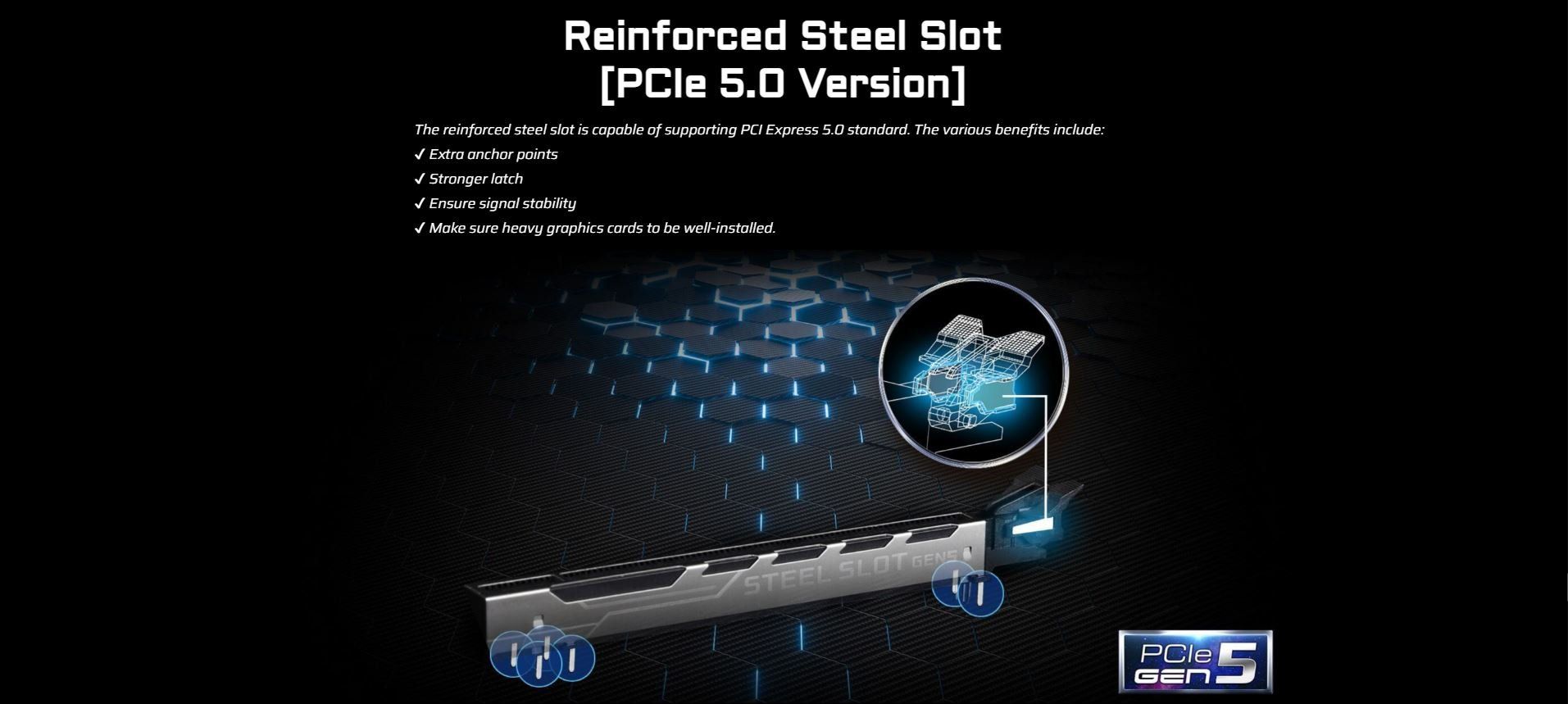

Slots	CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT) * Supports NVMe SSD as boot disks

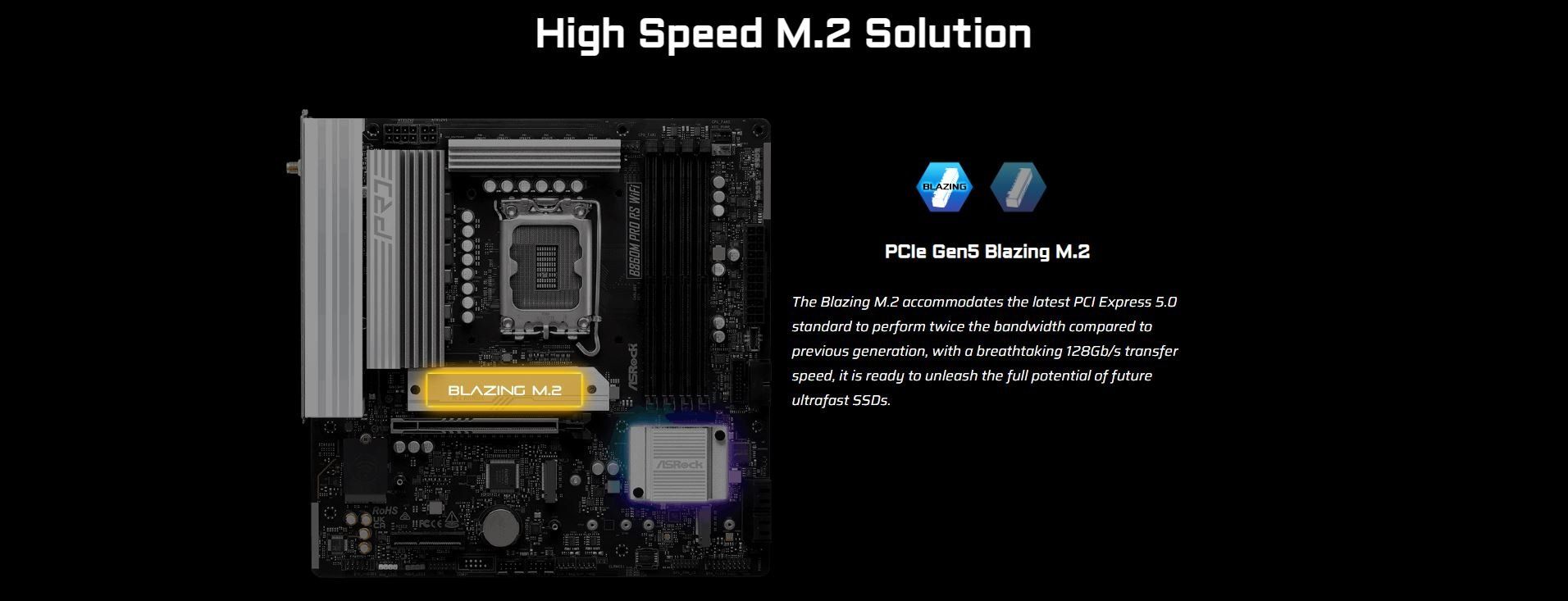

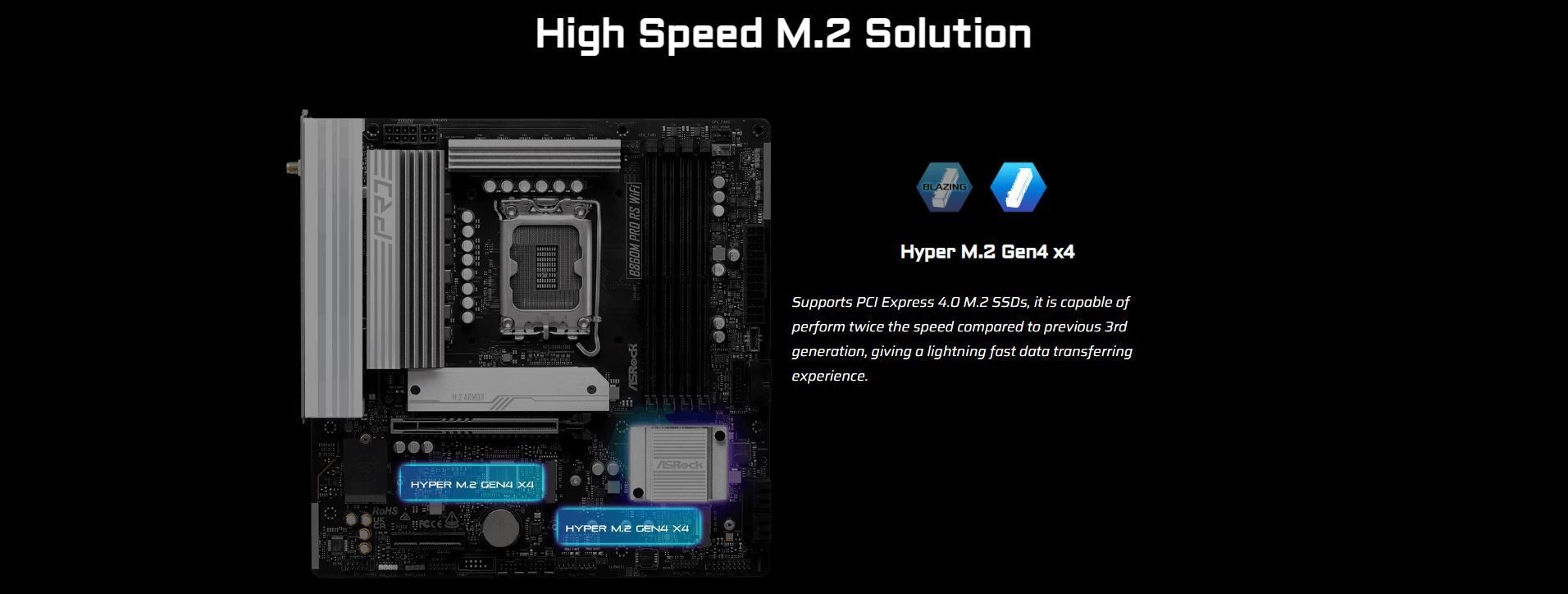

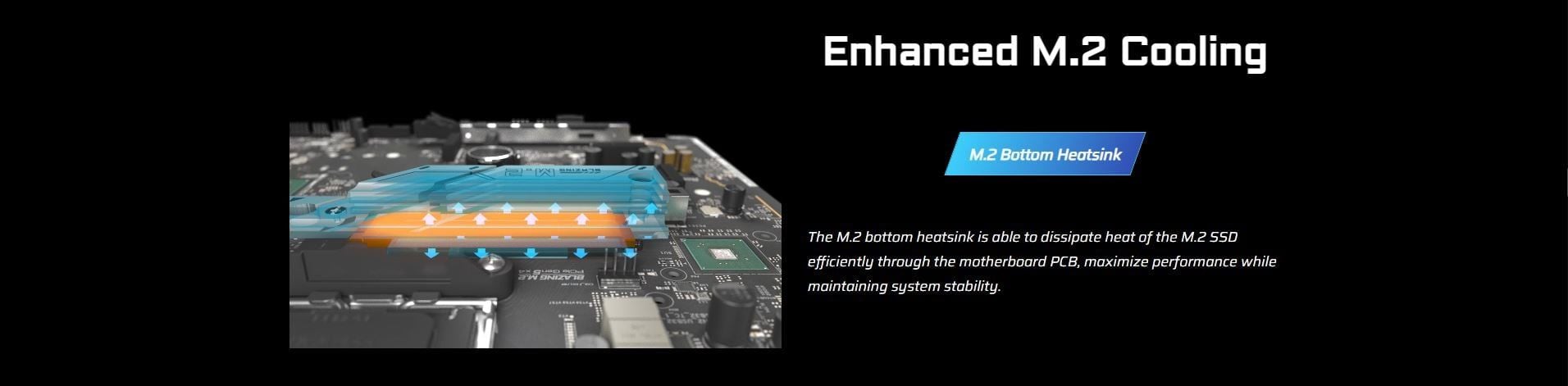

Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel^® Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID	- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB	CPU: - 1 x USB 3.2 Gen2x2 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen1 Type-C (Front) - 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection

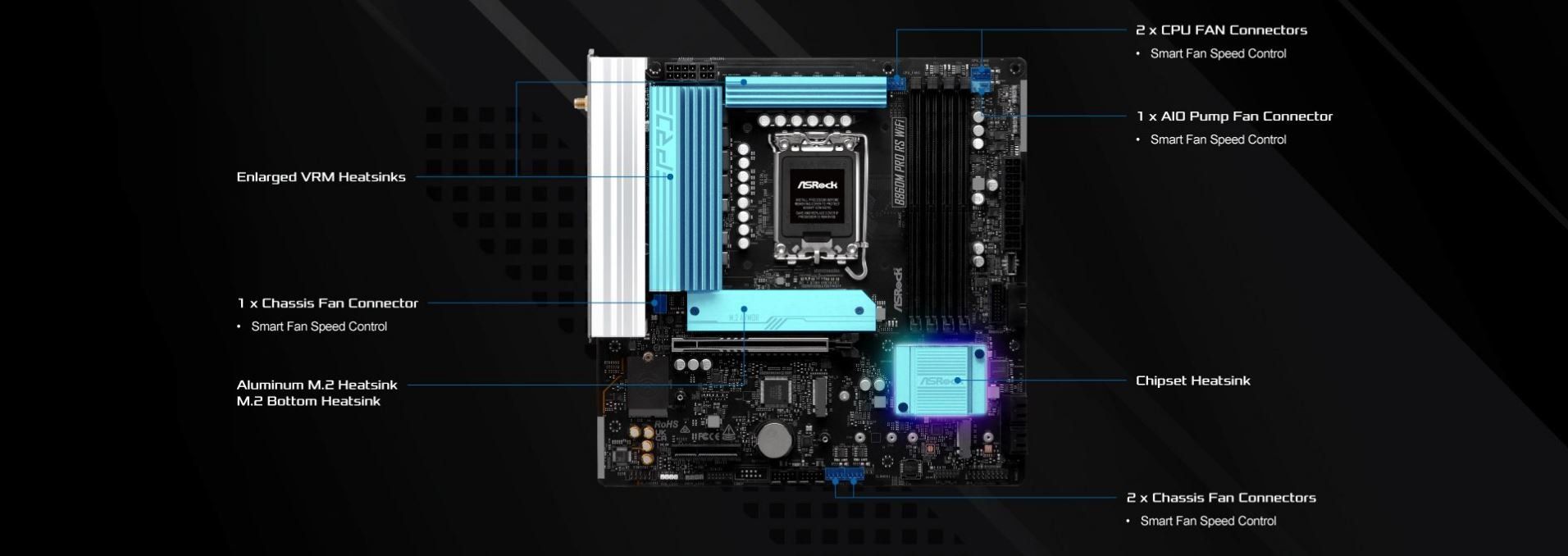

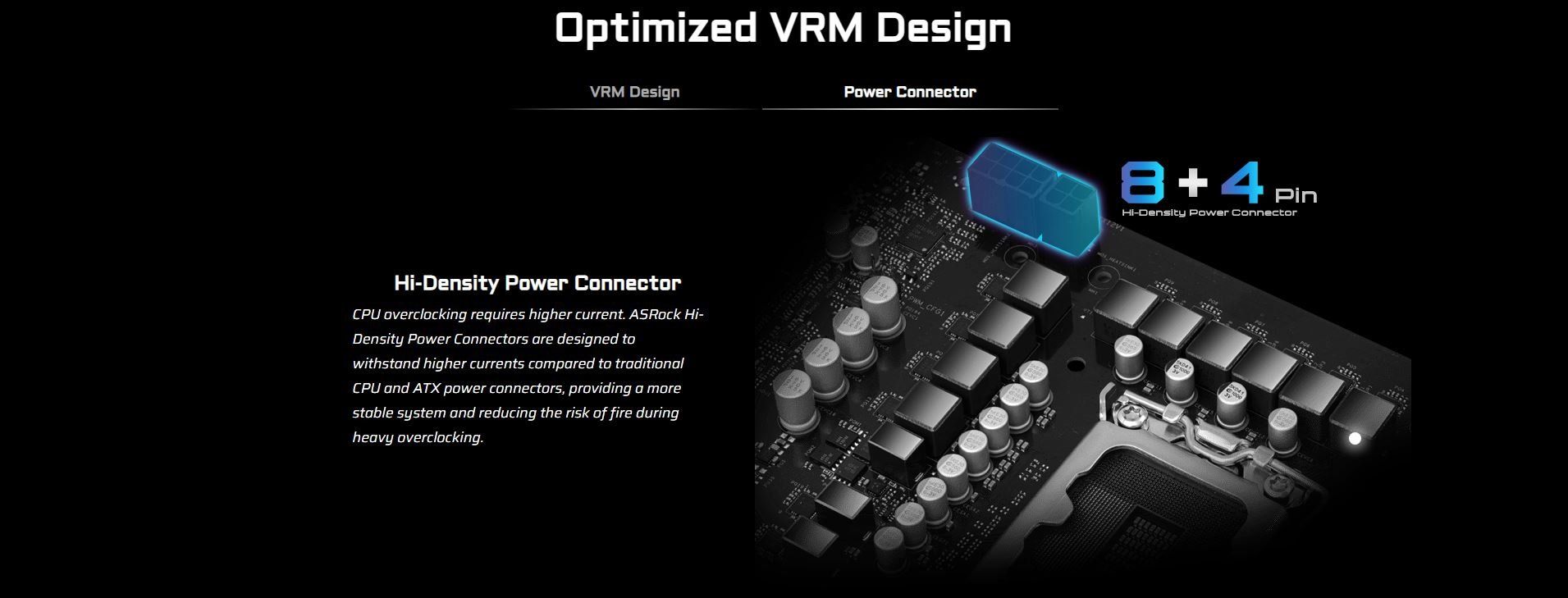

Connector	- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers - 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)* - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)* - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header * Supports in total up to 12V/3A, 36W LED Strip Support in total up to 5V/3A, 15W LED Strip * CPU_FAN1 supports the fan power up to 1A (12W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W). CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.

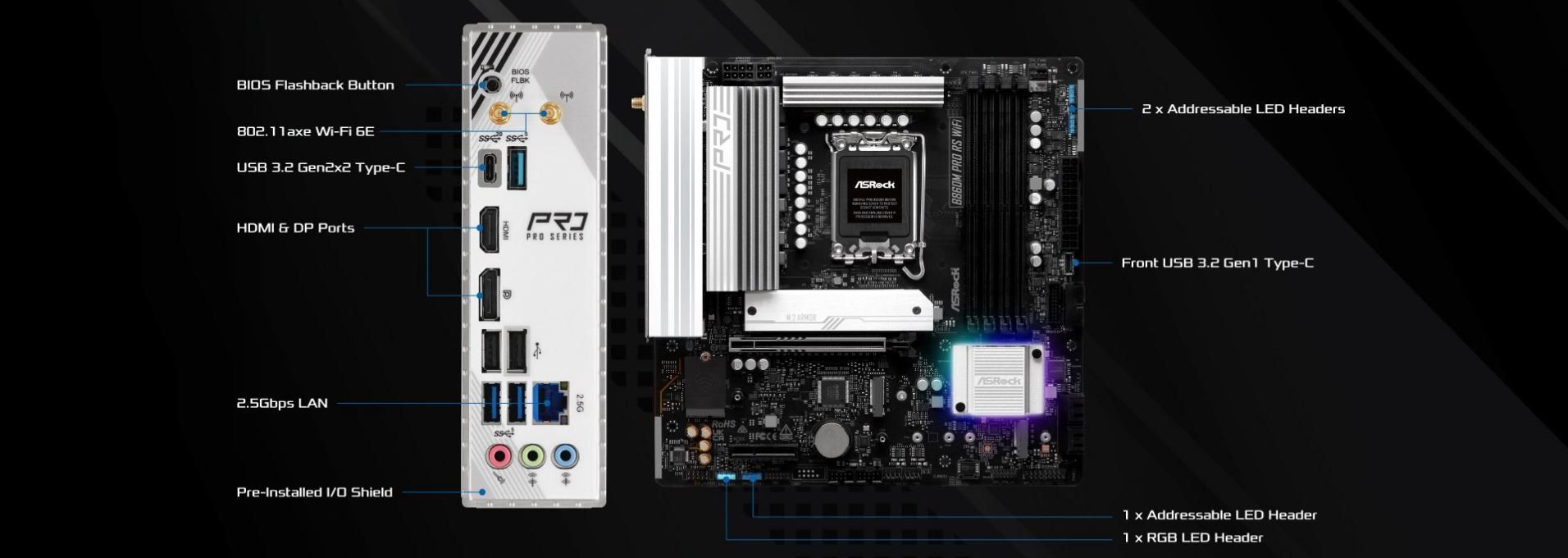

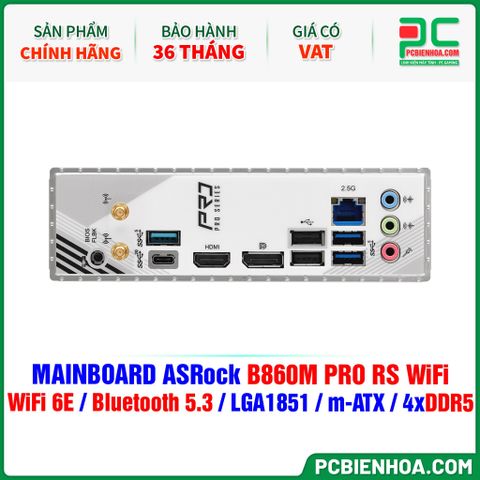

‎Rear Panel I/O	- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 3 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
UEFI and Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	- 2 x SATA Data Cables - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
Form Factor	- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OS	- Microsoft Windows^® 11 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
