DDR5 - MAINBOARD ASRock B650M-H/M.2+ WiFi ( WiFi 5 / Bluetooth 5.0 / AM5 / m-ATX / 2xDDR5 )

Tình trạng : Còn hàng | Thương hiệu : Asrock |

Giá gốc : 3,490,000₫

Giá khuyến mại : 2,990,000₫ (Tiết kiệm: 500,000₫)

Build PC với sản phẩm này

Default Title

THÔNG SỐ KỸ THUẬT

Hỗ trợ Socket: AM5

Số khe ram: 2x DDR5

Số khe M.2: 2

Kích thước: Micro-ATX

Hỗ trợ WIRELESS LAN : WiFi 5

Hỗ trợ Bluetooth: Bluetooth 5.0

Bảo hành: 36 tháng

THÊM VÀO GIỎ HÀNG Giá luôn tốt nhất ĐẶT MUA NGAY Giao hàng tận nơi, nhanh chóng

Chính Sách Nổi Bật Tại PCBIENHOA.COM

GIAO HÀNG
● Ship COD toàn quốc
● Giao nhanh trong ngày, không ngại xa

SẢN PHẨM
● Cam kết hàng chính hãng mới 100%

BẢO HÀNH - ĐỔI TRẢ
   ●  Hàng lỗi kỹ thuật đổi mới trong vòng
       30 ngày
   ●  Bảo hành chính hãng

TRẢ GÓP
● Home Credit, HDSAISON và Thẻ tín dụng
● Mua ngay trả sau qua Home PayLater

BÁN HÀNG - TƯ VẤN - CSKH

Tư Vấn Cấu Hình PC Giá Tốt
- 0388.954.721 (Mrs.Nhàn)

Giao Hàng - Bán Online COD
- 0984.654.348 (Mr.Dũng)

Kỹ Thuật - Bảo Hành
- 0359.694.006 (Mr.Tuân)

Mô tả sản phẩm

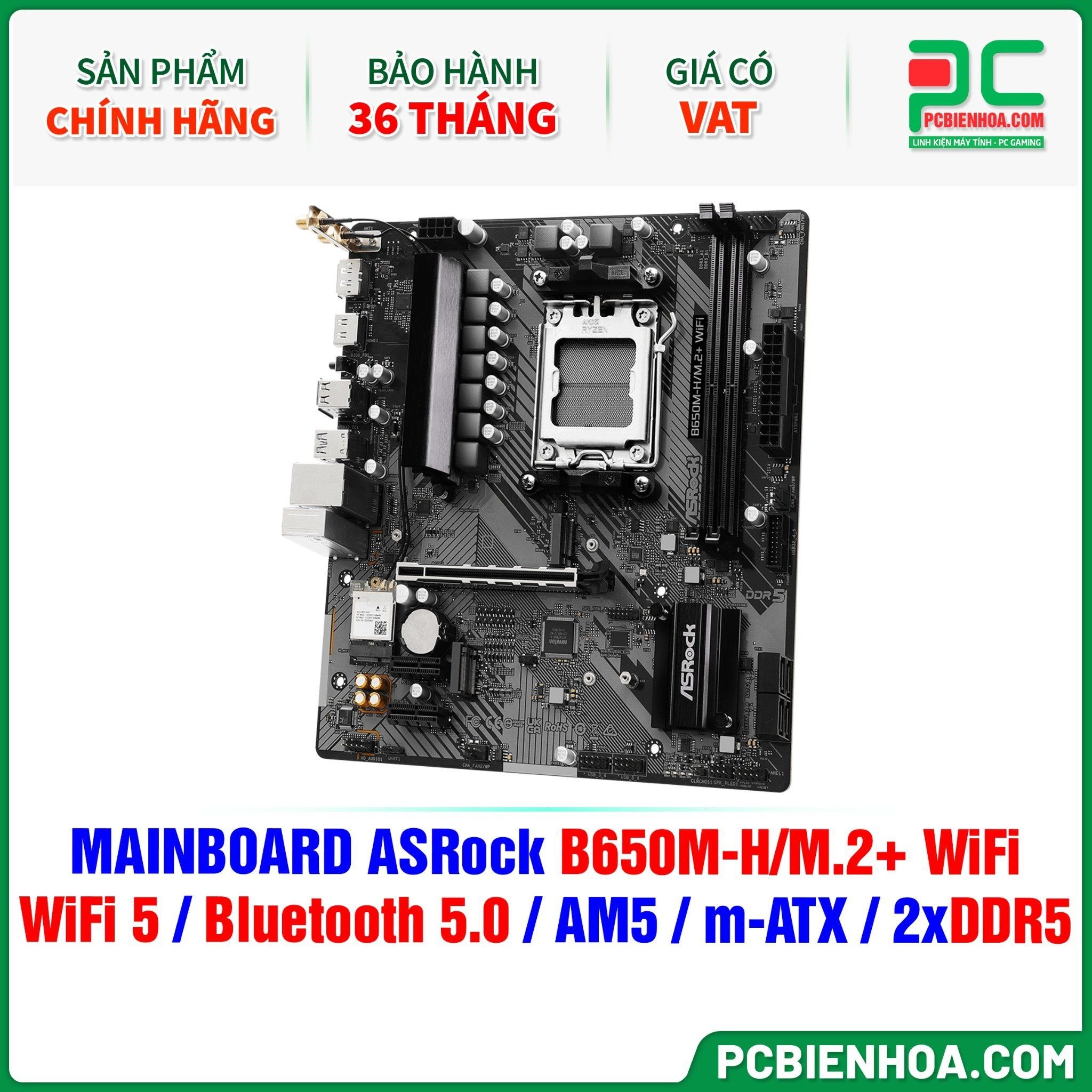

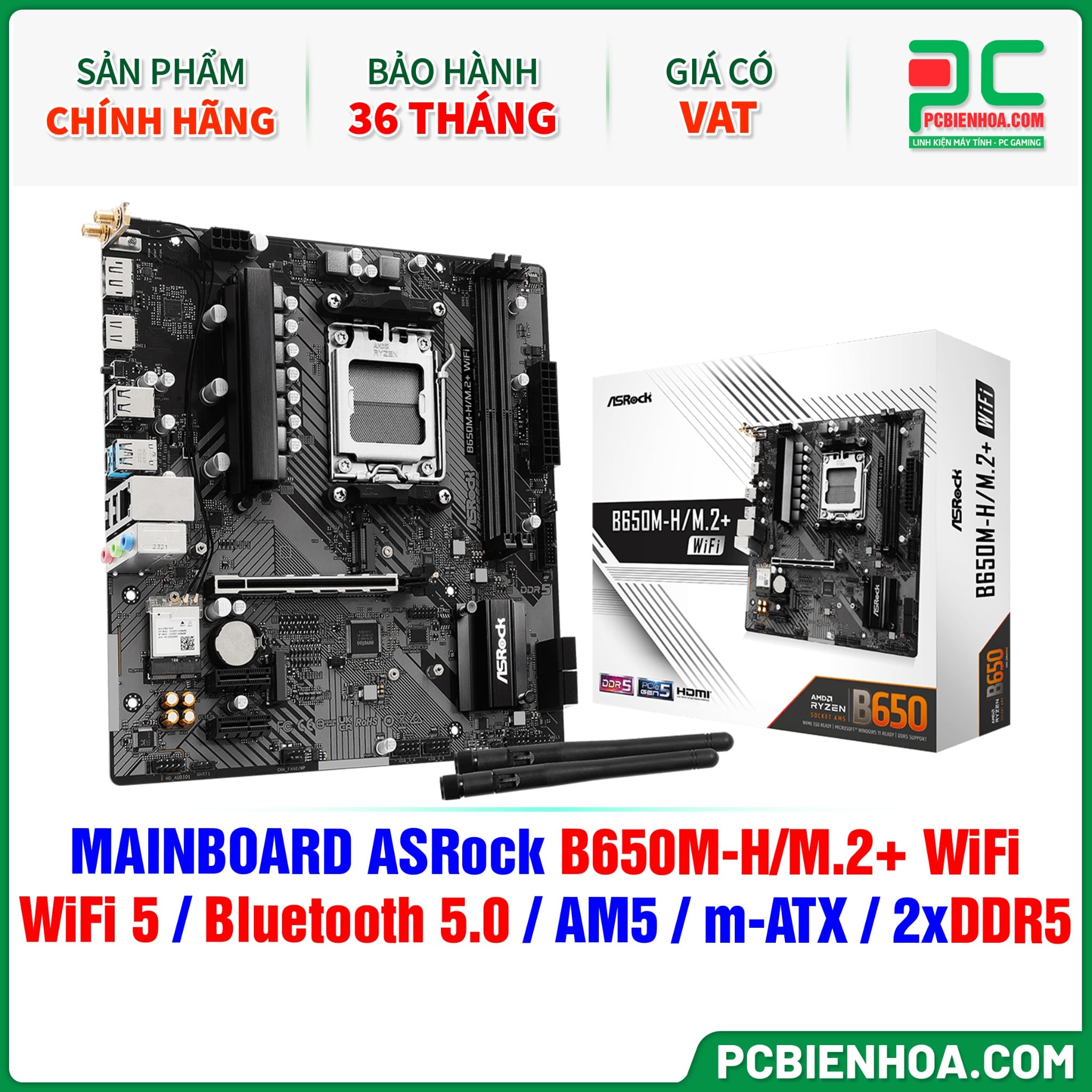

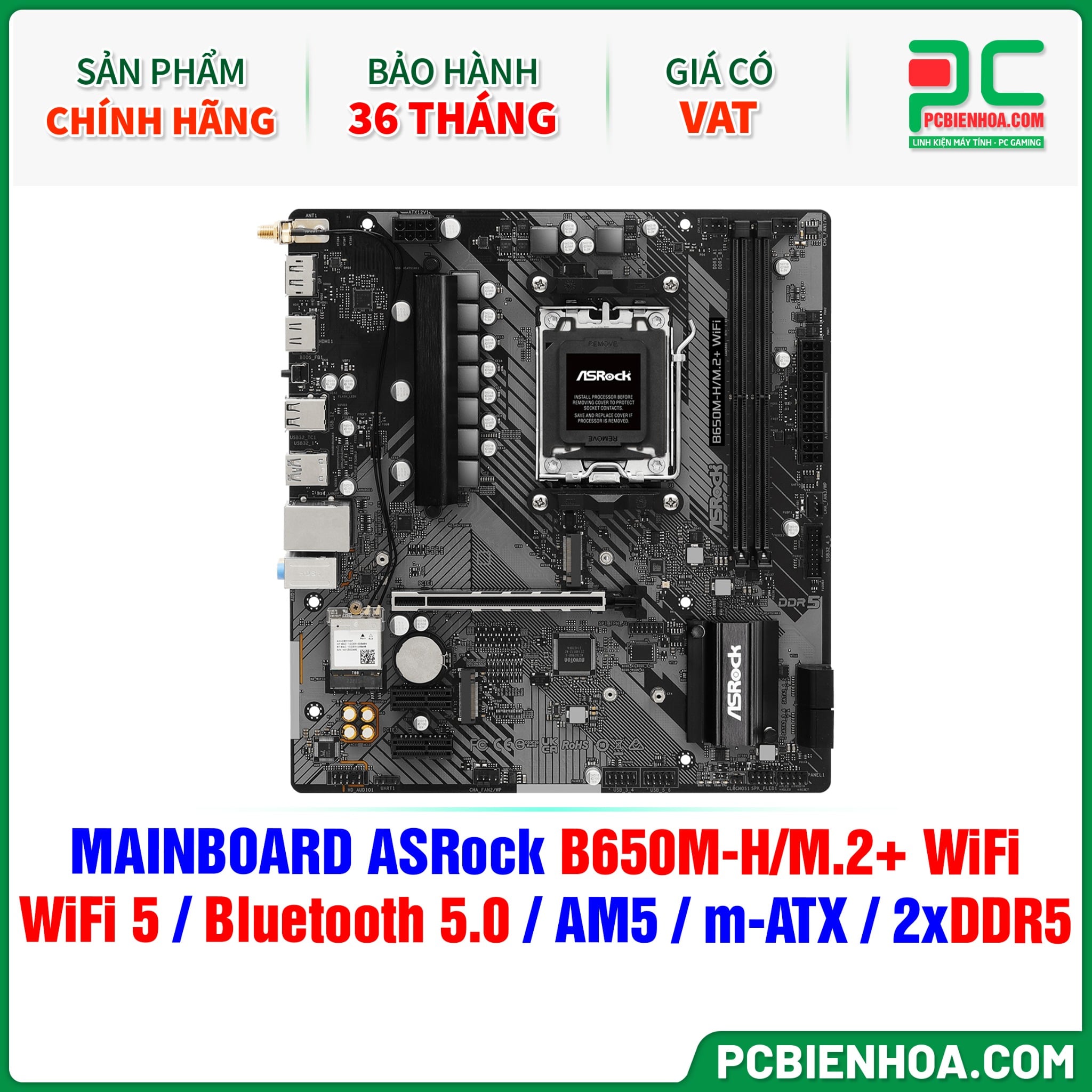

MAINBOARD ASRock B650M-H/M.2+ WiFi ( WiFi 5 / Bluetooth 5.0 / AM5 / m-ATX / 2xDDR5 )

Unique Feature	Superb Productivity - PCIe Gen5 (M.2) - Dual Channel DDR5 Rock-Solid Durability - 6+1+1 Power Phase, 50A Dr.MOS for VCore Ultrafast Gaming - 802.11ac Wi-Fi Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
CPU	- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors* * The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.
Chipset	- AMD B650
Memory	- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 ECC/non-ECC, un-buffered memory up to 6400+(OC)* - Max. capacity of system memory: 128GB* - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows^® 32-bit OS. For Windows^® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS	- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics	Integrated AMD RDNA™ graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio	- 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio
LAN	- Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H
Wireless LAN	- 802.11ac Wi-Fi Module - Supports IEEE 802.11a/b/g/n/ac - Supports Dual-Band (2.4/5 GHz) - Supports high speed wireless connections up to 433Mbps - Supports Bluetooth 5.0
Slots	CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks
Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
RAID	- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
USB	- 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
Connector	- 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) * CPU_FAN1 supports the fan power up to 1A (12W). ** CHA_FAN1~3/WP support the fan power up to 2A (24W). CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

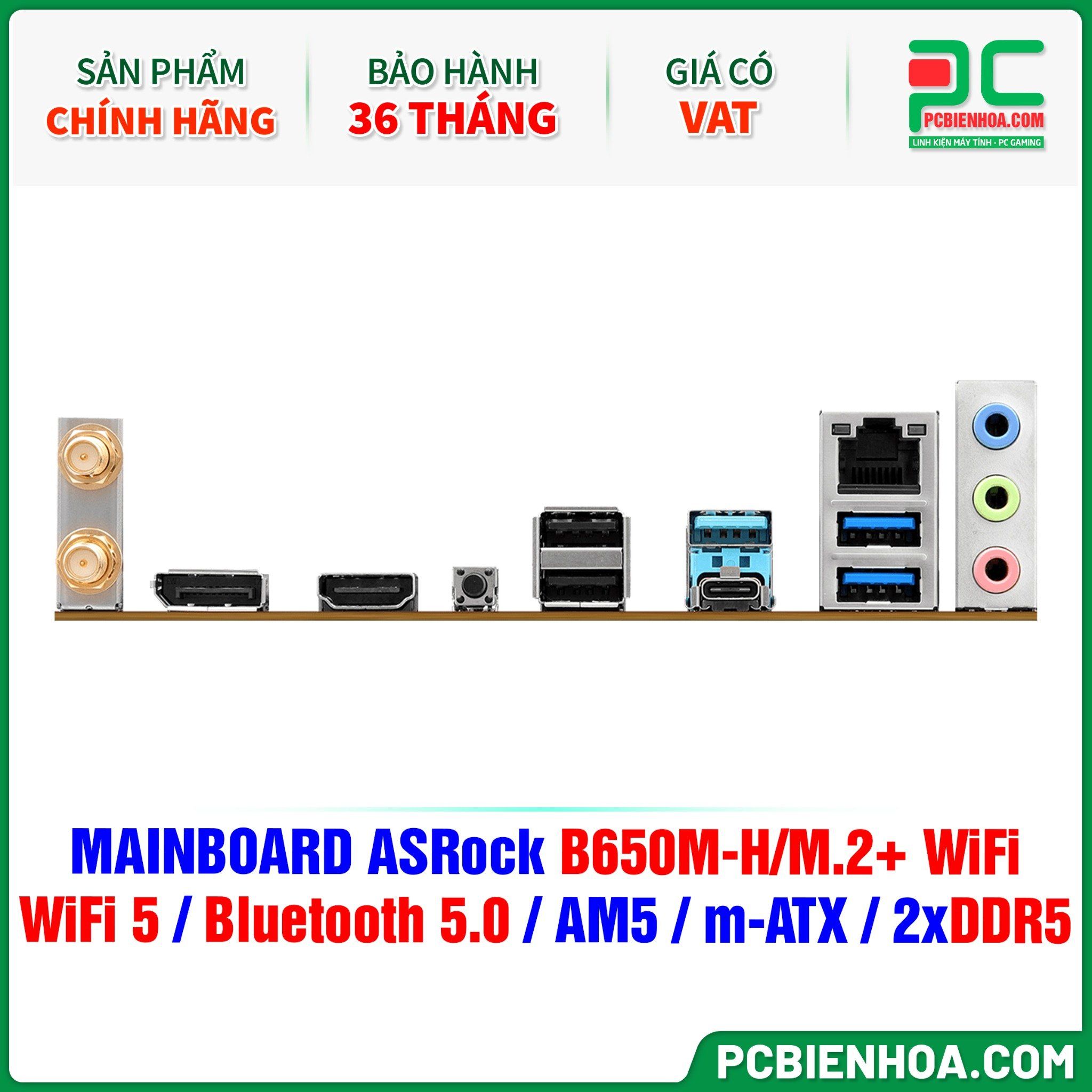

‎Rear Panel I/O	- 2 x Antenna Ports - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone
UEFI and Software	Software - ASRock Motherboard Utility (A-Tuning)* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories	- 1 x I/O Shield - 2 x ASRock WiFi 2.4/5 GHz Antennas - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets
Form Factor	- Micro ATX Form Factor: 9.6-in x 8.9-in, 24.4 cm x 22.6 cm
OS	- Microsoft Windows^® 10 64-bit / 11 64-bit
Certifications	- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
