Essentials

Product Collection

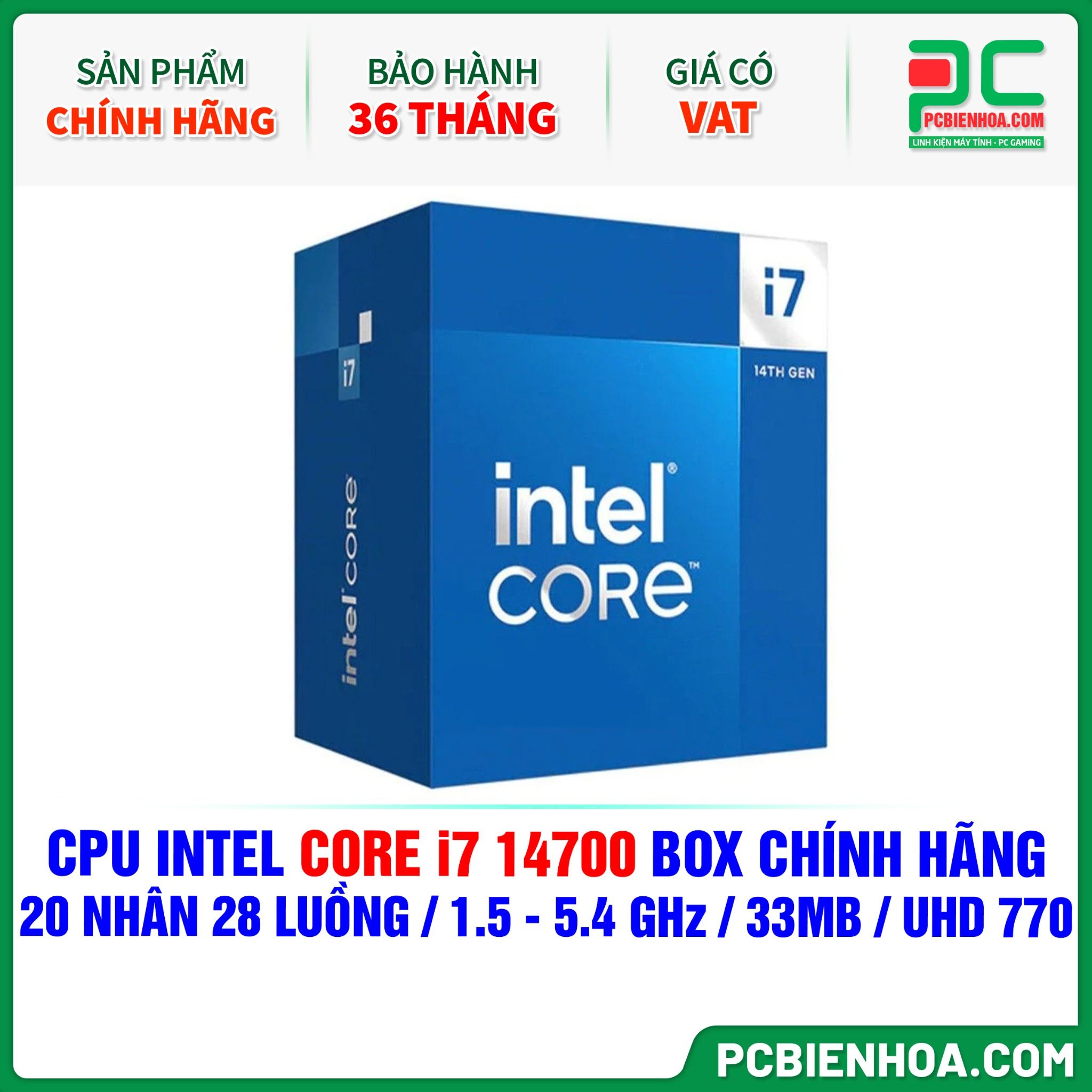

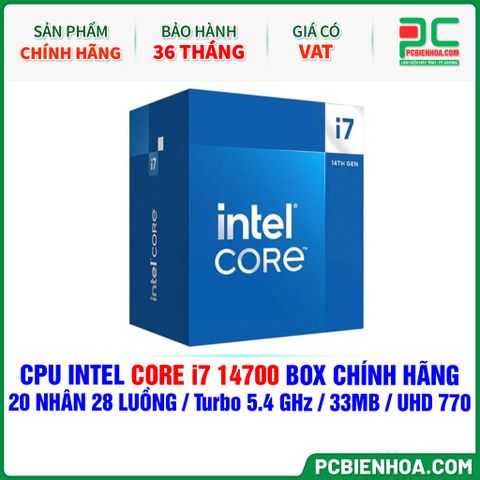

Intel® Core™ i7 Processors (14th gen)

Code Name

Products formerly RAPTOR LAKE

Vertical Segment

Desktop

Processor Number

i7-14700

Lithography

Intel 7

CPU Specifications

Total Cores

20

# of Performance-cores

8

# of Efficient-cores

12

Total Threads

28

Max Turbo Frequency

5.4 GHz

Intel® Turbo Boost Max Technology 3.0 Frequency ‡

5.4 GHz

Performance-core Max Turbo Frequency

5.3 GHz

Efficient-core Max Turbo Frequency

4.2 GHz

Performance-core Base Frequency

2.1 GHz

Efficient-core Base Frequency

1.5 GHz

Cache

33 MB Intel® Smart Cache

Total L2 Cache

28 MB

Processor Base Power

65 W

Maximum Turbo Power

219 W

Memory Specifications

Max Memory Size (dependent on memory type)

192 GB

Memory Types

Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

89.6 GB/s

ECC Memory Supported ‡

Yes

GPU Specifications

Processor Graphics

Intel® UHD Graphics 770

Graphics Base Frequency

300 MHz

Graphics Max Dynamic Frequency

1.6 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

32

Max Resolution (HDMI)^‡

4096 x 2160 @ 60Hz

Max Resolution (DP)‡

7680 x 4320 @ 60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

5120 x 3200 @ 120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3.0

Multi-Format Codec Engines

2

Intel® Quick Sync Video

Yes

Intel® Clear Video HD Technology

Yes

# of Displays Supported ^‡

4

Device ID

0xA780
