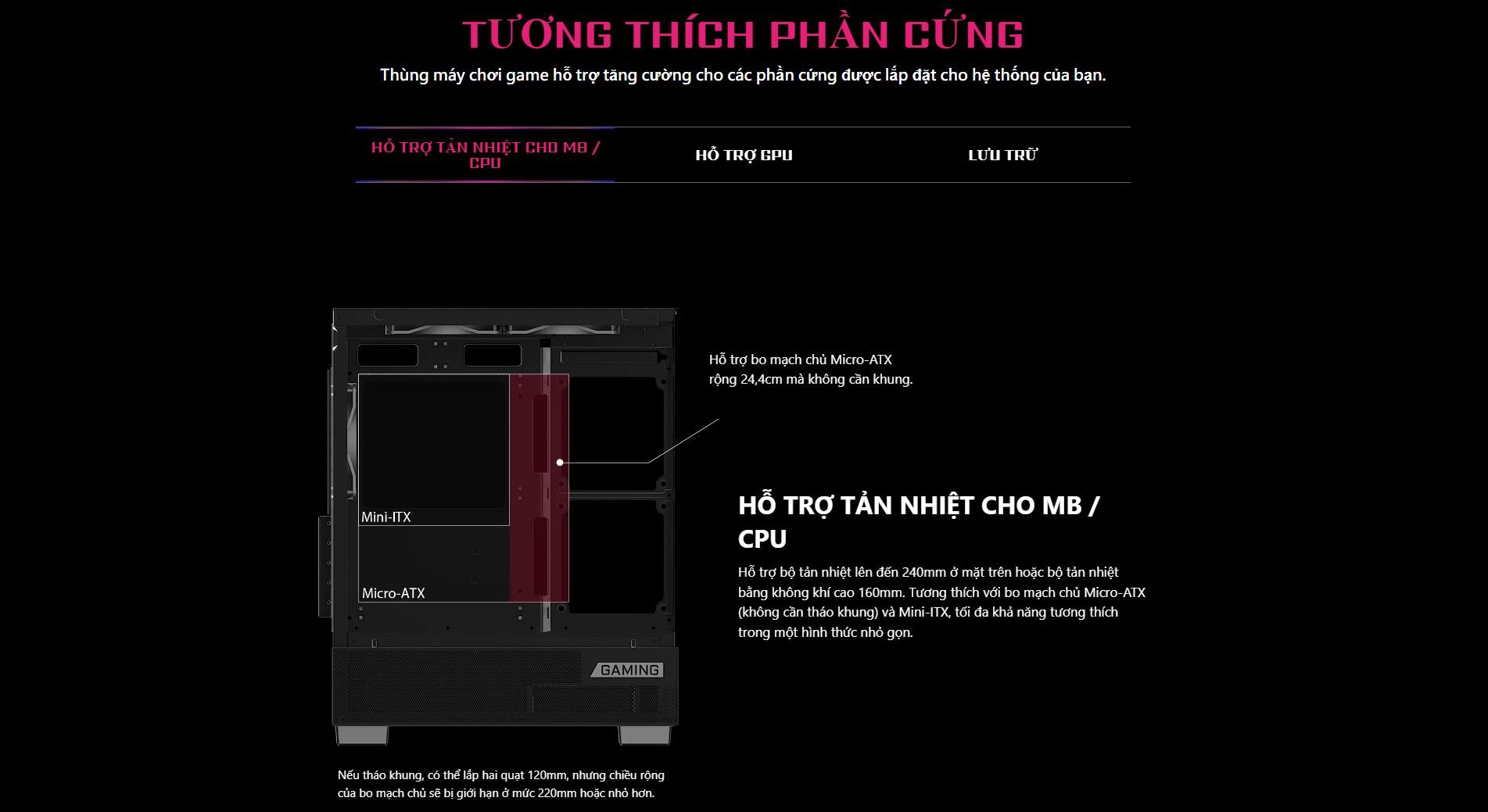

Support MB Form Factor

Regular
Micro-ATX, Mini-ITX

Case Form Factor

Mid Tower

Product Name

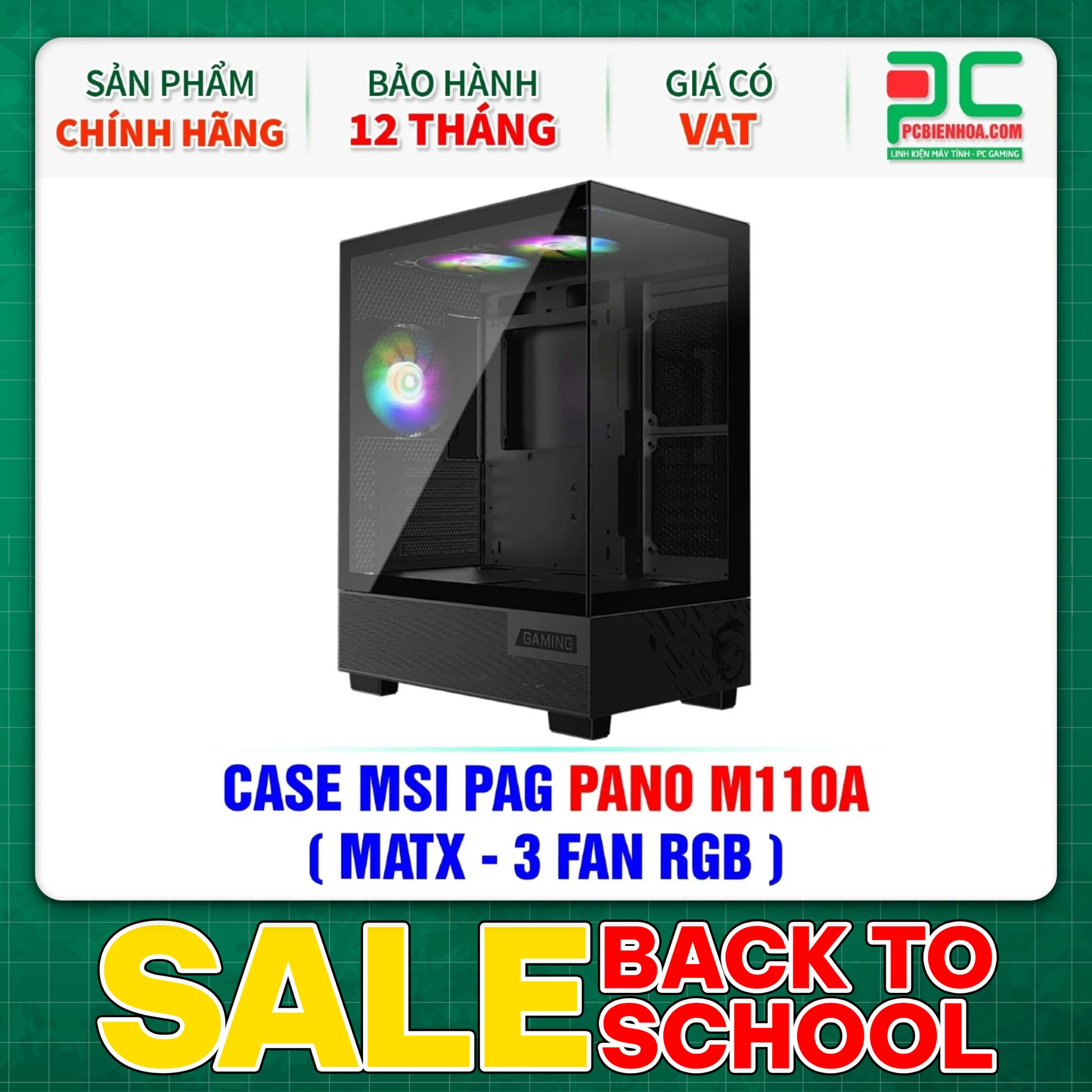

PAG PANO M110A

Dimension

369(D) x 210(W) x 448(H) mm / 14.52 x 8.26 x 17.63 inches

Weight

N/A kg / N/A lbs (TBD)

I/O Ports

1 x USB 5Gbs (Type-A)
1 x USB (Type-A)
1 x Audio-Out / Mic-in
1 x Reset Button
1 x Power Button

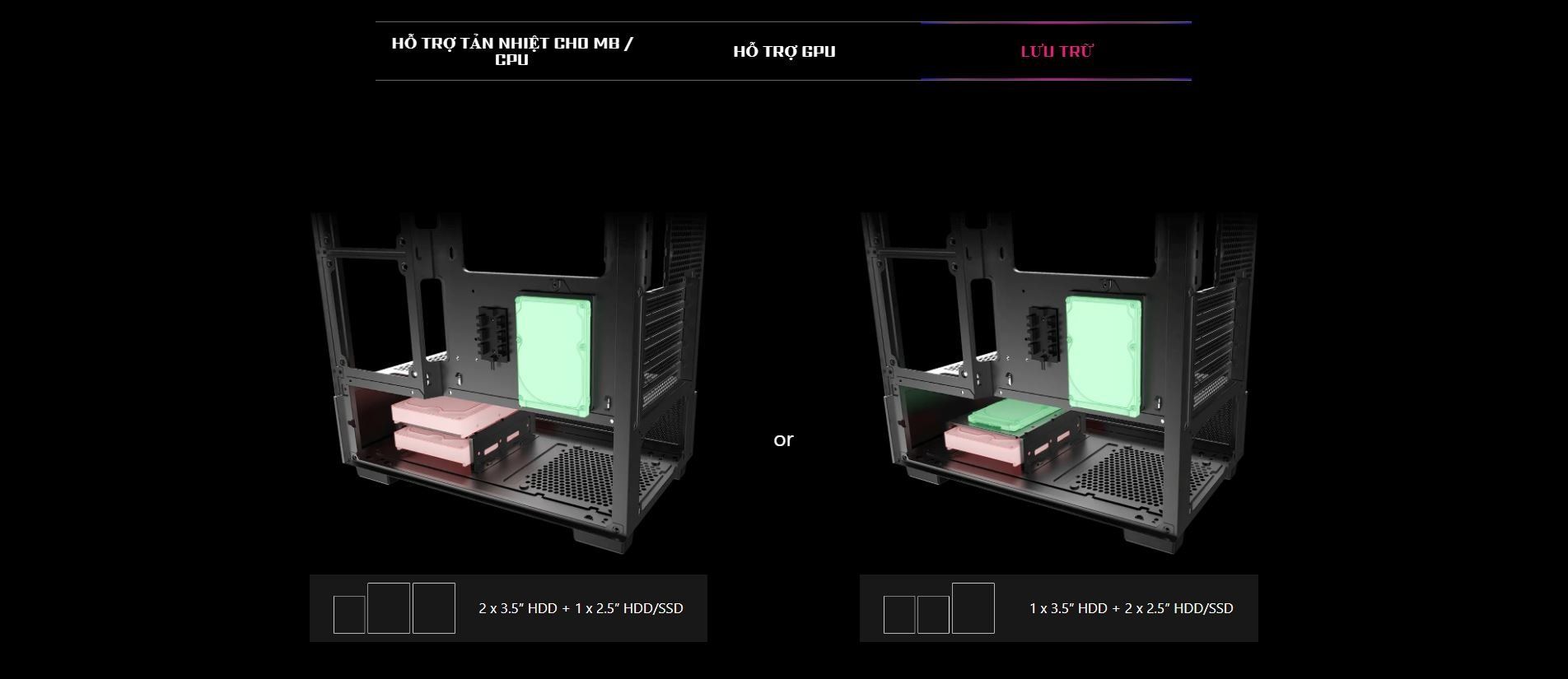

Driver Bays

1 x 2.5“
2 x 3.5“

Case Expansion Slots

5

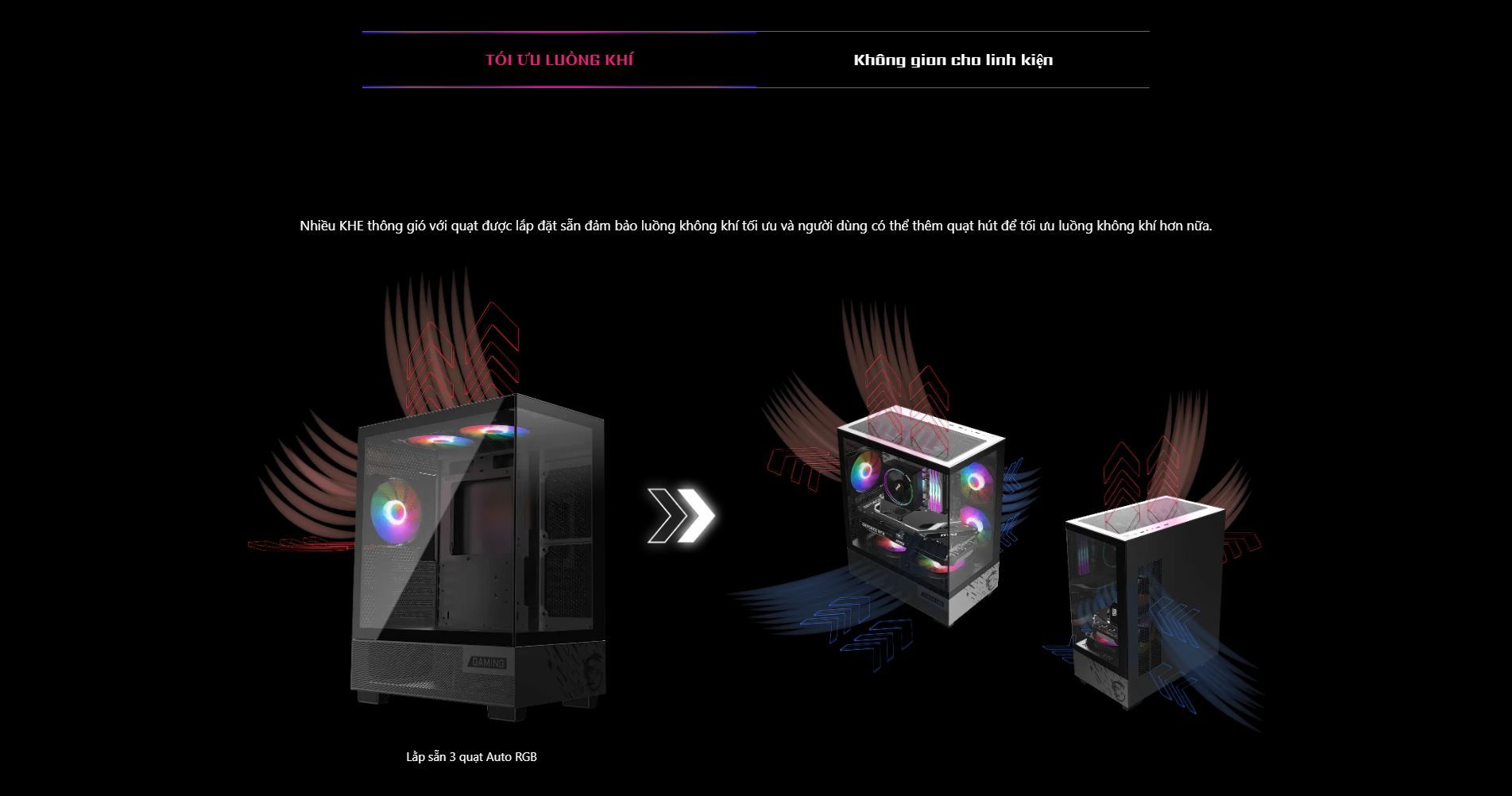

Pre-install Fan

Top: 2 x 120 mm
Rear: 1 x 120 mm

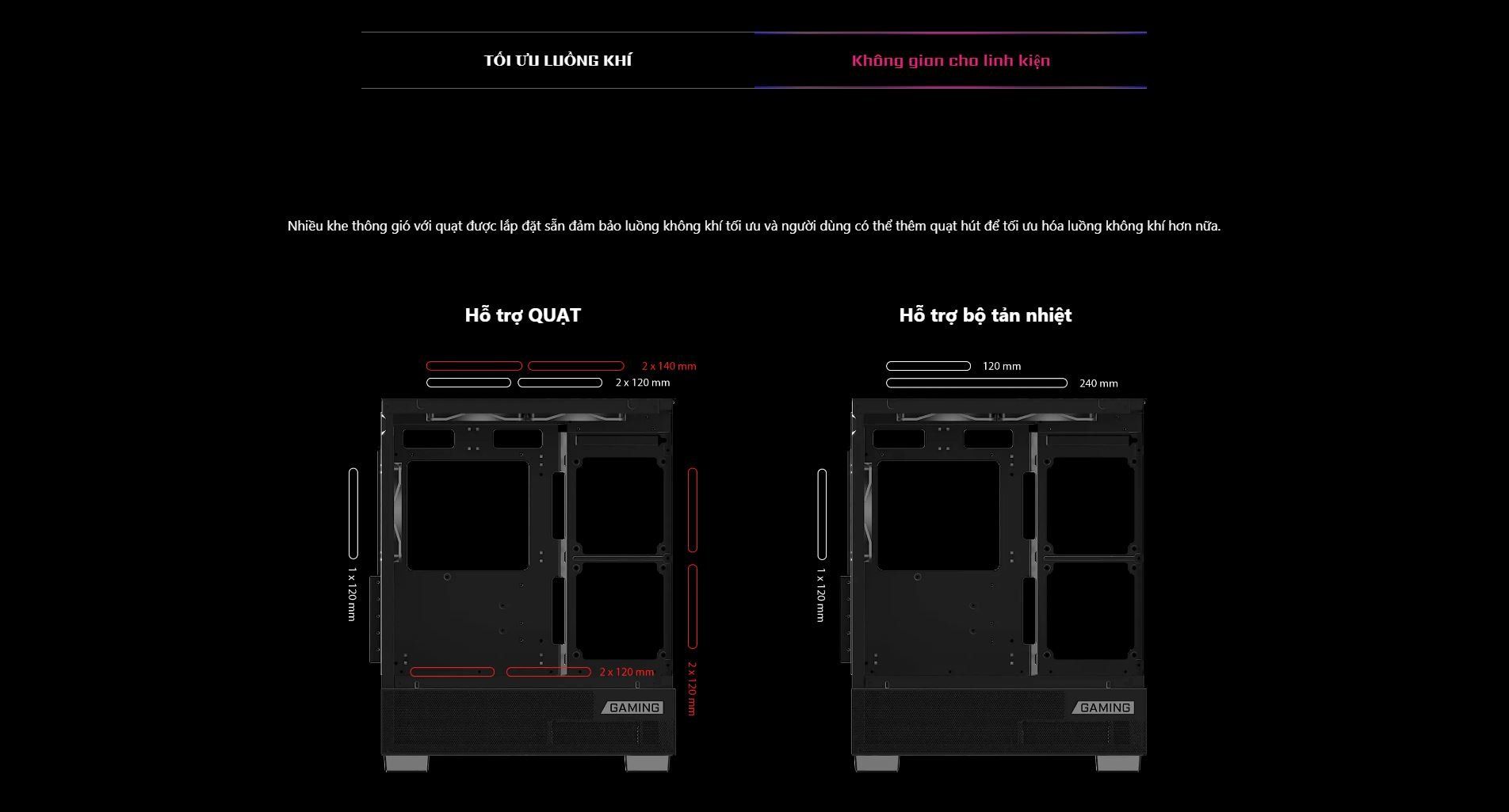

RADIATOR LAYOUT

Rear: 120 mm
Top: 120 / 240 mm

Fan Support

Rear: 1 x 120 mm
Top: 2 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Bottom: 2 x 120 mm

Maximum PSU Length

160 mm / 6.29 inches

Maximum GPU Length

330 mm / 12.99 inches

Maximum CPU Cooler Length

160 mm / 6.29 inches

Lightning

Top: 2 x Auto RGB Fan
Rear: 1 x Auto RGB Fan

Power Supply

ATX

Gross Weight

N/A kg / N/A lbs (TBD)

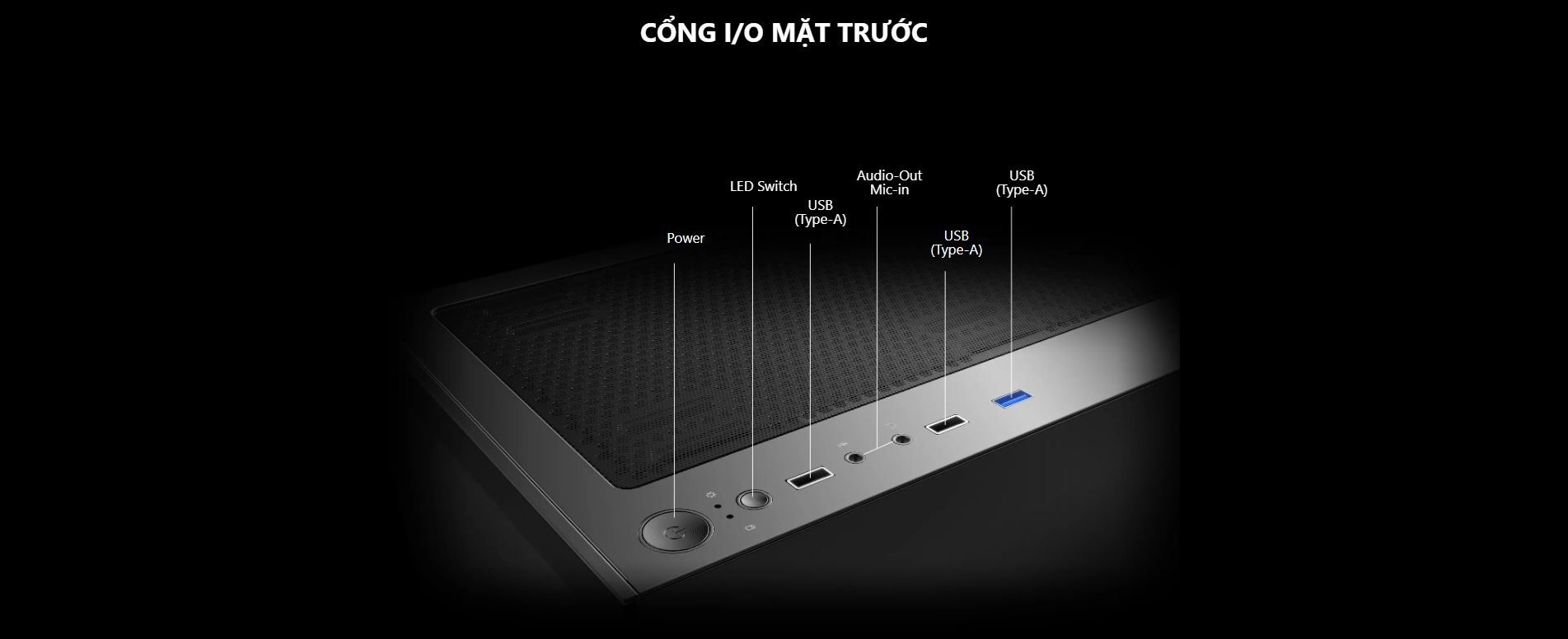

Connection

1. USB (Type-A)

2. 2 x USB 5Gbps (Type-A)

3. Audio Out

4. Mic In

5. LED Switch

6. Power Button
