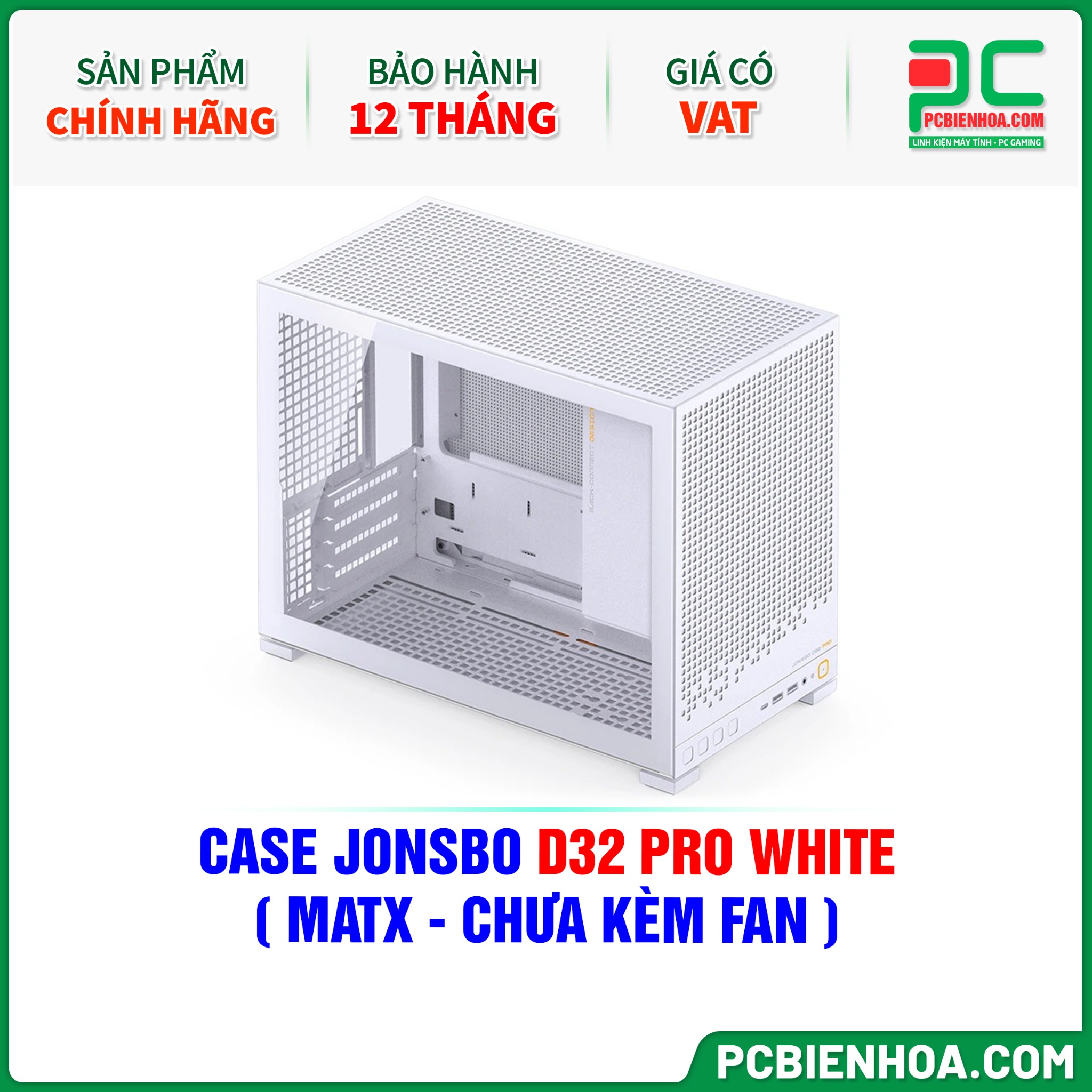

Model

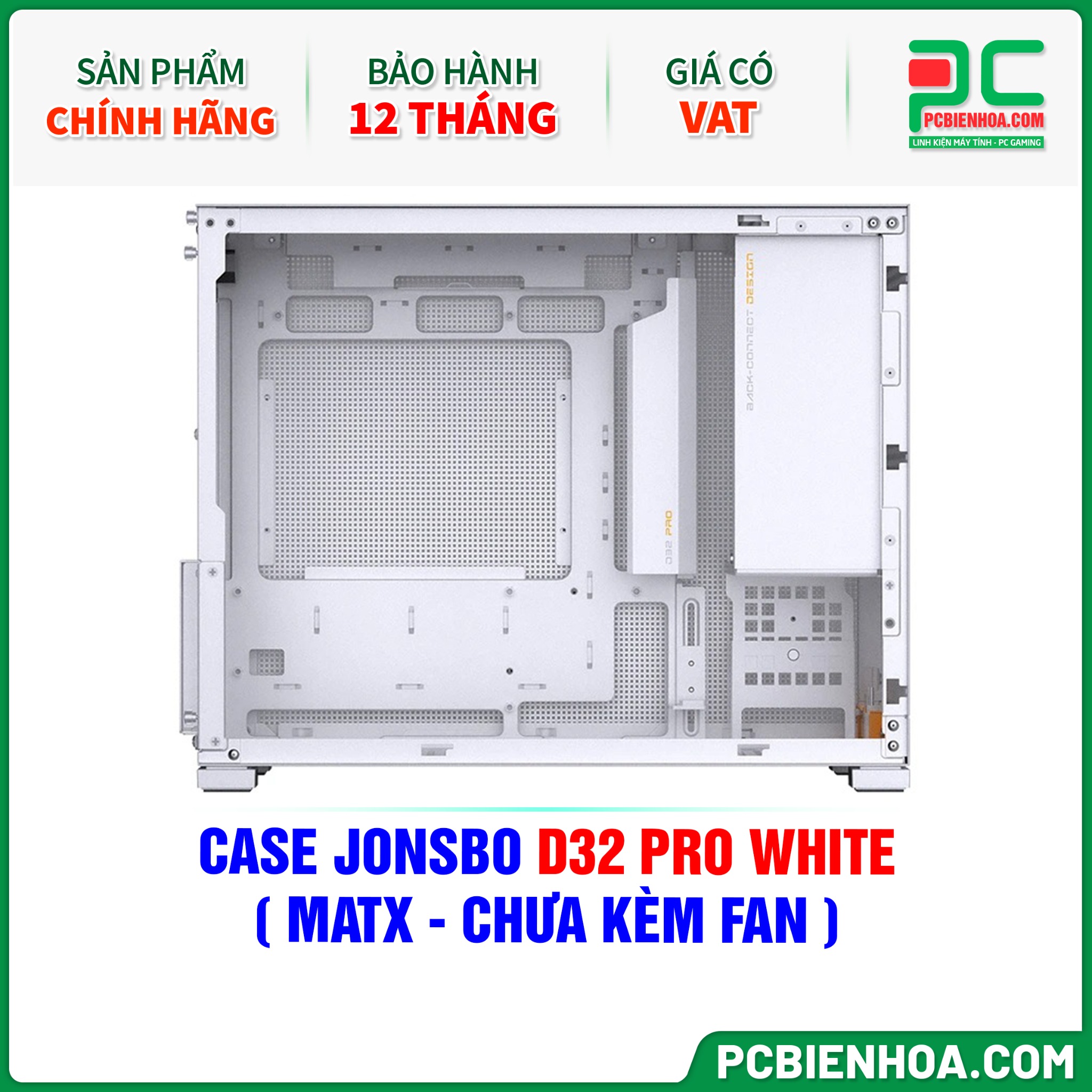

D32 PRO

Color

White

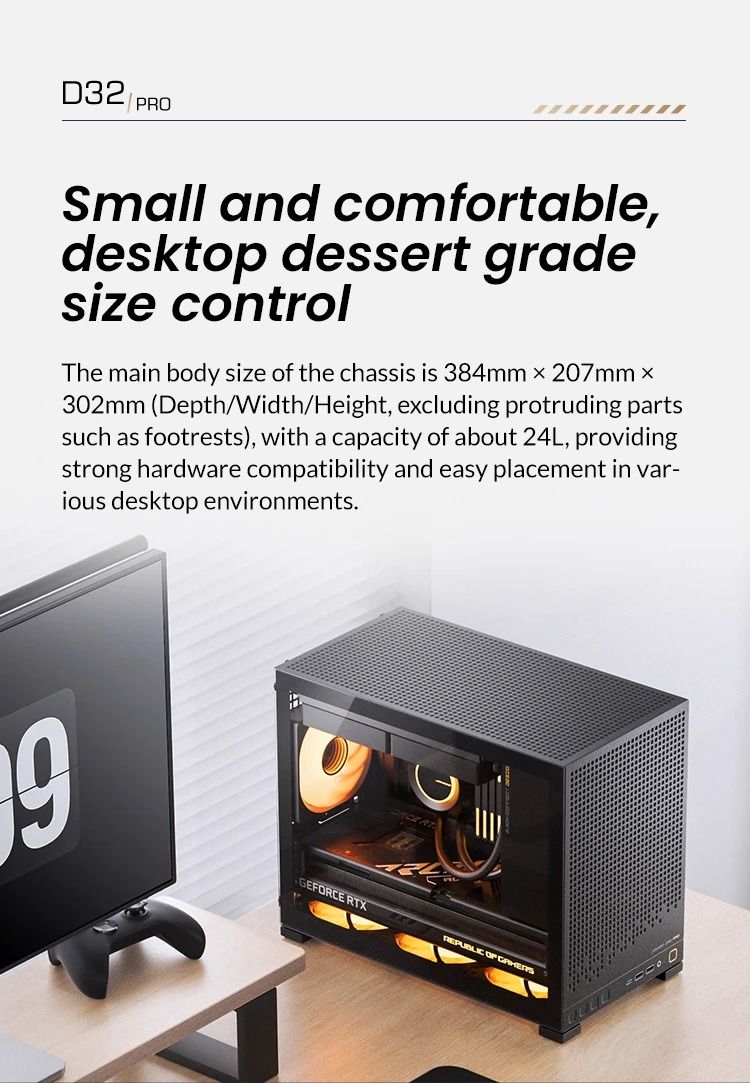

Dimensions (w/o feet and other protrusions)

384mm x 207mm x 302mm (depth/width/height)

Dimensions (with feet and other protrusions)

396mm x 207mm x 314mm (depth/width/height)

Case Material

SPCC Steel(0.7mm+0.8mm)

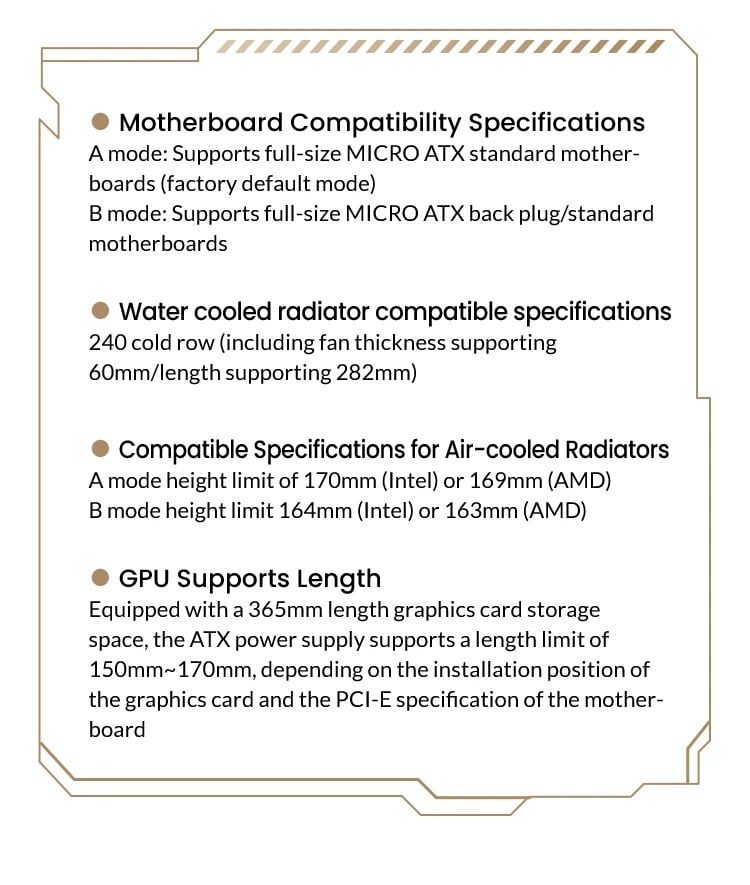

Motherboard Support

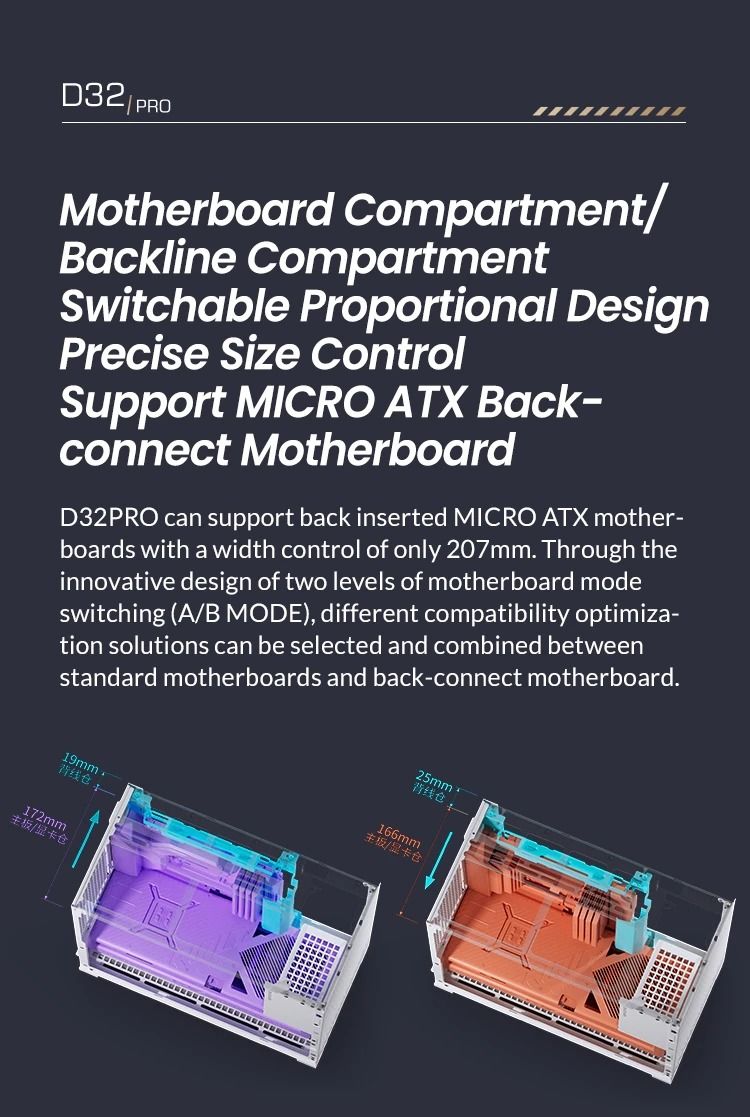

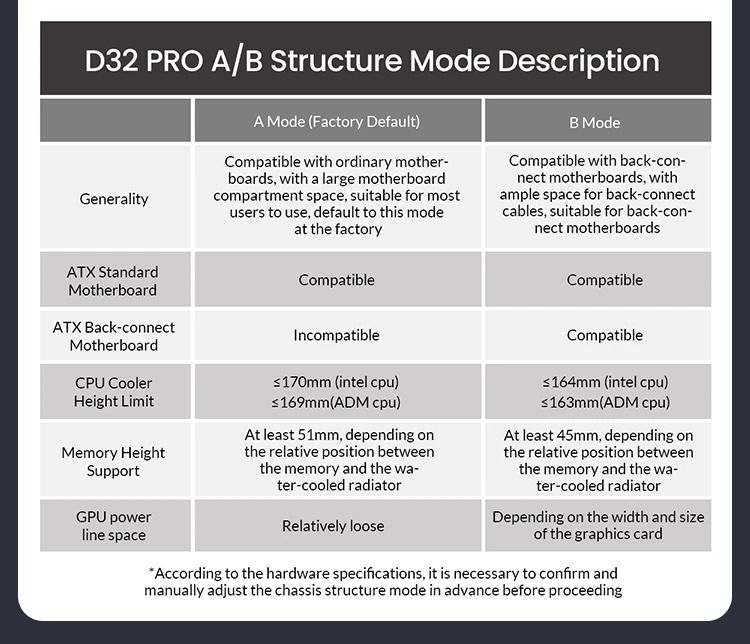

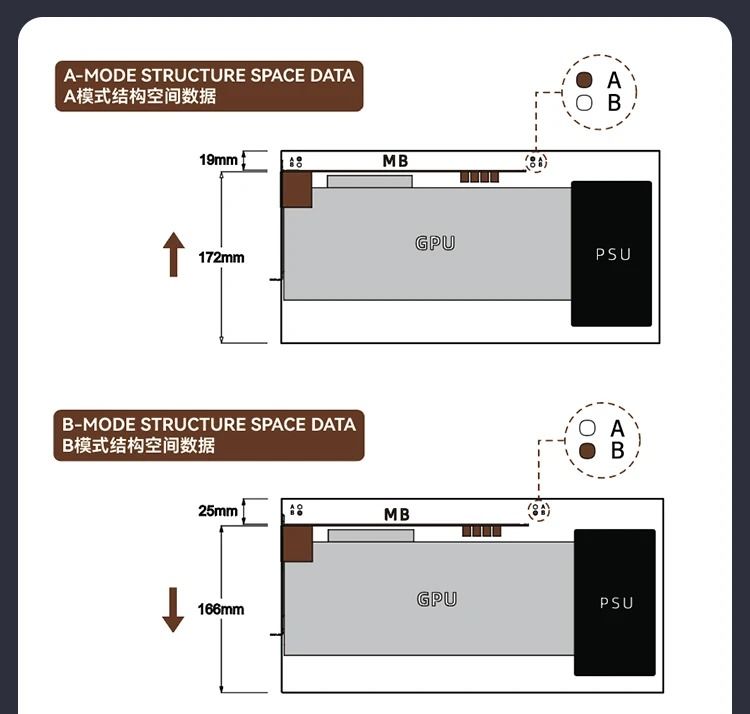

Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, the chassis needs to be   switched to B mode)

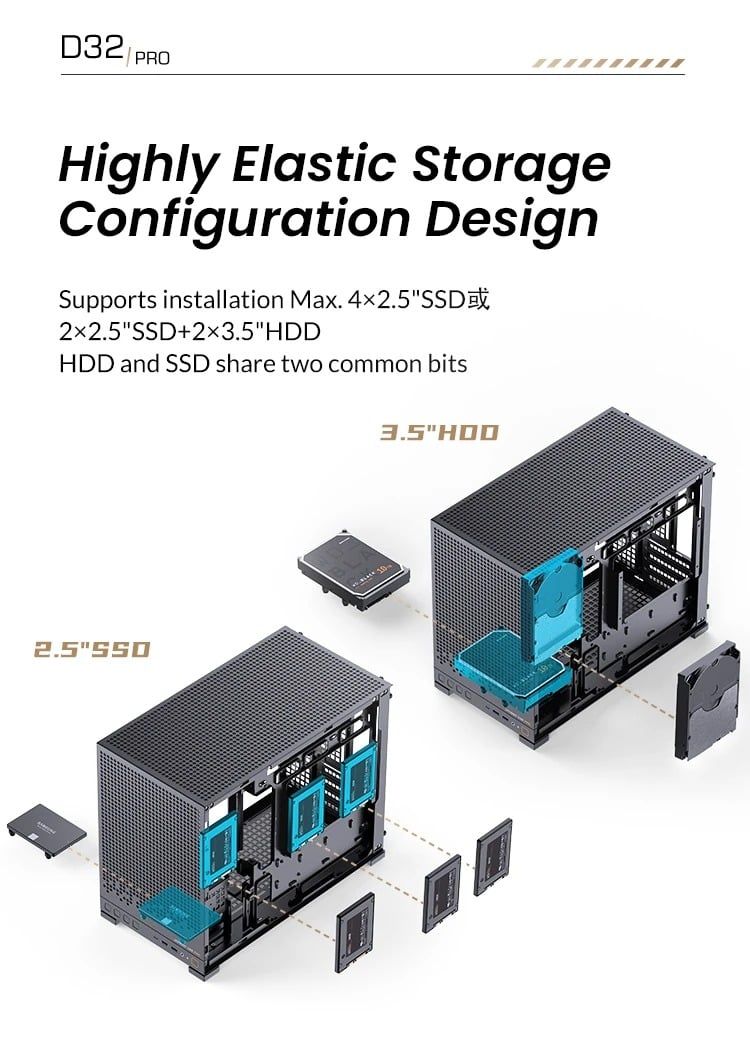

Drive Bay

2.5": Up to 4, depends on other hardware configurations
3.5": Up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations

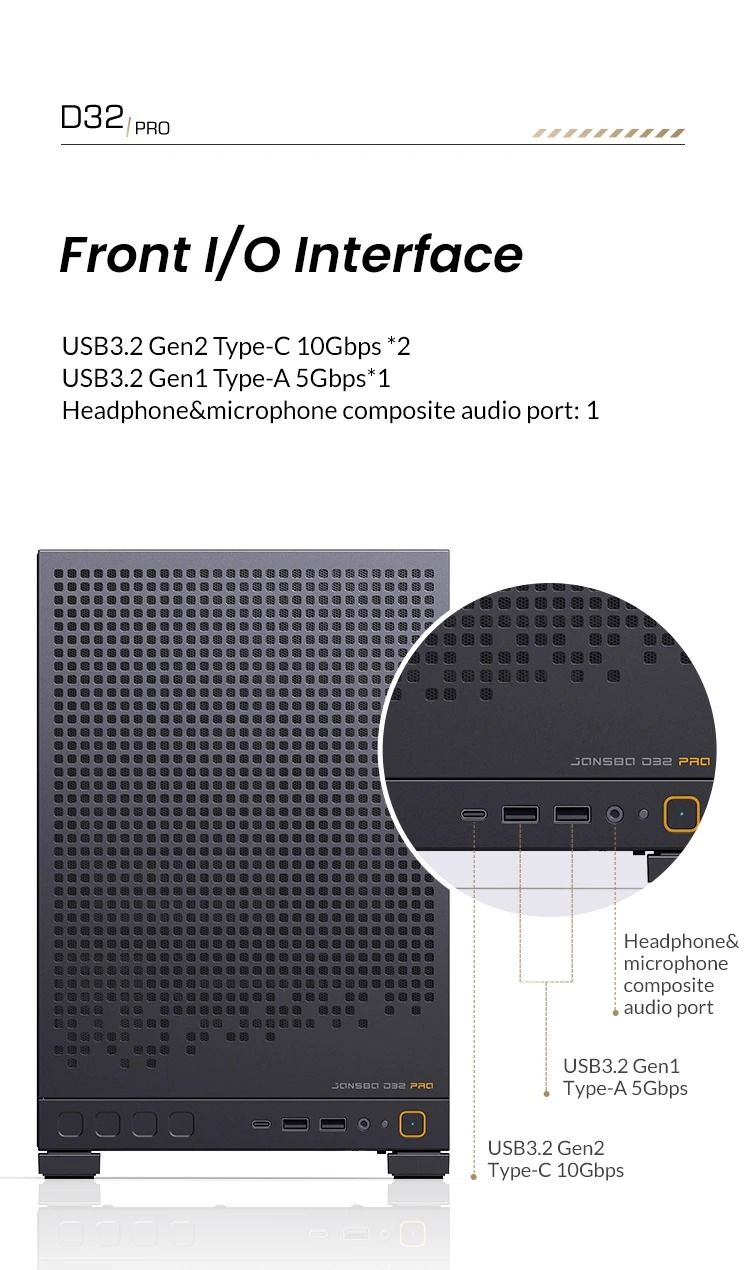

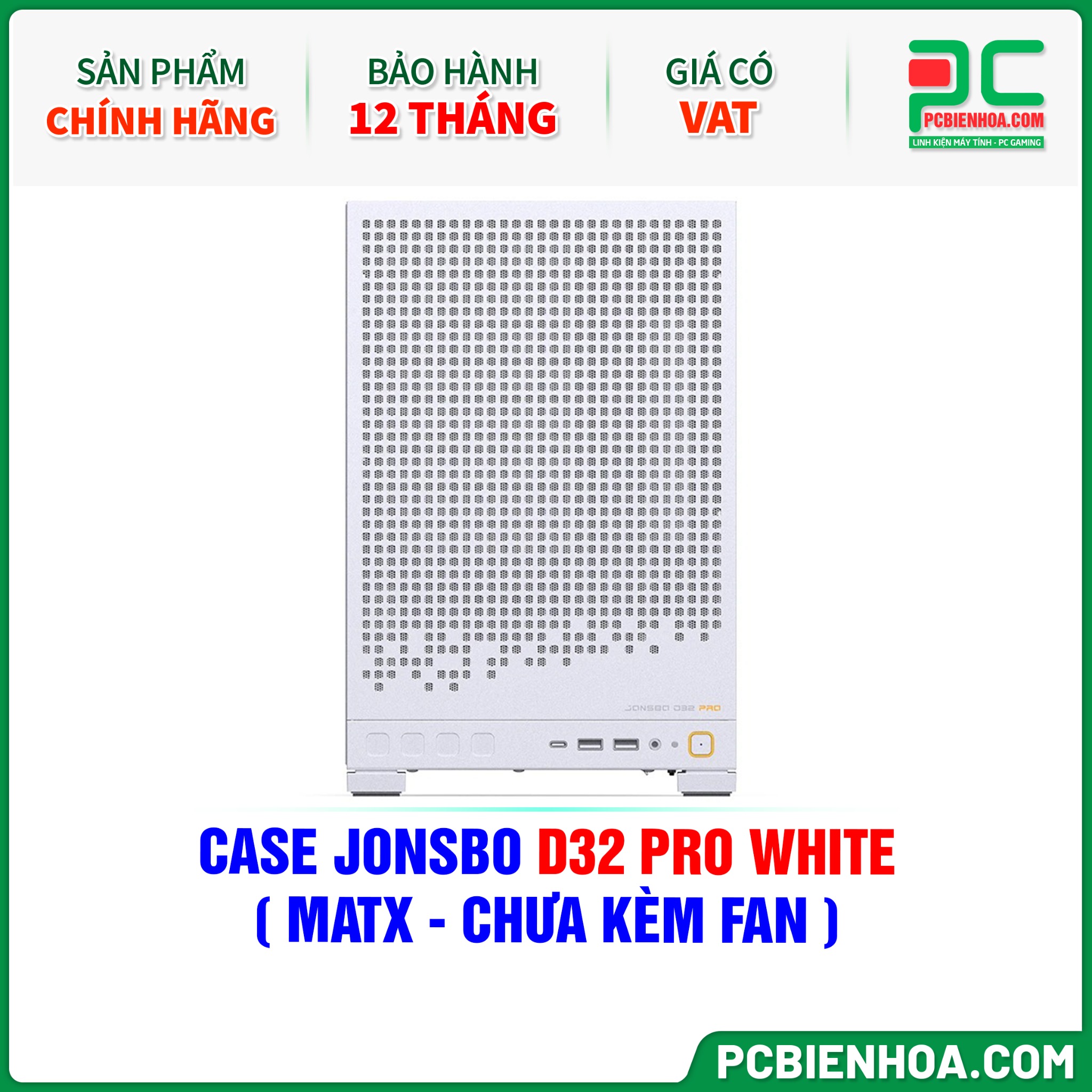

Front IO Port

USB3.2 Gen1 Type-A*2

USB3.2 Gen 2 Type-C*1

AUDIO*1 & MIC*1

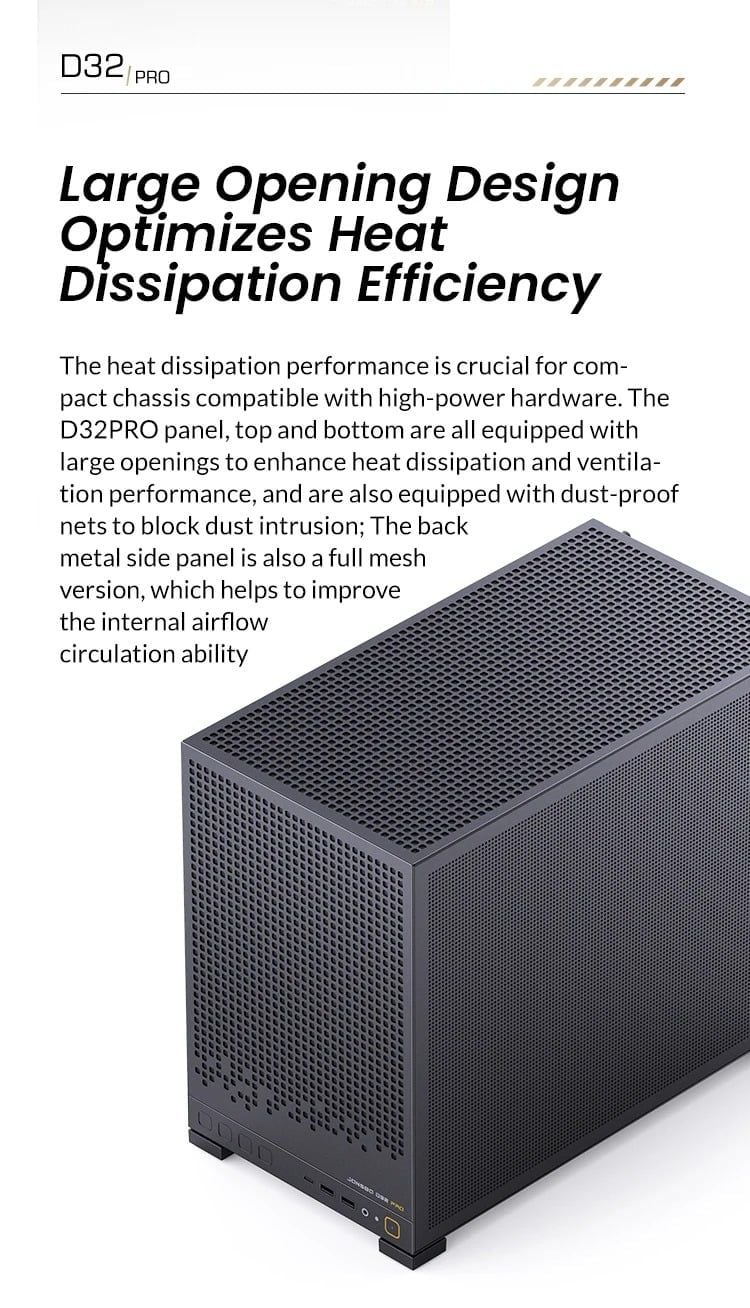

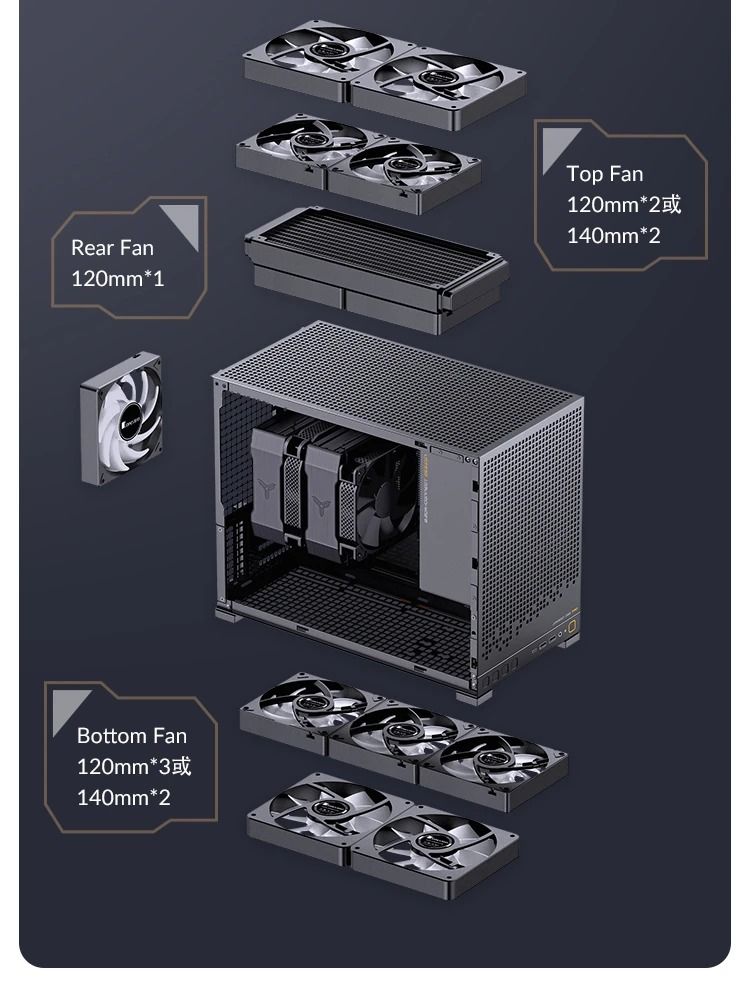

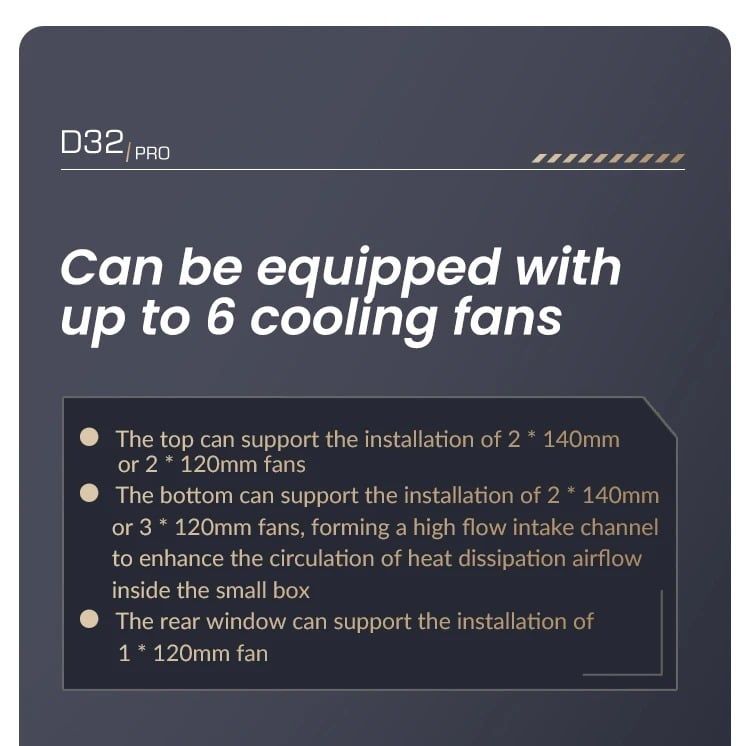

FAN

Top: 2 x 120mm / 2 x 140mm

Rear: 1 x 120mm

Bottom: 3 x 120mm / 2 x 140mm, depends on other hardware configurations

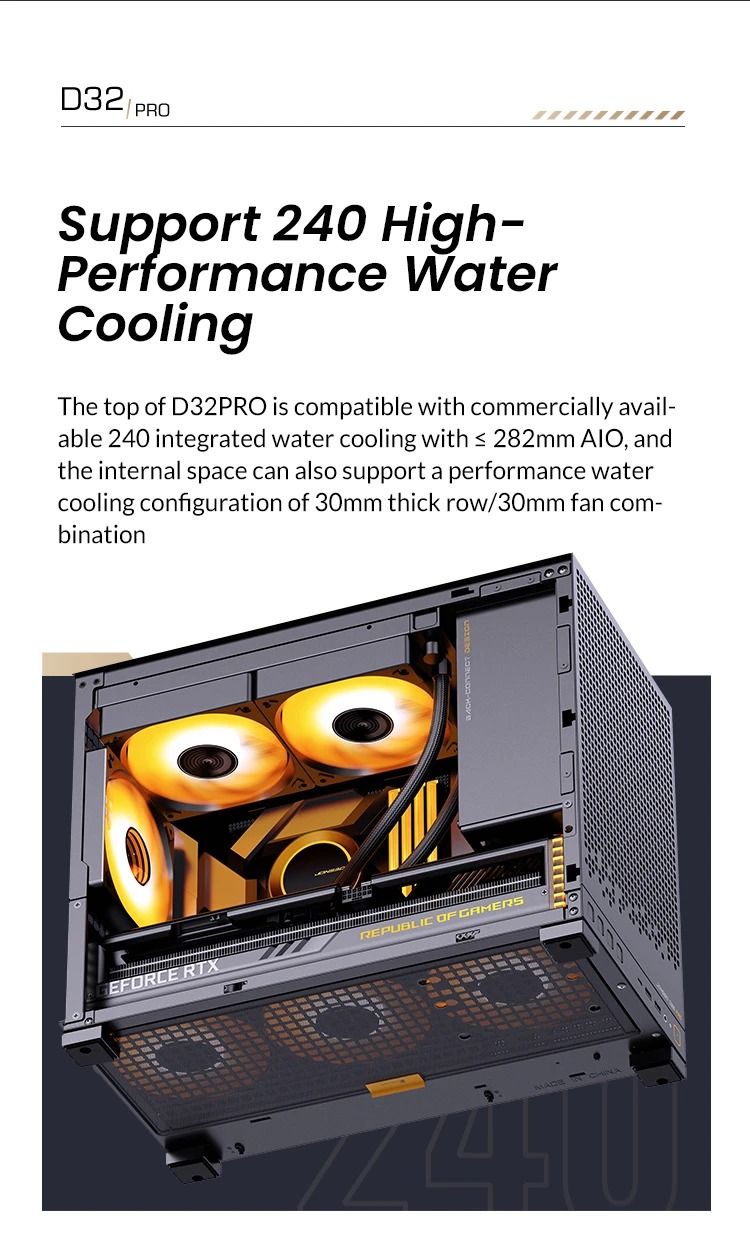

Radiator support

Top，up to 240mm

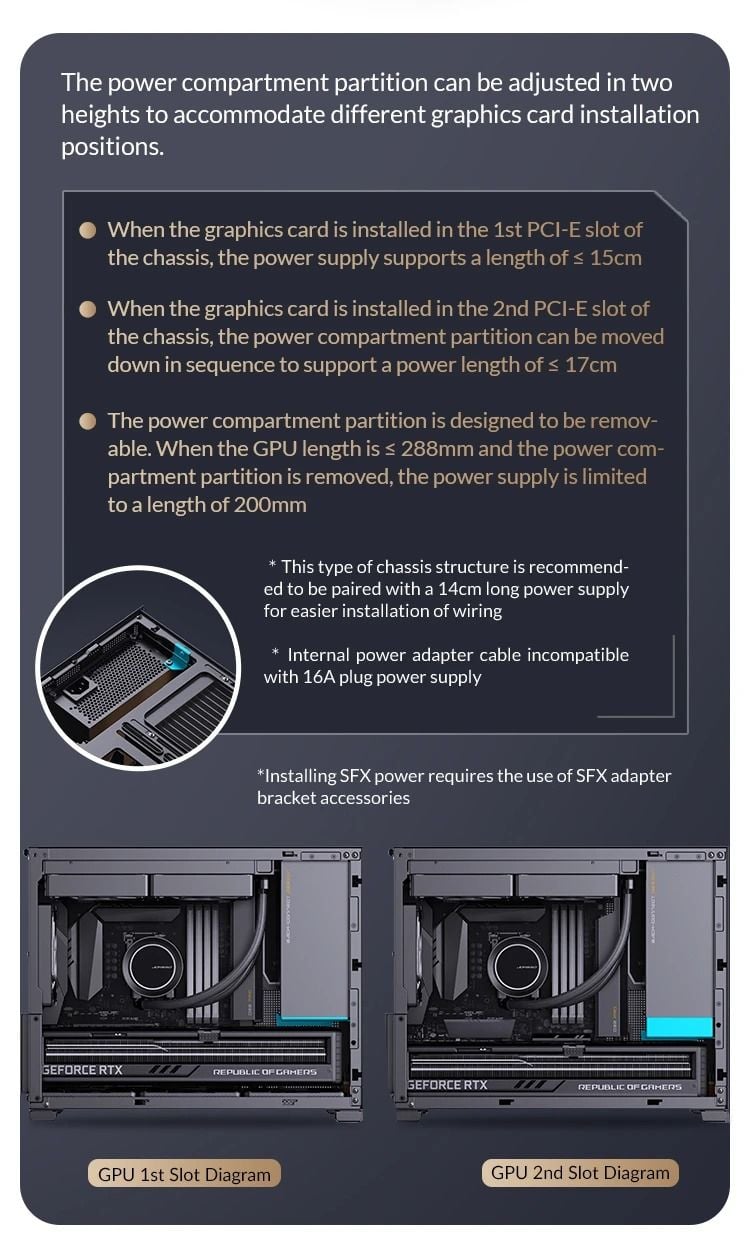

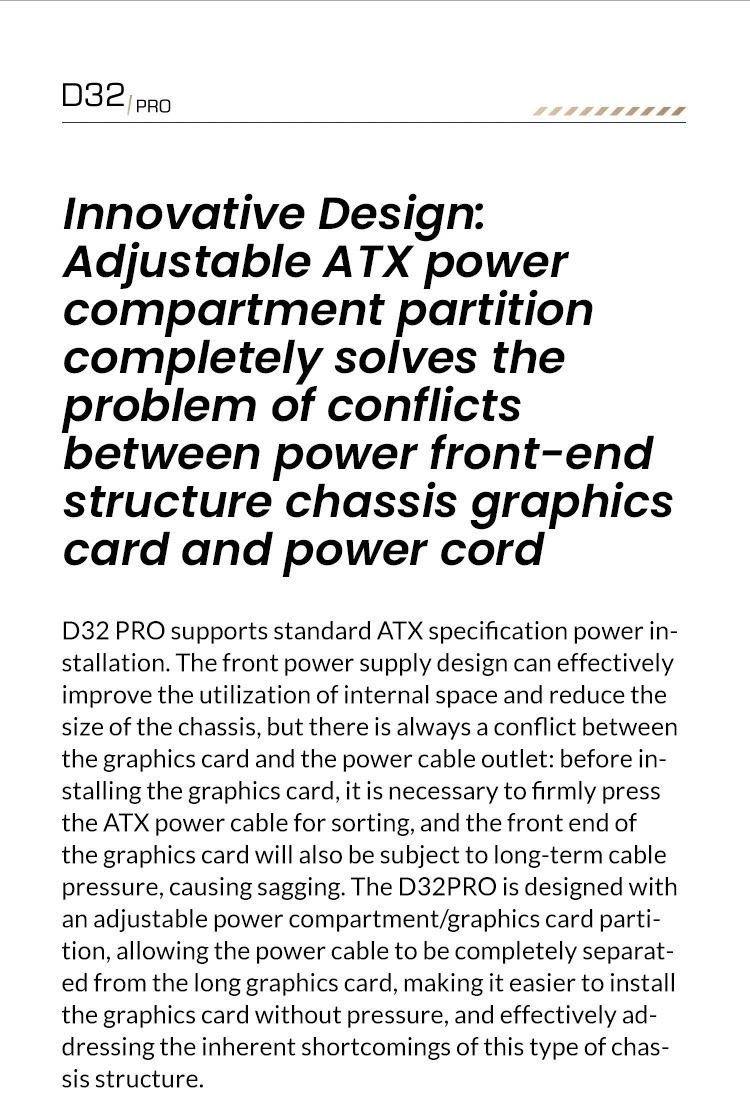

ATX PS2 PSU Clearance

ATX PS2 PSU Clearance：

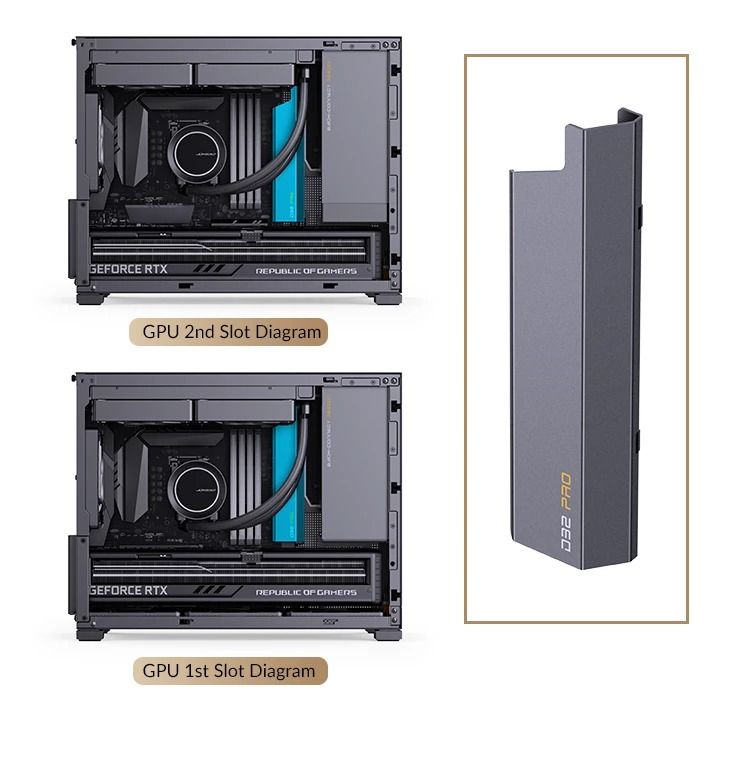

       • When the GPU is installed in the first PCI-E slot of the chassis, the maximum   length of the power supply is 150mm, and the recommended length is ≤140mm
       • When the GPU is installed in the second PCI-E slot of the chassis, the maximum   length of the power supply is 170mm, and the recommended length is ≤160mm
       *This mounting position depends on the motherboard, please refer to the motherboard specifications
       • When the GPU length is ≤288mm and the power compartment partition is removed, the power supply   length is limited to 200mm (not compatible with 16A plugs)
SFX PSU Support：SFX / SFX-L

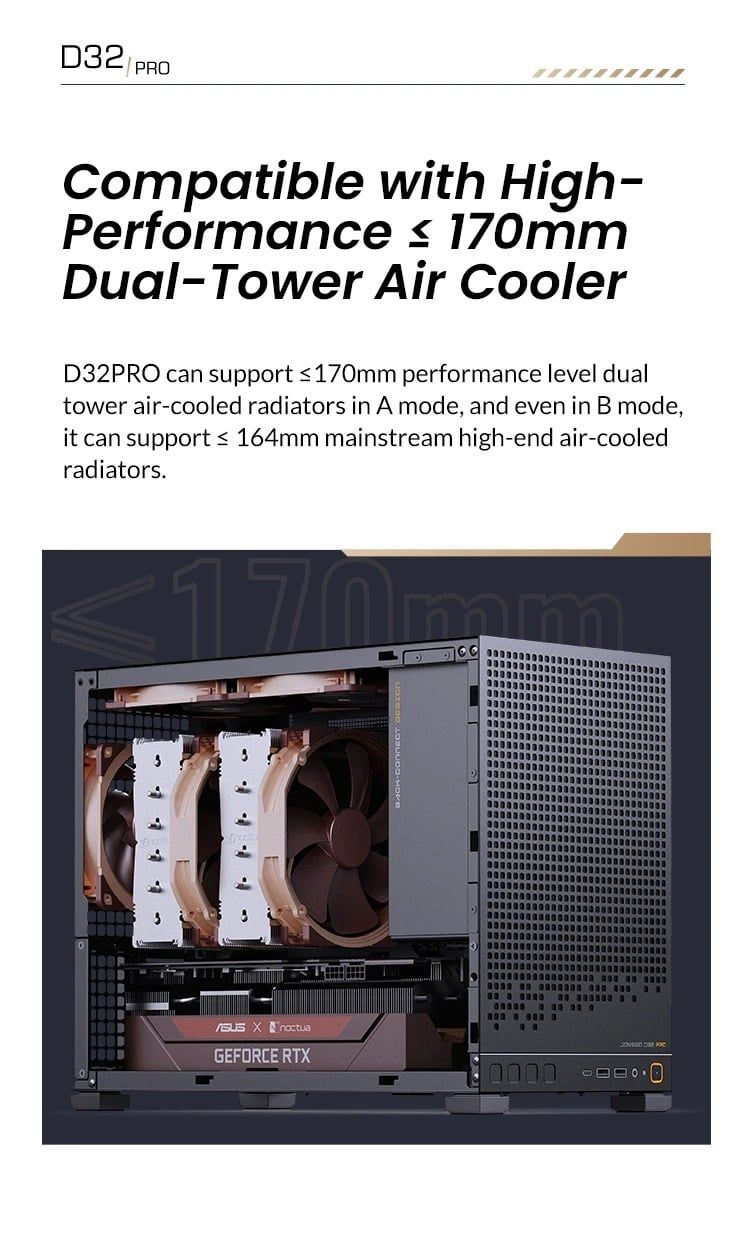

CPU Air Cooler Clearance

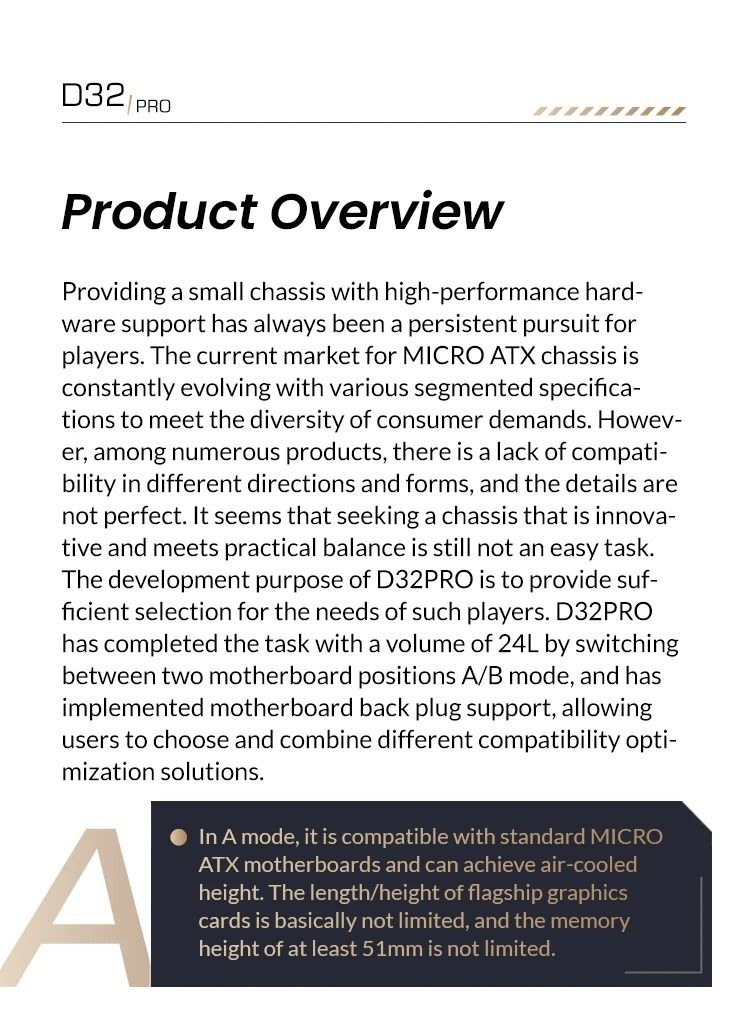

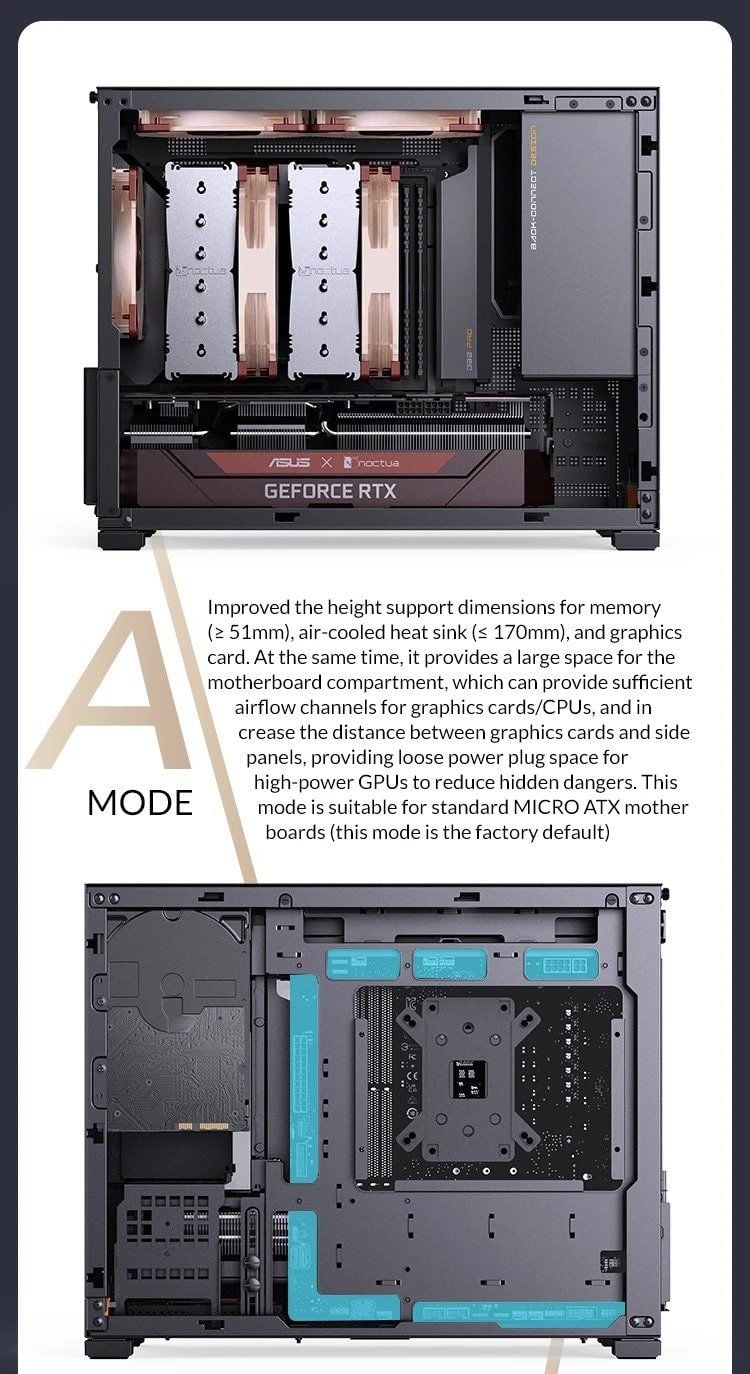

In A mode, the height limit is 170mm (Intel CPU) or 169mm (AMD CPU)

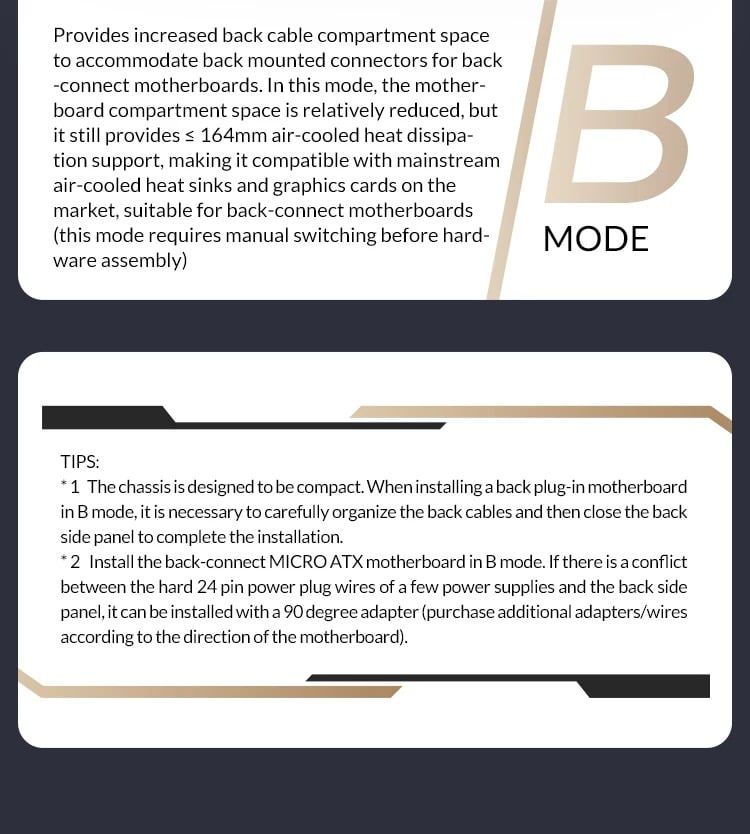

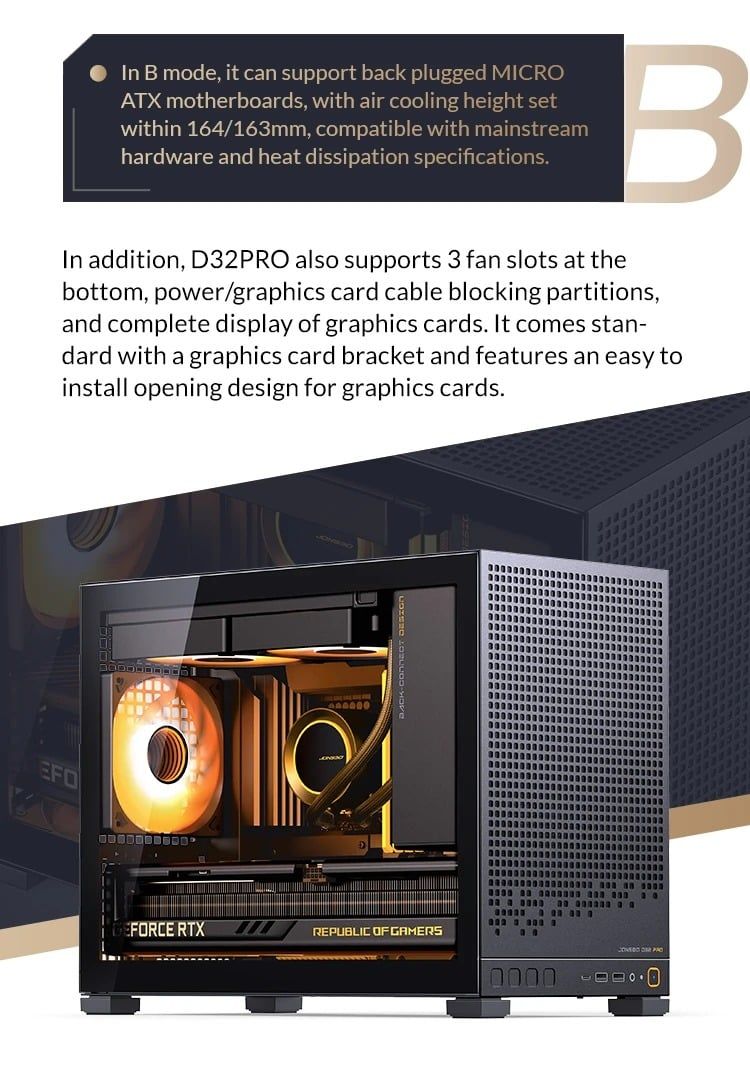

In B mode, the height limit is 164mm (Intel CPU) or 163mm (AMD CPU)

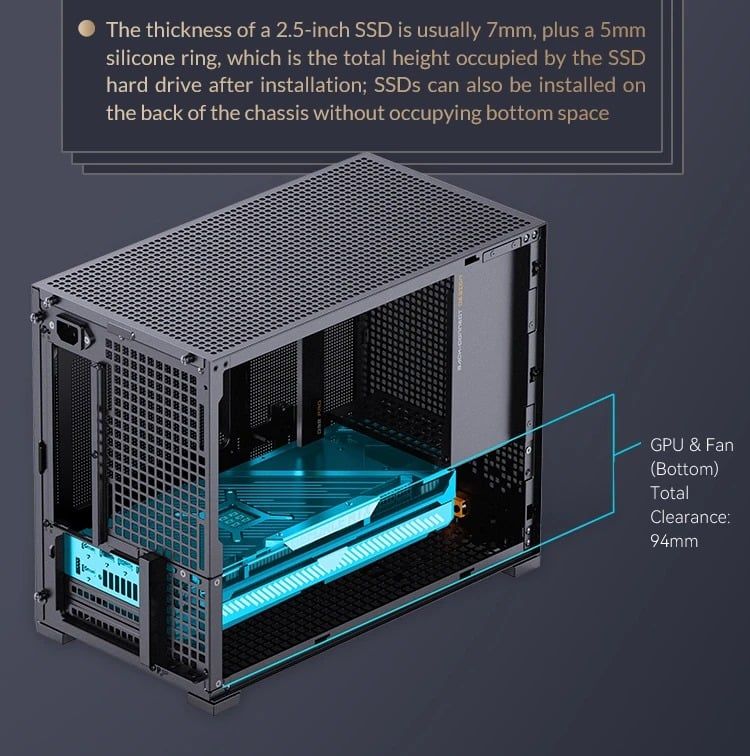

GPU Clearance

Up to 365mm

Weight

N.W. 4.6kg
G.W. 5.8kg
